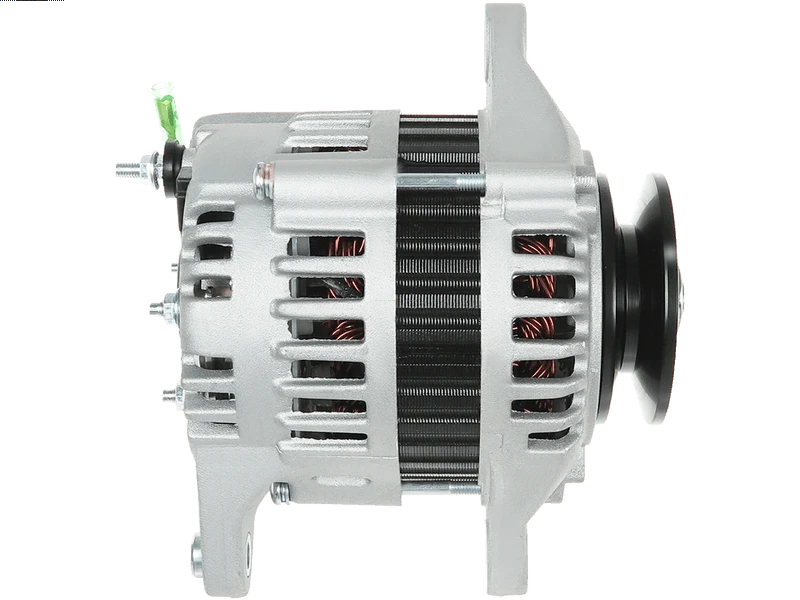

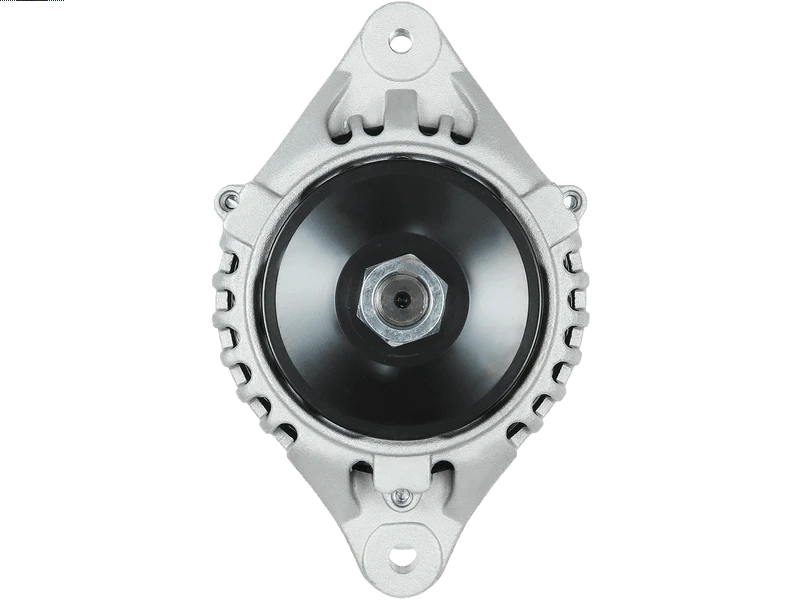

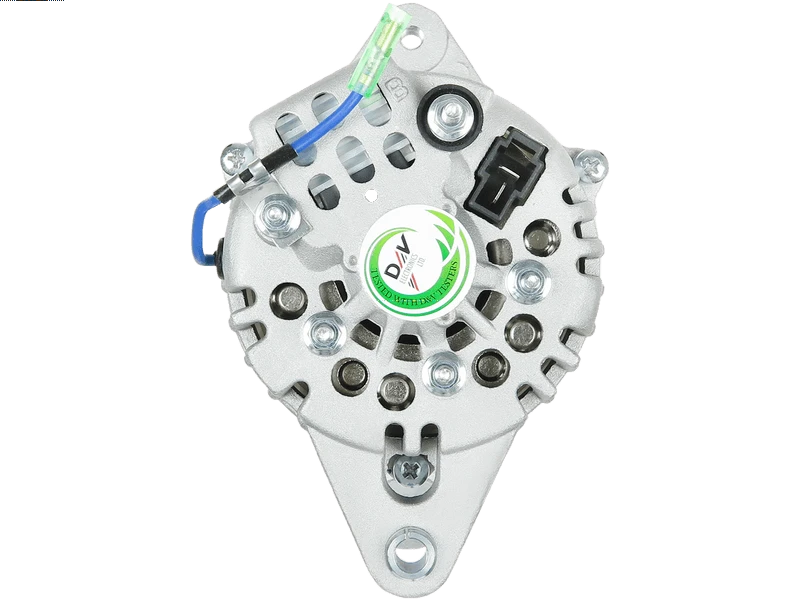

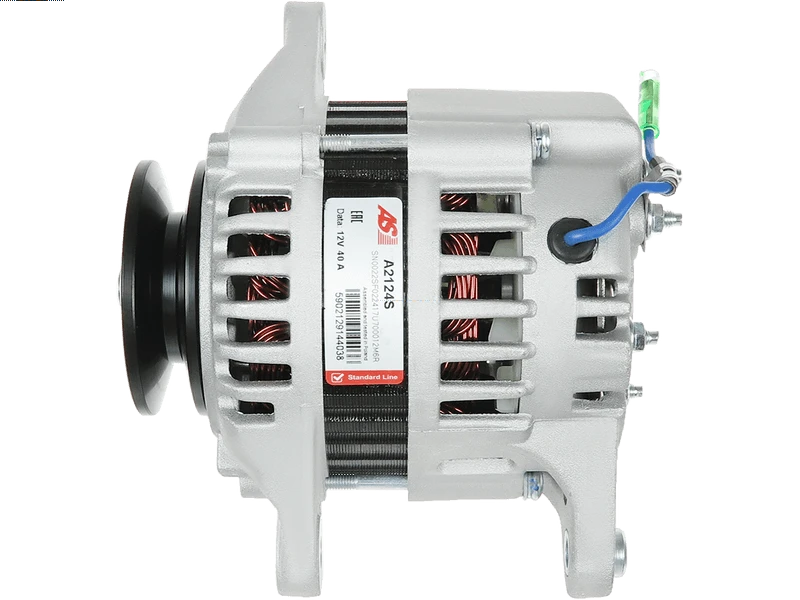

A2124S - Brand new AS-PL Alternator

Name: Brand new AS-PL Alternator
Brand: AS-PL
SKU: A2124S
Price: 315.71 NZD
Availability: SoldOut

Brand new AS-PL Alternator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

HITACHI

Price:

NZ$ 315.71 including GST

NZ$ 274.53 excluding GST

UOM:

each

Product Code:

A2124S

Quantity In Stock Nationally:

No stock in NZ

Availability:

No stock in NZ

Specifications
Vehicle Applications
Reference Information
Video/Publications
Related Items

Amp	40 A
Bottom Mounting Foot Width (B)	12 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	8 mm
Diameter (D.3)	8 mm
Length (L.1)	166 mm
Mount Inside Length or Pad Mount C-C (C)	68 mm
OEM Product	No
Plug Code	PL_2500
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	1 qty
Pulley Groove Width (W.1)	12.5 mm
Pulley Outside Diameter (O.D.1)	44 mm
Pulley Outside Diameter (O.D.2)	74 mm
Pulley to Mount Distance (A)	42 mm
Pulley Type	SOLID
Unit Type	HITACHI
Voltage	12 V

Make	Model	Type	Year
ATLAS COPCO	QAS18	[4TNE88]	01.1997-12.2007
DAEWOO	DSL801	[3TN100]	01.1997-12.2007
DAEWOO	Solar 55W-V	[4TNV94-L]	01.2006-12.2009
DAEWOO	Solar 75-V	[4TNE98XDB]	01.2003-12.2009
DOOSAN	450 Plus	[4TNV98-ZNDS]	01.2008-12.2013
DOOSAN	460 Plus TIER-3	[4TNV98-ZNDS]	01.2008-12.2013
DOOSAN	B55W-2	[4TNV98-E]	01.2008-12.2013
DOOSAN	DX53W	[4TNV98-E]	01.2008-12.2013
DOOSAN	DX55	[4TNV98-E]	01.2008-12.2013
DOOSAN	DX55W	[4TNV98-E]	01.2008-12.2013
DOOSAN	DX60R	[4TNV98-E]	01.2008-12.2013
DOOSAN	DX80R	[4TNV98-E]	01.2008-12.2013
DOOSAN	E55W	[4TNV98-E]	01.2008-12.2013
DOOSAN	E60	[4TNV98-E]	01.2008-12.2013
DOOSAN	E80	[4TNV98-E]	01.2008-12.2013
JOHN DEERE	4475	[31.0HP]	01.1994-12.1998
JOHN DEERE	4475	[3TNE84]	01.1994-12.2007
JOHN DEERE	5575	[36.0HP]	01.1995-12.1998
JOHN DEERE	5575	[3TNE88]	01.1994-12.2007
JOHN DEERE	6675	[42HP]	01.1994-12.1998
JOHN DEERE	6675	[4TNE84]	01.1994-12.2007
JOHN DEERE	7775	[49.0HP]	01.1994-12.1998
JOHN DEERE	7775	[4TNE88]	01.1994-12.2007
JOHN DEERE	Engine	[3012DF101]
JOHN DEERE	Engine	[3012DF105]
JOHN DEERE	Engine	[3012DF106]
JOHN DEERE	Engine	[3015DF]
JOHN DEERE	Engine	[3015DF106]
JOHN DEERE	Engine	[4020DF]
JOHN DEERE	Engine	[4020DF101]
JOHN DEERE	Engine	[4020DF105]
JOHN DEERE	Engine	[4020DF106]
JOHN DEERE	Engine	[4020TF]
KOBELCO	30SR2	[3TNV82A]	01.2003-12.2005
KOBELCO	35SR	[3TNV82A]	01.2002-12.2013
KOBELCO	35SR2	[3TNV82A]	01.2002-12.2013
KOBELCO	SK025	[3TNC78L]	01.1994-12.2004
KOBELCO	SK025-2	[3TNC78L]	01.1994-12.2004
KOBELCO	SK025SR	[3TNV80F-SXNBV]	01.1988-12.2005
KOBELCO	SK030SR	[3TN84L-RTBB]	01.1988-12.2009
KOBELCO	SK030SR-2	[3TN84L-RTBB]	01.1988-12.2009
KOBELCO	SK035SR	[3TN84L-RTBC]	01.1998-12.2001
KOBELCO	SK035SR-2	[3TN84L-RTBC]	01.2001-12.2009
KOBELCO	SK040SR	[4TNV88]	01.1988-12.2006
KOBELCO	SK045SR	[4TNE88]	01.1988-12.2002
KOBELCO	SK45SR-2	[4TNE88-EYBC]	01.2001-12.2006
KOMATSU	D21A-7	[4D94E-1A]	01.1993-12.2006
KOMATSU	D21A-A8	[4D94LE-2Z-AD]	01.2004-12.2014
KOMATSU	D21A-A8E0	[4D94LE-2Z-AD]	01.2008-12.2011
KOMATSU	D21P-8	[4D94LE-2Z-AD]	01.2006-12.2014
KOMATSU	D21PL-8	[4D94LE-2Z-AD]	01.2006-12.2014
KOMATSU	FD15-17	[4D92-1BD-F]	01.2001-12.2012
KOMATSU	FD15-17-EC	[4D92-1BD-F]	01.2001-12.2012
KOMATSU	FD18-16	[4D92E-1BD-F]	01.2001-12.2012
KOMATSU	FD18-17	[4D92-1BD-F]	01.2001-12.2012
KOMATSU	FD18-17-EC	[4D92E-1BD-F]	01.2001-12.2012
KOMATSU	FD20-12	[4D94E-1BD-F]	01.2003-12.2012
KOMATSU	FD20-14	[4D94E-1BD-F]	01.2003-12.2012
KOMATSU	FD20-14-EC	[4D94E-1BD-F]	01.2003-12.2012
KOMATSU	FD20-15	[4D94E-1ABD-F]	01.2003-12.2012
KOMATSU	FD20-16	[4D94LE-1B38-BM]	01.2003-12.2012
KOMATSU	FD20-16	[4D94LE-1B45-BM]	01.2003-12.2012
KOMATSU	FD20-16	[4D94LE-1B46-BM]	01.2003-12.2012
KOMATSU	FD20-16	[4D98E-1B41-C]	01.2003-12.2012
KOMATSU	FD20-16	[4D98E-1G38-BM]	01.2003-12.2012
KOMATSU	FD20-16	[4D98E-1G45-BM]	01.2003-12.2012
KOMATSU	FD20-16	[4D98E-1G46-BM]	01.2003-12.2012
KOMATSU	FD20-17	[4D94LE-1B45C]	01.2003-12.2012
KOMATSU	FD20H-12	[4D98E-1GD-F]	01.2003-12.2012
KOMATSU	FD20H-14	[4D98E-1GD-F]	01.2003-12.2012
KOMATSU	FD20H-15	[4D98E-1AGD-F]	01.2003-12.2012
KOMATSU	FD20H-17	[4D98E-1B45C]	01.2003-12.2012
KOMATSU	FD20N-15	[4D94E-1ABD-F]	01.2003-12.2012
KOMATSU	FD20N-16	[4D98E-1B41-C]	01.2003-12.2012
KOMATSU	FD20N-16	[4D98E-1G38-BM]	01.2003-12.2012
KOMATSU	FD20N-16	[4D98E-1G45-BM]	01.2003-12.2012
KOMATSU	FD20N-16	[4D98E-1G46-BM]	01.2003-12.2012
KOMATSU	FD25-12	[4D94E-1BD-F]	01.2003-12.2012
KOMATSU	FD25-14	[4D94E-1BD-F]	01.2003-12.2012
KOMATSU	FD25-14-EC	[4D94E-1BD-F]	01.2003-12.2012
KOMATSU	FD25-15	[4D94E-1ABD-F]	01.2003-12.2012
KOMATSU	FD25-16	[4D94LE-1B38-BM]	01.2003-12.2012
KOMATSU	FD25-16	[4D94LE-1B45-BM]	01.2003-12.2012
KOMATSU	FD25-16	[4D94LE-1B46-BM]	01.2003-12.2012
KOMATSU	FD25-16	[4D98E-1B41-C]	01.2003-12.2012
KOMATSU	FD25-16	[4D98E-1G38-BM]	01.2003-12.2012
KOMATSU	FD25-16	[4D98E-1G45-BM]	01.2003-12.2012
KOMATSU	FD25-16	[4D98E-1G46-BM]	01.2003-12.2012
KOMATSU	FD25-17	[4D94LE-1B45C]	01.2003-12.2012
KOMATSU	FD25H-12	[4D98E-1GD-F]	01.2003-12.2012
KOMATSU	FD25H-14	[4D98E-1GD-F]	01.2003-12.2012
KOMATSU	FD25H-15	[4D98E-1AGD-F]	01.2003-12.2012
KOMATSU	FD25H-17	[4D98E-1B45C]	01.2003-12.2012
KOMATSU	FD25N-15	[4D94E-1ABD-F]	01.2003-12.2012
KOMATSU	FD25N-16	[4D98E-1B41-C]	01.2003-12.2012
KOMATSU	FD25N-16	[4D98E-1G38-BM]	01.2003-12.2012
KOMATSU	FD25N-16	[4D98E-1G45-BM]	01.2003-12.2012
KOMATSU	FD25N-16	[4D98E-1G46-BM]	01.2003-12.2012
KOMATSU	FD28-12	[4D94E-1BD-F]	01.2003-12.2012
KOMATSU	FD30-12	[4D94E-1BD-F]	01.2003-12.2012
KOMATSU	FD30-14	[4D94E-1BD-F]	01.2003-12.2012
KOMATSU	FD30-14-EC	[4D94E-1BD-F]	01.2003-12.2012
KOMATSU	FD30-15	[4D94E-1ABD-F]	01.2003-12.2012
KOMATSU	FD30-16	[4D94LE-1B38-BM]	01.2003-12.2012
KOMATSU	FD30-16	[4D94LE-1B45-BM]	01.2003-12.2012
KOMATSU	FD30-16	[4D94LE-1B46-BM]	01.2003-12.2012
KOMATSU	FD30-16	[4D98E-1B41-C]	01.2003-12.2012
KOMATSU	FD30H-12	[4D98E-1GD-F]	01.2003-12.2012
KOMATSU	FD30H-14	[4D98E-1GD-F]	01.2003-12.2012
KOMATSU	FD30H-15	[4D98E-1AGD-F]	01.2003-12.2012
KOMATSU	FD30H-16	[4D98E-1G38-BM]	01.2003-12.2012
KOMATSU	FD30H-16	[4D98E-1G45-BM]	01.2003-12.2012
KOMATSU	FD30H-16	[4D98E-1G46-BM]	01.2003-12.2012
KOMATSU	FD30H-17	[4D98E-1B45C]	01.2003-12.2012
KOMATSU	FD30N-15	[4D94E-1ABD-F]	01.2003-12.2012
KOMATSU	FD30N-16	[4D94LE-1B38-BM]	01.2003-12.2012
KOMATSU	FD30N-16	[4D94LE-1B45-BM]	01.2003-12.2012
KOMATSU	FD30N-16	[4D94LE-1B46-BM]	01.2003-12.2012
KOMATSU	FD30N-16	[4D98E-1B41-C]	01.2003-12.2012
KOMATSU	FD35A-16	[4D98E-1B41-C]	01.2003-12.2012
KOMATSU	FD35A-16	[4D98E-1G38-BM]	01.2003-12.2012
KOMATSU	FD35A-16	[4D98E-1G45-BM]	01.2003-12.2012
KOMATSU	FD35A-16	[4D98E-1G46-BM]	01.2003-12.2012
KOMATSU	FD35A-17	[4D98E-1B45C]	01.2003-12.2012
KOMATSU	JV25CR-5	[3D78N-1A]	01.1984-12.2006
KOMATSU	JV25CR-6	[3D78N-1E]	01.2000-12.2006
KOMATSU	JV25CR-7	[3D78AE-3C]	01.2000-12.2006
KOMATSU	JV25CW-2	[3D84E-3E]	01.1984-12.2006
KOMATSU	JV25DW-2	[3D84E-3E]	01.1984-12.2006
KOMATSU	JV25W-2	[3D84E-3E]	01.1984-12.2006
KOMATSU	JV40CW-3	[3D84E-3G]	01.1984-12.2006
KOMATSU	JV40CW-3	[3D84N-2CA]	01.1984-12.2006
KOMATSU	JV40CW-5	[3D84E-3Q]	01.2004-12.2006
KOMATSU	JV40DW-3	[3D84E-3G]	01.1984-12.2006
KOMATSU	JV40DW-3	[3D84E-3Q]	01.2004-12.2006
KOMATSU	JV40DW-3	[3D84N-2CA]	01.1984-12.2006
KOMATSU	PC25-1	[3D84-2D]	01.1989-12.2001
KOMATSU	PC25R-1	[3D84-2D]	01.1989-12.2001
KOMATSU	PC25R-1	[3D84E-3B]	01.1989-12.2001
KOMATSU	PC27MR-1	[3D82AE-3H]	01.1996-12.2006
KOMATSU	PC27MR-1	[3D82AE-3HB]	01.1996-12.2006
KOMATSU	PC27MRX-1	[3D82AE-3HC]	01.2002-12.2006
KOMATSU	PC27R-8	[3D84E]	01.1996-12.2003
KOMATSU	PC30-7	[3D84-2E]	01.1987-12.1996
KOMATSU	PC30-7	[3D84E-3A]	01.1987-12.1996
KOMATSU	PC30MR-1	[3D84E-3K]	01.2002-12.2009
KOMATSU	PC30MR-1	[3D84E-3KB]	01.2002-12.2009
KOMATSU	PC30MR-1	[3D84E-3N]	01.2002-12.2009
KOMATSU	PC30MRX-1	[3D84E-3K]	01.2003-12.2004
KOMATSU	PC30R-7	[3D84-2E]	01.1987-12.1996
KOMATSU	PC30R-7	[3D84E-3A]	01.1987-12.1996
KOMATSU	PC30R-8	[3D84E-3F]	01.1997-12.2003
KOMATSU	PC35MR-1	[3D84E-3L]	01.2003-12.2004
KOMATSU	PC35MR-1	[3D84E-3LB]	01.2003-12.2004
KOMATSU	PC35MRX-1A	[3D84E-3LN]	01.2002-12.2004
KOMATSU	PC35R-8	[3D84E-3F]	01.1997-12.2003
KOMATSU	PC38UU-2	[3D84-2GA]	01.1989-12.2003
KOMATSU	PC38UU-2	[3D84E-3C]	01.1989-12.2003
KOMATSU	PC38UU-3	[3D84E-3M]	01.1989-12.2003
KOMATSU	PC38UUM-2	[3D84E-3C]	01.1989-12.2003
KOMATSU	PC40-7	[4D84-2A]	01.1989-12.2003
KOMATSU	PC40-7	[4D84E-3C]	01.1989-12.2003
KOMATSU	PC40MR-1	[4D84E-3E]	01.2003-12.2004
KOMATSU	PC40MR-1	[4D88E-3H]	01.2003-12.2004
KOMATSU	PC40MRX-1	[4D84E-3E]	01.2003-12.2004
KOMATSU	PC40MRX-1	[4D88E-3H]	01.2003-12.2004
KOMATSU	PC40R-7	[4D84-2A]	01.1989-12.2003
KOMATSU	PC40R-7	[4D84E-3C]	01.1989-12.2003
KOMATSU	PC40R-8	[4D84E-3D]	01.1996-12.2003
KOMATSU	PC40T-7	[4D84-2A]	01.1989-12.2003
KOMATSU	PC40T-7	[4D84E-3C]	01.1989-12.2003
KOMATSU	PC45-1	[4D84-2B]	01.1997-12.2003
KOMATSU	PC45-1	[4D84E-3B]	01.1997-12.2003
KOMATSU	PC45MR-1	[4D84E-3E]	01.2003-12.2004
KOMATSU	PC45MR-1	[4D88E-3H]	01.2003-12.2004
KOMATSU	PC45MRX-1	[4D84E-3E]	01.2003-12.2004
KOMATSU	PC45MRX-1	[4D88E-3H]	01.2003-12.2004
KOMATSU	PC50FR-1	[4D84E-3B]	01.1997-12.2003
KOMATSU	PC50FR-2	[4D84E-3F]	01.1997-12.2003
KOMATSU	PC50UD-2	[4D84-2GA]	01.1997-12.2003
KOMATSU	PC50UD-2	[4D88E-3B]	01.1997-12.2003
KOMATSU	PC50UU-2	[4D84-2GA]	01.1993-12.1998
KOMATSU	PC50UU-2	[4D88E-3B]	01.1993-12.1998
KOMATSU	PC50UU-2	[4D88E-3C]	01.1993-12.1998
KOMATSU	PC50UUM-2	[4D88E-3C-M]	01.1993-12.1998
KOMATSU	PC58SF-1	[4D88E-3C-04]	01.1993-12.2002
KOMATSU	PC58UU-3	[4D88E-3GB]	01.2002-12.2011
KOMATSU	SK714-5	[4D88E-1FD]	01.2003-12.2011
KOMATSU	SK714-5	[4D88E-E1FD]	01.2003-12.2011
KOMATSU	SK714-5 USA	[4D88E-1FD]	01.2003-12.2011
KOMATSU	SK815-5	[4D88E-1FD]	01.2003-12.2011
KOMATSU	SK815-5 Turbo	[4D88E-1FD]	01.2003-12.2011
KOMATSU	SK815-5 USA	[4D88E-1FD]	01.2003-12.2011
KOMATSU	SK818-5	[4D88E]	01.2004-12.2011
KOMATSU	SK818-5 USA	[4D88E]	01.2004-12.2011
KOMATSU	SK820-5 Turbo	[S4D84E-1FD]	01.2003-12.2011
KOMATSU	SK820-5 USA Turbo	[S4D84E-1FD]	01.2003-12.2011
KOMATSU	WA20-2	[3D78AE-3A]	01.1997-12.2004
KOMATSU	WA20-2	[3D78N-1C]	01.1997-12.2004
KOMATSU	WA30-5	[3D84E-3D]	01.1999-12.2008
KOMATSU	WA30-5RS	[3D84E-3D]	01.1999-12.2008
KOMATSU	WA30-5RS	[3D84N-2AA]	01.1999-12.2008
KOMATSU	WA30-5-X	[3D84E-3D]	01.1999-12.2008
KOMATSU	WA30-5-X	[3D84N-2AA]	01.1999-12.2008
KOMATSU	WA40-3	[S3D84-2BA]	01.1999-12.2010
KOMATSU	WA40-3	[S3D84E-3B]	01.1999-12.2010
KOMATSU	WA40-3RS-X	[S3D84-2BA]	01.1999-12.2010
KOMATSU	WA40-3RS-X	[S3D84E-3B]	01.1999-12.2010
KOMATSU	WA40-3SF-X	[S3D84-2BA]	01.1999-12.2010
KOMATSU	WA40-3SF-X	[S3D84E-3B]	01.1999-12.2010
KOMATSU	WA50-3	[S3D84E-3B]	01.2003-12.2010
KOMATSU	WA50-3-X	[S3D84E-3A]	01.1999-12.2010
KOMATSU	WA50-3-X	[S3D84E-3B]	01.1999-12.2010
TAKEUCHI	TB020	[D1105-BH]	01.1995-12.2006
TAKEUCHI	TB025	[3TNA84L]	01.1997-12.2006
TAKEUCHI	TB030	[3T84TL]	01.1995-12.2006
TAKEUCHI	TB035	[3T84TL]	01.1995-12.2006
TAKEUCHI	TB045	[3T100L]	01.1987-12.1993
TAKEUCHI	TB125	[3TNE82A-ETB]	01.1999-12.2011
TAKEUCHI	TB135	[3TNE88-ETB]	01.1999-12.2012
TAKEUCHI	TB135	[3TNE88-ETB1]	01.1999-12.2012
TAKEUCHI	TB135	[3TNE88-TB]	01.1999-12.2012
TAKEUCHI	TB135	[3TNE88-TB1]	01.1999-12.2012
TAKEUCHI	TB53FR	[4TNE88-ETBZ]	01.2001-12.2008
VOLVO	EC55	[4TNE94]	01.2000-12.2003
VOLVO	EC55	[4TNE94-SM]	01.2000-12.2003
YANMAR	Engine	[3TNE84MT-EG1]	01.1982-12.1997
YANMAR	Engine	[3TNE88MC-EG1]
YANMAR	Engine	[4TNE84T]	01.1996-12.2007
YANMAR	Engine	[4TNE98-EFF]
YANMAR	Engine	[4TNE98-EMR]
YANMAR	Engine	[4TNE98-EPP]
YANMAR	Engine	[4TNE98-GIA]
YANMAR	Engine 2.0	[4TNE84MT-EG1]	01.1989-12.2004
YANMAR	Engine 2.2	[4TNE88M-EG1]	01.1989-12.2004
YANMAR	ViO-40-2	[3TNE88]	01.2001-12.2006
YANMAR	ViO-50-2	[3TNE88]	01.2001-12.2006

LR140-719 F042302012 LR140721D LR140721E LR140-714 LR140-716 1983677200 175.502.045.415 70-25-12112 175.502.045.780 1752564011 LR140-721C 0986035451 LR140-721B 2506165 CGB-14714 113401 175.502.045.786 ALH3401 553250RIH 129930-77212 90-25-1095 129930-77210 129930-77211 553250RI LRA1950 446860 12961277240 A2124S ALT23000 ALT3156 28-3845 204-10110 119836-77200 119836-77201 136165 119836-77202 119836-77203 LR140-714B 175.502.045.080 LR140-723B UD19243A LRA01950 119836-77200-3 119836-77200-2 LR140-721 12112N LR140-723 LR140-727 113308 204-10110N 129612-77230 2217 LR140714A AM880733 A12HT0117A2 A-8762 140-15101 UD21148A AM878581 119624-77201

A2124S

Female Plug Kit - 2 Pin

NZ$ 1.54 each
NZ$ 1.34 excl GST

Availability & Specs

View your shopping basket or Browse other items in Alternators.

AS GROUP NZ

Note: We have moved to a private property and no longer allow pick ups to non account holders -, Paraparaumu, Wellington

5032, New Zealand

0800 727 000 (Domestic Calls)

Shipping Policy: All paid orders are shipped within 24 hours (Monday - Friday)

Returns: Items returned for refund must be unopen/unused in original packaging and within 30 days of date of sale. All Returns must have a Return Advice (RA) form accompany the goods.

PLEASE NOTE: PRODUCT BOXES ARE NOT SHIPPING BOXES, ANY PRODUCT RETURNED WITH TAPE/LABELS OVER THE PRODUCT BOX WILL BE CHARGED A RESTOCKING FEE

[Terms and Conditions]

[Warranty Form] [Warranty procedure]

[Privacy Policy] [Disclaimer]
