Brand new OEM SEG / BOSCH
PREMIUM LINE
BOSCH
Bosch
Price:
NZ$ 553.73 including GST
NZ$ 481.50 excluding GST
or four payments of $138.43
with
Learn More
each
A0880S
AGB-S2001
No stock in NZ
No stock in NZ
Associated Numbers
0124120001 Bosch show 114466 Cargo 12805 Lester 2205697 PIC 2572 CEVAM 285660 Elstock 38522313G Chrysler 425501055 PSH 500171552 DRI 930222 EDR DRA0222 Remy FGV38522313 LRA03049 Lucas 651028 ARROWHEAD 400-24092 BOSCH JOHN DEERE LESTER LUCAS ELECTRIC 690124120001
65-1028
0124120001 Bosch show
114466 Cargo
12805 Lester
2205697 PIC
2572 CEVAM
285660 Elstock
38522313G Chrysler
425501055 PSH
500171552 DRI
930222 EDR
DRA0222 Remy
FGV38522313
LRA03049 Lucas
Specifications
| Amp | 55 A |
| Bottom Mounting Foot Width (B) | 18 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | 8 mm |
| Length (L.1) | 168 mm |
| Mount Inside Length or Pad Mount C-C (C) | 66 mm |
| OEM Product | Yes |

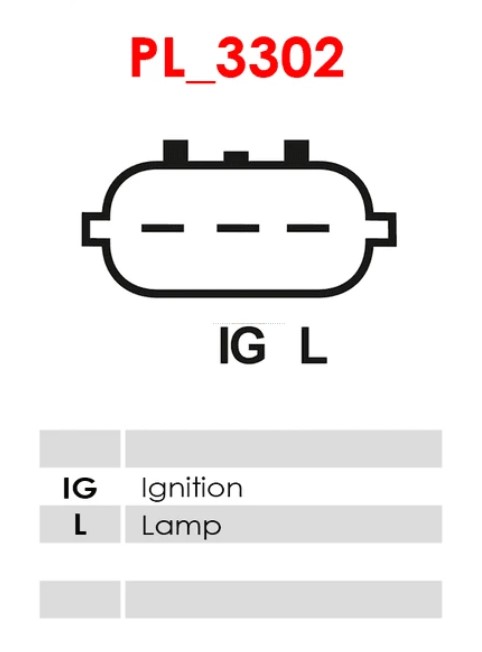

| Plug Code | PL_3302 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 9 mm |
| Pulley Outside Diameter (O.D.1) | 43 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | SOLID |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AGRIFULL | 100 5.4 | [8065.06.200] | 05.1987- |
| AGRIFULL | 100 5.4 | [8065.06.300] | 05.1987- |
| AGRIFULL | 100 DT 5.4 | [8065.06.200] | 05.1987- |
| AGRIFULL | 100 DT 5.4 | [8065.06.300] | 05.1987- |
| AGRIFULL | 110 5.9 | [8065.05.220] | 05.1987- |
| AGRIFULL | 110 DT 5.9 | [8065.05.220] | 05.1987- |
| AGRIFULL | 140 5.9 | [8065.25.000] | 05.1987- |
| AGRIFULL | 140 DT 5.9 | [8065.25.000] | 05.1987- |
| AGRIFULL | 90 4.9 | [8055.05.200] | 05.1987- |
| AGRIFULL | 90 DT 4.9 | [8055.05.200] | 05.1987- |
| AGRIFULL | F100 5.9 | [8065.06A.330] | 11.1993- |
| AGRIFULL | F120 5.9 | [8065.05B.330] | 11.1993- |
| FIAT | 100.9 | [8065.06.200] | 05.1987-08.1988 |
| FIAT | 100.90 DT | [8065.06.200] | 05.1987-08.1988 |
| FIAT | 115.9 | [8065.05.000] | 05.1987-08.1988 |
| FIAT | 115.90 DT | [8065.05.000] | 05.1987-08.1988 |
| FIAT | 1180 | ||
| FIAT | 1180 DR | ||
| FIAT | 1280 | ||
| FIAT | 1280 DT | ||
| FIAT | 130.9 | [8065.05.000] | 05.1987-08.1988 |
| FIAT | 130.90 DT | [8065.05.000] | 05.1987-08.1988 |
| FIAT | 132 2500 D | [8144.61] | 03.1978-03.1979 |
| FIAT | 140.9 | [8065.25.000] | 05.1985-08.1988 |
| FIAT | 140.90 DT | [8065.25.000] | 05.1985-08.1988 |
| FIAT | 580 | [8035.04.270] | 12.1977-04.1982 |
| FIAT | 580 DT | [8035.04.270] | 12.1977-04.1982 |
| FIAT | 680 | ||
| FIAT | 680 DT | ||
| FIAT | 780 | [8045.04.270] | 01.1975-02.1987 |
| FIAT | 780 DT | [8045.04.270] | 01.1975-02.1987 |
| FIAT | 880.5 | ||
| FIAT | 880.5 DT | ||
| FIAT | 90.9 | ||
| FIAT | 90.90 DT | ||
| FIAT | 95.55 | ||
| FIAT | 955 C | ||
| FIAT | 980 DT | ||
| FIAT | Argenta 2.5 D D | [8144.61] | 06.1987-05.1983 |
| FIAT | Argenta 2.5 TD | [8144.81] | 06.1983-11.1985 |
| FIAT | F100 5.9 | [8065.06A.330] | 11.1993- |
| FIAT | F120 5.9 | [8065.05B.330] | 11.1993- |
| FIAT | F120 5.9 | [8065.06A.330] | 11.1993- |
| FIAT-ALLIS | 545 B | ||
| FISSORE | Rayton 4x4 2.4 TD | [HR492HIM] | 03.1988- |
| HURLIMANN | H 476 XF DT REV 3.0 | [1000.3WT] | 05.1991- |
| HURLIMANN | H 6165 Master DT | [1000.6WTI] | 05.1991- |
| HURLIMANN | H 6190 Master DT 6.0 | [1000.6WTIR] | 01.1992-12.2001 |
| LAMBORGHINI | 115 Formula 6.0 | [1000.6W] | 12.1989- |
| LAMBORGHINI | 135 Formula 6.0 | [1000.6WT] | 12.1989- |
| LAMBORGHINI | 165 Racing 6.0 | [1000.6WTI] | 05.1991- |
| LAMBORGHINI | 190 Racing 6.0 | [1000.6WTIR] | 01.1992- |
| LAMBORGHINI | 660 Agile 3.0 | [1000.3A] | 01.1986-12.1997 |
| LAMBORGHINI | 775 F Plus 3.0 | [1000.3WT] | 05.1991- |
| LANCIA | Thema 2.5 DT | [8144.91.2200] | 11.1984-05.1992 |
| LANCIA | Thema 2.5 DT | [8144.97] | 01.1993-11.1994 |
| LANCIA | Thema 2.5 DT | [8144.97.2200] | 11.1984-05.1992 |
| LANCIA | Thema 2.5 DT SW | [8144.97] | 01.1993-11.1994 |
| LAVERDA | 3790 8.1 | [8361SI10.00] | 06.1985- |
| LAVERDA | 3850 8.1 | [8361S10] | 01.1991- |
| LAVERDA | L 521 H 8.1 | [8361SI10] | 03.1992- |
| LAVERDA | L 521 I 8.1 | [8361SI10] | 03.1992- |
| LAVERDA | L 624 8.1 | [8361.25SR10] | 03.1992- |
| LAVERDA | L 624 H 8.1 | [8361.25SR10] | 03.1992- |
| MUZZI | MD 65 6.2 | [1056PT] | 07.1983-12.1988 |
| MUZZI | MDS 110 | [1056PTI] | 12.1986- |
| MUZZI | MDS 44 4.0 | [1000.4A] | 01.1989- |
| MUZZI | MDS 54 | [1000.4AT] | 01.1989- |
| MUZZI | MDS 72 | [1056P] | 01.1989- |
| MUZZI | MDS 90 | [1056PS] | 01.1989- |
| SAME | Antares 100 | [1000.6A] | 03.1989-03.2004 |
| SAME | Antares 100 6.0 | [1000.6A] | 12.1989-01.2004 |
| SAME | Antares 100 6.0 | [1000.6AT] | 12.1989-01.2004 |
| SAME | Antares 130 6.0 | [1000.6A] | 12.1989-01.2004 |
| SAME | Antares 130 6.0 | [1000.6AT] | 12.1989-01.2004 |
| SAME | Frutteto 60 DR 3.0 | [1000.3A] | 05.1991- |
| SAME | Frutteto 75 2RM 3.0 | [1000.3AT] | 05.1991- |
| VM | HR 1.8 | [329SHTR] | 01.1986- |
