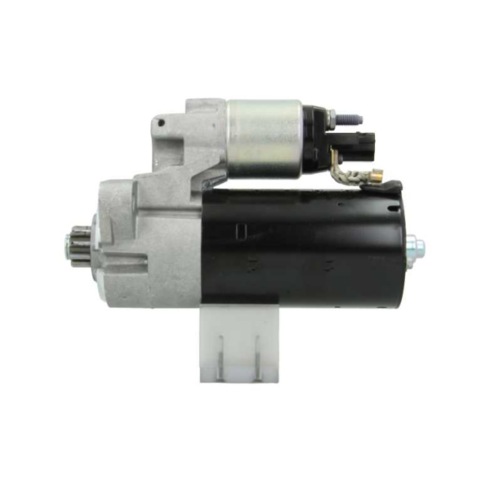

SGB-C9001 - Brand new OEM SEG BOSCH Starter

Brand new OEM SEG BOSCH Starter
Brand new SEG BOSCH Starter
PREMIUM LINE
BOSCH
Bosch
Price:
NZ$ 442.75 including GST

NZ$ 385.00 excluding GST
each
S0270
SGB-C9001
2
Purchase Qty:

0001125609 0001125610 059911024E 059911024EX 059911024H 059911024HX 114775 115502 12280 17678N 20401124BN 20401124OE 25-4297 254373 254373B 260-22108 300.586.093 3384 42024050 6010421 88213966 91-15-7318 95560410800 955604108X AEY2330 BOS0001125609 CST10421 CST10421AS CST10421ES CST10421GS CST10421OS CST10421RS EAA-121405 LRS02624 S-6306 S0270 SG0579 STR50540 ASPLList AUTOELECTRO BOSCHList CARGO CASCO CEVAM 26022108 DIXIE S6306 EAA121405 EAA EAI 254297 ELSTOCK GHIBAUDI HERTH+BUSS LUCAS POWERMAX PSH REAL SANDO VW WAI / TRANSPO 91157318 WILSON WOODAUTO Bosch Remy Light Duty 16244 Wilson References: Arrowhead SBO0295 0986024050 2405 SR0793X Lester 17678 Lucas LRS2624 PIC Picture ID 1206396 Porsche Volkswagen 056911024J 059911023J 059911024CX 059911024J 059944024E Youtech/PartRef 423808 Substitutes: J N 41024329 J& ruil 11024050 EuroTec 300586093 910244 EDR A24050 ATL DRS0244 STR1585sa Electrolog S0213 0001125519 0001125520 0001125521 BOSCH 114690 CST10368 CST10368AS CST10368GS 3066 DRS0566 DELCO EAA121104 254002 220683 ERA SG0595 CS1521 HC PARTS STB4519 KRAUF STB4519BA 22.3082M LAUBER LRS02330 943215211010 MAGNETI MARELLI 200.536.093 300.577.093 20401863BN 20401863OE 6010368 458538 VALEO 059911023S 059911023SX 059911024C 059911024JX UNIT BOM 1205035 BOS0001125519 STR50544 EAA121157 EAA122022 11090174 11090187 Cargo 12103 Elstock 300577093 33330 33330R 910566 A79140 Casco OSM11850 Optimum STR1751SA STR2291 Unipoint bxs0179 701058 7010584 0001109054 0001125609SEL +line 021262 Da Silva Exchange 10439518 Alanko 106949 FARC 12130267 AES 1986S00824 223036 Lauber DAS Dixie 311282092 DRI 332111 Logistik 439518 458920 Valeo 48213966 MD Rebuilt Sando Power Max 88214280 AEX1061 Auto Electro AS1898AC Charge ASM1629 Apec BOS0001125521 Wood Airframe IR8593 Protech KTR601172186 KTR NSM1629 Napa (UK) RNL2405 RNL AS-PL S0270PR S132068 Short code S144840 S148699 S6396 SBE1367 Everkraft SBO1231 Quasar SEG0001125609 WOOSTR50540 0-001-125-609 0-001-125-610 J&N ELECTRICAL PRODUCTS 410-24329 LESTER ELECTRIC PORSCHE 955-604-108-00 955-604-108X 955-604-108-X VOLKSWAGEN 056-911-024J 059-911-023J 059-911-024CX 059-911-024E 059-911-024EX 059-911-024H 059-911-024HX 059-911-024J 059-944-024E Reman Service Europe 0-986-024-050 0-986-024-057 Electric Ltd New IAT S17678 Industry (Europe) MPA 120-6396 PPR BOS051 Romaine SEG Automotive 0001.125.609 Standard Starter Drive Group Voltux V1-17678
Kilowatt2.2 kW
Length (L.1)235 mm
Mount Hole Center - Center (O.1)104 mm
Mount Hole Center - Center (O.2)100.5 mm
Mount Hole Center - Center (O.3)23 mm
Mount Hole Diameter (C.1)10.5 mm
Mount Hole Diameter (C.2)10.5 mm
Mount Hole Diameter (C.3)M10x1.5 mm
No./Mount holes3 qty
No./Mount holes with thread1 qty
No./Teeth9 qty
No./Teeth (Replaces)9 qty
Pinion at Rest (B)25 mm
RotationCW
Spigot Diameter (A)76 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
AUDI Q7 3.0 TDi Quattro [BUG] 03.2006-05.2008
AUDI Q7 3.0 TDi Quattro [BUN] 03.2006-05.2010
AUDI Q7 3.0 TDi Quattro [CASA] 11.2007-08.2015
AUDI Q7 3.0 TDi Quattro [CASB] 03.2006-05.2010
AUDI Q7 3.0 TDi Quattro [CATA] 06.2009-05.2012
AUDI Q7 3.0 TDi Quattro [CCMA] 11.2007-08.2015
AUDI Q7 3.0 TDi Quattro [CJGA] 11.2007-08.2015
AUDI Q7 3.0 TDi Quattro [CJGC] 05.2010-08.2015
AUDI Q7 3.0 TDi Quattro [CJGD] 05.2011-08.2015
AUDI Q7 3.0 TDi Quattro [CJMA] 05.2010-08.2015
AUDI Q7 3.0 TDi Quattro [CLZB] 05.2011-08.2015
AUDI Q7 3.0 TDi Quattro [CNRB] 11.2007-08.2015
AUDI Q7 3.0 TDi Quattro [CRCA] 05.2011-08.2015

S6156 - Can use this to replace the S0270. The S6156 is for START/STOP applications but will work fine in the standard application

S6156(DENSO) - Can use this to replace the S0270. The S6156(DENSO) is for START/STOP applications but will work fine in the standard application

The pinion gear looks different to the S0270, But the pinion is LARGER and  the OFFSET is different, Because of this it can fit in place of the S0270. THE S0270 IS NOT FOR START/STOP

0001125609 0001125610 059911024E 059911024EX 059911024H 059911024HX 114775 115502 12280 17678N 20401124BN 20401124OE 25-4297 254373 254373B 260-22108 300.586.093 3384 42024050 6010421 88213966 91-15-7318 95560410800 955604108X AEY2330 BOS0001125609 CST10421 CST10421AS CST10421ES CST10421GS CST10421OS CST10421RS EAA-121405 LRS02624 LRS2624 RNL2405 S-6306 S0270 SG0579 STR50540 STRS237

THE S0270 IS NOT FOR START/STOP
