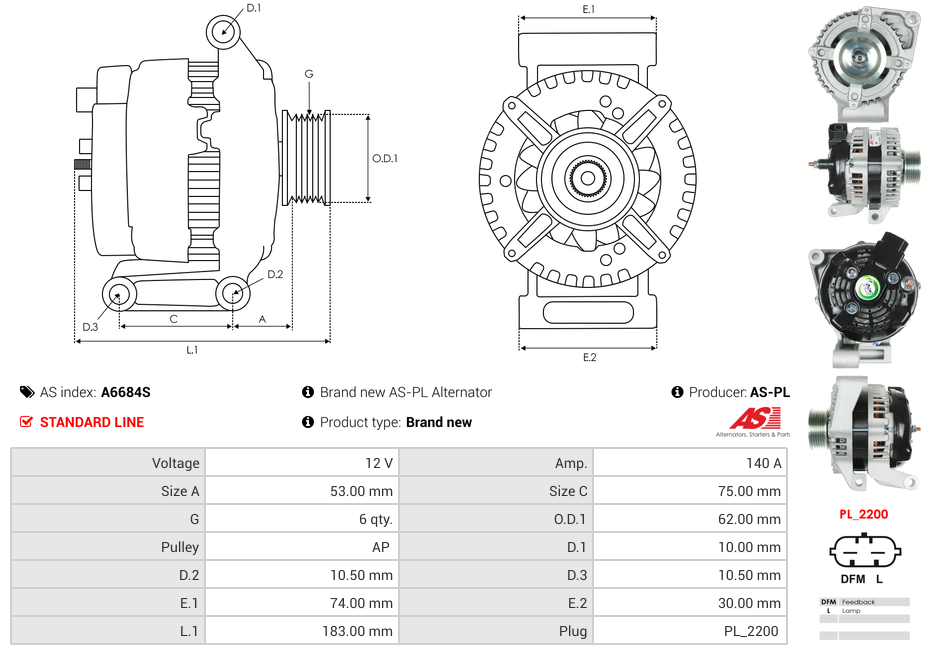

Specifications
| Amp | 140 A |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | 10.5 mm |
| Length (L.1) | 183 mm |
| Mount Inside Length or Pad Mount C-C (C) | 75 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 74 mm |
| Pad mount thickness (E.2) | 30 mm |
| Plug Code | PL_2200 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 62 mm |
| Pulley to Mount Distance (A) | 53 mm |
| Pulley Type | SOLID |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BUICK | Lucerne 3.8 V6 | 01.2006-12.2008 |
Reference Information
11180N 25764632 12725 104210-4360 ALN4360 835.957.140.260 UD19550AVideo/Publications
