Associated Numbers
98AB10300EB
030091
Da Silva
0986AN0675
Bosch Exchange
0986CR0501
Bosch Exchange
0986UR0418
Bosch Exchange
0986UR0501
Bosch Exchange
10206113
Dixie
10442710
Alanko
1125620
Ford
112958
Cargo
12060886
EuroTec
1234901FD
WAI old
1234901FD2
WAI old
145540110
PSH
1L8U10300AB
Ford
1L8U10300AC
Ford
1L8U10300BB
Ford
1L8U10300BC
Ford
1L8Z10346AB
Ford
1S4110300AA
Ford
2014117
Sando
210413
Messmer
2241681102
DRI
23555R
WAI
250410A
PIC
250415A
PIC
274899
Elstock
40372
CEVAM
41136
RCP
4326147
Ford
442710
Alanko
448043
Logistik
553414RI
DAS
57402
EAI
66390
NAPA
8260
Lester
8260N
WAI
8260R
WAI
8264
Lester
89213945
PowerMax
90025106
Wilson
98AB10300EB
Ford
98AB10300EBSEL
+line
98AZ10346EA
Ford
98AZ10346EN
Ford
A130506
Short code
A158195
Short code
A161653
Short code
A9354
AS-PL
A9354S
AS-PL
AEK2555
Auto Electro
AL00289
TMI
AL7572X
Bosch (USA)
AL7658X
Bosch (USA)
ALT1616
Unipoint
ALT42407
Wood Auto
AX1105
Everkraft
BXA1211N
Bosch (USA)
CAL14117
Airframe
CGB74899
Ainde
DS030091
Da Silva
F042304011
Bosch
F042A04011
Bosch
GL456
Motorcraft
GL456RM
Motorcraft
GL462
Ford
GL462RM
Motorcraft
L83210
ATL
LRA02555
Lucas
LRA2555
Lucas
WOOALT42407
Wood Auto
YF0918300
Mazda
YF0918300A
Mazda
YF2018300A
Mazda
14747 axa980

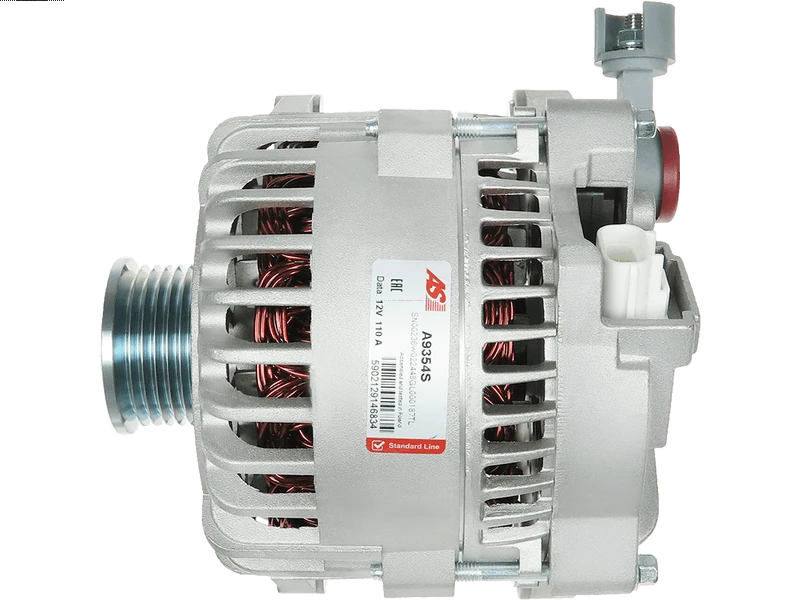

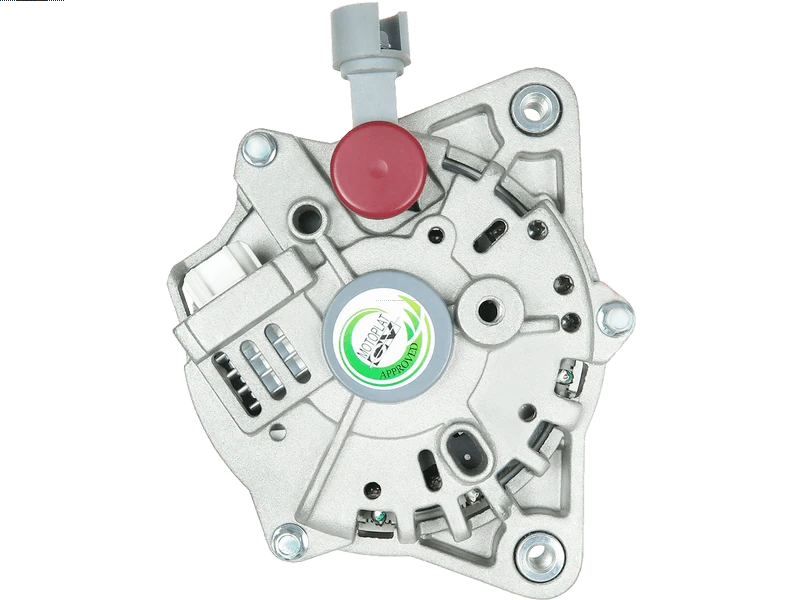

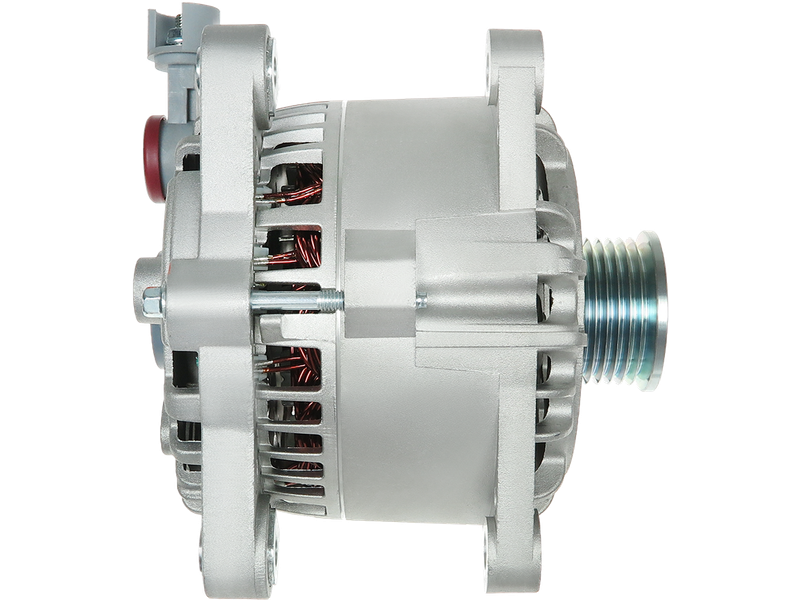

Specifications
| Amp | 110 A |
| Bottom Mounting Foot Width (B) | 15.5 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 165 mm |
| Mount Inside Length or Pad Mount C-C (C) | 63 mm |
| OEM Product | No |
| Plug Code | PL_3402 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 48.5 mm |
| Pulley to Mount Distance (A) | 35 mm |
| Pulley Type | SOLID |
| Unit Type | FORD |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Focus 2.0 | [ALDA] | 03.2002-11.2004 |
| FORD | Maverick 2.0 16V | [YF] | 02.2001- |
| FORD | Maverick 2.0 16V FWD | [YF] | 02.2001- |
| MAZDA | Tribute 2.0 | [YF] | 03.2000-05.2008 |
| MAZDA | Tribute 2.0 4WD | [YF] | 03.2000-05.2008 |
Reference Information
UD21091A 90-02-5106 EAA-241625 1L8U-10300-BC 1L8U-10300-BB LRA02555 145.540.110.020 145.540.110.460 YF09-18-300A GL456RM ALTW274 ALT8909 274899 ALF7958 AEK2555 20150711BN 112958 98AZ-10346-EARM ALF2958 8260N 1125620 2014117 98AZ-10346-EN 90-02-5204 ALT42407 89213945 PRAW274 90-02-5204N 57402 CAL14117AS A12VS0466A2 98AB-10300-EB STX101719 1S41AA 553414RI 1S41-10300-AA GL456 1L8UAC 98AZ-10346-EA GL462 90-02-5106N 1L8U-10300-AB GL462RM 4G0746 YF09-18-300 LRA2555 YF20-18-300A 1L8U-10300-AC 55141287 1L8Z-10346-AB STX101719RVideo/Publications
