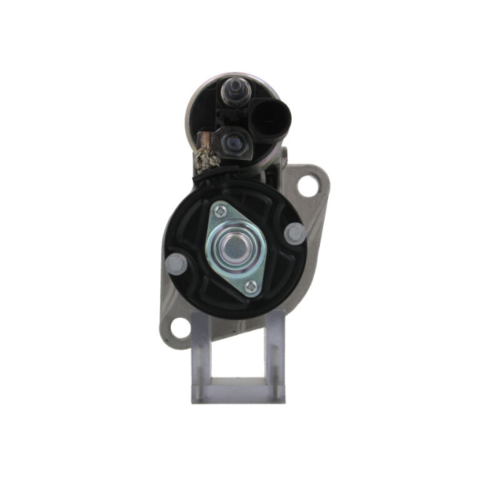

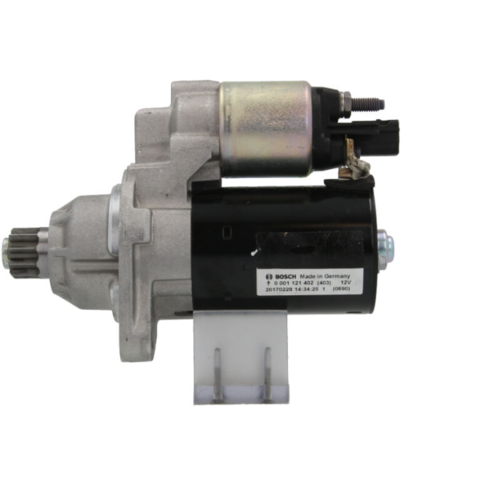

SGB-A10001 - Brand new SEG BOSCH Starter motor

Name: Brand new SEG BOSCH Starter motor
Brand: AS GROUP NZ
SKU: SGB-A10001
Price: 339.83 NZD
Availability: InStock

Brand new BOSCH Starter

PREMIUM LINE

Manufacturer:

BOSCH

Replacement For:

Bosch

Price:

NZ$ 339.83 including GST

NZ$ 295.50 excluding GST

UOM:

each

Alternative Item:

S0681S

Product Code:

SGB-A10001

Quantity In Stock Nationally:

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

1986S00788 SNB041 70-1074-1g 0001121402 0001121403 02M911021B 02M911021BX 02M911023E 02M911023G 02M911023GX 02M911023M 02M911023MX 063521214020 063721347010 0986020230 101347 101347V 113773 17970N 20401592 20479212 220448 220448A 25-3348 300.574.102 3037 42020230 438174 458216 6010295 6015212 726136 88212280 8EA012527-551 8EA738258-011 943213471010 944280202300 CST10295 CST10295AS CST10295ES CST10295GS CST10295OS CST10295RS CST15212 CST15212AS CST15212ES CST15212GS CST15212OS CST15212RS DRT0230 EAA-121357 LRS02174 M1202E S-6268 STB1347 STB9347 STQ1347 STR54070 STV1347 STV9347 UD20360S 12010 17970R 8212280 91-20-3569 AEY2174 CS1347 D6GS14 D6GS14M DT1340 M1202 MQS1347 MRS20230 S3037 SG0672 VALD6GS14M ASPLList AUTOELECTRO BOSCHList BOSCH CARGO CASCO CEVAM DELCO S6268 DIXIE EAA121357 EAA EAI 253348 ELSTOCK ERA GHIBAUDI HC PARTS 8EA012527551 HELLA 8EA738258011 HERTH+BUSS KRAUF LUCAS MAGNETI MARELLI POWERMAX PRESTOLITE PSH SANDO VALEOList VW WAI / TRANSPO 91203569 WILSON WOODAUTO 7010711g snb041 Bosch ruil 11020230 EuroTec 11090150 Cargo 120449 PIC 17970 Lester 17970NVA 17970RVA 202152 Valeo Elstock 300574102 442011 4810SP Spidan 8020230F Friesen 920230 EDR A20230 ATL Remy DSN3005 Denso F042200000 F042200068 HCS1347 Lucas OSM11352 Optimum STM679 Rolling Components STR0087SA Electrolog STR1245sa SGB-A10001

Kilowatt	1.1 kW
Length (L.1)	214.5 mm
Mount Hole Center - Center (O.1)	111 mm
Mount Hole Diameter (C.1)	12.5 mm
Mount Hole Diameter (C.2)	12.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
Pinion at Rest (B)	61 mm
Rotation	ACW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Make	Model	Type	Year
AUDI	A1 2.0 TFSi Quattro	[CDLH]	03.2012-
AUDI	A3 1.6	[BGU]	05.2003-08.2012
AUDI	A3 1.6	[BSE]	06.2005-08.2012
AUDI	A3 1.6	[BSF]	06.2005-08.2012
AUDI	A3 1.6 FSi	[BAG]	08.2003-09.2007
AUDI	A3 1.6 FSi	[BLF]	01.2005-09.2007
AUDI	A3 1.6 FSi	[BLP]	08.2003-12.2004
AUDI	A3 1.6 FSi Sportback	[BLF]	01.2005-09.2007
AUDI	A3 1.6 FSi Sportback	[BLP]	09.2004-09.2007
AUDI	A3 1.6 Sportback	[BGU]	09.2004-03.2013
AUDI	A3 1.6 Sportback	[BSE]	06.2005-03.2013
AUDI	A3 1.6 Sportback	[BSF]	06.2005-03.2013
AUDI	A3 1.8 TFSi	[BYT]	11.2006-08.2012
AUDI	A3 1.8 TFSi	[BZB]	06.2007-06.2008
AUDI	A3 1.8 TFSi	[CDAA]	07.2008-
AUDI	A3 1.8 TFSi Sportback	[BYT]	11.2006-06.2007
AUDI	A3 1.8 TFSi Sportback	[BZB]	06.2007-06.2008
AUDI	A3 1.8 TFSi Sportback	[CDAA]	07.2008-03.2013
AUDI	A3 1.8 Turbo	[BPU]	08.2006-08.2012
AUDI	A3 1.8 Turbo	[BVZ]	08.2006-08.2012
AUDI	A3 2.0 FSi	[AXW]	05.2003-06.2008
AUDI	A3 2.0 FSi	[BLR]	05.2003-06.2008
AUDI	A3 2.0 FSi	[BLX]	05.2003-06.2008
AUDI	A3 2.0 FSi	[BLY]	05.2003-06.2008
AUDI	A3 2.0 FSi	[BMB]	05.2003-06.2008
AUDI	A3 2.0 FSi	[BVY]	05.2003-06.2008
AUDI	A3 2.0 FSi	[BVZ]	05.2003-06.2008
AUDI	A3 2.0 FSi Sportback	[AXW]	09.2004-06.2008
AUDI	A3 2.0 FSi Sportback	[BLR]	09.2004-06.2008
AUDI	A3 2.0 FSi Sportback	[BLX]	09.2004-06.2008
AUDI	A3 2.0 FSi Sportback	[BLY]	09.2004-06.2008
AUDI	A3 2.0 FSi Sportback	[BMB]	09.2004-06.2008
AUDI	A3 2.0 FSi Sportback	[BVY]	09.2004-06.2008
AUDI	A3 2.0 FSi Sportback	[BVZ]	09.2004-06.2008
AUDI	A3 2.0 TFSi	[AXX]	09.2004-08.2012
AUDI	A3 2.0 TFSi	[BWA]	09.2005-08.2012
AUDI	A3 2.0 TFSi	[CAWB]	02.2008-08.2012
AUDI	A3 2.0 TFSi	[CCZA]	07.2008-08.2012
AUDI	A3 2.0 TFSi Quattro	[AXX]	09.2004-08.2012
AUDI	A3 2.0 TFSi Quattro	[BWA]	09.2005-08.2012
AUDI	A3 2.0 TFSi Quattro	[CCTA]	09.2005-08.2012
AUDI	A3 2.0 TFSi Quattro Sportback	[AXX]	09.2004-03.2013
AUDI	A3 2.0 TFSi Quattro Sportback	[BPY]	09.2005-
AUDI	A3 2.0 TFSi Quattro Sportback	[BWA]	09.2005-
AUDI	A3 2.0 TFSi Quattro Sportback	[CCZA]	07.2008-
AUDI	A3 2.0 TFSi Sportback	[AXX]	09.2004-10.2005
AUDI	A3 2.0 TFSi Sportback	[BWA]	11.2005-05.2007
AUDI	A3 2.0 TFSi Sportback	[CAWB]	09.2005-03.2013
AUDI	A3 2.0 TFSi Sportback	[CBFA]	02.2008-
AUDI	A3 2.0 TFSi Sportback	[CCZA]	07.2008-
AUDI	Q3 2.0 TFSi Quattro	[CCZC]	06.2011-
AUDI	S3 2.0 Quattro	[BHZ]	06.2008-03.2013
AUDI	S3 2.0 Quattro	[CDLA]	06.2008-03.2013
AUDI	S3 2.0 TFSi Quattro	[BHZ]	11.2006-08.2012
AUDI	S3 2.0 TFSi Quattro	[CDLA]	11.2006-08.2012
AUDI	TT 2.0 Quattro	[CDLA]	05.2008-
AUDI	TT 2.0 Quattro	[CDMA]	05.2008-
AUDI	TT 2.0 TFSi	[BWA]	03.2007-06.2010
AUDI	TT 2.0 TFSi	[CESA]	05.2010-
AUDI	TT 2.0 TFSi Quattro	[BWA]	06.2008-06.2010
AUDI	TT 2.0 TFSi Quattro	[CCZA]	06.2008-06.2010
AUDI	TT 2.0 TFSi Quattro	[CDLB]	05.2008-
AUDI	TT 2.0 TFSi Quattro	[CESA]	05.2010-
AUDI	TT 2.0 TFSi Quattro	[CETA]	05.2010-
SEAT	Altea 1.6	[BGU]	03.2004-
SEAT	Altea 1.6	[BSE]	03.2004-
SEAT	Altea 1.6	[BSF]	03.2004-
SEAT	Altea 1.6	[CCSA]	03.2004-
SEAT	Altea 1.6	[CMXA]	03.2004-
SEAT	Altea 1.6 MultiFuel	[BSE]	10.2006-
SEAT	Altea 1.6 MultiFuel	[BSF]	10.2006-
SEAT	Altea 1.6 MultiFuel	[CCSA]	10.2006-
SEAT	Altea 2.0 FSi	[BLR]	05.2004-
SEAT	Altea 2.0 FSi	[BLY]	05.2004-
SEAT	Altea 2.0 FSi	[BVY]	05.2004-
SEAT	Altea 2.0 FSi	[BVZ]	05.2004-
SEAT	Altea 2.0 TFSi	[BWA]	04.2006-
SEAT	Altea XL 1.2 TSi	[CBZB]	04.2010-
SEAT	Altea XL 1.6	[BSE]	10.2006-
SEAT	Altea XL 1.6	[BSF]	10.2006-
SEAT	Altea XL 1.6	[CCSA]	10.2006-
SEAT	Altea XL 1.6	[CMXA]	10.2006-
SEAT	Altea XL 2.0 FSi	[BVY]	10.2006-
SEAT	Altea XL 2.0 FSi	[BVZ]	10.2006-
SEAT	Altea XL 2.0 TFSi 4WD	[BWA]	06.2007-
SEAT	Ibiza 1.6 16V	(6L1)[BTS]	11.2006-
SEAT	Leon 1.6	[BSE]	09.2005-
SEAT	Leon 1.6	[BSF]	09.2005-
SEAT	Leon 1.6	[CCSA]	09.2005-
SEAT	Leon 1.6	[CMXA]	09.2005-
SEAT	Leon 1.6 MultiFuel	[CMXA]	11.2010-
SEAT	Leon 2.0 FSi	[BLR]	09.2005-
SEAT	Leon 2.0 FSi	[BLY]	09.2005-
SEAT	Leon 2.0 FSi	[BVY]	09.2005-
SEAT	Leon 2.0 FSi	[BVZ]	09.2005-
SEAT	Leon 2.0 TFSi	[BWA]	09.2005-
SEAT	Leon 2.0 TFSi	[BWJ]	11.2006-
SEAT	Leon 2.0 TFSi	[CDLD]	11.2006-
SEAT	Toledo 1.6	[BGU]	10.2004-
SEAT	Toledo 1.6	[BSE]	10.2004-
SEAT	Toledo 1.6	[BSF]	10.2004-
SEAT	Toledo 1.6	[CCSA]	12.2007-
SEAT	Toledo 2.0 FSi	[BLR]	10.2004-
SEAT	Toledo 2.0 FSi	[BLY]	10.2004-
SEAT	Toledo 2.0 FSi	[BVY]	11.2005-
SEAT	Toledo 2.0 FSi	[BVZ]	11.2005-05.2006
SEAT	Toledo 2.0 TFSi	[BWA]	11.2005-02.2006
SKODA	Octavia 1.6	[BGU]	06.2004-
SKODA	Octavia 1.6	[BSE]	06.2004-
SKODA	Octavia 1.6	[BSF]	06.2004-
SKODA	Octavia 1.6	[CCSA]	06.2004-
SKODA	Octavia 1.6	[CMXA]	06.2004-
SKODA	Octavia 1.6 FSi	[BLF]	06.2004-
SKODA	Octavia 1.8 TSi 4x4	[CDAB]	03.2009-
SKODA	Octavia 2.0 FSi	[BLR]	11.2004-11.2005
SKODA	Octavia 2.0 FSi	[BLY]	11.2004-11.2005
SKODA	Octavia 2.0 FSi	[BVX]	11.2005-
SKODA	Octavia 2.0 FSi	[BVY]	11.2005-
SKODA	Octavia 2.0 FSi	[BVZ]	11.2005-
SKODA	Octavia 2.0 FSi 4x4	[BLX]	11.2004-11.2005
SKODA	Octavia 2.0 FSi 4x4	[BLY]	11.2004-11.2005
SKODA	Octavia 2.0 FSi 4x4	[BVX]	11.2005-
SKODA	Octavia 2.0 RS	[BWA]	01.2006-
SKODA	Octavia 2.0 RS	[CCZA]	01.2006-
SKODA	Roomster 1.6	[BTS]	09.2006-
SKODA	Roomster 1.6	[CFNA]	09.2006-
SKODA	Superb 3.6 4x4	(3T)[CDVA]	11.2008-
SKODA	Yeti 1.8 TSi	[CDAB]	05.2009-
SKODA	Yeti 1.8 TSi 4x4	[CDAA]	05.2009-
SKODA	Yeti 1.8 TSi 4x4	[CDAB]	11.2009-
VW	CC 2.0 TSi	[CCZB]	11.2011-
VW	Eos 2.0 TFSi	[BWA]	03.2006-
VW	Eos 2.0 TFSi	[CAWB]	05.2008-
VW	Eos 2.0 TFSi	[CCZA]	05.2009-
VW	Eos 2.0 TSi	[CCZB]	11.2009-
VW	Golf IIII 2.0		10.2007-
VW	Golf Plus 1.6	[BSE]	05.2005-
VW	Golf Plus 1.6	[BSF]	05.2005-
VW	Golf Plus 1.6	[CCSA]	11.2007-
VW	Golf Plus 1.6	[CMXA]	05.2005-
VW	Golf Plus 2.0 FSi	[BLR]	05.2005-
VW	Golf Plus 2.0 FSi	[BLY]	05.2005-
VW	Golf Plus 2.0 FSi	[BVY]	05.2005-
VW	Golf Plus 2.0 FSi	[BVZ]	05.2005-
VW	Golf V 1.4 FSi	[BKG]	10.2003-
VW	Golf V 1.4 FSi	[BLN]	10.2003-
VW	Golf V 1.6	[BGU]	06.2007-07.2009
VW	Golf V 1.6	[BSE]	06.2007-07.2009
VW	Golf V 1.6	[BSF]	06.2007-07.2009
VW	Golf V 1.6	[CCSA]	06.2007-07.2009
VW	Golf V 1.6 FSi	[BAG]	10.2003-
VW	Golf V 1.6 FSi	[BLF]	01.2005-
VW	Golf V 1.6 FSi	[BLP]	10.2003-
VW	Golf V 2.0	[BWA]	06.2007-07.2009
VW	Golf V 2.0	[CAWB]	06.2007-07.2009
VW	Golf V 2.0	[CBPA]	08.2006-
VW	Golf V 2.0 FSi	[AXW]	01.2004-
VW	Golf V 2.0 FSi	[BLR]	01.2004-
VW	Golf V 2.0 FSi	[BLX]	01.2004-
VW	Golf V 2.0 FSi	[BLY]	01.2004-
VW	Golf V 2.0 FSi	[BVX]	01.2004-
VW	Golf V 2.0 FSi	[BVY]	01.2004-
VW	Golf V 2.0 FSi	[BVZ]	01.2004-
VW	Golf V 2.0 FSi 4-Motion	[BLX]	08.2004-
VW	Golf V 2.0 FSi 4-Motion	[BVX]	08.2004-
VW	Golf V 2.0 GTi	[AXX]	10.2004-
VW	Golf V 2.0 GTi	[BWA]	10.2004-
VW	Golf V 2.0 GTi	[BYD]	09.2006-
VW	Golf V 2.0 GTi	[CAWB]	10.2004-
VW	Golf VI 2.0	[CCZA]	07.2009-07.2013
VW	Golf VI 2.0	[CDLF]	11.2009-11.2012
VW	Golf VI 2.0 4-Motion	[CDLC]	11.2009-11.2013
VW	Golf VI 2.0 4-Motion	[CRZA]	11.2009-11.2013
VW	Golf VI 2.0 Gti	[CCZB]	02.2009-11.2012
VW	Golf VI 2.0 TSi	[CCZB]	06.2011-
VW	Golf VI 2.0 TSi R 4-Motion	[CDLF]	11.2009-11.2012
VW	Jetta 1.4 TSi	[CAXA]	05.2007-
VW	Jetta 1.6	[BSE]	10.2005-
VW	Jetta 1.6	[BSF]	10.2005-
VW	Jetta 1.6	[CCSA]	10.2005-
VW	Jetta 1.6 Bifuel	[BSF]	07.2009-12.2010
VW	Jetta 1.6 FSi	[BLF]	09.2005-
VW	Jetta 2.0	[CBPA]	06.2010-
VW	Jetta 2.0	[CKJA]	06.2010-
VW	Jetta 2.0 FSi	[BLR]	08.2005-
VW	Jetta 2.0 FSi	[BLY]	08.2005-
VW	Jetta 2.0 FSi	[BVY]	08.2005-
VW	Jetta 2.0 FSi	[BVZ]	08.2005-
VW	Jetta 2.0 TFSi	[BPY]	10.2005-
VW	Jetta 2.0 TFSi	[BWA]	10.2005-
VW	Jetta 2.0 TFSi	[CAWB]	10.2005-
VW	Jetta 2.0 TFSi	[CBFA]	10.2005-
VW	Jetta 2.0 TFSi	[CCTA]	02.2008-
VW	Jetta 2.0 TFSi	[CCZA]	10.2005-
VW	Jetta 2.0 TSi	[CBFA]	12.2010-
VW	Jetta 2.0 TSi	[CCTA]	12.2010-
VW	Jetta 2.0 TSi	[CCZA]	12.2010-
VW	New Beetle 2.0 TSi	[CBFA]	12.2012-
VW	New Beetle 2.0 TSi	[CCTA]	12.2012-
VW	New Beetle 2.0 TSi	[CCZA]	12.2012-
VW	Passat 1.6 FSi	[BLF]	08.2005-
VW	Passat 1.8 TFSi	[CDAA]	08.2010-12.2014
VW	Passat 2.0 FSi	[BLR]	08.2005-11.2005
VW	Passat 2.0 FSi	[BLY]	08.2005-11.2005
VW	Passat 2.0 FSi	[BVY]	11.2005-
VW	Passat 2.0 FSi	[BVZ]	11.2005-
VW	Passat 2.0 FSi 4-Motion	[BLX]	09.2005-
VW	Passat 2.0 FSi 4-Motion	[BLY]	09.2005-
VW	Passat 2.0 FSi 4-Motion	[BVX]	09.2005-
VW	Passat 2.0 TFSi	[AXX]	08.2005-
VW	Passat 2.0 TFSi	[BPY]	08.2005-
VW	Passat 2.0 TFSi	[BWA]	08.2005-
VW	Passat 2.0 TFSi	[CAWB]	05.2008-
VW	Passat 2.0 TFSi	[CBFA]	05.2008-
VW	Passat 2.0 TFSi	[CCTA]	05.2008-
VW	Passat 2.0 TFSi	[CCZA]	11.2009-
VW	Passat 2.0 TFSi		11.2010-12.2014
VW	Passat 2.0 TSi	[CCZB]	11.2010-
VW	Passat 2.0 TSi 4-Motion	[CCZB]	01.2012-
VW	Passat CC 2.0 TSi	(357)[CCZB]	11.2010-01.2012
VW	Passat CC 2.0 TSi	[CAWB]	06.2008-11.2009
VW	Passat CC 2.0 TSi	[CCTA]	06.2008-01.2012
VW	Passat CC 2.0 TSi	[CCZA]	11.2009-01.2012
VW	Polo 1.4 Bifuel	[BUD]	05.2006-11.2009
VW	Polo 1.6	[CFNB]	11.2010-
VW	Polo 1.6 16V	[BTS]	05.2006-
VW	Scirocco 2.0 R	[CDLK]	05.2014-
VW	Scirocco 2.0 TFSi	[CCZB]	11.2009-05.2014
VW	Scirocco 2.0 TSi	[CCZB]	11.2009-
VW	Scirocco 2.0 TSi	[CDLC]	11.2009-
VW	Tiguan 1.4 TSi	[BWK]	11.2008-
VW	Tiguan 1.4 TSi	[CAVA]	11.2008-
VW	Tiguan 1.4 TSi	[CAVD]	05.2011-
VW	Tiguan 1.4 TSi	[CTHA]	11.2008-
VW	Tiguan 1.4 TSi	[CTHD]	05.2011-
VW	Tiguan 1.4 TSi 4-Motion	[CAVD]	05.2011-
VW	Tiguan 1.4 TSi 4-Motion	[CTHD]	05.2011-
VW	Tiguan 2.0 TFSi	[CAWA]	09.2007-
VW	Tiguan 2.0 TFSi	[CAWB]	09.2007-
VW	Tiguan 2.0 TFSi	[CCTA]	11.2009-
VW	Tiguan 2.0 TFSi	[CCZA]	09.2007-
VW	Tiguan 2.0 TFSi	[CCZC]	09.2007-
VW	Tiguan 2.0 TSi 4-Motion	[CCZB]	05.2011-
VW	Tiguan 2.0 TSi 4-Motion	[CCZD]	05.2011-
VW	Touran 1.6	[BGU]	07.2003-
VW	Touran 1.6	[BSE]	07.2003-
VW	Touran 1.6	[BSF]	07.2003-
VW	Touran 1.6 FSi	[BAG]	02.2003-
VW	Touran 1.6 FSi	[BLF]	02.2003-
VW	Touran 1.6 FSi	[BLP]	02.2003-
VW	Touran 2.0 FSi	[AXW]	10.2003-
VW	Touran 2.0 FSi	[BLR]	10.2003-
VW	Touran 2.0 FSi	[BLX]	10.2003-
VW	Touran 2.0 FSi	[BLY]	10.2003-
VW	Touran 2.0 FSi	[BVY]	10.2003-
VW	Touran 2.0 FSi	[BVZ]	10.2003-
VW	Up 1.0 EcoFuel	[CPGA]	11.2012-
VW	Vento 1.6	[CWVA]	05.2015-

0001121402 0001121403 02M911021B 02M911021BX 02M911023E 02M911023G 02M911023GX 02M911023M 02M911023MX 063521214020 063721347010 0986020230 101347 101347V 113773 17970N 20401592 20479212 220448 220448A 25-3348 300.574.102 3037 42020230 438174 458216 6010295 6015212 726136 88212280 8EA012527-551 8EA738258-011 943213471010 944280202300 CS1347 CST10295 CST10295AS CST10295ES CST10295GS CST10295OS CST10295RS CST15212 CST15212AS CST15212ES CST15212GS CST15212OS CST15212RS DRT0230 EAA-121357 LRS02174 LRS2174 M1202E MAV122950 MAV172120 S-6268 STB1347 STB9347 STQ1347 STR54070 STV1347 STV9347 UD20360S

View your shopping basket or Browse other items in Starter Motors.

AS GROUP NZ

Note: We have moved to a private property and no longer allow pick ups to non account holders -, Paraparaumu, Wellington

5032, New Zealand

0800 727 000 (Domestic Calls)

Shipping Policy: All paid orders are shipped within 24 hours (Monday - Friday)

Returns: Items returned for refund must be unopen/unused in original packaging and within 30 days of date of sale. All Returns must have a Return Advice (RA) form accompany the goods.

PLEASE NOTE: PRODUCT BOXES ARE NOT SHIPPING BOXES, ANY PRODUCT RETURNED WITH TAPE/LABELS OVER THE PRODUCT BOX WILL BE CHARGED A RESTOCKING FEE

[Terms and Conditions]

[Warranty Form] [Warranty procedure]

[Privacy Policy] [Disclaimer]
