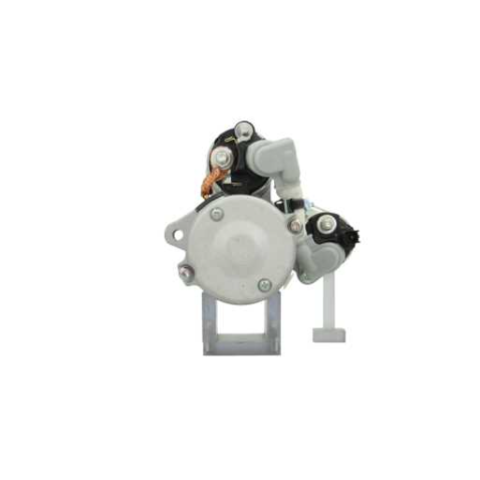

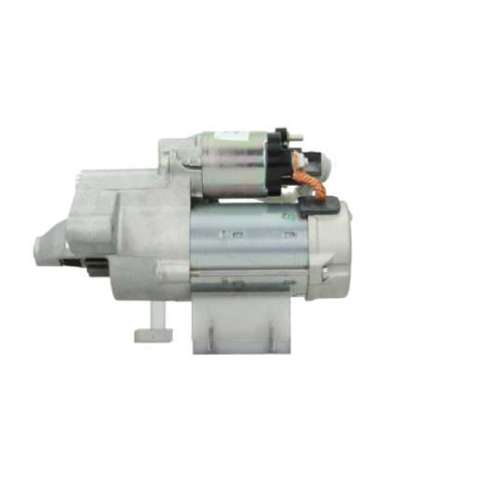

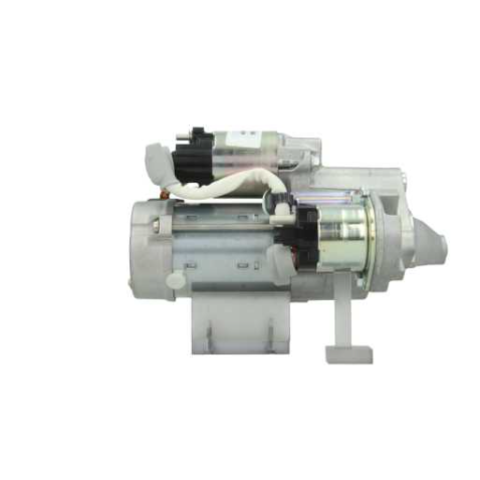

Brand new DENSO Starter motor
PREMIUM LINE
DENSO
DENSO
Price:
NZ$ 883.20 including GST
NZ$ 768.00 excluding GST
or four payments of $220.80
with
Learn More
each
S6435S
SGD-C13003
1
Associated Numbers
MS4380000270 MS4380000271 SGD-C13003 WAI New 33236-OS 33236N Autoelectro AEY2755 CASCO CST40521GS Denso 438000-0270 DRI A/S Denmark 319090132 EGI S-33236 ERA 220835 Ford 1870892 DS7T-11000-LD DS7T-11000-LE Lester 33236 Lucas Electrical Europe LRS02755 Part # 11090376 EuroTec 116268 Cargo 12319 EAI 254428 Elstock 3226 CEVAM 4380000270 4380000271 5428000203 5428000483 5428000547 590590133 PSH 911045 EDR DRS1045 Remy DS7T11000LD DS7T11000LE 0986026620 Bosch 2415036 show 6040521 Sando A93070 ATL Auto Electro LRS2755 NSM1669 Napa (UK) RMDS7T11000LE RNL4380000270 RNL S4230015 Herth Buss SDN521 AutoTeam 70-8351Specifications
| Kilowatt | 1.4 kW |
| Length (L.1) | 189 mm |
| Mount Hole Center - Center (O.1) | 106 mm |
| Mount Hole Center - Center (O.2) | 66 mm |
| Mount Hole Center - Center (O.3) | 66 mm |
| Mount Hole Diameter (C.1) | 12 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 25 mm |
| Rotation | CW |
| Spigot Diameter (A) | 82.5 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CARRIER TRANSICOLD | Engine | [CT4-114-TV(V1903)] | 01.1992-12.1998 |
| CARRIER TRANSICOLD | Engine | [CT4-134DI(V2203)] | 01.1992-12.1998 |
| CARRIER TRANSICOLD | Engine | [CT4-134-TV(V2203)] | 01.1992-12.1998 |
| CARRIER TRANSICOLD | Extra | [CT4-114] | |
| CARRIER TRANSICOLD | Extra | [CT4-134(V2203)] | |
| CARRIER TRANSICOLD | Genesis | 01.1995-12.2006 | |
| CARRIER TRANSICOLD | Genesis TM1000 | [CT4-134-DI(V2203)] | 01.2000-12.2007 |
| CARRIER TRANSICOLD | Genesis TM900 | [CT4-134-DI(V2203)] | |
| CARRIER TRANSICOLD | Genesis TR100 | [CT4-134-DI[V2203)] | |
| CARRIER TRANSICOLD | Genset | [CT4-134-DI(V22003)] | 01.2000-12.2007 |
| CARRIER TRANSICOLD | Phoenix R-22 | 01.1995-12.2006 | |
| CARRIER TRANSICOLD | Phoenix Ultra | 01.1994-12.2006 | |
| CARRIER TRANSICOLD | Phoenix Xtra | 01.1994-12.2006 | |
| CARRIER TRANSICOLD | RG15 | 01.1995-12.2006 | |
| CARRIER TRANSICOLD | UG15 | [CT4-134-DI(V2203)] | 01.1995-12.2006 |
| CARRIER TRANSICOLD | Ultima 53 | [CT4-134-DI(V2203)] | 01.1996-12.2006 |
| FORD | Focus 2.0 TDCi | [T7DA] | 01.2014- |
| FORD | Focus 2.0 TDCi | [T7DB] | 01.2014- |
| FORD | Focus 2.0 TDCi ST | [T8DA] | 01.2014- |
| FORD | Galaxy 2.0 TDCi | [T7CI] | 01.2015-12.2018 |
| FORD | Galaxy 2.0 TDCi | [T7CJ] | 01.2015-12.2018 |
| FORD | Galaxy 2.0 TDCi | [T7CK] | 01.2015-12.2018 |
| FORD | Galaxy 2.0 TDCi | [T7CL] | 01.2015-12.2018 |
| FORD | Galaxy 2.0 TDCi | [T8CG] | 01.2015-12.2018 |
| FORD | Galaxy 2.0 TDCi | [T8CH] | 01.2015-12.2018 |
| FORD | Galaxy 2.0 TDCi | [T8CI] | 01.2015-12.2018 |
| FORD | Galaxy 2.0 TDCi | [T8CJ] | 01.2015-12.2018 |
| FORD | Galaxy 2.0 TDCi | [UFCA] | 01.2015-12.2018 |
| FORD | Galaxy 2.0 TDCi | [UFCB] | 01.2015-12.2018 |
| FORD | Galaxy 2.0 TDCi Bi-Turbo | [T9CB] | 01.2015-12.2018 |
| FORD | Galaxy 2.0 TDCi Bi-Turbo | [T9CC] | 01.2015-12.2018 |
| FORD | Kuga 2.0 TDCi | [T7MA] | 01.2014- |
| FORD | Kuga 2.0 TDCi | [T7MB] | 01.2014- |
| FORD | Kuga 2.0 TDCi | [XRMA] | 01.2014- |
| FORD | Kuga 2.0 TDCi | [XRMB] | 01.2014- |
| FORD | Kuga 2.0 TDCi 4x4 | [T7MA] | 01.2014- |
| FORD | Kuga 2.0 TDCi 4x4 | [T7MB] | 01.2014- |
| FORD | Kuga 2.0 TDCi 4x4 | [T8MA] | 01.2014- |
| FORD | Kuga 2.0 TDCi 4x4 | [T8MB] | 01.2014- |
| FORD | Mondeo 2.0 TDCi | [T7CA] | 01.2014- |
| FORD | Mondeo 2.0 TDCi | [T7CC] | 01.2014- |
| FORD | Mondeo 2.0 TDCi | [T7CD] | 01.2014- |
| FORD | Mondeo 2.0 TDCi | [T7CE] | 01.2014- |
| FORD | Mondeo 2.0 TDCi | [T7CF] | 01.2014- |
| FORD | Mondeo 2.0 TDCi | [T7CN] | 01.2014- |
| FORD | Mondeo 2.0 TDCi | [T7CP] | 01.2014- |
| FORD | Mondeo 2.0 TDCi | [T7CQ] | 01.2014- |
| FORD | Mondeo 2.0 TDCi | [T8CA] | 01.2014- |
| FORD | Mondeo 2.0 TDCi | [T8CB] | 01.2014- |
| FORD | Mondeo 2.0 TDCi | [T8CC] | 01.2014- |
| FORD | Mondeo 2.0 TDCi | [T8CD] | 01.2014- |
| FORD | Mondeo 2.0 TDCi | [T8CL] | 01.2014- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CA] | 01.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CC] | 01.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CD] | 01.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CE] | 01.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CF] | 01.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CN] | 01.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CP] | 01.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T7CQ] | 01.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T8CA] | 01.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T8CB] | 01.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T8CC] | 01.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T8CD] | 01.2015- |
| FORD | Mondeo 2.0 TDCi 4x4 | [T8CL] | 01.2015- |
| FORD | Mondeo 2.0 TDCi Bi-Turbo | [T9CA] | 01.2015- |
| FORD | S-Max 2.0 TDCi | [T7CI] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi | [T7CJ] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi | [T7CK] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi | [T7CL] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi | [T8CG] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi | [T8CH] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi | [T8CI] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi | [T8CJ] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi | [UFCA] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi | [UFCB] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T7CI] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T7CJ] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T7CK] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T7CL] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T8CG] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T8CH] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T8CI] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T8CJ] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi Bi-Turbo | [T9CB] | 01.2015-12.2018 |
| FORD | S-Max 2.0 TDCi Bi-Turbo | [T9CC] | 01.2015-12.2018 |
| KUBOTA | Engine | [V2202] | 01.1991-12.2005 |
| KUBOTA | Engine | [V2203-B] | 01.1991-12.2005 |
Reference Information
DS7T-11000-LE DS7T-11000-LD LRS2755 220835 STRE440 590.590.133.260 PRSE440 33236-OS 12319 MAV425210 6040521.1 DRS1045 255399R 438000-0270 LRS02755 UD17065S 5-428000-483 5-428000-203 25-4428 5-428000-547 AEY2755 1870892 20432125OE 3226 116268 88214648 CST40521GSVideo/Publications
116268 12319 1870892 20432125OE 220835 25-4428 255399R 3226 33236-OS 438000-0270 5-428000-203 5-428000-483 5-428000-547 590.590.133.260 6040521.1 88214648 AEY2755 CST40521GS DRS1045 DS7T-11000-LD DS7T-11000-LE LRS02755 LRS2755 MAV425210 PRSE440 STRE440 UD17065SView your shopping basket or Browse other items in Starter Motors.
