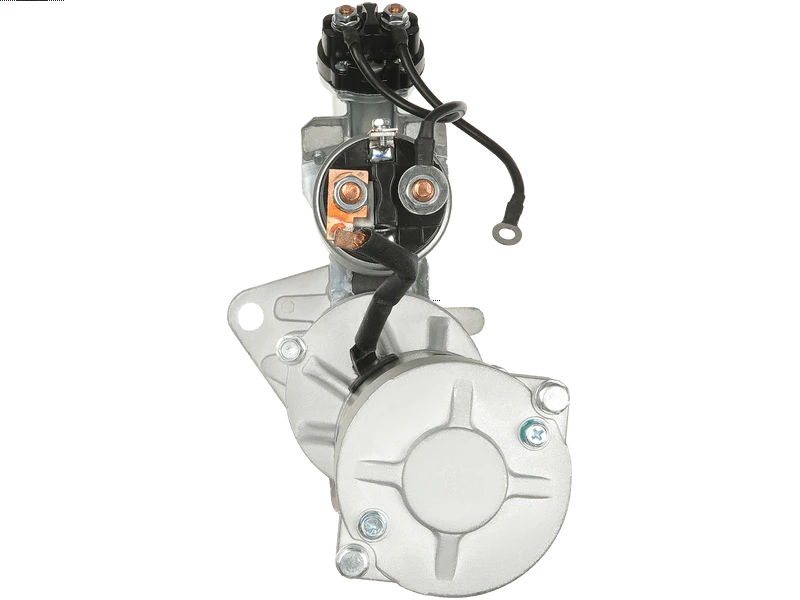

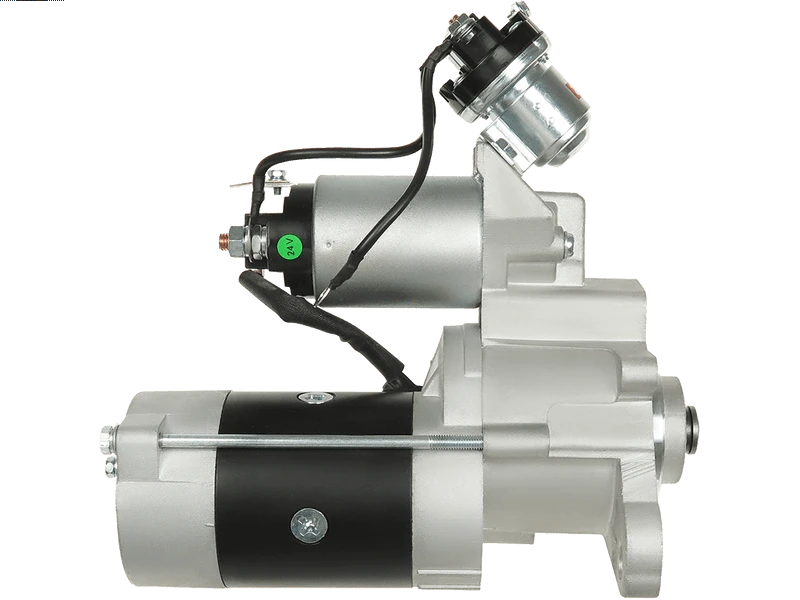

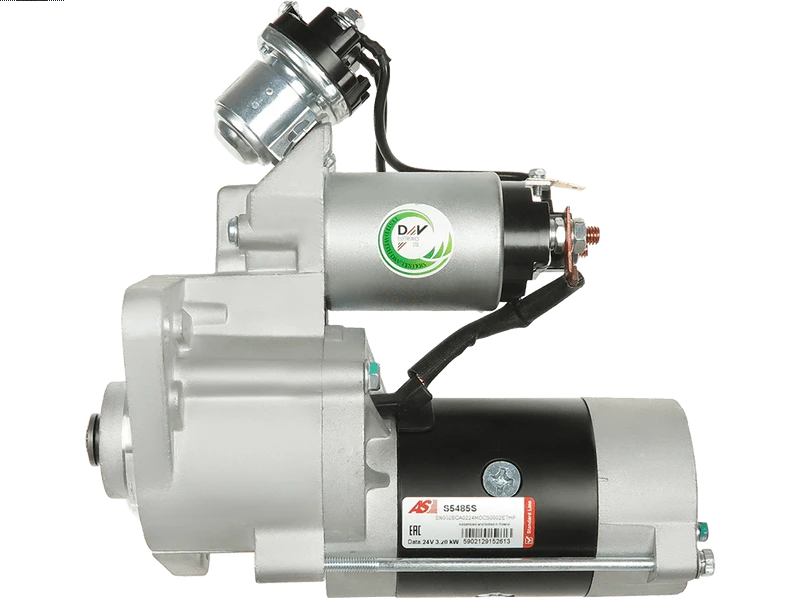

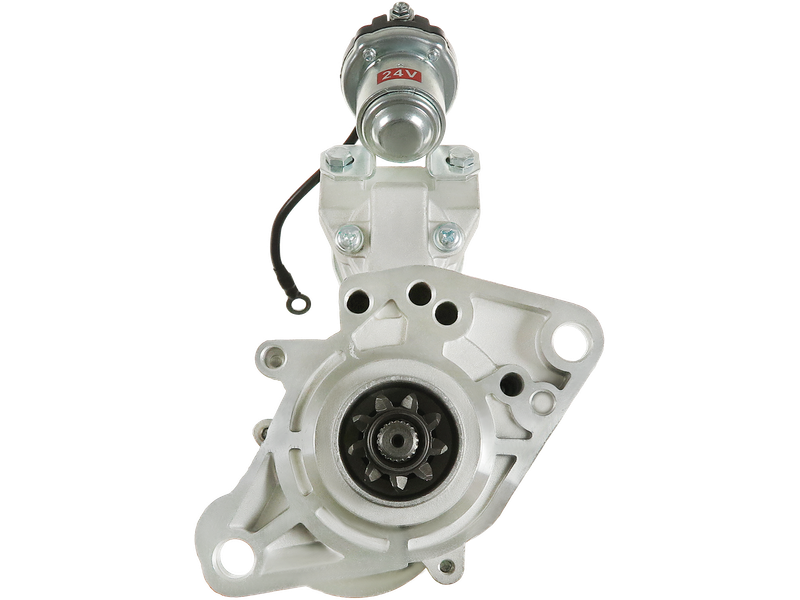

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 361.99 including GST
NZ$ 314.77 excluding GST
or four payments of $90.50
with
Learn More
each
S5485S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 3.2 kW |
| Length (L.1) | 243 mm |
| Mount Hole Center - Center (O.1) | 23 mm |
| Mount Hole Center - Center (O.2) | 11 mm |
| Mount Hole Center - Center (O.3) | 46 mm |
| Mount Hole Center - Center (O.4) | 145 mm |
| Mount Hole Center - Center (O.5) | 102 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| Mount Hole Diameter (C.3) | M10x1.25 mm |
| Mount Hole Diameter (C.4) | 13.5 mm |
| Mount Hole Diameter (C.5) | 13.5 mm |
| No./Mount holes | 5 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 17 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 60 mm |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MITSUBISHI | Canter 3.3 D | [4D30] | 01.1983- |
| MITSUBISHI | Canter 60 3.3 D | [4D31T] | 01.1984-12.1994 |
Reference Information
M002T66873 M002T66872 M002T67884 M002T67881 M002T66871 M002T67883 M002T67882 MG232415 ME017061 MEO17088 JS553 MEO17085 STRS651 MEO17089 151.501.093.780 151.501.093.460 MEO17005 LRS1843 36100-41012 151.501.093.265 STM0553 S5485S M002T66882 M002T66881 PRSS651 45-1101 ME017056 MEO17036 ME017092 MEO17035 MEO17034 M2T67872 M2T67871 151.501.093.131 151.501.093.130 M2T67873 20553 6035608 CST35608AS 8EA726505-001 M003T67871 ME017005 8EA012586-261 MEO17061 ME017089 ME017088 ME017085 UD49014S S24MH0127A2 STR5112 M2T66871 M2T67883 88213128 M2T67882 M2T67881 STX200768 M2T66873 LRS01843 M2T66872 M2T67884 M002T67873 M3T67871 M002T67872 M002T67871 ME017036 STR6138 8160 ME017035 ME017034 3610041010 3610041011 MEO17056 M2T66882 M2T66881 151.501.093.510 0986023420 20437806BNVideo/Publications
