Associated Numbers
ARROWHEAD S114-263B, SHI0135
EMP 4-6423
HITACHI S114-263B, S114-263BN
J&N ELECTRICAL PRODUCTS 410-44058
LESTER 18344
SIERRA MARINE 18-6423
18344 Lester
400048093 PSH
6888180010 Yamaha
6888180011 Yamaha
6888180012 Yamaha
688818001200 Yamaha
S114263B Hitachi
WAI New 18344N
WAI Old 18344N-OE, 2-2517-HI, 2-2517-HI-1
ACE Zorkos CM18344N
Alltech 121-18344
American Power Systems APS18344
Andre Niermann 014263
Arco 3427
Armature G Roy 18344
Atelier Dynamo S104-375
Auto Electric Suppliers 18344N
Bepco 80-18344
Casco CST20247, CST20247GS
DuBois 18344
EGI S-18344
Electric Motor Service (EMS) S114-263B, YM-2N
Elpar Industries 011903649
Hitachi S114-263B, S114-263BN
Just Parts HT4-0066N
Lester 18344
Mallory 9-15057
MES - Marine Electric Suppliers S2080M
Minnpar 57-1644
Minnpar Old 6881644
Mondial 74-073-50
Mondial New 74-073-50N
Nastra 18344
Our Part Number 18344N
Part # 18344
PASCO S-140375
Power Select 18344N
Powerite Automotive 18344
Protorque PH130-0058
Quality Rebuilders 18344
Raw Power 18344N
Road Warrior 18344N
Rotex 18344
Sierra Marine 18-6423
Stratoline 80-18344
Suncoast 18344
TSA 18344N
UCP Remanufactured 18344
Yamaha 688-81800-10, 688-81800-10-00, 688-81800-11, 688-81800-11-00, 688-81800-12, 688-81800-12-00
Zorko 18344 YAMAHA 688-81800-10, 688-81800-11, 688-81800-12

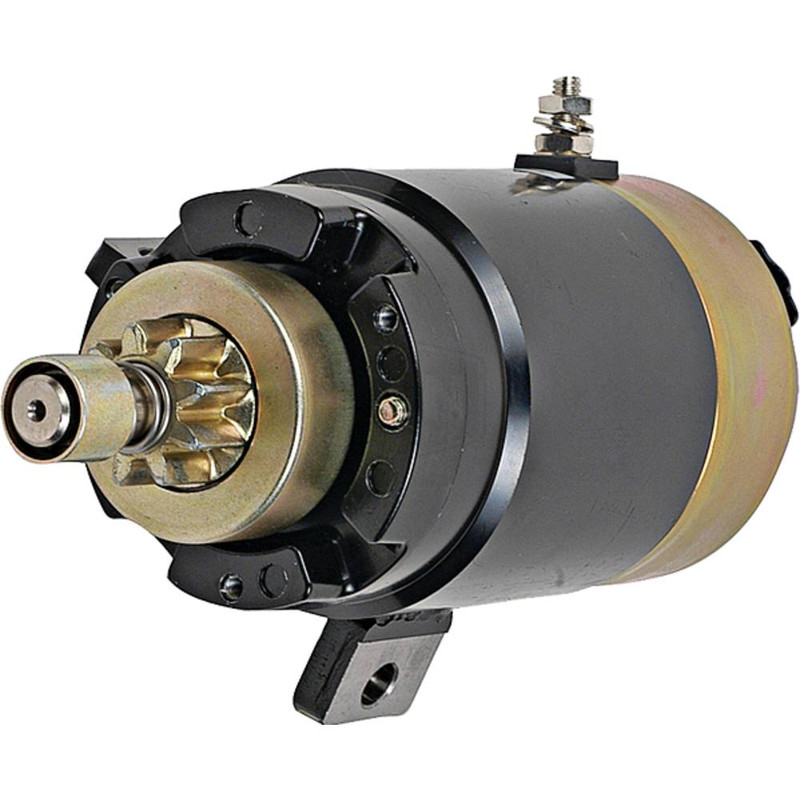

Specifications
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 9 mm |
| Kilowatt | .6 kW |
| Length (L.1) | 200 mm |
| Mount Hole Center - Center (O.1) | 68 mm |
| Mount Hole Diameter (C.3) | 8.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 30 mm |
| Rotation | ACW |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YAMAHA | 90ETL | 90H | 1984, 1985, 1986, 1987, 1988, 1989, 1990 |
| YAMAHA | 90ETL | 1984, 1985, 1986, 1987, 1988, 1989, 1990 | |
| YAMAHA | 90ETLJD | 90H | 1986, 1987, 1988, 1989, 1990 |
| YAMAHA | 90ETLJD | 1987, 1988, 1989, 1990 | |
| YAMAHA | 90ETX | 90H | 1984 |
| YAMAHA | 90ETX | 1984 | |
| YAMAHA | 90TJR | 90H | 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001 |
| YAMAHA | 90TJR | 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001 | |
| YAMAHA | 90TLR | 90H | 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 |
| YAMAHA | 90TLR | 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 | |
| YAMAHA | B90TLR | 90H | 1998, 1999 |
| YAMAHA | B90TLR | 1998, 1999 | |
| YAMAHA | C75TLR | 75H | 1994, 1995, 1996, 1997, 1998, 1999 |
| YAMAHA | C75TLR | 1994, 1995, 1996, 1997, 1998, 1999 | |
| YAMAHA | C80TLR | 80H | 1997 |
| YAMAHA | C80TLR | 1997 | |
| YAMAHA | C85TLR | 85H | 1991, 1992, 1993, 1994, 1995, 1996 |
| YAMAHA | C85TLR | 1991, 1992, 1993, 1994, 1995, 1996 | |
| YAMAHA | C90TLR | 90H | 1997, 1998, 1999, 2000, 2001 |
| YAMAHA | C90TLR | 1997, 1998, 1999, 2000, 2001 | |
| YAMAHA | CV85EL | 85H | 1990 |
| YAMAHA | CV85EL | 1990 | |
| YAMAHA | CV85ETL | 85H | 1990 |
| YAMAHA | CV85ETL | 1990 | |
| YAMAHA | P75TLH | 75H | 1996, 1997, 1998, 1999 |
| YAMAHA | P75TLH | 1996, 1997, 1998, 1999 |
Reference Information
688-81800-10, 688-81800-11, 688-81800-12
