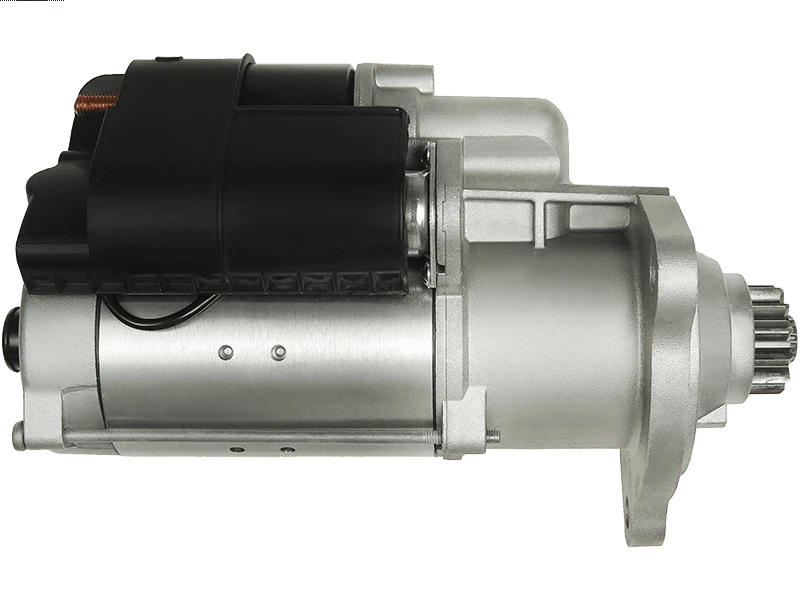

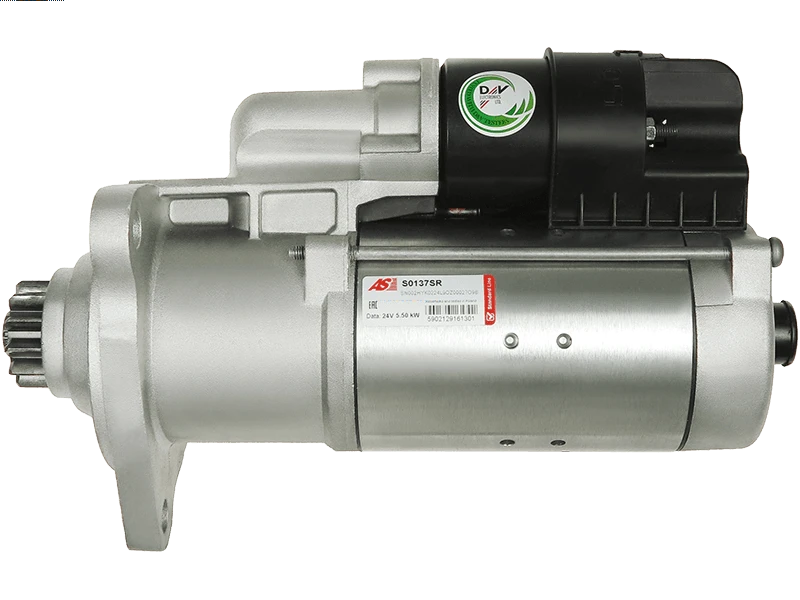

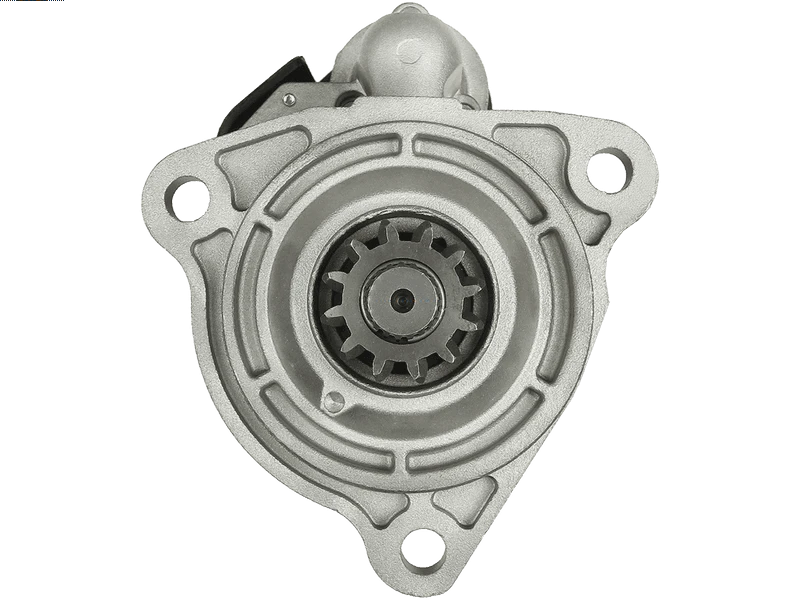

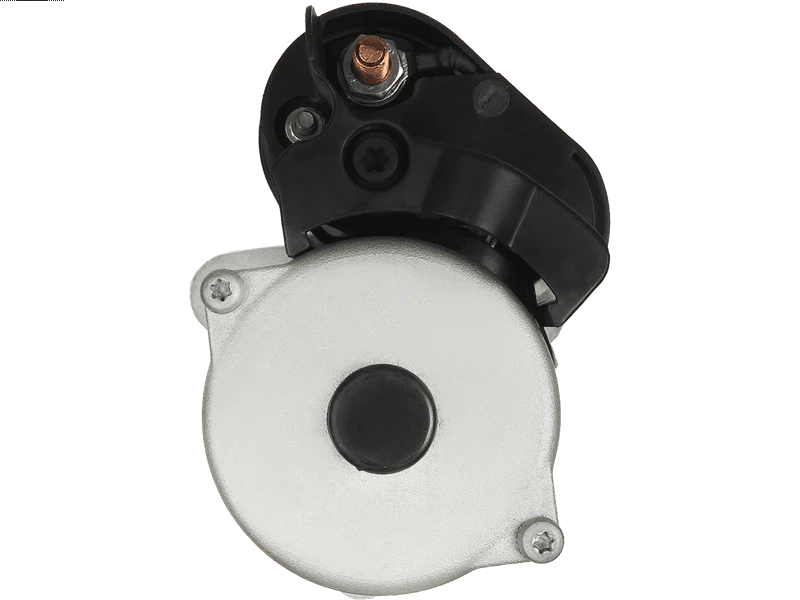

Remanufactured AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 686.15 including GST
NZ$ 596.65 excluding GST
or four payments of $171.54
with
Learn More
each
S0137SR
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 5.5 kW |
| Length (L.1) | 321 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| Mount Hole Diameter (C.3) | 13.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 110 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAF | 95 XF.530 12.6 | [XE390C] | 02.2001-09.2002 |
| DAF | CF 85.340 12.6 | [XE250C] | 01.2001- |
| DAF | CF 85.360 12.6 | [MX265] | 10.2006- |
| DAF | CF 85.380 12.6 | [XE280C] | 01.2001- |
| DAF | CF 85.430 12.6 | [XE315C] | 01.2001- |
| DAF | CF 85.430 12.6 | [XE315C] | 04.2001- |
| DAF | CF 85.430 12.6 | [XE315C] | 12.2005- |
| DAF | CF 85.480 12.6 | [XE355C] | 01.2001- |
| DAF | CF 85.480 12.6 | [XE355C] | 04.2001- |
| DAF | CF 85.480 12.6 | [XE355C] | 12.2005- |
| DAF | CF 85.480 12.6 | [XF355M] | 04.2001- |
| DAF | XF 105.410 12.9 | [MX300] | 10.2005- |
| DAF | XF 105.460 12.9 | [MX340] | 10.2005- |
| DAF | XF 105.510 12.9 | [MX375] | 10.2005- |
| DAF | XF 95.380 12.6 | [XE280C] | 01.1997- |
| DAF | XF 95.380 12.6 | [XE280C] | 09.2002- |
| DAF | XF 95.380 12.6 | [XF280M] | 01.1997- |
| DAF | XF 95.430 12.6 | [XE315C] | 01.1997- |
| DAF | XF 95.430 12.6 | [XE315C] | 09.2002- |
| DAF | XF 95.430 12.6 | [XE315C] | 09.2002-12.2006 |
| DAF | XF 95.430 12.6 | [XF315M] | 01.1997- |
| DAF | XF 95.480 12.6 | [XE355C] | 01.1997- |
| DAF | XF 95.480 12.6 | [XE355C] | 09.2002- |
| DAF | XF 95.480 12.6 | [XE355C] | 12.2005- |
| DAF | XF 95.480 12.6 | [XF355M] | 01.1997- |
| DAF | XF 95.530 12.6 | [XE390C] | 01.1997-09.2002 |
| DAF | XF 95.530 12.6 | [XE390C] | 09.2002- |
| DAF | XF 95.530 12.6 | [XE390C] | 09.2002-12.2006 |
| DAF | XF 95.530 14.0 | [VF390M] | 01.1997- |
| DAF | XF 95.530 14.0 | [VF390M] | 01.1997-09.2002 |
Reference Information
CST10714GS 1739936 PRSS003 1357213 113934 901.506.123.215 901.506.123.010 72444486 1357210 FS60PR019 901.506.123.210 20401417RC 1357212 S24BH0126A2 45-3439 0986021490 8EA738258-371 1667205 6010714.2 6010714.1 6010714.0 0986021496 0001261003 0001241019 220749 MS760 0001241014 0001261004 S635329A LRS02268 1528597 11.139.609 STRS003 19084251 88212923 0001241007 STR1236 F042002137 1284775 CST10714AS DRT1490 0001241003 1317220 2165368R 1688720 1739936R 1604246 CST10714RS CGB-22149 30130N 19084001 8EA012586-531 0001241119 8089 20401417BN 901.506.123.900 101380B 901.506.123.500 STM678 AZF4879 101380P CS1380 101380V 438233 IS9461 20401417OE STR50220 LRS2268Video/Publications
