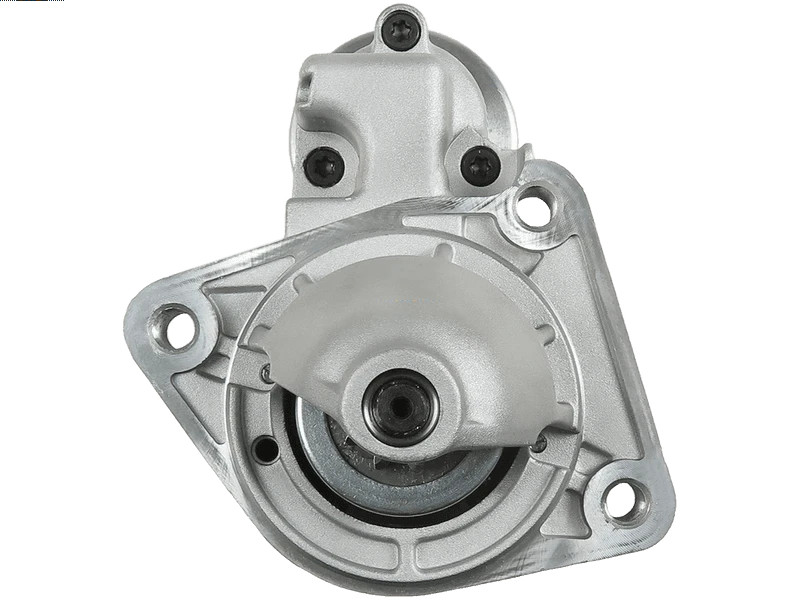

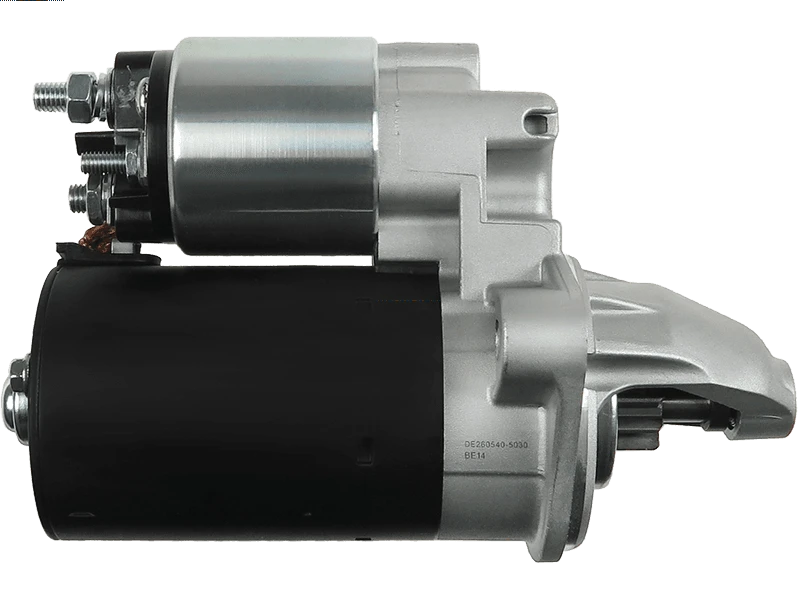

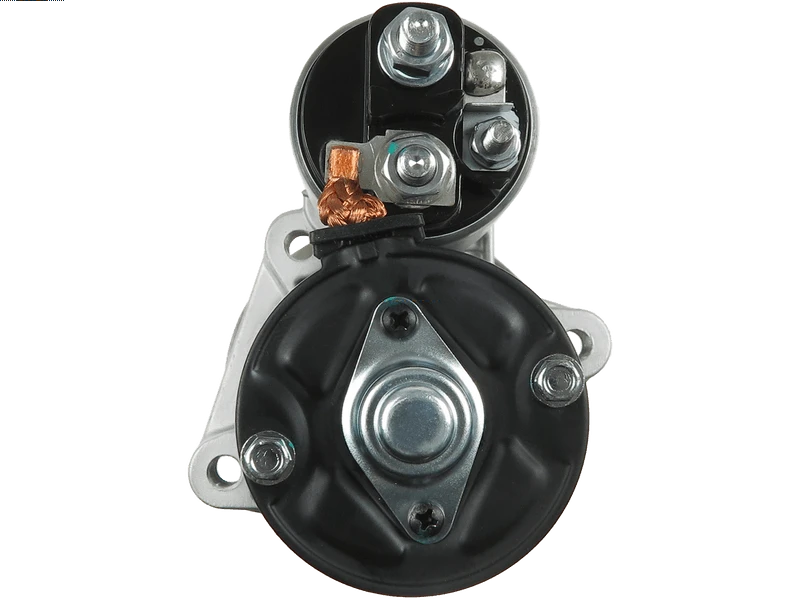

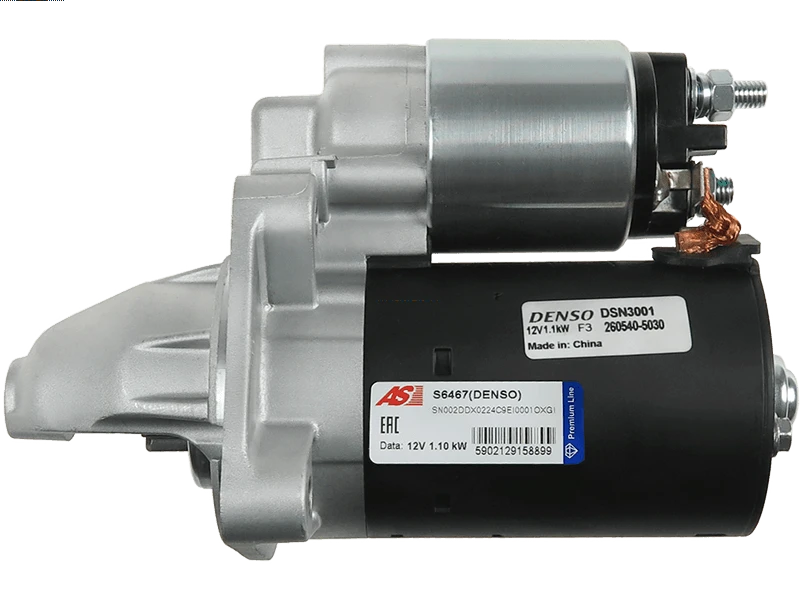

S6467(DENSO) - Brand new OEM DENSO Starter motor

Name: Brand new OEM DENSO Starter motor
Brand: Denso
SKU: S6467(DENSO)
Price: 419.31 NZD
Availability: BackOrder

Brand new OEM DENSO Starter motor

PREMIUM LINE

Manufacturer:

Denso

Replacement For:

DENSO

Price:

NZ$ 419.31 including GST

NZ$ 364.62 excluding GST

UOM:

each

Product Code:

S6467(DENSO)

Quantity In Stock Nationally:

No stock in NZ

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Specifications
Vehicle Applications
Reference Information
Video/Publications

Kilowatt	1.1 kW
Length (L.1)	201 mm
Mount Hole Center - Center (O.1)	67 mm
Mount Hole Center - Center (O.2)	105 mm
Mount Hole Center - Center (O.3)	83 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
Mount Hole Diameter (C.3)	M10x1.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	3 qty
No./Teeth	10 qty
OEM Product	Yes
Pinion at Rest (B)	27 mm
Product Line	Premium Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	DENSO
Voltage	12 V

Make	Model	Type	Year
FORD	B-Max 1.4	[SPJD]	10.2012-
FORD	B-Max 1.4	[SPJE]	10.2012-
FORD	B-Max 1.4 LPG	[RTJC]	08.2013-
FORD	B-Max 1.6 Ti	[IQJA]	10.2012-
FORD	B-Max 1.6 Ti	[IQJC]	10.2012-
FORD	C-Max 1.6	[HWDA]	02.2007-09.2010
FORD	C-Max 1.6	[HWDB]	02.2007-09.2010
FORD	C-Max 1.6	[SHDA]	02.2007-09.2010
FORD	C-Max 1.6	[SHDB]	02.2007-09.2010
FORD	C-Max 1.6	[SHDC]	02.2007-09.2010
FORD	C-Max 1.6 Flexifuel	[MUDA]	02.2011-06.2019
FORD	C-Max 1.6 Flexifuel	[MUDD]	02.2011-06.2019
FORD	C-Max 1.6 LPG	[MUDA]	02.2012-06.2019
FORD	C-Max 1.6 LPG	[MUDD]	02.2012-06.2019
FORD	C-Max 1.6 Ti	[IQDA]	12.2010-06.2019
FORD	C-Max 1.6 Ti	[IQDB]	12.2010-06.2019
FORD	C-Max 1.6 Ti	[MUDA]	02.2012-06.2019
FORD	C-Max 1.6 Ti	[MUDD]	02.2012-06.2019
FORD	C-Max 1.6 Ti	[PNDA]	12.2010-06.2019
FORD	C-Max 1.6 Ti	[PNDD]	12.2010-06.2019
FORD	C-Max 1.6 Ti	[XTDA]	12.2010-06.2019
FORD	C-Max 1.6 Ti	[XTDB]	12.2010-06.2019
FORD	EcoSport 1.5 Ti	[UEJB]	10.2013-
FORD	EcoSport 1.5 Ti	[UEJE]	10.2013-
FORD	Fiesta 1.25	[SNJA]	01.2009-
FORD	Fiesta 1.25	[SNJA]	06.2008-04.2017
FORD	Fiesta 1.25	[SNJB]	01.2009-
FORD	Fiesta 1.25	[SNJB]	06.2008-04.2017
FORD	Fiesta 1.25	[SNJC]	01.2009-
FORD	Fiesta 1.25	[SNJC]	06.2008-04.2017
FORD	Fiesta 1.25	[SNJD]	01.2009-
FORD	Fiesta 1.25	[SNJD]	06.2008-04.2017
FORD	Fiesta 1.25	[STJA]	06.2008-04.2017
FORD	Fiesta 1.25	[STJA]	08.2008-12.2012
FORD	Fiesta 1.25	[STJB]	06.2008-04.2017
FORD	Fiesta 1.25	[STJB]	08.2008-12.2012
FORD	Fiesta 1.25	[STJC]	06.2008-04.2017
FORD	Fiesta 1.25	[STJD]	06.2008-04.2017
FORD	Fiesta 1.25 16V	[FUJA]	05.2002-06.2008
FORD	Fiesta 1.25 16V	[FUJB]	05.2002-06.2008
FORD	Fiesta 1.25 16V	[M7JA]	03.2003-06.2008
FORD	Fiesta 1.25 16V	[M7JB]	03.2003-06.2008
FORD	Fiesta 1.25 i 16V	[DHA]	08.1995-01.2002
FORD	Fiesta 1.25 i 16V	[DHB]	08.1995-01.2002
FORD	Fiesta 1.25 i 16V	[DHC]	08.1995-01.2002
FORD	Fiesta 1.25 i 16V	[DHD]	08.1995-01.2002
FORD	Fiesta 1.25 i 16V	[DHE]	08.1995-01.2002
FORD	Fiesta 1.25 i 16V	[DHF]	08.1995-01.2002
FORD	Fiesta 1.25 i 16V	[DHG]	08.1995-01.2002
FORD	Fiesta 1.4	[FXJA]	05.2002-09.2005
FORD	Fiesta 1.4	[RTJA]	10.2008-09.2012
FORD	Fiesta 1.4	[RTJB]	10.2008-09.2012
FORD	Fiesta 1.4	[SPJA]	10.2008-09.2012
FORD	Fiesta 1.4	[SPJA]	10.2008-12.2012
FORD	Fiesta 1.4	[SPJC]	10.2008-09.2012
FORD	Fiesta 1.4	[SPJC]	10.2008-12.2012
FORD	Fiesta 1.4	[SPJE]	10.2008-09.2012
FORD	Fiesta 1.4 16V	[FXJA]	11.2001-06.2008
FORD	Fiesta 1.4 16V	[FXJB]	11.2001-06.2008
FORD	Fiesta 1.4 LPG	[RTJA]	01.2009-04.2017
FORD	Fiesta 1.4 LPG	[RTJB]	01.2009-04.2017
FORD	Fiesta 1.4 LPG	[RTJD]	01.2009-04.2017
FORD	Fiesta 1.4 LPG	[SPJA]	01.2009-04.2017
FORD	Fiesta 1.4 LPG	[SPJC]	01.2009-04.2017
FORD	Fiesta 1.4 LPG	[SPJE]	01.2009-04.2017
FORD	Fiesta 1.6 16V	[FYJA]	11.2001-06.2008
FORD	Fiesta 1.6 16V	[FYJB]	11.2001-06.2008
FORD	Fiesta 1.6 Ti	[HXJA]	06.2008-09.2012
FORD	Fiesta 1.6 Ti	[HXJB]	06.2008-09.2012
FORD	Fiesta 1.6 Ti	[HXJE]	06.2008-09.2012
FORD	Fiesta 1.6 Ti	[IQJA]	09.2012-
FORD	Fiesta 1.6 Ti	[IQJC]	09.2012-
FORD	Fiesta 1.6 Ti	[IQJE]	09.2012-
FORD	Fiesta 1.6 Ti	[RVJA]	06.2008-09.2012
FORD	Fiesta 1.6 Ti	[U5JA]	12.2010-
FORD	Fiesta 1.6 Ti-VCT	[HXJA]	10.2008-12.2012
FORD	Fiesta 1.6 Ti-VCT	[HXJB]	10.2008-12.2012
FORD	Focus 1.4	[ASDA]	04.2005-09.2012
FORD	Focus 1.4	[ASDA]	07.2004-09.2012
FORD	Focus 1.4	[ASDA]	09.2005-07.2011
FORD	Focus 1.4	[ASDB]	04.2005-09.2012
FORD	Focus 1.4	[ASDB]	07.2004-09.2012
FORD	Focus 1.4	[ASDB]	09.2005-07.2011
FORD	Focus 1.4	[FXDA]	04.1999-03.2005
FORD	Focus 1.4	[FXDB]	04.1999-03.2005
FORD	Focus 1.4	[FXDC]	04.1999-03.2005
FORD	Focus 1.4	[FXDD]	04.1999-03.2005
FORD	Focus 1.4 16V	[FXDA]	02.1999-11.2004
FORD	Focus 1.4 16V	[FXDA]	10.1998-09.1999
FORD	Focus 1.4 16V	[FXDA]	10.1998-11.2004
FORD	Focus 1.4 16V	[FXDB]	02.1999-11.2004
FORD	Focus 1.4 16V	[FXDB]	10.1998-11.2004
FORD	Focus 1.4 16V	[FXDC]	02.1999-11.2004
FORD	Focus 1.4 16V	[FXDC]	10.1998-11.2004
FORD	Focus 1.4 16V	[FXDD]	02.1999-11.2004
FORD	Focus 1.4 16V	[FXDD]	10.1998-11.2004
FORD	Focus 1.6	[FYDA]	04.1999-03.2005
FORD	Focus 1.6	[FYDB]	04.1999-03.2005
FORD	Focus 1.6	[FYDC]	04.1999-03.2005
FORD	Focus 1.6	[FYDD]	04.1999-03.2005
FORD	Focus 1.6	[HWDA]	04.2005-09.2012
FORD	Focus 1.6	[HWDA]	07.2004-07.2011
FORD	Focus 1.6	[HWDA]	07.2004-09.2012
FORD	Focus 1.6	[HWDA]	09.2005-07.2011
FORD	Focus 1.6	[HWDA]	10.2006-09.2010
FORD	Focus 1.6	[HWDB]	04.2005-09.2012
FORD	Focus 1.6	[HWDB]	07.2004-07.2011
FORD	Focus 1.6	[HWDB]	07.2004-09.2012
FORD	Focus 1.6	[HWDB]	10.2006-09.2010
FORD	Focus 1.6	[SHDA]	04.2005-09.2012
FORD	Focus 1.6	[SHDA]	07.2004-07.2011
FORD	Focus 1.6	[SHDA]	07.2004-09.2012
FORD	Focus 1.6	[SHDA]	10.2006-09.2010
FORD	Focus 1.6	[SHDB]	04.2005-09.2012
FORD	Focus 1.6	[SHDB]	07.2004-07.2011
FORD	Focus 1.6	[SHDB]	07.2004-09.2012
FORD	Focus 1.6	[SHDB]	10.2006-09.2010
FORD	Focus 1.6	[SHDC]	04.2005-09.2012
FORD	Focus 1.6	[SHDC]	07.2004-07.2011
FORD	Focus 1.6	[SHDC]	07.2004-09.2012
FORD	Focus 1.6	[SHDC]	10.2006-09.2010
FORD	Focus 1.6 16V	[FYDA]	02.1999-11.2004
FORD	Focus 1.6 16V	[FYDA]	10.1998-11.2004
FORD	Focus 1.6 16V	[FYDB]	02.1999-11.2004
FORD	Focus 1.6 16V	[FYDB]	10.1998-11.2004
FORD	Focus 1.6 16V	[FYDC]	02.1999-11.2004
FORD	Focus 1.6 16V	[FYDC]	10.1998-11.2004
FORD	Focus 1.6 16V	[FYDD]	02.1999-11.2004
FORD	Focus 1.6 16V	[FYDD]	10.1998-11.2004
FORD	Focus 1.6 16V	[FYDH]	02.1999-11.2004
FORD	Focus 1.6 16V	[FYDH]	10.1998-11.2004
FORD	Focus 1.6 16V Flexifuel	[FYDH]	01.2002-11.2004
FORD	Focus 1.6 Flexifuel	[MUDA]	07.2010-
FORD	Focus 1.6 Flexifuel	[MUDD]	07.2010-
FORD	Focus 1.6 LPG	[MUDA]	02.2012-
FORD	Focus 1.6 LPG	[MUDD]	02.2012-
FORD	Focus 1.6 LPG	[SIDA]	10.2009-07.2011
FORD	Focus 1.6 LPG	[SIDA]	10.2009-09.2012
FORD	Focus 1.6 Ti	[HXDA]	04.2005-09.2012
FORD	Focus 1.6 Ti	[HXDA]	07.2004-09.2012
FORD	Focus 1.6 Ti	[HXDB]	04.2005-09.2012
FORD	Focus 1.6 Ti	[HXDB]	07.2004-09.2012
FORD	Focus 1.6 Ti	[IQDA]	01.2011-
FORD	Focus 1.6 Ti	[IQDA]	07.2010-
FORD	Focus 1.6 Ti	[IQDA]	07.2010-05.2018
FORD	Focus 1.6 Ti	[IQDB]	01.2011-
FORD	Focus 1.6 Ti	[IQDB]	07.2010-
FORD	Focus 1.6 Ti	[IQDB]	07.2010-05.2018
FORD	Focus 1.6 Ti	[IQDC]	07.2010-
FORD	Focus 1.6 Ti	[IQDC]	07.2010-05.2018
FORD	Focus 1.6 Ti	[MUDA]	02.2012-
FORD	Focus 1.6 Ti	[MUDA]	02.2012-12.2017
FORD	Focus 1.6 Ti	[MUDD]	02.2012-
FORD	Focus 1.6 Ti	[MUDD]	02.2012-12.2017
FORD	Focus 1.6 Ti	[PNDA]	07.2010-
FORD	Focus 1.6 Ti	[PNDA]	07.2010-12.2017
FORD	Focus 1.6 Ti	[PNDD]	07.2010-
FORD	Focus 1.6 Ti	[PNDD]	07.2010-12.2017
FORD	Focus 1.6 Ti	[SIDA]	04.2005-09.2012
FORD	Focus 1.6 Ti	[SIDA]	07.2004-09.2012
FORD	Focus 1.6 Ti	[XTDA]	08.2011-
FORD	Focus 1.6 Ti	[XTDA]	08.2011-12.2017
FORD	Focus 1.6 Ti	[XTDB]	08.2011-
FORD	Focus 1.6 Ti	[XTDB]	08.2011-12.2017
FORD	Focus 1.6 Ti-VCT	[HXDA]	09.2005-07.2011
FORD	Focus 1.6 Ti-VCT	[HXDB]	09.2005-07.2011
FORD	Focus 1.6 Ti-VCT	[SIDA]	09.2005-07.2011
FORD	Focus C-Max 1.6	[HWDA]	10.2003-03.2007
FORD	Focus C-Max 1.6	[HWDB]	10.2003-03.2007
FORD	Focus C-Max 1.6	[SHDA]	10.2003-03.2007
FORD	Focus C-Max 1.6	[SHDB]	10.2003-03.2007
FORD	Focus C-Max 1.6	[SHDC]	10.2003-03.2007
FORD	Focus C-Max 1.6 Ti	[HXDA]	08.2004-03.2007
FORD	Focus C-Max 1.6 Ti	[SIDA]	08.2004-03.2007
FORD	Fusion 1.25	[FUJA]	08.2004-12.2012
FORD	Fusion 1.25	[FUJB]	08.2004-12.2012
FORD	Fusion 1.4	[FXJA]	08.2002-12.2012
FORD	Fusion 1.4	[FXJB]	08.2002-12.2012
FORD	Fusion 1.4	[FXJC]	08.2002-12.2012
FORD	Fusion 1.4 LPG	[UTJA]	01.2010-12.2012
FORD	Fusion 1.6	[FYJA]	08.2002-11.2009
FORD	Fusion 1.6	[FYJB]	08.2002-11.2009
FORD	Fusion 1.6	[FYJC]	08.2002-11.2009
FORD	Grand C-Max 1.6 Ti	[IQDA]	12.2010-06.2019
FORD	Grand C-Max 1.6 Ti	[IQDB]	12.2010-06.2019
FORD	Grand C-Max 1.6 Ti	[PNDA]	12.2010-06.2019
FORD	Grand C-Max 1.6 Ti	[PNDD]	12.2010-06.2019
FORD	KA+ 1.2	[B2KA]	06.2016-
FORD	KA+ 1.2	[YSKD]	06.2016-
FORD	KA+ 1.2	[YSKE]	06.2016-
FORD	KA+ 1.2 Ti-VCT	[YSKD]	06.2016-
FORD	KA+ 1.2 Ti-VCT	[YSKE]	06.2016-
FORD	Mondeo 1.6 Ti	[KGBA]	03.2010-01.2015
FORD	Mondeo 1.6 Ti	[KGBA]	07.2010-01.2015
FORD	Mondeo 1.6 Ti	[PNBA]	03.2007-01.2015
FORD	Mondeo 1.6 Ti	[PNBA]	03.2007-12.2010
FORD	Mondeo 1.6 Ti	[RHBA]	03.2007-01.2015
FORD	Mondeo 1.6 Ti	[RHBA]	03.2007-12.2012
MAZDA	2 1.2	[FUJA]	02.2003-06.2007
MAZDA	2 1.25	[FUJA]	04.2003-06.2007
MAZDA	2 1.4	[FXJA]	02.2003-06.2007
MAZDA	2 1.4	[FXJA]	04.2003-06.2007
MAZDA	2 1.6	[FYJA]	02.2003-06.2007
MAZDA	2 1.6	[FYJA]	04.2003-06.2007
VOLVO	C30 1.6	[B4164S3]	10.2006-12.2012
VOLVO	S40 1.6	[B4164S3]	01.2005-12.2012
VOLVO	V50 1.6	[B4164S3]	01.2005-12.2012
VOLVO	V50 1.8	[B4184S11]	04.2004-12.2010

1473072 YS4U-11000-AD 1539686 1732742 YS4U-11000-AB 1237323 30667102 20401275BN 331452 DENDSN3001 8603377 DSN3001 1416231 31288275 32517N 98AB-11000-BD 96FB-11000-KA 98AB-11000-BC 98AB-11000-BB 1824489 6010572 CST10572AS 98AB-11000-BA 101050M 96FB-11000-KD 590.520.103.215 96FB-11000-KC 96FB-11000-KB STX200044R GSSN3001-N 101050V 590.520.103.010 REYS4U-11000-AB 1E11-18-400 7G9N-11000-AD 1E06-18-400 30659513 1092115 7G9N-11000-AC 1018883 7G9N-11000-AB 31285782 1671515 1011331 98AB-11000-CD 98AB-11000-CC 98AB-11000-CB 1140760 98AB-11000-CA 1903127 YS4U-11000-BA YS4U-11000-BB LRT167 101050 1535268 2S6U-11000-CC 2S6U-11000-CA STB1050 LRT00167 2S6U-11000-CB STX200044 1088649 C601-18-400A 25-2050 32544534 MAV125720A 1307578 260540-5030 1147309 STM1299 31167N-BO 1365665 590.520.103.230 UD815149(DENSO)S C601-18-400 94212CB 8V21-11000-BC 8V21-11000-BD 8V21-11000-BB 1575034 590.520.103.020 36002761 590.520.103.260 1116389 STM639 8V21-11000-BE 1063999 1064000 1197235 STR50266

S6467(DENSO)
