SBH5034P - Brand new AS-PL Starter motor brush holder

Associated Numbers

ACDelco 336-1986, 336-1999, 336-2000,
Acura 06313-RDJ-305, 31200-RDA-A01, 31200-RDA-A02, 31200-RDJ-A01, 31200-RDJ-A02, 31200-RJA-A02, MHG017, MHG021, MHG028,
BMW 12-41-7-540-897, 12-41-7-552-105, 12-41-7-552-697, 12-41-7-582-309, 7540897, 7552105, 7582309,
Bosch 0-001-106-405, 0-001-106-406,
Bosch Newman SR1326N, SR1327N, SR1330N, SR6455N, SR6462N, SR6466N, SR6468N,
Bosch Reman SR0837X, SR1326X, SR1327X, SR1330X, SR1345X, SR2301X, SR2312X, SR4117X, SR4127X, SR4128X, SR4129X, SR4132X, SR4132X, SR4239X, SR4239X, SR4246X, SR4247X, SR4248X, SR4319X, SR6403X, SR6441X, SR6445X, SR6445X, SR6449X, SR6454X, SR6454X, SR6455X, SR6459X, SR6459X, SR6462X, SR6464X, SR6465X, SR6466X, SR6468X, SR6478X, SR6482X, SR6489X, SR6526X, SR6531X, SR6532X, SR7609X, SR7628X, SR8502X, SR8591X, SR8592X, SR8596X, SR8597X, SR8636X, SR8645X, SR8645X, SR8646X, SR8657X, SR8660X, SR8661X, SR8669X, SR8669X, SR9300X,
Bosch Service Europe 0-986-020-411, 0-986-020-877, 0-986-021-970, 0-986-021-977, 0-986-025-290, 0-986-CR1-060, 0-986-CR1-061, 0-986-CR1-063, 0-986-CR1-602, 0-986-CR1-603, 0-986-CR1-710, 0-986-CR1-731, 0-986-CR1-732, 0-986-CR1-734, 0-986-CR1-736, 0-986-CR1-737, 0-986-CR1-738, 0-986-CR1-740, 0-986-CR1-775, 0-986-CR1-776, 0-986-CR1-798, 0-986-CR1-799, 0-986-CR1-805, 0-986-CR1-839, 0-986-CR1-988, 0-986-UN1-060, 0-986-UN1-061, 0-986-UN1-063, 0-986-UN1-953, 0-986-UR1-060, 0-986-UR1-061, 0-986-UR1-063, 0-986-UR1-324, 0-986-UR1-325, 0-986-UR1-480, 0-986-UR1-534, 0-986-UR1-537, 0-986-UR1-551, 0-986-UR1-567, 0-986-UR1-572, 0-986-UR1-576, 0-986-UR1-579, 0-986-UR1-580, 0-986-UR1-608, 0-986-UR1-636, 0-986-UR1-731, 0-986-UR1-732, 0-986-UR1-734, 0-986-UR1-736, 0-986-UR1-737, 0-986-UR1-738, 0-986-UR1-740, 0-986-UR1-762, 0-986-UR1-776, 0-986-UR1-798, 0-986-UR1-799, 0-986-UR1-805, 0-986-UR1-839, 0-986-UR1-862, 0-986-UR1-895, 0-986-UR1-938, 0-986-UR1-941, 0-986-UR1-946, 0-986-UR1-947, 0-986-UR1-950, 0-986-UR1-953, 0-986-UR1-955, 0-986-UR1-956, 0-986-UR1-958, 0-986-UR1-988,
Chrysler 0460800AE, 04608800AA, 04608800AC, 04608800AD, 04608800AE, 04801253AA, 04896464AC, 04896464AE, 05030023AA, 05033141AB, 05034555AA, 056029577A, 1810A184, 4608800A, 4608800AA, 4608800AC, 4608800AD, 4608800AE, 4801253AA, 4896464AC, 4896464AE, 5030023AA, 5033141AB, 5034555AA, 56026851, 56029274AA, 56029577A, 56029577AA, 56029681AA, 56029698AA, 56029722AA, 5604164AG, 56041914AC, 56044734AA, 56044735AB, 56044736AA, 56044736AB, 56044736AC, 68084005AA, R5034555AA, R6044736AB, R6044736AB, R6044736AC, RL029577AA,
Citroen 5802 AR, V7-540-897, V7-552-105,
Delco Europe DRS0247, DRS0484,
Delco Reman Europe DRS0611, DRS3224, DRS3638, DRS3913,
Delco-Remy 12645299, 9000781,
DENSO Auto Parts 280-4207, 280-4208, 280-4209, 280-4210, 280-4212, 280-4213, 280-4216, 280-4218, 280-4219, 280-4221, 280-4243, 280-4250, 280-4252, 280-4254, 280-4255, 280-4256, 280-4265, 280-4267, 280-4268, 280-4269, 280-4271, 280-4273, 280-4274, 280-4284, 280-4286, 280-4289, 280-4291, 280-4296, 280-4316, 280-4323, 280-4323, 280-4328, 280-4331, 280-4332, 280-4334, 280-4336, 280-4339, 280-4346, 280-4350, 280-4351,
Ford 935T-11000-AB, CJ5T-11000-BA, CJ5T-11002-BA, CK4T-11000-DA, CK4Z-11002-B, CK4Z-11002-C,
Ford Engineering 935T-AB,
General Motors 12582045, 12588493, 12593701, 12598756, 12598757, 12601721, 12608653, 12610857, 12617229, 12619241, 12645298, 12645299, 12655055, 12691976, 12694626, 25194634, 25194634, 55353669, 55563538, 55576954, 55576954, 55595603, 55595603, 92202964, 92204529, 92223942, 92225205, 92270149,
HC Parts CS1452, CS1469, JS1313, JS670,
Hella 8EA738259-151,
Honda 06312-RAA-505, 06312-RDJ-505RM, 3120-0RC-JYA0, 3120-0RD-MA02, 31200-RAA-A01, 31200-RAA-A010, 31200-RAA-A010-M3, 31200-RAA-A01RM, 31200-RDJ-A01RM, 31200-RDJ-A02RM, 31200-RDM-A020-M3, 31200-RJE-A01, MHG016, MHG018, MHG024,
Kubota 16853-63011,
Lester 10874, 10910, 10917, 17550, 17598, 17840, 17840, 17868, 17869, 17873, 17874, 17898, 17898, 17905, 17905, 17906, 17907, 17910, 17910, 17915, 17930, 17931, 17932, 17933, 17937, 17938, 17939, 17941, 17948, 17964, 17986, 17994, 17996, 17996, 17997, 17997, 17999, 19000, 19011, 19021, 19022, 19026, 19038, 19042, 19056, 19060, 19069, 19101, 19125, 19126, 19129, 19129, 19130, 19131, 19134, 19136, 19137, 19143, 19145, 19162, 19194, 19226, 19230, 19230, 19253, 19254, 19255, 19260, 19274, 19286, 19292, 19624, 19971, 30155, 30280,
Lester Old 17938, 19135,
Lucas (Europe) LRS01472, LRS02231, LRS02259, LRS02271, LRS02286, LRS02300, LRS02546, LRS02552, LRS02574, LRS02682, LRS1460, LRS1472, LRS2214, LRS2259, LRS2271,
Mazda L538-18-400B, L538-18-400B, L538-18-400R0B, L538-18-400R0B, L53818400, L556-18-400, LF4J-18-400, LF9H-18-400, LF9H-18-400-R00, LFG1-18-400, LFG1-18-400R00, ZJ38-18-400, ZJ45-18-400, ZYF2-18-400,
Mercedes-Benz 132-151-00-01, 132-151-00-01-05, 132-151-00-05, A13-215-10-00105, A132-151-00-01, A132-151-00-05,
Mitsubishi 1810A001, 1810A090, 1810A104, 1810A184, 1810A333, M000T15071, M000T15071ZC, M000T15072, M000T15072ZC, M000T15571, M000T15571ZC, M000T15971, M000T15971ZC, M000T15971ZCKD, M000T20171, M000T20175, M000T20176ZC, M000T20371, M000T20371ZC, M000T20571, M000T20571ZC, M000T20671, M000T20672, M000T20672ZC, M000T20972, M000T20972ZC, M000T21071, M000T21071ZC, M000T21072, M000T21072ZC, M000T21171ZC, M000T21371, M000T21371ZC, M000T21971, M000T21971ZC, M000T22071, M000T22071ZC, M000T23271, M000T23271ZC, M000T23671, M000T23671ZC, M000T23871, M000T23871ZC, M000T23971, M000T23971ZC, M000T24072, M000T24072ZC, M000T24771, M000T24771ZC, M000T31471, M000T31471ZC, M000T32071, M000T32071ZC, M000T32175, M000T32175ZC, M000T32179, M000T32179ZC, M000T32271, M000T32371, M000T32371ZC, M000T32671, M000T32671ZC, M000T32771, M000T32871, M000T33872, M000T33872ZC, M000T33971, M000T35171, M000T35275, M000T35276, M000T35277, M000T35574, M000T35671, M000T35672, M000T35871, M000T35872, M000T36371, M000T36571, M000T36571ZC, M000T36572, M000T36572ZC, M000T36771, M000T37271, M000T37271ZC, M000T37371, M000T37371ZC, M000T37471, M000T38671, M000T39071, M000T39071ZC, M000T39072, M000T39072ZC, M000T39171, M000T39173, M000T39173ZC, M000T39471, M000T39471ZC, M000T46171, M000T46171ZT, M000T46871, M000T46871ZC, M000T46871ZT, M000TA0171, M000TA0171ZC, M000TA0172, M000TA0172ZC, M000TA0173, M000TA0173ZC, M000TD5571, M000TD5571ZC, M00T35574, M00T46871ZT, M03T32371, M0T15071, M0T15071ZC, M0T15071ZCKD, M0T15072, M0T15072ZC, M0T15072ZCKD, M0T15171, M0T15171ZC, M0T15172, M0T15172ZC, M0T15371, M0T15571, M0T15571ZC, M0T15571ZCKD, M0T15971, M0T15971ZC, M0T15971ZCKD, M0T16271, M0T20171, M0T20175, M0T20176, M0T20272, M0T20272ZC, M0T20371, M0T20371ZC, M0T20571, M0T20571ZC, M0T20671, M0T20672, M0T20672ZC, M0T20972, M0T20972ZC, M0T21071, M0T21071ZC, M0T21072, M0T21072ZC, M0T21171, M0T21171ZC, M0T21271, M0T21271ZC, M0T21271ZCKD, M0T21371, M0T21371ZC, M0T21971, M0T21971ZC, M0T22071, M0T22071ZC, M0T22571, M0T22771, M0T23271, M0T23271ZC, M0T23471, M0T23671, M0T23671ZC, M0T23871, M0T23871ZC, M0T23971, M0T24072, M0T24072ZC, M0T24771, M0T24771ZC, M0T30672, M0T30672ZC, M0T30771, M0T31071, M0T31171, M0T31172, M0T31471, M0T31471ZC, M0T31572, M0T31572ZC, M0T32071, M0T32071ZC, M0T32175, M0T32175ZC, M0T32179, M0T32179ZC, M0T32371, M0T32371ZC, M0T32771, M0T32871, M0T33872, M0T33872ZC, M0T33971, M0T35171, M0T35171ZC, M0T35275, M0T35276, M0T35276ZC, M0T35277, M0T35573, M0T35574, M0T35671, M0T35672, M0T35672AM, M0T35871, M0T35872, M0T35874, M0T35875, M0T35972, M0T36371, M0T36571, M0T36572ZC, M0T36771, M0T37271, M0T37271, M0T37271ZC, M0T37371, M0T37371ZC, M0T37471, M0T38671, M0T39071, M0T39071ZC, M0T39072, M0T39072ZC, M0T39171, M0T39171ZC, M0T39172, M0T39173, M0T39173ZC, M0T39471, M0T46171, M0T46171ZT, M0T46671, M0T46871, M0T46871ZC, M0T46871ZT, M0T85982, M0T90881, M0T90882, M0T90883, M0T90884, M0TA0171, M0TA0171ZC, M0TA0172, M0TA0172ZC, M0TA0173, M0TA0173ZC, M0TD5571, M0TD5571ZC, M1810A001D, M373317D, MD153444, MD373317, MN128202, MN137718, MN137825, MN153444, MR994145, MR994145D, MR994325,
Mitsubishi Electric M128202D, M137718D, M153444D, M1810A001D, M994145D, M994325D,
Mitsubishi Reman M128202D, M137718D, M137825D, M153444D, M994145D, M994325D,
Motorcraft SA-1069,
NAPA 244-6230, 244-6277, 244-6278, 244-6278, 244-6436, 244-6440, 244-6918, 244-6948, 244-6953, 244-6966, 244-6985, 244-6987, 244-8552, 244-8565, 244-8611, 244-8612, 44-6230, 44-6436, 44-6918, 44-8612, 4N6230,
NAPA New 4N6987,
Nissan 23300-1HK0A, 23300-1HK0AR, 23300-1HK0B, 23300-JA00A, 23300-JA00C, 23300-JA00CR, 23300-JA01A, 23300-JA01AR, 23300-JF00B, 2330M-JA01ARW,
Peugeot 5802 AR, V7-540-897, V7-552-105,
PIC 103-103D, 103-421, 103-421A, 103-423, 103-427, 103-439, 103-465, 103-476, 103-5009, 103-5010, 103-5010A, 103-5015, 103-5020, 103-5027, 103-5029, 103-5032, 103-5032B, 103-5032C, 103-5034, 103-5035, 103-5040, 103-5041, 103-5041A, 103-5042, 103-5044, 103-5044A, 103-5046, 103-5047, 103-5048, 103-5055, 103-5056, 103-5057, 103-5058, 103-5060, 103-5068, 103-5076, 103-5077, 103-5078, 103-5078A, 103-5079, 103-5081, 103-5098, 103-5142, 103-5145, 103-5146, 103-5164, 103-5165, 103-5166, 103-5167, 103-5169, 103-5170, 103-5173, 103-5174, 103-5182, 103-5184, 103-5206, 103-5308, 103-5314, 103-5330, 103-543, 103-543A, 103-551, 103-585, 103-6121, 103-6122, 103-6405, 103-6407, 103-6500, 103-6501, 103-6530, 103-6581, 103-907B, 103-911, 103-912, 120-396, 120-396A,
Remy 16077, 16078, 16086, 16109, 16109, 16123, 16216, 16225, 16229, 16231, 17363, 17378, 17378, 17387, 17397, 17408, 17415, 17416, 17446, 17447, 17456, 17460, 17465, 17468, 17469, 17481, 25028, 25074, 26016, 28008,
Remy Europe DRS0408, DRS0483, DRS0862,
Remy New 95005, 95006, 95008, 96238, 99023, 99425, 99759, 99764, 99774,
Saab 32-00-6007, 55-35-3669, 55-56-3538,
SEG Automotive 0001.106.405,
Smart Car 132-151-00-01,
Subaru 23300-AA460, 23300-AA570, 23300-AA572, 23300-AA573, 23300-AA860, 23300AA860,
Suzuki 31100-78J00, 31100-78J02, 31100-80J00,
Unipoint F042S0H064, STR-3138, STR-3139, STR-3140,
Valeo 446506,
Volkswagen Group 7B0911023A,

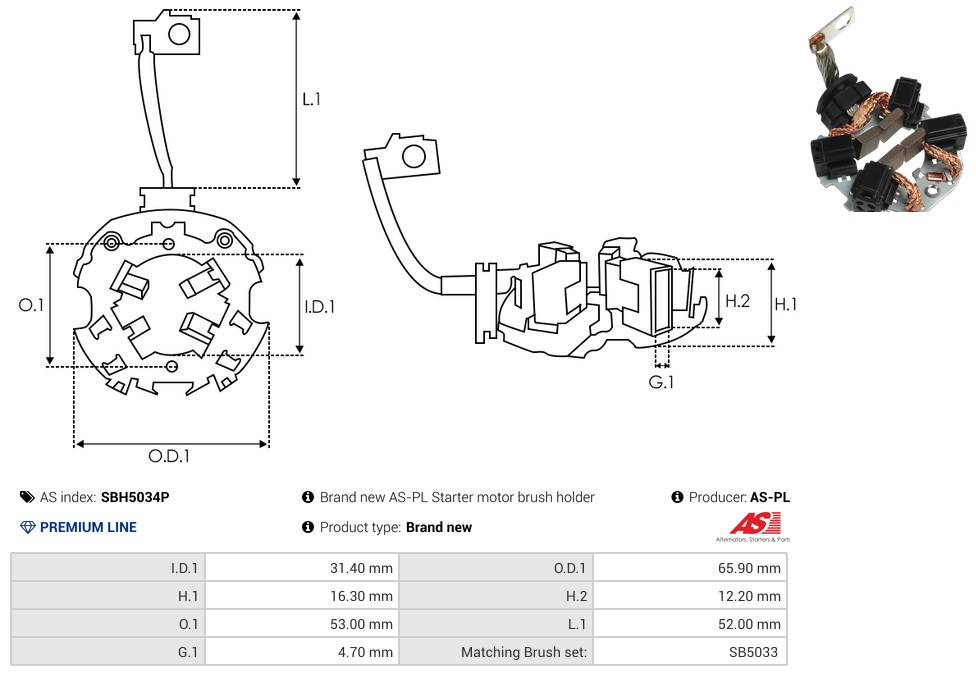

Specifications

Brush Holder Width (G.1)	4.7 mm
Height (H.1)	16.3 mm
Height (H.2)	12.2 mm
Inside Diameter (I.D.1)	31.4 mm
Length (L.1)	52 mm
Matching Brush set:	SB5033
Mount Hole Center - Center (O.1)	53 mm
OEM Product	No
Outside Diameter (O.D.1)	65.9 mm
Product Line	Premium Line
Product Type	Brand new
Unit Type	MITSUBISHI

Reference Information

7.7634.1 23380-4A00B 81018657 CY01-18-X70 ZJ38-18-X70 330181 SHM0181 063.000.528.570 UD03630SBH 063.000.528.206 BHS5038
