Associated Numbers
155.590.130 1800A271 1800A334 20137592BN 2035295 28-6685 553907RI 553907RIR 9446 A002TX1081A A002TX1081B A2TX1081A A2TX1081B AEK3575 CAL35295AS DRA0897 LRA03575 UD11054A MXA2085 ANJ604 65-6794 116030 Cargo 12060943 EuroTec 155590130 PSH 1608726580 PSA Mitsubishi show 1800A431 20883 Lester 2261921302 DRI 286685 Elstock 57486 EAI 930897 EDR CEVAM A002TX1081 A002TX1081ZE A002TX5781 A1800A431 A2TX1081 A2TX1081ARS RNL A2TX1081BTO A2TX1081RD A2TX1081ZE A2TX5781 Remy J5115097 Herth Buss Lucas RNLA2TX1081A RNLA2TX1081NF RNLA2TX1081T A12MH0679A2 209382 LRA3575 55351011 A5143 1613306180 Sando A002TX1081BTO A002TX5781A A002TX5781B A2TX5781A A2TX5781B Auto Electro J515097 L84490 ATL mxa2085 A20883Specifications
This is a TAKE OFF Unit, These are OEM but have been fitted for Mitsubishi warranty replacement engines, Time has passed where the engines are out of warranty so Mitsubishi has stripped these replacement engines down.
| Amp | 130 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | 12 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 195 mm |
| Mount Inside Length or Pad Mount C-C (C) | 49 mm |
| OEM Product | Yes |

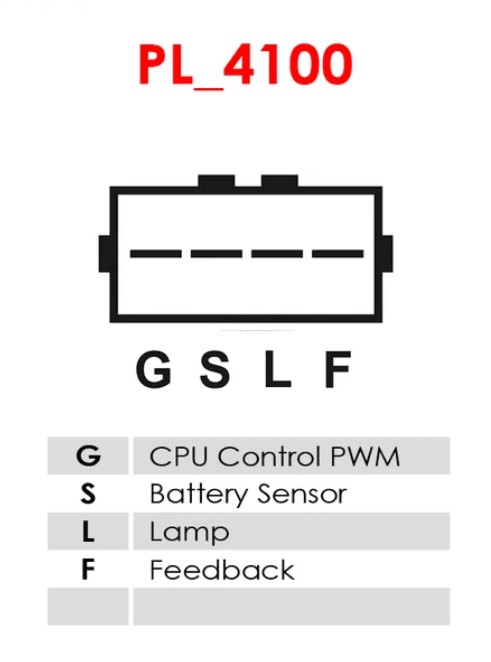

| Plug Code | PL_4100 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 45 mm |
| Pulley Type | CLUTCH |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | C4 Aircross 1.8 HDi | [6HZ] | 01.2012- |
| CITROEN | C4 Aircross 1.8 HDi AWC | [6HZ] | 01.2012- |
| MITSUBISHI | ASX 1.8 DI-D | [4N13[ | 01.2010- |
| MITSUBISHI | ASX 1.8 DI-D 4WD | [4N13] | 01.2010- |
| MITSUBISHI | Lancer 1.8 DI-D | [4N13] | 01.2010- |
| MITSUBISHI | Outlander 2.2 DI-D | [4N14] | 01.2010- |
| PEUGEOT | 4008 1.8 HDi | [6HZ] | 01.2012- |
Reference Information
209382 DRA0897 20137592BN 553907RIR 9446 2035295 LRA3575 LRA03575 155.590.130 AEK3575 CAL35295AS 553907RI A2TX1081A A2TX1081B A002TX1081B A002TX1081A 1800A271 UD11054A 1800A334 116030 28-6685Video/Publications
116030 155.590.130 1800A271 1800A334 20137592BN 2035295 28-6685 553907RI 553907RIR 9446 A002TX1081A A002TX1081B A2TX1081A A2TX1081B AEK3575 CAL35295AS DRA0897 LRA03575 LRA3575 UD11054A 209382View your shopping basket or Browse other items in Alternators.
