Associated Numbers
04E903023B 04E903023H 04E903023J 04E903023JX 04E903023K 04E903023KX 0986083170 115916 2015594 20353N 209276 28-6764 305.906.140 439821 440475 4574 554022RIB 554022RIV 57411 89215790 AEK3703 ALT10754 ALV3823 CAL15594 CAL15594AS CAL15594ES CAL15594GS CAL15594OS CAL15594RS DA2486 DRA1376 EAA-224483 F000BL0805 F000BL0818 F000BL0830 LRA03703 LRA3703 TG14C049 UD13759A VAL439821 VALTG14C049 65-2505-1 1986A00906 ANV081gq IAT A20353 Industry 20353 Lester PIC 208-1064 Valeo Voltux V2-20353 Volkswagen 10444294 Alanko Cargo 12090564 EuroTec 14201025 AES 14201460 200269 WAI Messmer 2113931402 DRI 2614609D 286764 Elstock 305906140 PSH 441762 Logistik 444294 4E903023K 4E903023KX 553839RI DAS 554022RI 614609 Power Max 8EL738214021 Hella 9090771 Frisians 9090771F 9198 CEVAM 931376 EDR A132400 Short code A148183 A159379 A3127 AS-PL A3127PR A3127S AA8186 Auto Charge ABO1335 Quasar Electro ALT00531sa Electrolog ALT10033SA ALT14646 Wood Remy KTR611812280 KTR L85700 ATL Lucas WOOALT14646 04C903021A 04C903023K 04C903023LX 04C903023M 0986083340 Bosch Exchange 12090519 14201372 200285 20351N 209492 2115201402 2622499A 2715267A 2715992A 287503 305923140 439894 440640 441952 442303 555318RI EAI 715992 89215862 8EL011712881 8EL012241201 8EL015630201 9090827 9090827F 931346 A132427 A148220 A149918 A3340PR A3340S AA7499 AAL1906 Apec AEG1399 ALT14538 ALT2383CP Rolling Components AVA1324 AVE1511 Everkraft AVE1511E Airframe DRA1346 LRA03893 LRA3893 NAL1906 Napa (UK) O4C903021A RNLTG14C071 RNL TG14C071 TG14C071RR TG14C071SEL +line TG14C083 TG14C094 TG14C103 WOOALT14538 A20351 20351 208-2074 355703 PowerMax FriesenSpecifications

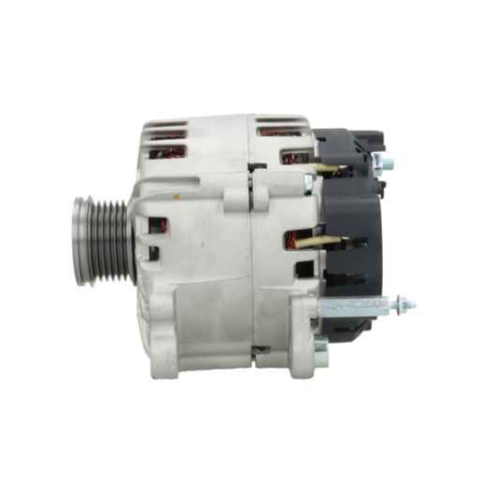

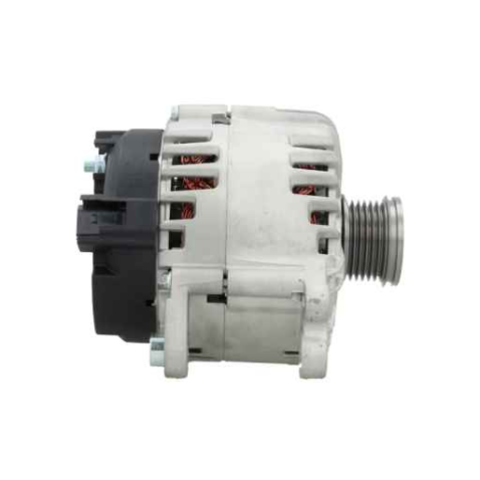

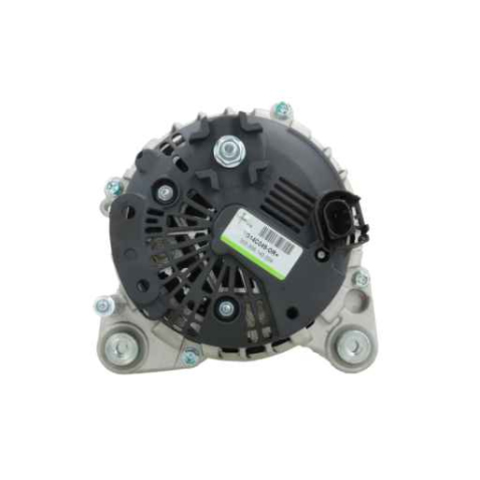

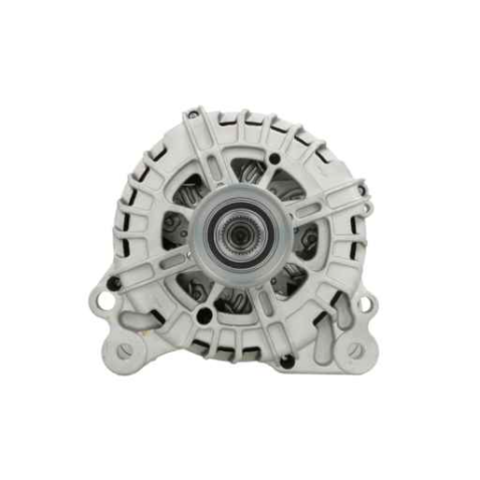

Fitted with OEM Regulator and INA Clutch Pulley (if fitted)
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 193 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Plus Line Pro |
| Product Type | Brand New |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 49 mm |
| Pulley to Mount Distance (A) | 30.5 mm |
| Pulley Type | CLUTCH |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A1 1.4 TFSi | [CPTA] | 01.2012- |
| AUDI | A3 1.2 TFSi | [CJZA] | 01.2013- |
| AUDI | A3 1.4 TFSi | [CMBA] | 01.2012- |
| AUDI | A3 1.4 TFSi | [CPTA] | 01.2012- |
| AUDI | A3 1.4 TFSi | [CXSA] | 01.2012- |
| AUDI | Q3 1.4 TFSi | [CZDA] | 01.2013- |
| AUDI | Q3 1.4 TFSi | [CZEA] | 01.2013- |
| SEAT | Ibiza 1.4 TSi | [CPTA] | 01.2013- |
| SEAT | Leon 1.2 TSi | [CJZA] | 01.2013- |
| SEAT | Leon 1.2 TSi | [CJZB] | 01.2013- |
| SEAT | Leon 1.2 TSi | [CYVA] | 01.2013- |
| SEAT | Leon 1.2 TSi | [CYVB] | 01.2013- |
| SEAT | Leon 1.4 TGi | [CPWA] | 01.2013- |
| SEAT | Leon 1.4 TSi | [C..A] | 01.2012- |
| SEAT | Leon 1.8 TSi | [CJSA] | 01.2013- |
| SEAT | Leon 1.8 TSi 4Drive | [CJSA] | 01.2014- |
| SKODA | Octavia 1.2 TSi | [CJZA] | 01.2013- |
| SKODA | Octavia 1.2 TSi | [CJZB] | 01.2013- |
| SKODA | Octavia 1.2 TSi | [CYVB] | 01.2015- |
| SKODA | Octavia 1.4 TSi | [CHPA] | 01.2013- |
| SKODA | Octavia 1.4 TSi | [CHPB] | 01.2014- |
| SKODA | Octavia 1.4 TSi | [CPWA] | 01.2013- |
| SKODA | Octavia 1.4 TSi | [CZDA] | 01.2014- |
| VW | Golf VII 1.0 TSi | [CHZC] | 01.2015- |
| VW | Golf VII 1.0 TSi | [CHZD] | 01.2015- |
| VW | Golf VII 1.0 TSi | [CHZK] | 01.2015- |
| VW | Golf VII 1.2 TSi | [CJZA] | 01.2012-12.2013 |
| VW | Golf VII 1.2 TSi | [CJZB] | 01.2012-12.2013 |
| VW | Golf VII 1.2 TSi | [CJZB]] | 01.2012-12.2013 |
| VW | Golf VII 1.2 TSi | [CYVA] | 01.2012-12.2013 |
| VW | Golf VII 1.2 TSi | [CYVB] | 01.2012-12.2013 |
| VW | Golf VII 1.4 TGi | [CPWA] | 01.2013-12.2013 |
| VW | Golf VII 1.4 TGi | [CZBA] | 01.2013-12.2013 |
| VW | Golf VII 1.4 TGI | [CPWA] | 01.2013-12.2013 |
| VW | Golf VII 1.4 TGI | [CZBA] | 01.2013-12.2013 |
| VW | Golf VII 1.4 TSi | [CHP.] | 01.2012-12.2013 |
| VW | Golf VII 1.4 TSi | [CPTA] | 01.2012-12.2013 |
| VW | Golf VII 1.4 TSi | [CPV.] | 01.2012-12.2013 |
| VW | Golf VII 1.4 TSi | [CZ.A] | 01.2012-12.2013 |
| VW | New Beetle 1.4 TSi | [CZDA] | 01.2014- |
| VW | Polo 1.4 TSi | [CPTA] | 01.2012-12.2014 |
| VW | Scirocco 1.4 TSi | [CZCA] | 01.2013-12.2015 |
| VW | Scirocco 1.4 TSi | [CZDA] | 01.2013-12.2015 |
Reference Information
115916 554022RIB LRA03703 2015594 4574 CAL15594RS UD13759A ALT10754 ALV3823 DA2486 VALTG14C049 CAL15594AS 04E903023JX 440475 441762 LRA3703 F000BL0818 CAL15594GS 20353N CAL15594ES ALTL465 EAA-224483 89215790 CAL15594OS 04E903023B CAL15594 AEK3703 209276 F000BL0830 04E903023KX 554022RIV 0986083170 ALT00531 F000BL0805 DRA1376 57411 VAL439821 04E903023K 305.906.140 439821 04E903023J 28-6764 TG14C049 04E903023H Volkswagen Cargo 12090564 EuroTec 14201025 AES 14201460 200269 Valeo WAI Messmer 2113931402 DRI 2614609D 286764 Elstock 305906140 PSH Logistik 4E903023K 4E903023KX 553839RI DAS 554022RI 614609 PowerMax 8EL738214021 Hella 9090771 Friesen 9090771F 9198 CEVAM 931376 EDR A132400 Short code A148183 A159379 A3127 AS-PL A3127PR A3127S AA8186 Auto Charge ABO1335 Quasar Electro ALT00531sa Electrolog ALT10033SA ALT14646 Wood Remy KTR611812280 KTR L85700 ATL Lucas WOOALT14646Video/Publications
04E903023B 04E903023H 04E903023J 04E903023JX 04E903023K 04E903023KX 0986083170 115916 2015594 20353N 209276 28-6764 305.906.140 439821 440475 4574 554022RIB 554022RIV 57411 89215790 AEK3703 ALT10754 ALTL465 ALV3823 CAL15594 CAL15594AS CAL15594ES CAL15594GS CAL15594OS CAL15594RS DA2486 DRA1376 EAA-224483 F000BL0805 F000BL0818 F000BL0830 LRA03703 LRA3703 TG14C049 UD13759A VAL439821 VALTG14C049View your shopping basket or Browse other items in Alternators.
