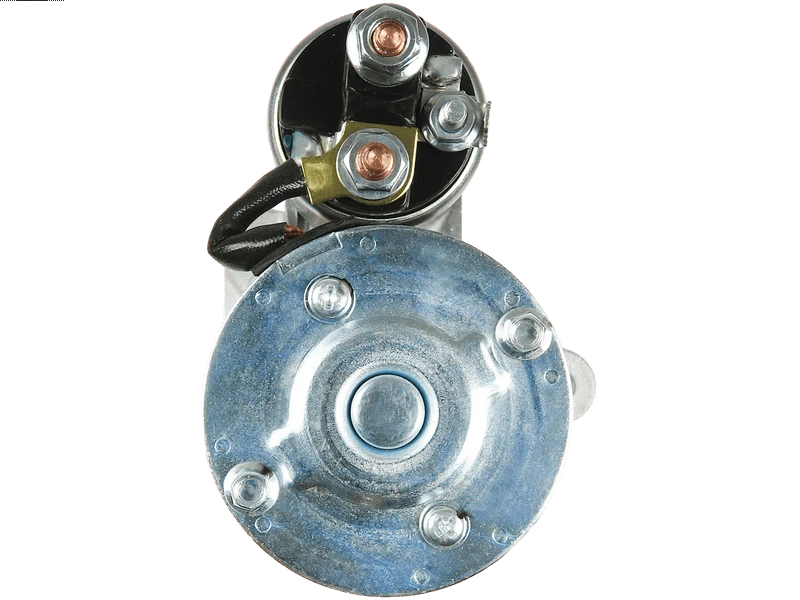

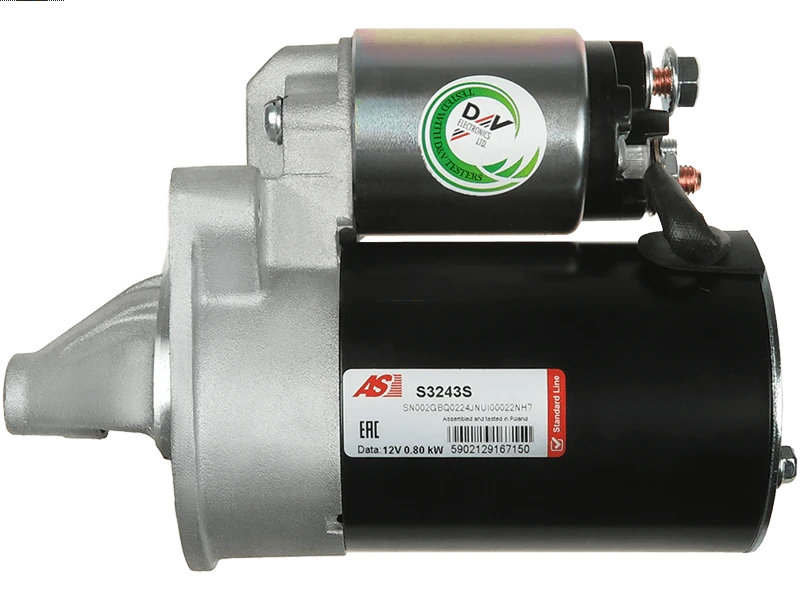

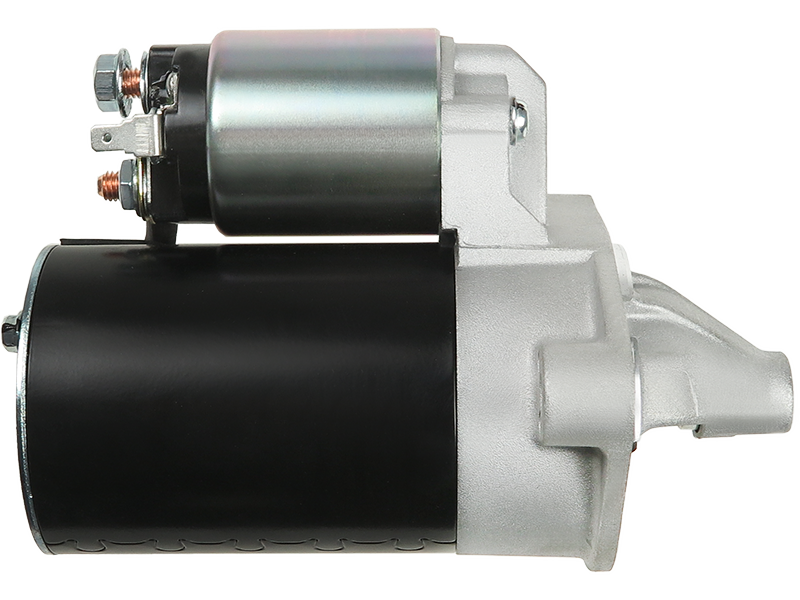

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 219.90 including GST
NZ$ 191.22 excluding GST
or four payments of $54.98
with
Learn More
each
S3243S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
TM000A35301Specifications
| Kilowatt | 0.8 kW |
| Length (L.1) | 186 mm |
| Mount Hole Center - Center (O.1) | 94 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 7 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | Mito 1.4 Bifuel | [198A4.000] | 01.2009-08.2016 |
| ALFA ROMEO | Mito 1.4 MultiAir | [940A2.000] | 09.2009-10.2018 |
| ALFA ROMEO | Mito 1.4 MultiAir | [955A6.000] | 09.2009-08.2013 |
| ALFA ROMEO | Mito 1.4 Tjet | [198A1.000] | 09.2008-06.2011 |
| ALFA ROMEO | Mito 1.4 Tjet | [198A4.000] | 08.2008-08.2013 |
| ALFA ROMEO | Mito 1.4 Tjet | [199A8.000] | 08.2008-06.2011 |
| ALFA ROMEO | Mito 1.4 Turbo MultiAir | [955A2.000] | 10.2009-12.2014 |
| ALFA ROMEO | Mito 1.4 Turbo MultiAir | [955A7.000] | 10.2009-12.2014 |
| ALFA ROMEO | Mito 1.4 Turbo MultiAir | [955A8.000] | 10.2009-10.2018 |
| CHEVROLET | Matiz 0.8 | [LBF(49CUL3)] | 03.2005-12.2013 |
| CHEVROLET | Matiz 0.8 | [LQ2(49CUL3)] | 03.2005-12.2013 |
| CHEVROLET | Matiz 0.8 LPG | [LBF(49CUL3)] | 03.2005-12.2007 |
| CHEVROLET | Matiz 0.8 LPG | [LQ2(49CUL3)] | 03.2005-12.2007 |
| CHEVROLET | Spark 0.8 | [LBF(49CUL3)] | 05.2005-02.2010 |
| CHEVROLET | Spark 0.8 | [LQ2(49CUL3)] | 05.2005-02.2010 |
| CHEVROLET | Spark 1.0 | [LMT] | 03.2010- |
| CHEVROLET | Spark 1.0 LPG | [LMT] | 03.2010- |
| CHEVROLET | Spark 1.0 LPG | [LMT] | 07.2010- |
| DAEWOO | Matiz 0.8 | [F8CV] | 09.1998- |
| DAEWOO | Matiz 1.0 | [B10S] | 01.2003- |
| DAEWOO | Matiz 1.0 | [B10S] | 04.2003-12.2004 |
| FIAT | Bravo 1.4 | [192B2.000] | 04.2007-12.2014 |
| FIAT | Bravo 1.4 LPG | [192B2.000] | 12.2008-12.2014 |
| FIAT | Doblo 1.4 | [198A4.000] | 10.2011- |
| FIAT | Doblo 1.4 Natural Power | [198A4.000] | 02.2010- |
| SUZUKI | Wagon R+ 1.0 | [K10A] | 02.1998-05.2000 |
| SUZUKI | Wagon R+ 1.2 | [K12A] | 02.1998-05.2000 |
| SUZUKI | Wagon R+ 1.2 4WD | [K12A] | 02.1998-05.2000 |
Reference Information
CGB-52462 UD100752S M2T47383 12031 M2T47382 M2T47381 10455503 CST46100GS 96518887 220036 5015289 STR85000 S3243S LRT00189 201115 31100-70B20 CST46100OS 31100-80X51 96497385 96375259 230.502.082.360 230.502.082.120 96963481 0986022101 EX96963481 96963482 3110075F10000 TM000A35301 J5210906 726084 128000-6673 STX200084R 96325258 20460001RE 31100-75F01 31100-75F00 726884 F042S0H031 VAL438198 25-2462 96943427 STX201321 96943428 M002T46382 31100-75F02 128000-6672 96467385 3110075F00 31100-75F0 3110075F01 3110075F02 458205 S12VA0240A2 CST46100AS 31100-75F10-000 31100-75F10 31100-80094 20460001OE 88212717 331362 M002T47382 96451753 20460001BN M002T47381 DRS3693N M002T47383 STX200084 SG0178 BN67949 CGB-23550 25186107 31100-75F01-000 3110075F10 96275481 1986S00068 600126 25187957 6046100.4 96569441 96569440 6046100.1 M2T46382 111849 6046100.0 838057 96497700 140-10537 438198 95375258 95375259 230.502.082.395 DRS3693 96618789 LRT189Video/Publications
