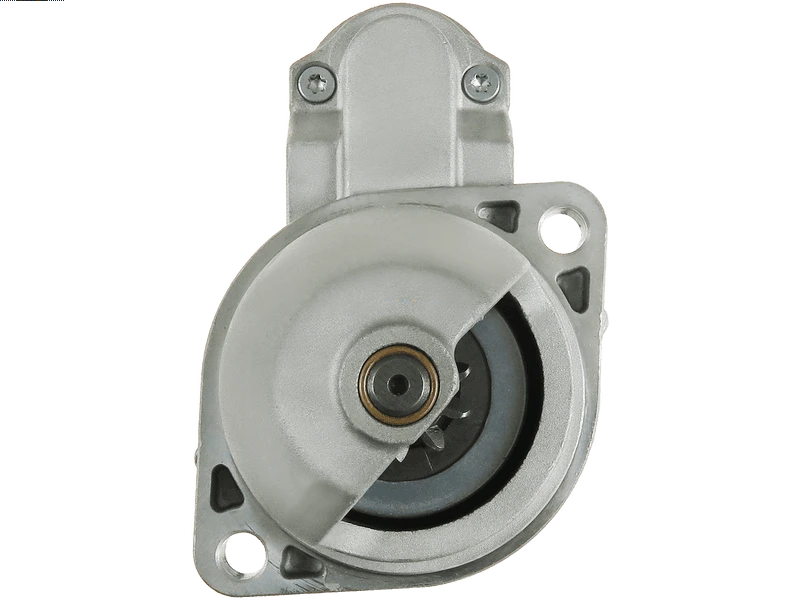

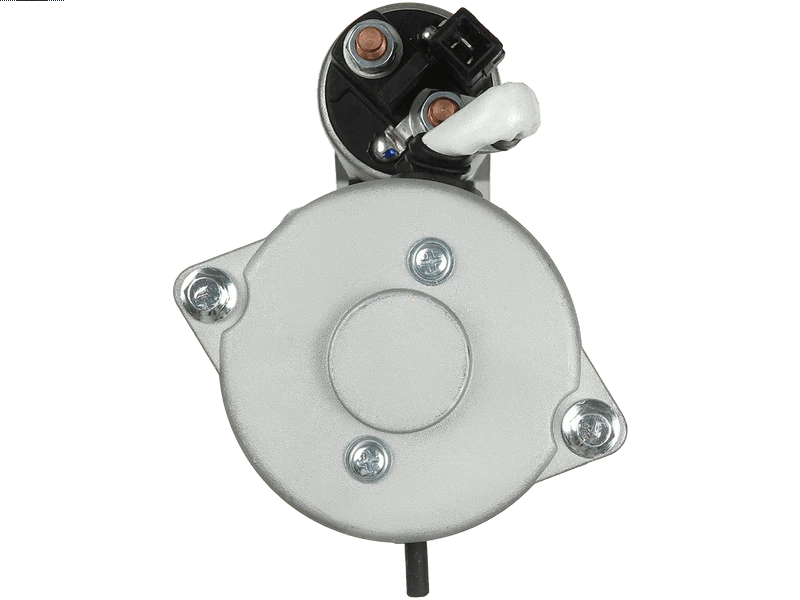

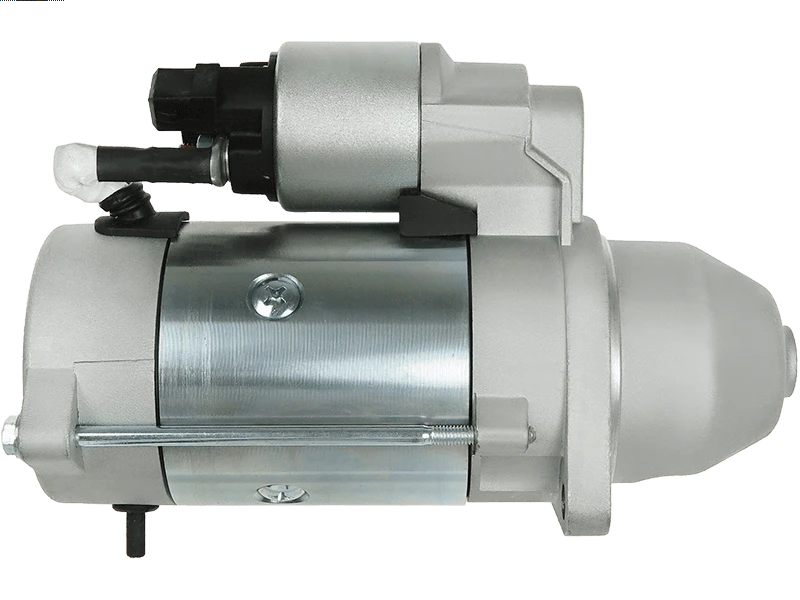

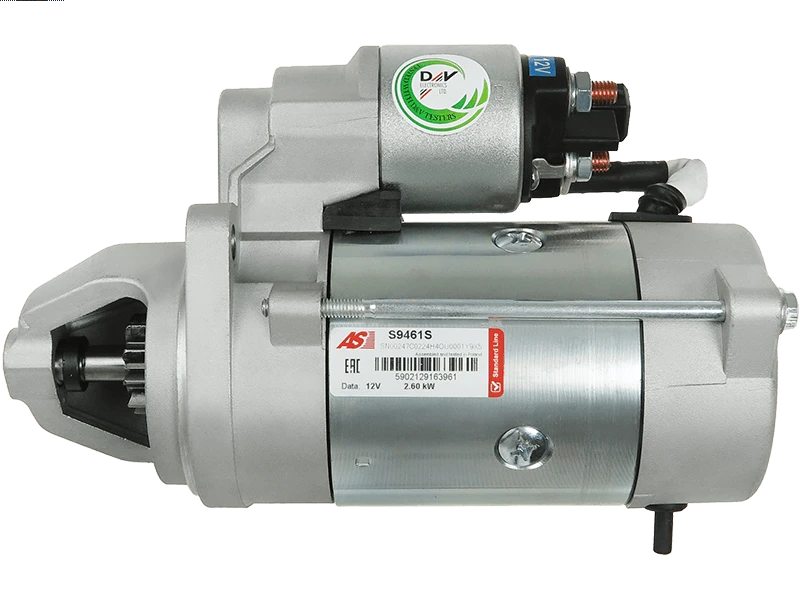

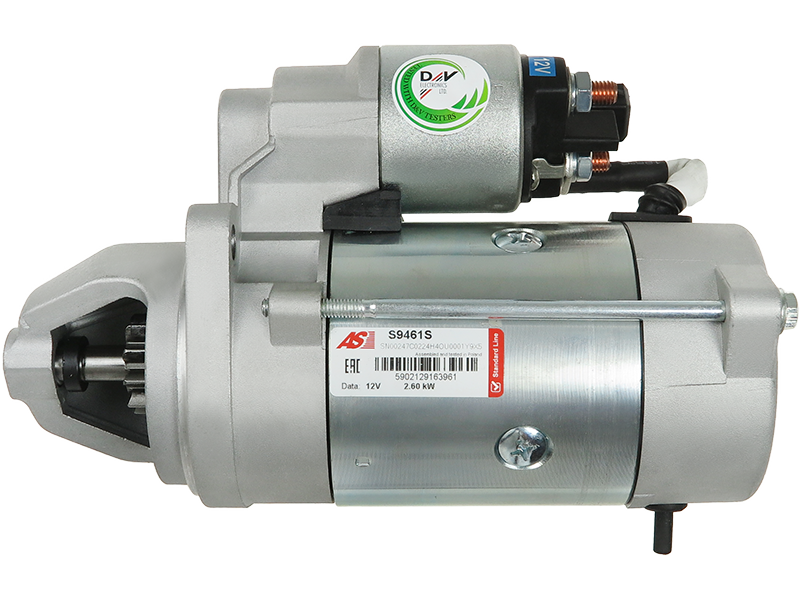

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 571.90 including GST
NZ$ 497.30 excluding GST
or four payments of $142.98
with
Learn More
each
S9461S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 2.6 kW |
| Length (L.1) | 242 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | 10.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 30 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.5 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AHLMANN | AX1000 2.4 | [4024FH295B] | |
| AHLMANN | AX100 2.4 | [4024HF295A] | |
| AHLMANN | AX700 2.4 | [4024FF295A] | |
| AHLMANN | AX70 2.4 | [4024FF295A] | |
| AHLMANN | AX850 2.4 | [4024FH295A] | |
| DYNAPAC | CA134D 3.0 | [5030HF285] | |
| DYNAPAC | CA134PP 3.0 | [5030TF270] | |
| JOHN DEERE | 244J | [4024T59HP] | 01.2004- |
| JOHN DEERE | 304J 3.1 | [5030T73HP] | 01.2004- |
| JOHN DEERE | 313 2.4 | [4024T49HP] | 01.2007- |
| JOHN DEERE | 315 2.4 | [4024T49HP] | 01.2007- |
| JOHN DEERE | 317 2.4 | [4024T57HP] | 01.2004- |
| JOHN DEERE | 320 2.4 | [4024T62HP] | 01.2004- |
| JOHN DEERE | 325 3.0 | [5030T70HP] | 01.2000-12.2004 |
| JOHN DEERE | 328 3.0 | [5030TW76HP] | 01.2005- |
| JOHN DEERE | 332 3.0 | [5030HW85HP] | 01.2005- |
| JOHN DEERE | 4024 2.4 | ||
| JOHN DEERE | 4120 2.4 | [4024T43HP] | 01.2004- |
| JOHN DEERE | 4320 2.4 | [4024T48HP] | 01.2004- |
| JOHN DEERE | 4520 2.4 | [4024T53HP] | 01.2004- |
| JOHN DEERE | 4720 2.4 | [4024T58HP] | 01.2004- |
| JOHN DEERE | 5065M 3.0 | [JDPT65HP] | 01.2008- |
| JOHN DEERE | 5075M 3.0 | [JDPT75HP] | 01.2008- |
| JOHN DEERE | 5225 | ||
| JOHN DEERE | 5325 | ||
| JOHN DEERE | 5325N | ||
| JOHN DEERE | CT315 2.4 | [JD402449HP] | |
| JOHN DEERE | CT322 2.4 | [JD402466HP] | |
| JOHN DEERE | CT332 3.1 | [JD5030T82HP] | |
| MECALAC | AX1000 2.4 | [4024FH295B] | 01.2010- |
| MECALAC | AX700 2.4 | [4024FH295A] | 01.2010- |
| MECALAC | AX850 2.4 | [4024HF295A] | 01.2010- |
Reference Information
5010454 AZE6544 72735849 MAHMS221 MS221 91-23-6585 RE540303 RE540304 SE501844 RE508922 182-30134 IS1154 RE531243 STR78005 11.131.750 STX201103 UD19571SVideo/Publications
