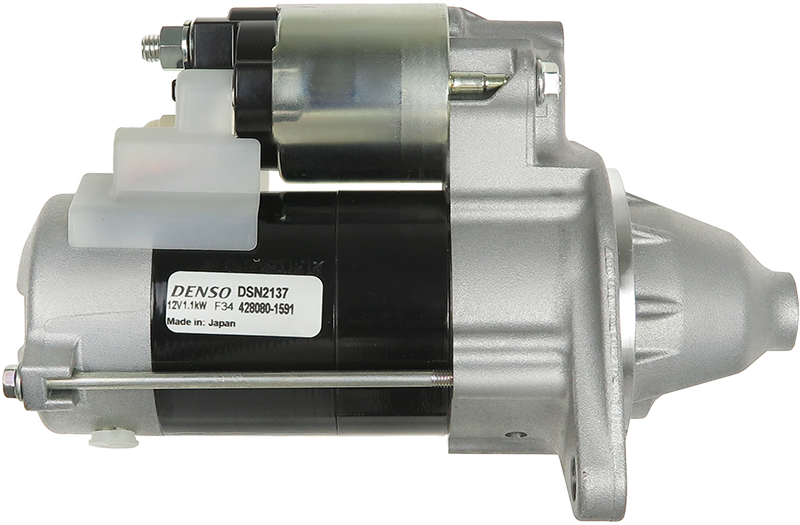

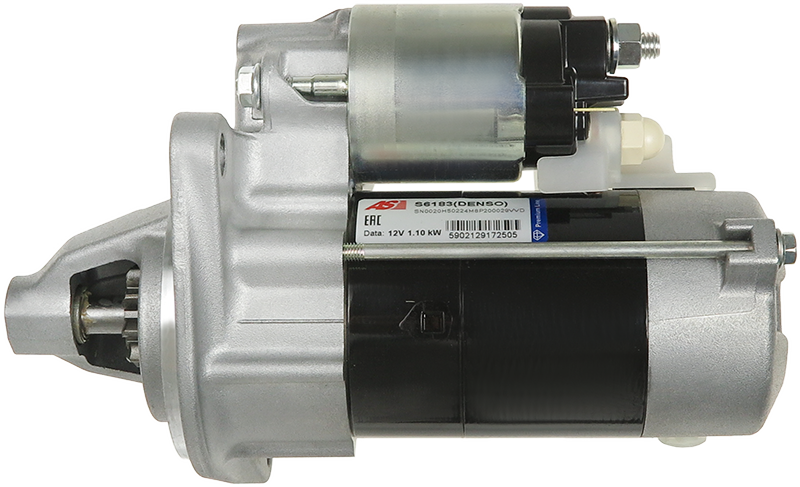

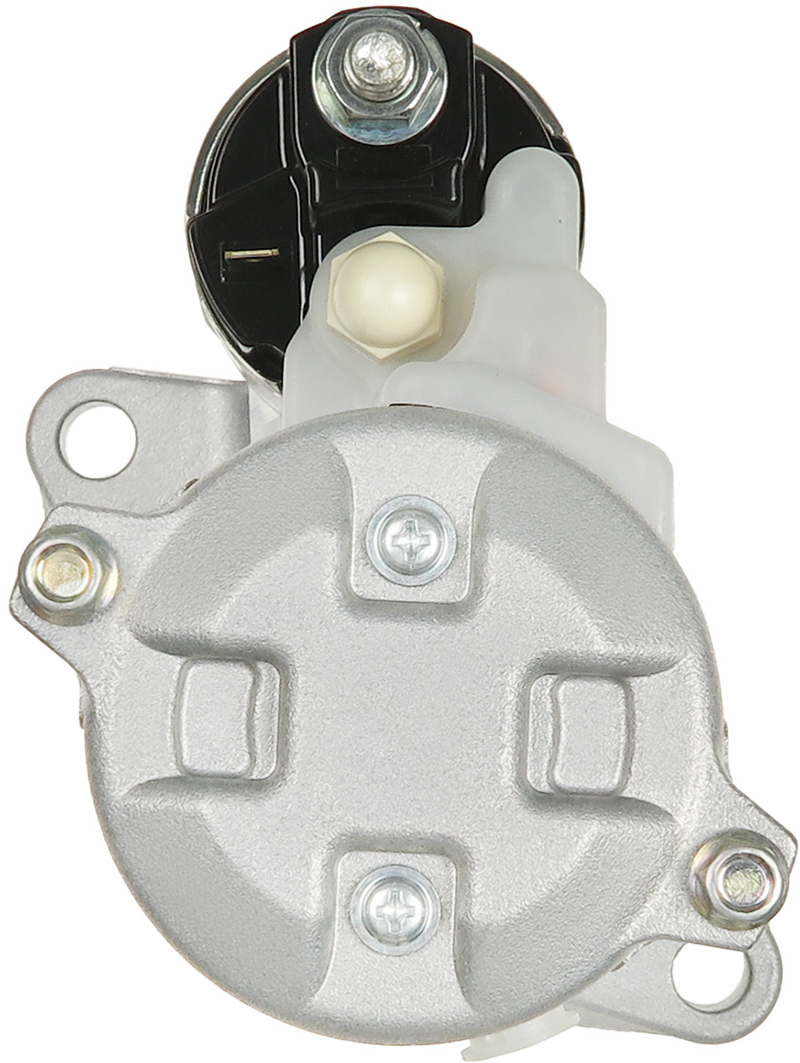

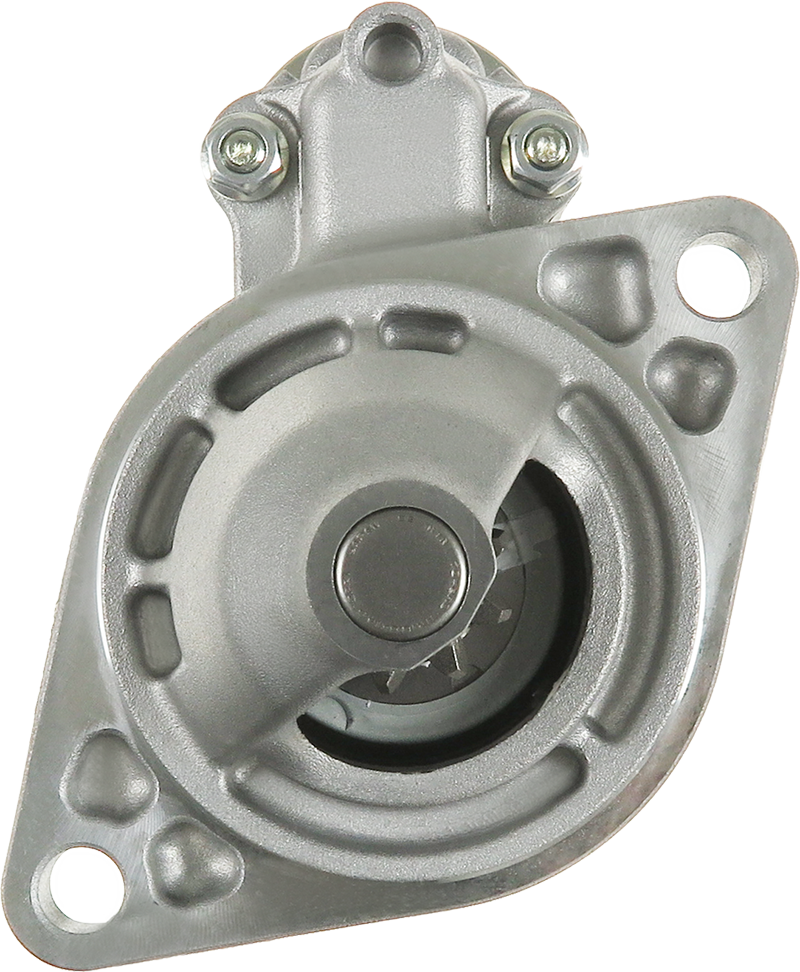

S6183(DENSO) - Brand new OEM DENSO Starter motor

Associated Numbers

16-460 70-8179 DXS4020 SRJ231 SNJ248 1000148348 Kramer
106421 Farcom
114891 Cargo
115972 Cargo
11951577010 Yanmar
11971777010 Yanmar
1906353 PIC
19615 Lester
24312166 Dixie
254381 Elstock
254443 Elstock
4280001590 Denso show
4280001591 Denso
4280002100 Denso
4280002190 Denso
4280002191 Denso
4280002192 Denso
4280801591 Denso
6040330 Sando
682043092 DRI
682047092 DRI
8233 CEVAM
980526092 PSH
AEX1147 Auto Electro
AEY2709 Auto Electro
AYS111 ATK
AYS112 ATK
DEM6012166 ADI
DRS0969 Remy
DSN2137 Denso
LRS02709 Lucas
LRS02770 Lucas
LRS2709 Lucas
RNL4280001590 RNL
S512741 BTS Turbo
S80177 Dixie
SDN330A AutoTeam
STR6116sa Electrolog
ARROWHEAD IMI214-017, ND428000-1590
ATLANTIC QUALITY PARTS 8200-0105
CUB CADET YA-119717-77010
DENSO 428000-1590, 428000-1591
IMI HI TORQUE IMI214-017
J&N ELECTRICAL PRODUCTS 410-52190R
JANNCO 410-52190R
LESTER 19615
LUCAS ELECTRIC LRS02709
YANMAR 119515-77010, 119717-77010

Specifications

Kilowatt	1.1 kW
Length (L.1)	210.8 mm
Mount Hole Center - Center (O.1)	120 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
OEM Product	Yes
Pinion at Rest (B)	21 mm
Product Line	Premium Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	80 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CUB CADET	Volunteer 4x4 D	[3TNV70]	01.2008-
CUB CADET	Volunteer D	[2TNV70]	01.2008-
KRAMER	250	[3TNV77]	01.2008-

Reference Information

8233 CST40330GS 980.526.092.050 S-80176 19615N 190-10103 980.526.092.058 428000-1590 428000-1591 254524 114891 428000-2100 119717-77010 STN1590 STRL242 243-12166 STR70145 MIU800612 254524D PRSL242 980.526.092.260 6040330.1 20432033OE 6040330.0 LRS02709 428080-1591 STR6116 LRS2709 428000-2191 DRS0969 DSN2137 428000-2190 20432033BN AEY2709 336002 119515-77010 25-4381 UD810328(DENSO)S CST40330AS

Video/Publications

S6183(DENSO)
