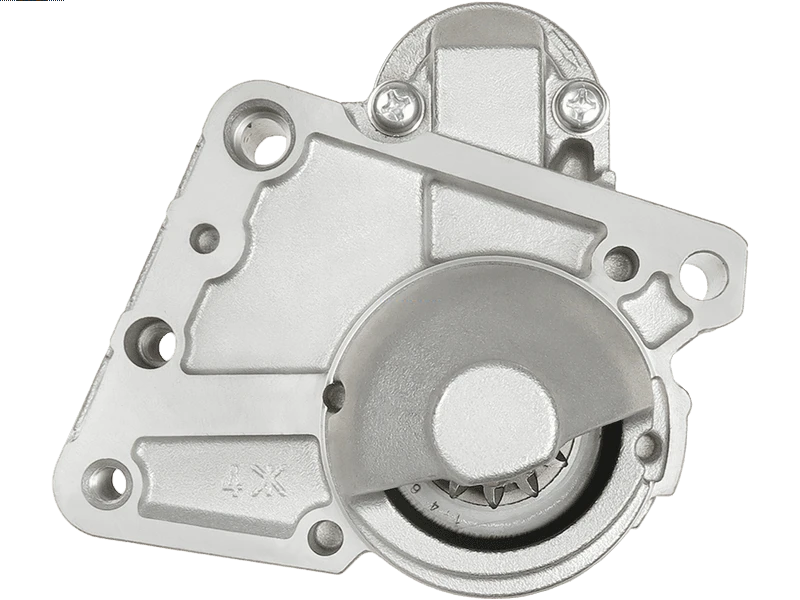

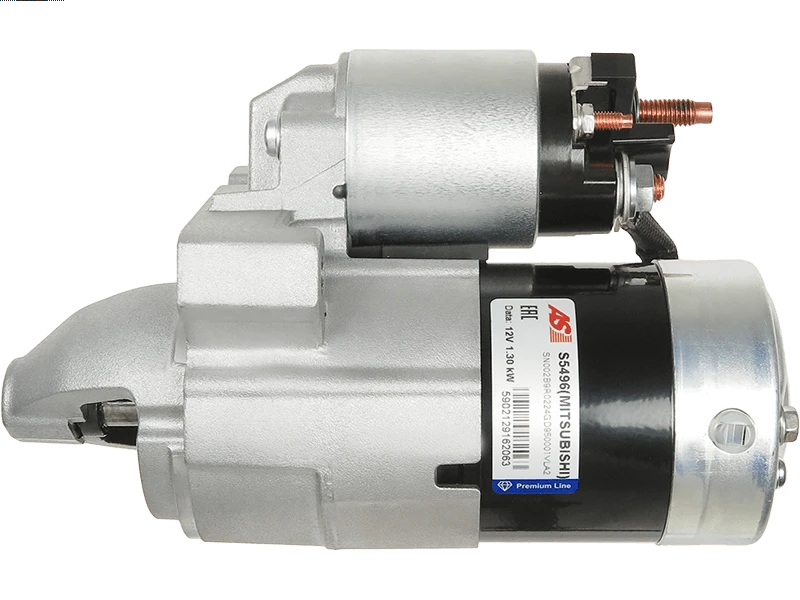

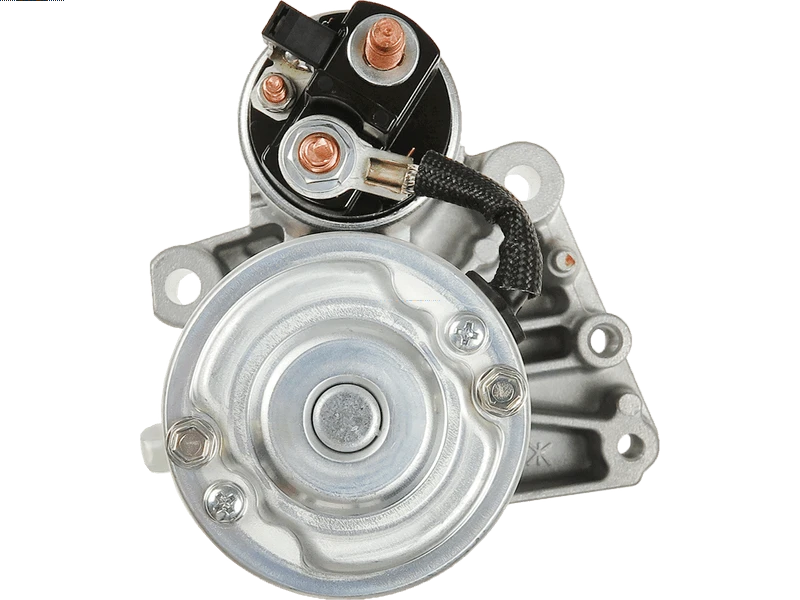

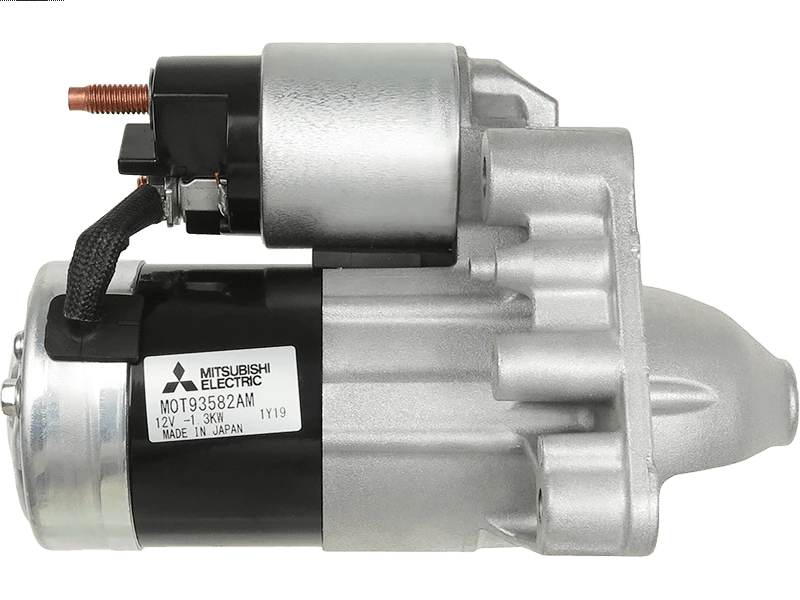

S5496(MITSUBISHI) - Brand new OEM MITSUBISHI Starter motor

Name: Brand new OEM MITSUBISHI Starter motor
Brand: AS GROUP NZ
SKU: S5496(MITSUBISHI)
Price: 450.45 NZD
Availability: BackOrder

Brand new OEM MITSUBISHI Starter motor

PREMIUM LINE

Manufacturer:

Mitsubishi

Replacement For:

MITSUBISHI

Price:

NZ$ 450.45 including GST

NZ$ 391.69 excluding GST

UOM:

each

Product Code:

S5496(MITSUBISHI)

Quantity In Stock Nationally:

No stock in NZ

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Specifications
Vehicle Applications
Reference Information
Video/Publications

Kilowatt	1.3 kW
Length (L.1)	194.5 mm
Mount Hole Center - Center (O.1)	125 mm
Mount Hole Center - Center (O.2)	30 mm
Mount Hole Center - Center (O.3)	45 mm
Mount Hole Center - Center (O.4)	92 mm
Mount Hole Diameter (C.1)	9 mm
Mount Hole Diameter (C.2)	M8x1.25 mm
Mount Hole Diameter (C.3)	M8x1.25 mm
Mount Hole Diameter (C.4)	9 mm
No./Mount holes	4 qty
No./Mount holes with thread	2 qty
No./Teeth	12 qty
OEM Product	Yes
Pinion at Rest (B)	14 mm
Product Line	Premium Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	65.5 mm
Unit Type	MITSUBISHI
Voltage	12 V

Make	Model	Type	Year
CITROEN	Berlingo 1.5 BlueHDi 100		06.2018-
CITROEN	Berlingo 1.5 BlueHDi 130		03.2018-
CITROEN	Berlingo 1.5 BlueHDi 75		06.2018-
CITROEN	Berlingo 1.6 BlueHDi 100	[BHY(DV6FD)]	12.2014-
CITROEN	Berlingo 1.6 BlueHDi 75	[9HN(DV6ETED)]	04.2015-
CITROEN	Berlingo 1.6 BlueHDi 75	[BHW(DV6FE)]	04.2015-
CITROEN	Berlingo 1.6 HDi	[9HN(DV6ETED4)]	04.2008-
CITROEN	Berlingo 1.6 HDi	[9HT(DV6BTED4)]	04.2008-
CITROEN	Berlingo 1.6 HDi	[9HT(DV6BUTED4)]	04.2008-
CITROEN	Berlingo 1.6 HDi	[9HW(DV6BTED4)]	07.2005-
CITROEN	Berlingo 1.6 HDi	[9HX(DV6ATED4)]	07.2005-
CITROEN	Berlingo 1.6 HDi	[DV6B]	07.2005-
CITROEN	Berlingo 1.6 HDi 4x4	[9HF(DV6DTED)]	02.2012-
CITROEN	Berlingo 1.6 HDi 4x4	[9HN(DV6ETED)]	02.2012-
CITROEN	Berlingo 1.6 HDi 90	[9HF(DV6DTED)]	07.2010-
CITROEN	Berlingo 1.6 HDi 90	[9HP(DV6DTED)]	07.2010-
CITROEN	Berlingo 1.6 HDi 90	[9HX(DV6ATED4)]	07.2010-
CITROEN	Berlingo 1.6 HDi 92	[9HJ(DV6DTEDM)]	07.2010-
CITROEN	C1 1.4 HDi	[DV4D]	06.2005-
CITROEN	C2 1.4 HDi	[8HX(DV4TD)]	04.2009-
CITROEN	C2 1.4 HDi	[8HZ(DV4TD)]	09.2003-
CITROEN	C3 1.4 HDi	[8HX(DV4TD)]	02.2002-
CITROEN	C3 1.4 HDi	[8HX(DV4TD)]	04.2004-
CITROEN	C3 1.4 HDi 16V	[8HY(DV4TED4)]	02.2002-
CITROEN	C3 1.5 BlueHDi 100	[YHY(DV5RD)]	05.2018-
CITROEN	C3 1.6 HDi	[9HP(DV6DTED)]	11.2009-
CITROEN	C3 1.6 HDi	[9HX(DV6ATED4)]	10.2005-
CITROEN	C3 1.6 HDi	[9HX(DV6ATED4)]	11.2009-
CITROEN	C3 1.6 HDi 115	[9HD(DV6C)]	09.2012-
CITROEN	C3 1.6 HDi 16V	[9HX(DV6ATED4)]	10.2005-
CITROEN	C3 1.6 HDi 16V	[9HZ(DV6TED4)]	09.2005-
CITROEN	C3 1.6 HDi BlueHDi 110	[BHY(DV6FD)]	07.2016-
CITROEN	C3 1.6 HDi BlueHDi 75	[BHW(DV6FE)]	07.2016-
CITROEN	C3 Picasso 1.6 HDi	[9HP(DV6DTED)]	07.2010-
CITROEN	C4 1.6 BlueHDi 100	[BHY(DV6FD)]	07.2014-
CITROEN	C4 1.6 HDi	[9HP(DV6DTED)]	11.2009-
CITROEN	C4 1.6 HDi	[9HR(DV6C)]	11.2009-
CITROEN	C4 1.6 HDi	[9HX(DV6ATED4)]	11.2004-
CITROEN	C4 1.6 HDi	[9HY(DV6ATED4)]	11.2004-
CITROEN	C4 1.6 HDi	[9HY(DV6TED4)]	07.2006-
CITROEN	C4 1.6 HDi	[9HY(DV6TED4)]	11.2004-
CITROEN	C4 1.6 HDi	[9HZ(DV6ATED4)]	11.2004-
CITROEN	C4 1.6 HDi	[9HZ(DV6TED4)]	07.2006-
CITROEN	C4 1.6 HDi	[9HZ(DV6TED4)]	11.2004-
CITROEN	C4 1.6 HDi 115	[9HC(DV6C)]	09.2013-
CITROEN	C4 1.6 HDi 115	[9HR(DV6C)]	07.2012-
CITROEN	C4 1.6 HDi 115	[BHX(DV6FC)]	09.2013-
CITROEN	C4 1.6 HDi 90	[9HP(DV6DTED)]	09.2013-
CITROEN	C4 Cactus 1.6 BlueHDi 100	[BHY(DV6FD)]	09.2014-
CITROEN	C4 Cactus 1.6 HDi 90	[9HP(DV6DTED)]	09.2014-
CITROEN	C4 Picasso 1.6 HDi	[9HY(DV6TED4)]	02.2007-
CITROEN	C4 Picasso 1.6 HDi	[9HZ(DV6TED4)]	02.2007-
CITROEN	C4 Picasso 1.6 HDi 115	[9HC(DV6C)]	02.2013-
CITROEN	C4 Picasso 1.6 HDi 115	[BHX(DV6FC)]	02.2013-
CITROEN	C4 Picasso 1.6 HDi 90	[9HP(DV6DTED)]	02.2013-
CITROEN	C5 1.6 HDi	[9HY(DV6TED4)]	09.2004-
CITROEN	C5 1.6 HDi	[9HZ(DV6TED4)]	09.2004-
CITROEN	C-Elysee 1.5 BlueHDi 100		05.2018-
CITROEN	C-Elysee 1.6 HDi	[9HJ(DV6DTEDM)]	11.2012-
CITROEN	C-Elysee 1.6 HDi	[9HP(DV6DTED)]	11.2012-
CITROEN	Dispatch 1.5 BlueHDi 100		06.2018-
CITROEN	Dispatch 1.6 HDi BlueHDi 115	[BHX(DV6FCU)]	04.2016-
CITROEN	Dispatch 1.6 HDi BlueHDi 95	[BHS(DV6FDU)]	04.2016-
CITROEN	Dispatch 1.6 HDi BlueHDi 95	[BHV(DV6FDU)]	04.2016-
CITROEN	DS3 1.4 HDi 70	[8HR(DV4C)]	04.2010-
CITROEN	DS3 1.6 HDi 90	[9HP(DV6DTED)]	01.2013-
CITROEN	DS4 1.6 HDi 110	[9HR]	04.2011-
CITROEN	DS4 1.6 HDi 110	[9HR(DV6C)]	04.2011-
CITROEN	DS4 1.6 HDi 115	[9HL(DV6C)]	08.2012-
CITROEN	Jumpy 1.6 BlueHDi 115	[BHX(DV6FCU)]	04.2016-
CITROEN	Jumpy 1.6 BlueHDi 95	[BHV(DV6FDU)]	04.2016-
CITROEN	Jumpy 1.6 HDi	[9HU(DV6UTED4)]	01.2007-
CITROEN	Jumpy 1.6 HDi 90	[9HH(DV6DUM)]	01.2007-
CITROEN	Jumpy 1.6 HDi 90	[9HM(DV6UC)]	01.2007-
CITROEN	Jumpy 1.6 HDi BlueHDi 95	[BHS(DV6FDU)]	09.2016-
CITROEN	Jumpy 1.6 HDi BlueHDi 95	[BHV(DV6FDU)]	09.2016-
CITROEN	Nemo 1.4 HDi	[8HS(DV4TD)]	02.2008-
CITROEN	Nemo 1.4 HDi	[8HS(DV4TED)]	04.2009-
CITROEN	SpaceTourer 1.6 BlueHDi 115	[BHX(DV6FC)]	04.2016-
CITROEN	SpaceTourer 1.6 BlueHDi 95	[BHV(DV6FDU)]	04.2016-
CITROEN	SpaceTourer 2.0 BlueHDi 150	[AHX(DW10FD)]	04.2016-
CITROEN	Xsara 1.4 HDi	[8HX(DV4TD)]	01.2003-03.2005
CITROEN	Xsara 1.4 HDi	[8HX(DV4TD)]	01.2003-08.2005
CITROEN	Xsara Picasso 1.6 HDi	[9HX(DV6ATED4)]	09.2005-
CITROEN	Xsara Picasso 1.6 HDi	[9HY(DV6TED4)]	05.2004-
CITROEN	Xsara Picasso 1.6 HDi	[9HZ(DV6TED4)]	05.2004-
FIAT	Scudo 1.6 Multijet	[9H07(DV6UC)]	01.2007-
FIAT	Scudo 1.6 Multijet	[9H07(DV6UC)]	02.2011-
FIAT	Scudo 1.6 Multijet	[9HM(DV6UC)]	01.2007-
FIAT	Scudo 1.6 Multijet	[9HM(DV6UC)]	02.2011-
FIAT	Scudo 1.6 Multijet	[9HU]	01.2007-
PEUGEOT	1007 1.4 HDi	[8HX(DV4TD)]	04.2005-
PEUGEOT	1007 1.4 HDi	[8HZ(DV4TD)]	04.2005-
PEUGEOT	107 1.4 HDi	[8HT(DV4TD)]	06.2005-
PEUGEOT	2008 1.4 HDi	[8HR(DV4C)]	06.2013-
PEUGEOT	2008 1.6 HDi	[9HP(DV6DTED)]	03.2013-
PEUGEOT	206 1.4 HDi	[8HX(DV4TD)]	07.2002-
PEUGEOT	206 1.4 HDi	[8HX(DV4TD)]	09.2001-03.2009
PEUGEOT	206 1.4 HDi	[8HX(DV4TD)]	09.2002-02.2007
PEUGEOT	206 1.4 HDi	[8HZ(DV4TD)]	09.2001-03.2009
PEUGEOT	206 1.4 HDi eco	[8HX(DV4TD)]	09.2001-
PEUGEOT	206 1.4 HDi eco	[8HZ(DV4TD)]	09.2001-
PEUGEOT	206 1.4 HDi eco 70	[8HZ(DV4TD)]	09.2008-
PEUGEOT	206 1.6 HDi	[9HZ(DV6TED4)]	04.2005-
PEUGEOT	206 1.6 HDi FAP	[9HY(DV6TED4)]	05.2004-
PEUGEOT	206 1.6 HDi FAP	[9HZ(DV6TED4)]	05.2004-
PEUGEOT	207 1.4 HDi	[8HR(DV4C)]	02.2006-
PEUGEOT	207 1.4 HDi	[8HZ(DV4TD)]	02.2006-
PEUGEOT	207 1.4 HDi	[8HZ(DV4TD)]	04.2007-
PEUGEOT	207 1.6 HDi	[9HP(DV6DTED)]	11.2009-
PEUGEOT	207 1.6 HDi	[9HV(DV6ATED4)]	02.2006-
PEUGEOT	207 1.6 HDi	[9HV(DV6TED4)]	02.2006-
PEUGEOT	207 1.6 HDi	[9HX(DV6ATED4)]	02.2006-
PEUGEOT	207 1.6 HDi	[9HX(DV6ATED4)]	04.2007-
PEUGEOT	207 1.6 HDi	[9HX(DV6ATED4)]	06.2007-
PEUGEOT	207 1.6 HDi	[9HY(DV6TED4)]	02.2006-
PEUGEOT	207 1.6 HDi	[9HZ(DV6TED4)]	02.2006-
PEUGEOT	207 1.6 HDi	[9HZ(DV6TED4)]	02.2007-
PEUGEOT	208 1.4 HDi	[8HP(DV4C)]	03.2012-
PEUGEOT	208 1.4 HDi	[8HR(DV4C)]	03.2012-
PEUGEOT	208 1.4 HDi	[8HR(DV4C)]	10.2012-
PEUGEOT	208 1.6 BlueHDi 75	[9HK(DV6ETEDM)]	01.2013-
PEUGEOT	208 1.6 BlueHDi 75	[BHW(DV6FE)]	01.2013-
PEUGEOT	208 1.6 HDi	[9HP(DV6DTED)]	03.2012-
PEUGEOT	208 1.6 HDi	[9HP(DV6DTED)]	03.2014-
PEUGEOT	301 1.5 D		05.2018-
PEUGEOT	301 1.6 HDi 92	[9HF(DV6DTED)]	11.2012-
PEUGEOT	307 1.4 HDi	[8HX(DV4TD)]	10.2001-
PEUGEOT	307 1.4 HDi	[8HZ(DV4TD)]	03.2002-
PEUGEOT	307 1.4 HDi	[8HZ(DV4TD)]	10.2001-
PEUGEOT	307 1.6 HDi FAP	[9HY(DV6TED4)]	02.2004-
PEUGEOT	307 1.6 HDi FAP	[9HZ(DV6TED4)]	02.2004-
PEUGEOT	307 SW 1.4 HDi 70	[8HZ(DV4TD)]	03.2002-01.2005
PEUGEOT	308 1.5 BlueHDi 100	[YHY(DV5RD)]	05.2018-
PEUGEOT	308 1.6 HDi	[9HC(DV6C)]	09.2013-
PEUGEOT	308 1.6 HDi	[9HP(DV6DTED)]	11.2009-
PEUGEOT	308 1.6 HDi	[9HZ(DV6ATED4)]	09.2007-
PEUGEOT	308 1.6 HDi	[BHZ(DV6FC)]	09.2013-
PEUGEOT	308 SW 1.5 BlueHDi 100	[YHY(DV5RD)]	04.2018-
PEUGEOT	308 SW 1.6 HDi	[9HD(DV6C)]	03.2014-
PEUGEOT	308 SW 1.6 HDi		03.2014-
PEUGEOT	380 SW 1.6 HDi	[9HP(DV6DTED)]	11.2009-
PEUGEOT	407 1.6 HDi FAP	[9HY(DV6TED4)]	05.2004-
PEUGEOT	407 1.6 HDi FAP	[9HZ(DV6TED4)]	05.2004-
PEUGEOT	407 2.0 HDi		11.2004-10.2007
PEUGEOT	407 SW 2.0 HDi	[RHL(DW10BTED4)]	11.2004-
PEUGEOT	Bipper 1.4 HDi	[8HS(DV4TD)]	02.2008-
PEUGEOT	Bipper 1.4 HDi	[8HS(DV4TD)]	04.2008-
PEUGEOT	Expert 1.6 BlueHDi 115	[BHS(DV6FDU)]	04.2016-
PEUGEOT	Expert 1.6 BlueHDi 115	[BHV(DV6FDU)]	04.2016-
PEUGEOT	Expert 1.6 BlueHDi 115	[BHX(DV6FC)]	04.2016-
PEUGEOT	Expert 1.6 BlueHDi 175	[BHX(DV6FCU)]	04.2016-
PEUGEOT	Expert 1.6 BlueHDi 95	[BHV(DV6FDU)]	04.2016-
PEUGEOT	Expert 1.6 HDi	[9HU(DV6UTED4)]	01.2007-
PEUGEOT	Expert 1.6 HDi 90	[9HH(DV6DUM)]	01.2007-
PEUGEOT	Expert 1.6 HDi 90	[9HM(DV6UC)]	01.2007-
PEUGEOT	Expert 1.6 HDi 90		01.2007-
PEUGEOT	Expert 1.6 HDi BlueHDi 95	[BHV(DV6FDU)]	09.2016-
PEUGEOT	Expert 1.6 HDi Tepee	[9HH(DV6DUM)]	01.2007-
PEUGEOT	Expert 1.6 HDi Tepee	[9HM(DV6UC)]	01.2007-
PEUGEOT	Expert 1.6 HDi Tepee	[9HU(DV6UTED4)]	01.2007-
PEUGEOT	Partner 1.6 BlueHDi 100	[BHY(DV6FD)]	04.2015-
PEUGEOT	Partner 1.6 BlueHDi 120	[BHZ(DV6FC)]	04.2015-
PEUGEOT	Partner 1.6 BlueHDi 75	[BHW(DV6FE)]	01.2015-
PEUGEOT	Partner 1.6 BlueHDi Tepee	[BHW(DV6FE)]	01.2015-
PEUGEOT	Partner 1.6 BlueHDi Tepee	[BHY(DV6FD)]	12.2014-
PEUGEOT	Partner 1.6 BlueHDi Tepee	[BHZ(DV6FC)]	12.2014-
PEUGEOT	Partner 1.6 HDi	[9HF(DV6DTED)]	03.2013-
PEUGEOT	Partner 1.6 HDi	[9HJ(DV6DTEDM)]	04.2010-
PEUGEOT	Partner 1.6 HDi	[9HP(DV6DTED)]	04.2010-
PEUGEOT	Partner 1.6 HDi	[9HS(DV6TED4BU)]	04.2008-
PEUGEOT	Partner 1.6 HDi	[9HT(DV6BTED4)]	01.2009-
PEUGEOT	Partner 1.6 HDi	[9HT(DV6BTED4)]	04.2008-
PEUGEOT	Partner 1.6 HDi	[9HW(DV6BTED4)]	02.2006-
PEUGEOT	Partner 1.6 HDi	[9HW(DV6BTED4)]	04.2008-
PEUGEOT	Partner 1.6 HDi	[9HX(DV6ATED4)]	01.2009-
PEUGEOT	Partner 1.6 HDi	[9HX(DV6ATED4)]	02.2006-
PEUGEOT	Partner 1.6 HDi	[9HX(DV6ATED4)]	04.2008-
PEUGEOT	Partner 1.6 HDi	[9HX(DV6ATED4)]	04.2010-
PEUGEOT	Partner 1.6 HDi 75	[9HK(DV6ETEDM)]	08.2005-07.2008
PEUGEOT	Partner 1.6 HDi BlueHDi 110 4x4	[BHY(DV6FD)]	04.2015-
PEUGEOT	Partner 1.6 HDi Tepee	[9HF(DV6DTED)]	03.2013-
PEUGEOT	Partner 1.6 HDi Tepee	[9HP(DV6DTED)]	04.2010-
PEUGEOT	Partner 1.6 HDi Tepee	[9HT(DV6BTED4)]	04.2008-
PEUGEOT	Partner 1.6 HDi Tepee	[9HV(DV6TED4)]	04.2008-
PEUGEOT	Partner 1.6 HDi Tepee	[9HW(DV6BTED4)]	04.2008-
PEUGEOT	Partner 1.6 HDi Tepee	[9HX(DV6ATED4)]	04.2008-
PEUGEOT	Partner 1.6 HDi Tepee	[9HX(DV6ATED4)]	04.2010-
PEUGEOT	Rifter 1.5 BlueHDi 100		09.2018-
PEUGEOT	Rifter 1.5 BlueHDi 130		09.2018-
PEUGEOT	Traveller 1.6 BlueHDi 115		04.2016-
PEUGEOT	Traveller 1.6 BlueHDi 95		04.2016-
TOYOTA	Aygo 1.4 HDi	[2WZTV]	07.2005-08.2010

5802AZ 28100YV011 M000T93582ZZ9 00005802AZ 9.80167E+11 9.68827E+11 28100YV010 6035247.1 9664016980 M0T93582ZZ9 9688268580 MITM0T93582 M000T93581 9801667580 9637813680 UD100057(MITSUBISHI)S M000T93582 9646679980 CST35247GS 5802A2 M000T93582AM M0T93582AM 5802M4 20437742OE STX200017R M0T93581AM 9640825280 STX200452 M0T93582 M000T93581AM 5802FP STX200354 STX200013 M0T93581 5802FG 5802Y4 5802Y5 STX200013R 5802Y6 STX200017

S5496(MITSUBISHI)

View your shopping basket or Browse other items in Starter Motors.

AS GROUP NZ

Note: We have moved to a private property and no longer allow pick ups to non account holders -, Paraparaumu, Wellington

5032, New Zealand

0800 727 000 (Domestic Calls)

Shipping Policy: All paid orders are shipped within 24 hours (Monday - Friday)

Returns: Items returned for refund must be unopen/unused in original packaging and within 30 days of date of sale. All Returns must have a Return Advice (RA) form accompany the goods.

PLEASE NOTE: PRODUCT BOXES ARE NOT SHIPPING BOXES, ANY PRODUCT RETURNED WITH TAPE/LABELS OVER THE PRODUCT BOX WILL BE CHARGED A RESTOCKING FEE

[Terms and Conditions]

[Warranty Form] [Warranty procedure]

[Privacy Policy] [Disclaimer]

S5496(MITSUBISHI) - Brand new OEM MITSUBISHI Starter motor

Specifications

Vehicle Applications

Reference Information

Video/Publications

AS GROUP NZ
