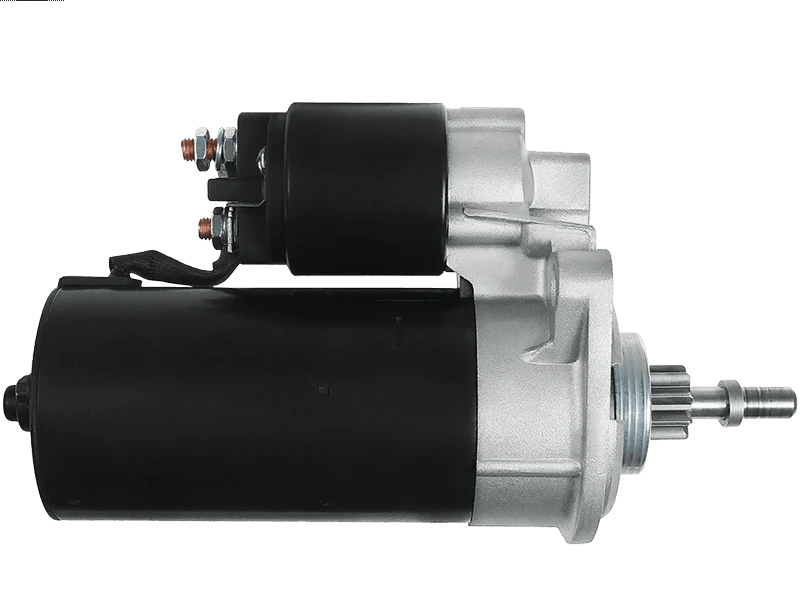

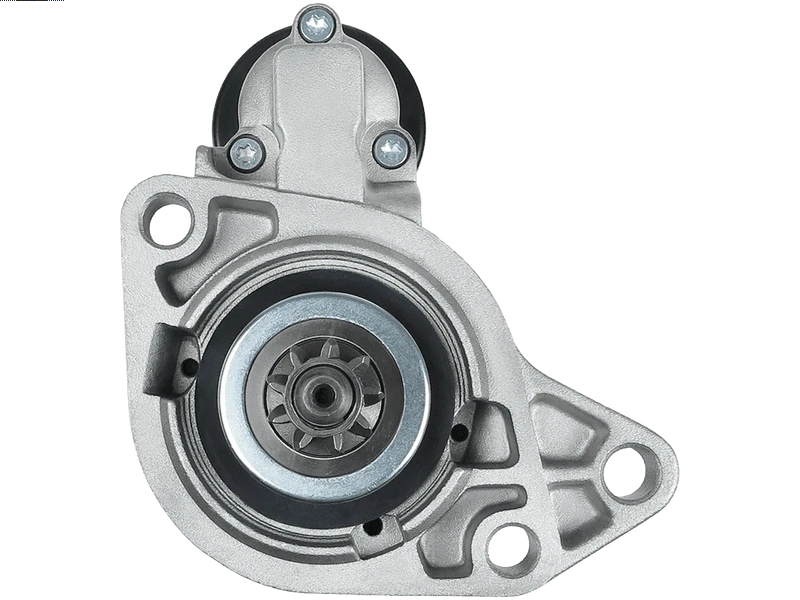

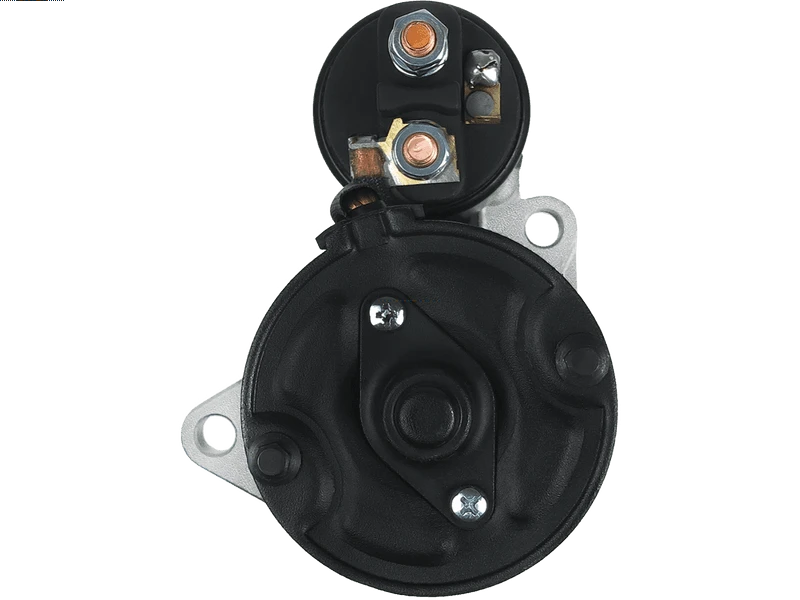

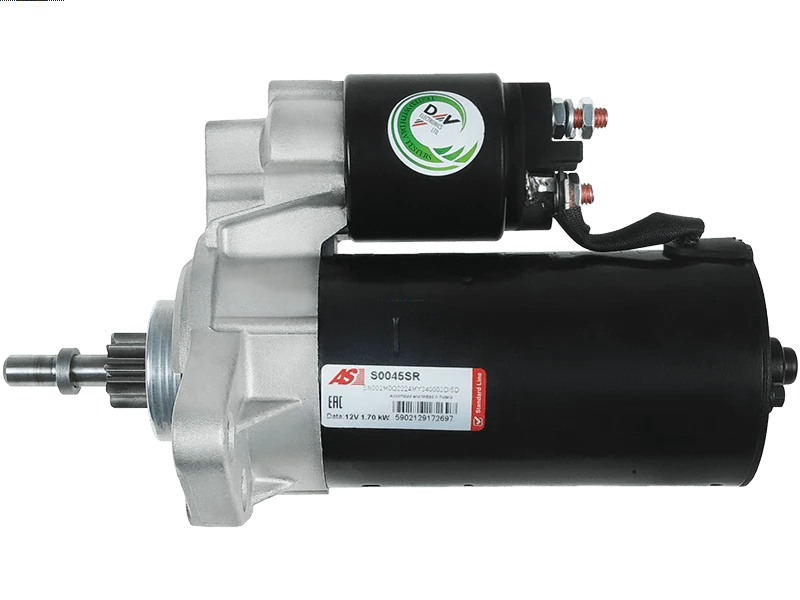

Remanufactured AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 251.68 including GST
NZ$ 218.85 excluding GST
or four payments of $62.92
with
Learn More
each
S0045SR
No stock in NZ
No stock in NZ
Specifications
| Kilowatt | 1.7 kW |
| Length (L.1) | 263 mm |
| Mount Hole Center - Center (O.1) | 123 mm |
| Mount Hole Center - Center (O.2) | 33 mm |
| Mount Hole Center - Center (O.3) | 112 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 33 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Golf II 1.6 Diesel | [JP] | 08.1983-10.1991 |
| VW | Golf II 1.6 Diesel | [ME] | 05.1988-10.1991 |
| VW | Golf II 1.6 TD | [1V] | 08.1989-07.1992 |
| VW | Golf II 1.6 TD | [JR] | 08.1983-10.1991 |
| VW | Golf II 1.6 TD | [MF] | 05.1988-10.1991 |
| VW | Golf II 1.6 TD | [RA] | 04.1989-02.1990 |
| VW | Golf II 1.6 TD | [SB] | 04.1989-10.1991 |
| VW | Jetta 1.6 Diesel | [JP] | 01.1984-10.1991 |
| VW | Jetta 1.6 Diesel | [ME] | 08.1984-10.1991 |
| VW | Jetta 1.6 TD | [1V] | 08.1989-07.1992 |
| VW | Jetta 1.6 TD | [JR] | 01.1984-10.1991 |
| VW | Jetta 1.6 TD | [MF] | 08.1984-07.1992 |
| VW | Jetta 1.6 TD | [RA] | 04.1989-02.1990 |
| VW | Jetta 1.6 TD | [SB] | 08.1989-10.1991 |
| VW | Multivan 2.5 | [AET] | 08.1996-06.2003 |
| VW | Multivan 2.5 | [AVT] | 12.1999-06.2003 |
| VW | Passat 1.6 | [RA] | 08.1988-07.1989 |
| VW | Passat 1.6 TD | [RA] | 08.1988-07.1989 |
| VW | Transporter 2.4 Diesel | [AAB] | 09.1990-04.2003 |
| VW | Transporter 2.4 Diesel | [AJA] | 08.1997-04.2003 |
| VW | Transporter 2.5 | [AAF] | 09.1990-12.1993 |
| VW | Transporter 2.5 | [ACU] | 01.1994-10.1996 |
| VW | Transporter 2.5 | [AEN] | 09.1995-12.1995 |
| VW | Transporter 2.5 | [AET] | 08.1996-06.2003 |
| VW | Transporter 2.5 | [AEU] | 01.1994-06.2003 |
| VW | Transporter 2.5 | [AVT] | 12.1999-06.2003 |
| VW | Transporter 2.5 Syncro | [AEN] | 09.1995-12.1995 |
| VW | Transporter 2.5 Syncro | [AET] | 07.1996-06.2003 |
| VW | Transporter 2.5 Syncro | [AEU] | 06.1997-04.2002 |
| VW | Transporter 2.5 Syncro | [AVT] | 12.1999-06.2003 |
| VW | Transporter 2.5 TD | [AJT] | 05.1998-06.2003 |
| VW | Transporter 2.5 TD | [AYY] | 10.2001-06.2003 |
| VW | Transporter 2.5 TDi | [ACV] | 01.1995-06.2003 |
| VW | Transporter 2.5 TDi | [AJT] | 05.1998-06.2003 |
| VW | Transporter 2.5 TDi | [AUF] | 05.1999-06.2003 |
| VW | Transporter 2.5 TDi | [AYC] | 04.2001-06.2003 |
| VW | Transporter 2.5 TDi | [AYY] | 10.2001-06.2003 |
| VW | Transporter 2.5 TDi Syncro | [ACV] | 01.1995-06.2003 |
| VW | Transporter 2.5 TDi Syncro | [AXL] | 01.1995-06.2003 |
| VW | Transporter 2.8 V6 | [AMV] | 04.2000-04.2003 |
| VW | Transporter 2.8 VR6 | [AES] | 11.1995-04.2000 |
Reference Information
DRS3050 STR10044 STR1533 CGB-51013 10295 5010435 CS295 STRS251 IS0722 330447 176911023 300.503.093.018 300.503.093.215 VS255 068911023JX 88213228 068911024K STX200072R 8213228 SS829 STR79053 0001110001 0001110002 STB0295 220189 CST10137AS 68911024KX 17030R 068911023MX 8EA726055-001 25-1013 STX200353 PRSS251 STX200072 068911023EX 11.130.722 35259910 11398 LRS00528 17030N STX200399 068911024KX MQS295 0986013050 0001110133 0001110134 ANM15270X 3582 AES5128 0001110014 S12BH0437A2 0001110015 0001117008 436020 LRS528 STX200353R 68911023G MAV6790 WOOSTR2203 20401731BN 068911023DX 111060 72735930 22.0295 91-15-6914 300.503.093.010 68911023GX 68911024K MS302 6010137.0 B001117071 1516724R 068911023G 068911023GX 8013050 063720295010 AZE2536Video/Publications
