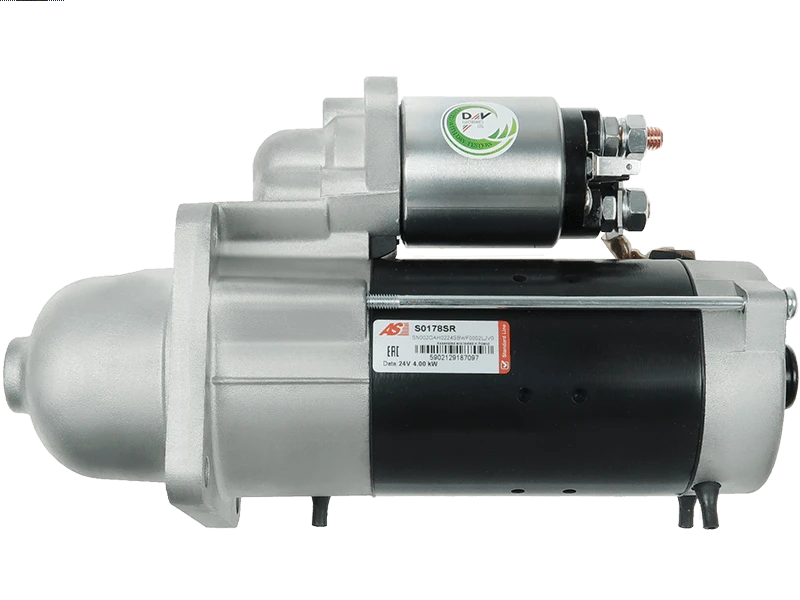

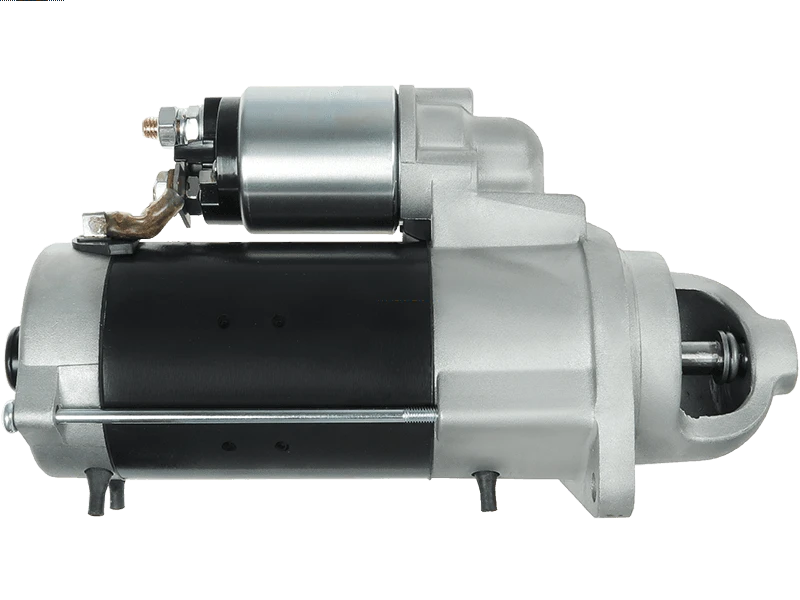

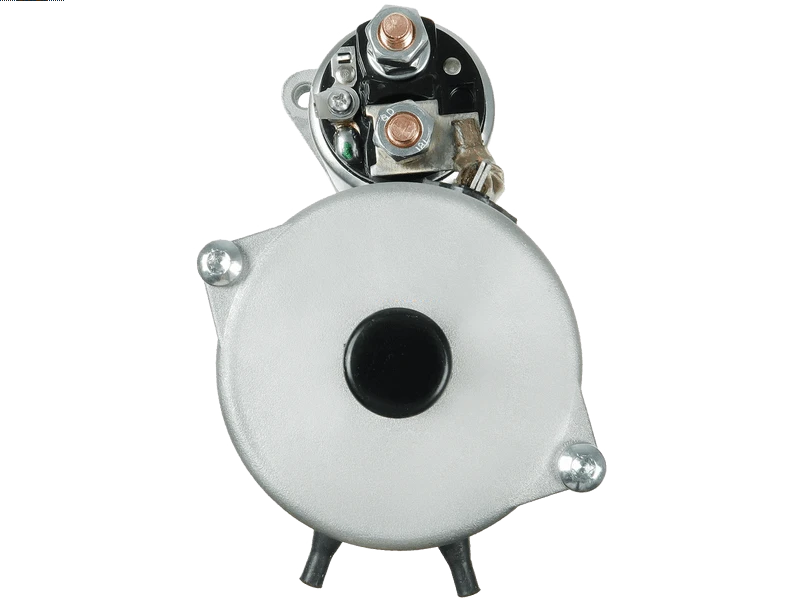

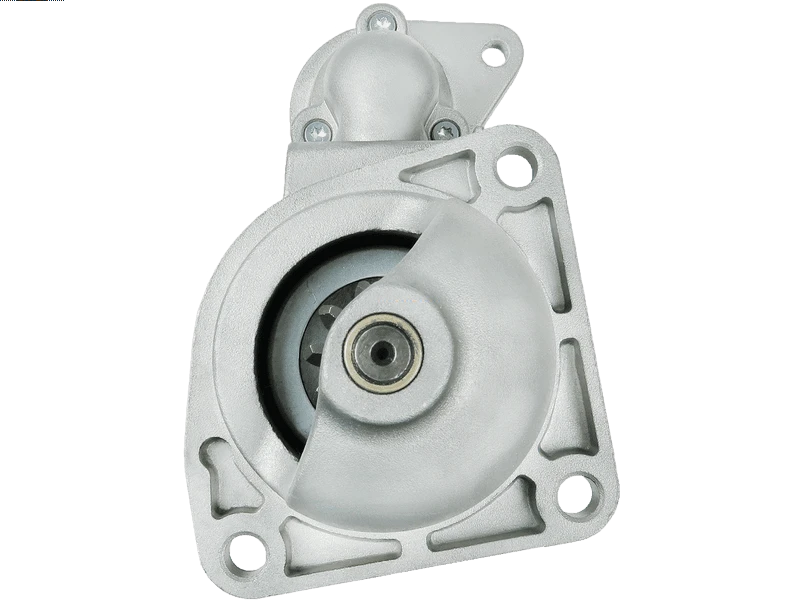

Remanufactured AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 436.20 including GST
NZ$ 379.30 excluding GST
or four payments of $109.05
with
Learn More
each
S0178SR
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 316 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 27 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAF | CF 65.180 5.9 | [CE136C] | 01.2001-05.2013 |
| DAF | CF 65.220 5.9 | [CE162C] | 01.2001-05.2013 |
| DAF | CF 65.220 6.7 | [GR165S1] | 05.2006-05.2013 |
| DAF | CF 65.250 5.9 | [CE184C] | 01.2001-05.2013 |
| DAF | CF 65.250 6.7 | [GR184S1] | 05.2006-05.2013 |
| DAF | CF 65.280 6.7 | [GR210S1] | 05.2006-05.2013 |
| DAF | CF 65.300 6.7 | [GR220] | 01.2009-05.2013 |
| DAF | LF 45.130 3.9 | [BE99C] | 12.2005- |
| DAF | LF 45.140 4.5 | [FR103S1] | 05.2006- |
| DAF | LF 45.150 3.9 | [BE110C] | 01.2001- |
| DAF | LF 45.160 4.5 | [FR118S1] | 05.2006- |
| DAF | LF 45.170 3.9 | [BE123C] | 01.2001- |
| DAF | LF 45.180 4.5 | [FR136S1] | 05.2006- |
| DAF | LF 45.180 5.9 | [CE136C] | 01.2001- |
| DAF | LF 45.210 4.5 | [FR152] | 01.2009- |
| DAF | LF 45.220 5.9 | [CE162C] | 01.2001- |
| DAF | LF 45.220 6.7 | [GR165S1] | 05.2006- |
| DAF | LF 45.250 6.7 | [GR184S1] | 03.2006- |
| DAF | LF 55.180 4.5 | [FR136S1] | 05.2006- |
| DAF | LF 55.180 5.9 | [CE136C] | 01.2001- |
| DAF | LF 55.180 5.9 | [CE136C] | 05.2006- |
| DAF | LF 55.210 4.5 | [FR152] | 01.2009- |
| DAF | LF 55.220 5.9 | [CE162C] | 01.2001- |
| DAF | LF 55.220 5.9 | [CE162C] | 05.2006- |
| DAF | LF 55.220 6.7 | [GR165S1] | 05.2006- |
| DAF | LF 55.250 5.9 | [CE184C] | 01.2001- |
| DAF | LF 55.250 5.9 | [CE184C] | 05.2006- |
| DAF | LF 55.250 6.7 | [GR184S1] | 05.2006- |
| DAF | LF 55.280 6.7 | [GR210S1] | 05.2006- |
| DAF | LF 55.290 6.7 | [GR210S1] | 05.2006- |
| DAF | LF 55.300 6.7 | [GR220] | 01.2009- |
Reference Information
45-3350 IS9460 AFLF189 A21190 105470 AELF189 STRL227 ANM23410 901.503.103.310 10010681OV 646009104 30129N 1528599 11.139.608 QRS2665 458329 901.503.103.280 19084209 1986S10074 2165364R 6010681.1 48969 DT2300 20401186OE 0986021190 2165363R MAV126810 AELF405 113760 BST32048 1387383R 6.7045.1 LES0457 8166 AC-CBS1382 1387383 1387381 31284N 1704911R ALEF189 901.503.103.213 DRT1190 901.503.103.216 BOS0001231017 CGB-91190 10010681AV 330527 1704911 STR10202 10439784 ANM23410X WG2045393 LRS2176 0001231017 438540 19084017 91201 STR79695 SBO681 CST10681AS PRSL227 STB1382 8821190 203036 11021190 MS766 S24BH0115A2 860815 120-20146 01.180.8504.000 901.503.103 S-22124 5.47008 8EA012586-341 EAA-121193 5110025 AZF4403 BOS0001263002 BOS0001263001 STR22124 AELD021 BOS0001231045 LRS02176 72442886 52.262 PTC-4023 20401186BN S24BH0115 SG0536 88212999 STR50673 CST10681GS 0001263002 1703434 0001263001 SBO681A 901.503.103.011 331788 WG2192611 ST02659 CS1382 8EA738258-081 0001263001-R 6010681 901.503.103.018 0001231045 M93R3105SEVideo/Publications
