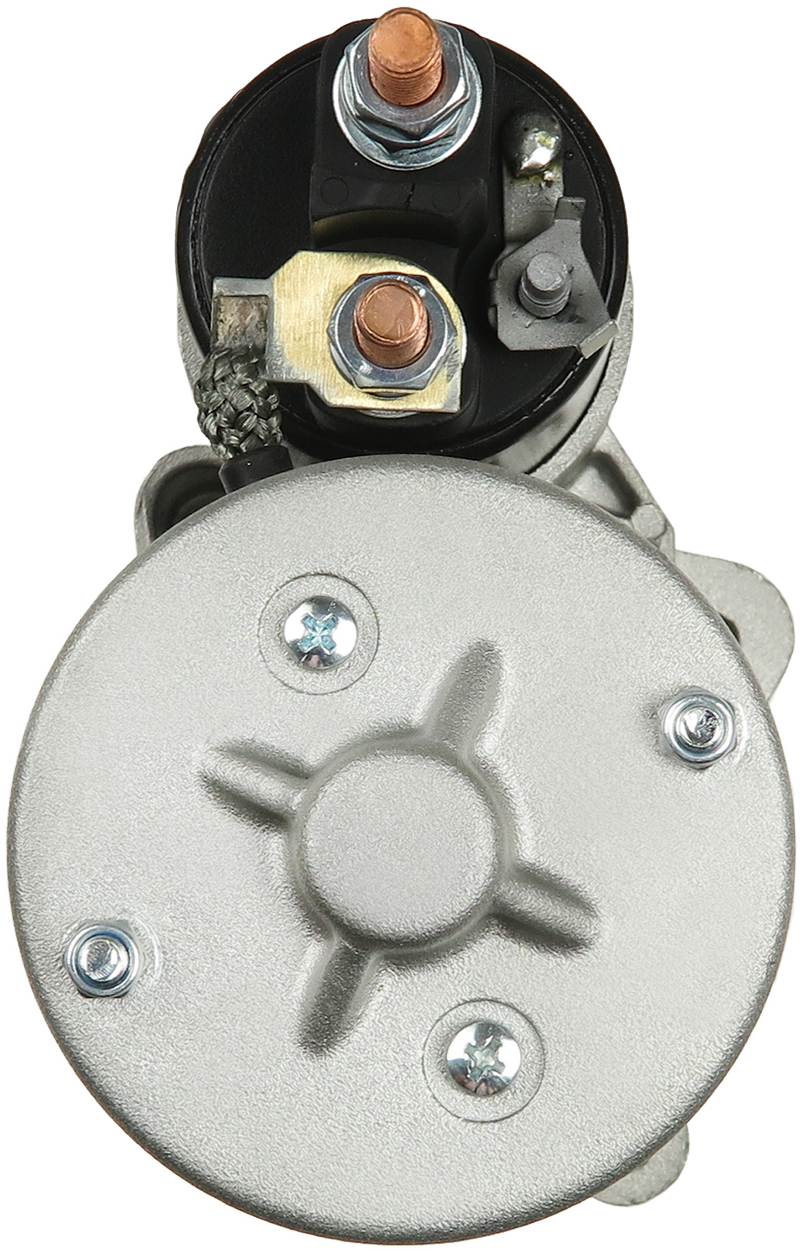

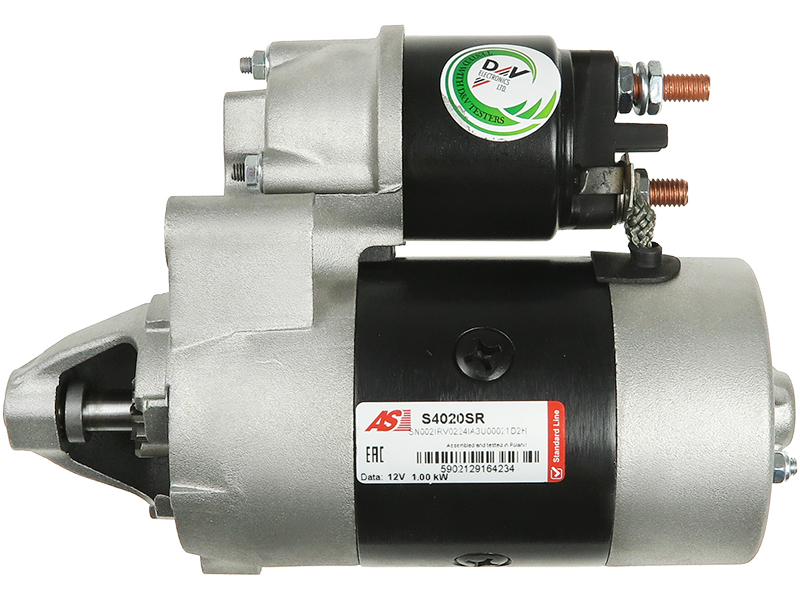

Remanufactured AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 234.90 including GST
NZ$ 204.26 excluding GST
or four payments of $58.73
with
Learn More
each
S4020SR
No stock in NZ
No stock in NZ
Specifications
| Kilowatt | 0.9 kW |
| Length (L.1) | 208 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Center - Center (O.2) | 72 mm |
| Mount Hole Center - Center (O.3) | 72 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 8. 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 11 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 64 mm |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | Jumpy 1.6 | [1580SPI] | 10.1995- |
| CITROEN | Jumpy 1.6 | [220A2.000] | 10.1995- |
| CITROEN | Jumpy 1.6 i | [1580SPI] | 10.1995- |
| CITROEN | Jumpy 1.6 i | [220A2.000] | 10.1995- |
| FIAT | Brava 1.6 16V EL | [182A6.000] | 10.1995-10.2001 |
| FIAT | Brava 1.6 16V SX | [182A4.000] | 02.1996-10.1998 |
| FIAT | Bravo 1.6 | [182A6.000] | 10.1995-10.2001 |
| FIAT | Bravo 1.6 SX | [182A4.000] | 03.1996-11.1998 |
| FIAT | Fiorino 1.6 | [146C6.000] | 12.1996-05.2001 |
| FIAT | Fiorino 1.6 | [146D6.000] | 12.1996-12.2001 |
| FIAT | Marea 1.6 16 V Bipower | [185A3.000] | 03.1999-10.1999 |
| FIAT | Marea 1.6 16 V Bipower | [186A4.000] | 04.1999-03.2002 |
| FIAT | Marea 1.6 i 16V | [182A4.000] | 09.1996- |
| FIAT | Palio 1.4 | [178B2.000] | 04.1996-05.1999 |
| FIAT | Palio 1.4 | [178B2.016] | 04.1996-05.1999 |
| FIAT | Palio 1.6 16V | [178B3.000] | 04.1996-09.2001 |
| FIAT | Punto 1.4 Turbo GT | [176A4.000] | 03.1995- |
| FIAT | Punto 1.4 Turbo GT | [176B6.000] | 09.1996- |
| FIAT | Scudo 1.6 | [220A2.000] | 02.1996- |
| FIAT | Siena 1.4 | [178B2.000] | 04.1996- |
| FIAT | Siena 1.4 | [178B2.016] | 04.1996- |
| FIAT | Siena 1.6 16V | [178B3.000] | 09.1998- |
| FIAT | Tempra 1.6 i.e. | [159B9.000] | 05.1994-12.1996 |
| FIAT | Tipo 1.6 i.e. | [149C2.046] | 02.1988-06.1990 |
| LANCIA | Dedra 1.6 | [159B9.000] | 10.1994-07.1999 |
| LANCIA | Dedra 1.6 i.e. | [835C1.000] | 04.1995-07.1999 |
| LANCIA | Dedra 1.6 LE | [159B9.000] | 07.1994-04.1998 |
| LANCIA | Delta 1.4 i.e. | [836A4.000] | 04.1995-12.1999 |
| LANCIA | Delta 1.6 i.e. | [835C1.000] | 04.1995-12.1999 |
| LANCIA | Delta 1.6 i.e. LE | [182A6.000] | 03.1996-08.1999 |
| LANCIA | Y10 1.0 Turbo | [156A1.000] | 03.1985-02.1989 |
Reference Information
STA0120R 455872 CST30116OS LRT00147 63103002 EAA-121179 SS512 10536 500.008.093.050 6030116.4 STX200343R 6030116.2 CS883 6030116.1 42001234 0986010450 STA0050R 63223303 8EA737148-001 63223031 MAV2200A CST30116GS 7772462 66925112 EL25112 6030116 11680 STX200162R 20404611BN 31146N 46417006 7733966 63103022 AES1247 PRSF327 71721310 7666528 STX200887 DRS3104 MAV321210 35258510 25-2051 35258890 46475793 22.0975M DSN577 ALT136240 46475794 20404611RC 7773812 E80E-1.0/12 20404611RE 3826 STRL077 500.008.093.265 63103007 DRS3697 STR52003 LRT147 MAV2200 22.0975 STR9085 71721304 7589655 SS437 77398430 7642573 112124 88213154 10975 STX200343 5968605 63223101 5802-M1 7566528 7680615 7589547 CS975 E80E1012 5802M1 S12MA0659A2 PRSL077 46774415 RNL975CS 4470378 4470377 46431502 46231535 8080043 20404611OE STX200162 STX200689 MAV2410 63223085 STRL707 STRF327 46231540 220166 500.008.093.058 CST30116RS 50246648 EAA-121529 220051 46416879 10285 ANM15324X CST30116AS STX200887R 11895Video/Publications
