Associated Numbers
0986CR6187 Bosch ruil
4801768AA Chrysler
835930180 PSH
A003TX0381 Mitsubishi show
A003TX0381ZC Mitsubishi show
A3TX0381 Mitsubishi show
A3TX0381ZC Mitsubishi show
AL6493X Bosch (USA)
TNA033 TWA
Arrowhead AMT0303
BBB Industries 11443
Bosch Reman AL6493X
Bosch Service Europe 0-986-CR6-187, 0-986-UR6-187
Chrysler 04801768AA, 04801768AC, 4801768AA, 4801768AC, 4801768AE
DENSO Auto Parts 210-4320
Dixie Electric Ltd A-80439
IAT A11443
Industry 11443
J&N 400-48191R
Lester 11443
Mitsubishi A003TX0381, A003TX0381ZC, A3TX0381, A3TX0381ZC
PIC 203-5460
Romaine Electric 11443N
Voltux V2-11443
WAI 11443N
Wilson 90-27-3401
ARROWHEAD 400-48191R, AMT0303
CHRYSLER MOTORS 04801768AA, 4801768AA, 4801768AC
J&N ELECTRICAL PRODUCTS 400-48191
LESTER 11443
MITSUBISHI 04801768AA, A003TX0381, A003TX0381ZC, A3TX0381, A3TX0381ZC
Bosch Reman AL6493X
Bosch Service Europe 0-986-CR6-187, 0-986-UR6-187
Chrysler 04801768AA, 04801768AC, 4801768AA, 4801768AC, 4801768AE
DENSO Auto Parts 210-4320
IAT A11443
Lester 11443
Mitsubishi A003TX0381, A003TX0381ZC, A3TX0381, A3TX0381ZC
PIC 203-5460
Specifications
| Amp | 180 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | 11.5 mm |
| Diameter (D.2) | 11.5 mm |
| Diameter (D.3) | M10x1.25 mm |
| Diameter (D.4) | M10x1.25 mm |
| Mount Inside Length or Pad Mount C-C (C) | 68 mm |
| OEM Product | No |

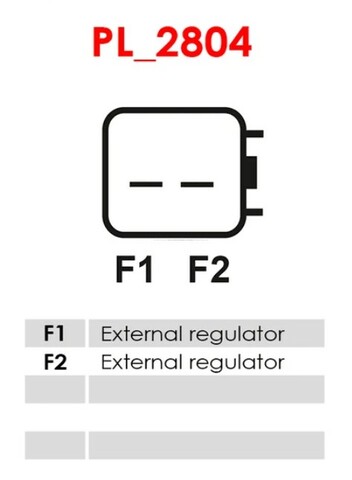

| Plug Code | PL_2804 |
| Product Line | +Plus Line Pro |
| Product Type | Brand new |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.1) | 59.5 mm |
| Pulley to Mount Distance (A) | 47 mm |
| Pulley Type | CLUTCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | |||
| JEEP | |||
| RAM |
Reference Information
A003TX0381ZC A3TX0381 A3TX0381ZC
