Associated Numbers
2015041 Sando 20150411 209317 Messmer 2193231502 DRI 2261975 Ford 2380380 286882 Elstock 40236 CEVAM 439944 Valeo 440688 595913150 PSH 618427 AEK3772 Auto Electro AL1522 AMK DRA1643 Remy FG15T093 show FG15T093RR RNL FG15T137 FV4T10300MC LRA03772 Lucas LRA3772 NAL1198 Napa (UK) RNLFG15T093 VXA054 A20560 A333-939 Lester 20560 PIC 208-1080 28-6882 FV4T-10300-MA FV4T-10300-MB FV4T-10300-MC ALT14587 595.913.150PSH 1873207 FG15T093OR +line FV4T10300MA FV4T10300MB Industry Voltux 323838 012661 Da Silva 12090851 EuroTec 20560N WAI 442632 Logistik 444807 Alanko 554608RI DAS 554608RIV 57751 EAI 89215844 Power Max A134110 Short code A145916 A158723 A3630 AS-PL A3630S AA7652 Charge AAL1198 Apec Wood ALT2153 Rolling Components ALT2153CP AVA1340 Quasar AXE1187 Everkraft AXE1187E CAL15041 Airframe CAL15041GS CGB13643 Ainde IR7285 Protech VAL439944 VALFG15T093 WOOALT14587Specifications
Fitted with OEM Regulator and INA Clutch Pulley (if fitted)
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 21 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 191 mm |
| Mount Inside Length or Pad Mount C-C (C) | 48.5 mm |
| OEM Product | No |

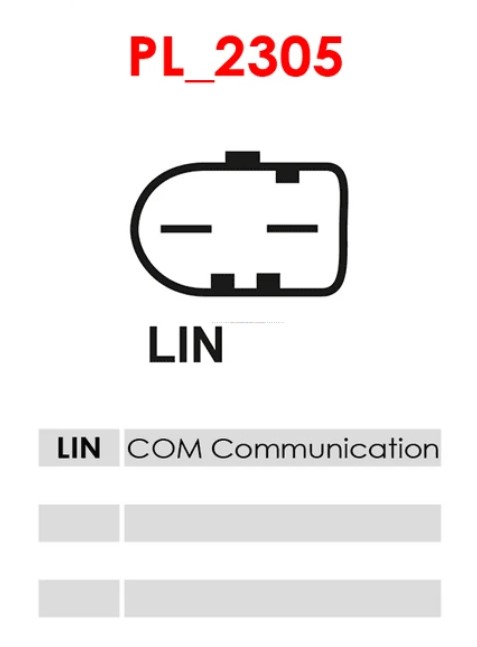

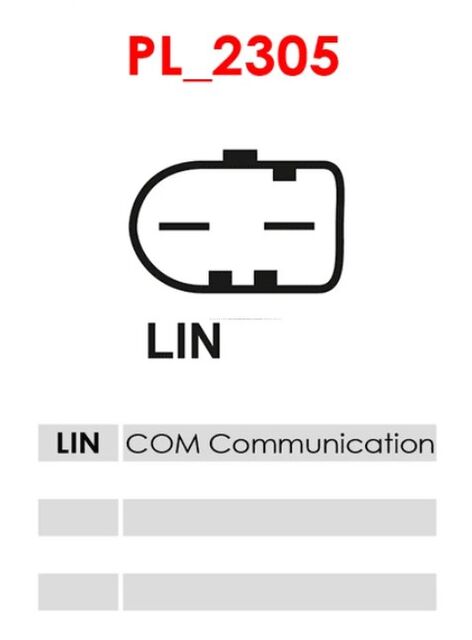

| Plug Code | PL_2305 |
| Product Line | +Plus Line Pro |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 48 mm |
| Pulley Type | CLUTCH |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | C-Max 2.0 TDCi | [T7DB] | 03.2015- |
| FORD | C-Max 2.0 TDCi | [T7DC] | 03.2015- |
| FORD | C-Max 2.0 TDCi | [T7DD] | 03.2015- |
| FORD | C-Max 2.0 TDCi | [T8DE] | 03.2015- |
| FORD | Focus 2.0 TDCi | [T7DA] | 11.2014- |
| FORD | Focus 2.0 TDCi | [T7DA] | 11.2014-12.2017 |
| FORD | Focus 2.0 TDCi | [T7DB] | 11.2014- |
| FORD | Focus 2.0 TDCi | [T7DB] | 11.2014-12.2017 |
| FORD | Focus 2.0 TDCi ST | [T8DA] | 11.2014-12.2017 |
| FORD | Focus 2.0 TDCi ST Turnier | [T8DA] | 11.2014- |
| FORD | Focus 2.0 TDCi Turnier | [T7DA] | 11.2014- |
| FORD | Focus 2.0 TDCi Turnier | [T7DB] | 11.2014- |
| FORD | Grand C-Max 2.0 TDCi | [T7DB] | 03.2015- |
| FORD | Grand C-Max 2.0 TDCi | [T7DC] | 03.2015- |
| FORD | Grand C-Max 2.0 TDCi | [T8DE] | 03.2015- |
| FORD | Kuga 2.0 TDCi | [T7MA] | 09.2014- |
| FORD | Kuga 2.0 TDCi | [T7MB] | 09.2014- |
| FORD | Kuga 2.0 TDCi | [T7MC] | 09.2014- |
| FORD | Kuga 2.0 TDCi | [T7MD] | 09.2014- |
| FORD | Kuga 2.0 TDCi | [TYMA] | 03.2013- |
| FORD | Kuga 2.0 TDCi | [UFMA] | 03.2013- |
| FORD | Kuga 2.0 TDCi | [UKMA] | 03.2013- |
| FORD | Kuga 2.0 TDCi | [XRMA] | 06.2019- |
| FORD | Kuga 2.0 TDCi | [XRMA] | 09.2014- |
| FORD | Kuga 2.0 TDCi | [XRMB] | 06.2019- |
| FORD | Kuga 2.0 TDCi | [XRMB] | 09.2014- |
| FORD | Kuga 2.0 TDCi 4x4 | [T7MA] | 09.2014- |
| FORD | Kuga 2.0 TDCi 4x4 | [T7MB] | 09.2014- |
| FORD | Kuga 2.0 TDCi 4x4 | [T8MA] | 09.2014- |
| FORD | Kuga 2.0 TDCi 4x4 | [T8MB] | 09.2014- |
| FORD | Kuga 2.0 TDCi 4x4 | [TXDA] | 03.2013- |
| FORD | Kuga 2.0 TDCi 4x4 | [TXMA] | 03.2013- |
| FORD | Kuga 2.0 TDCi 4x4 | [UFMA] | 03.2013- |
| FORD | Kuga 2.0 TDCi 4x4 | [UKMA] | 03.2013- |
Reference Information
FG15T093 89215844 595.913.150.505 55151101 20179140OE ALV3306 LRA3772 VAL439944 595.913.150.500 595.913.150.004 FV4T-10300-MC DA2753 REFV4T-10300-MC FV4T-10300-MB DRA1643 FV4T-10300-MA 2015041.1 ALT14587 A3630S PRAE815 2261975 ALTE815 554608RIV 1873207 40236 LRA03772 209317 ALT2153CP 20560N 57751 CGB-86882 CAL15041GS 595.913.150.000 2380380 28-6882 CAL15041AS FG15T137 A12VA0429AS UD90722A
