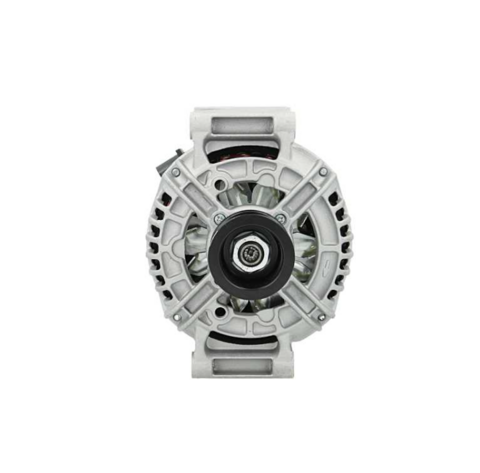

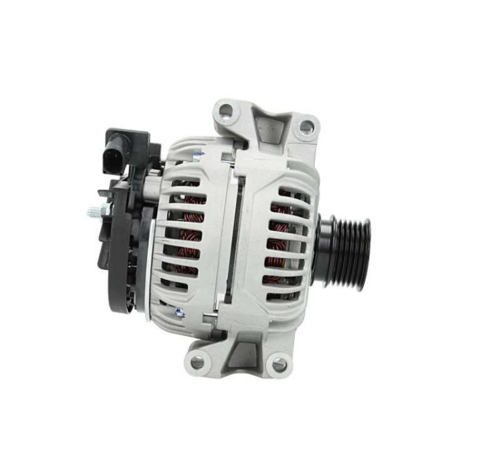

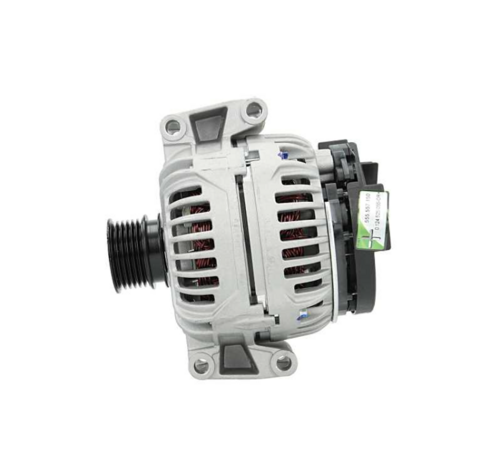

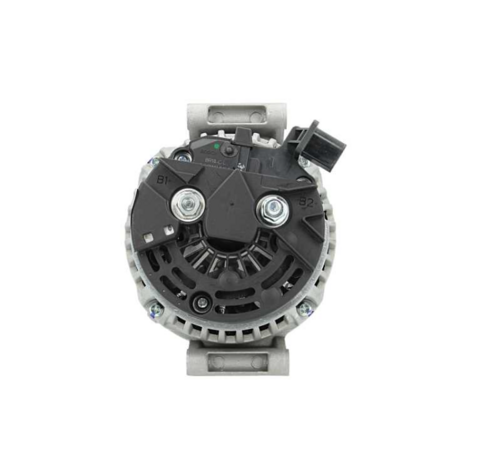

Brand new +Plus Line Pro Alternator
+PLUS LINE PRO
ASG-NZ
BOSCH
Price:
NZ$ 580.01 including GST
NZ$ 504.36 excluding GST
or four payments of $145.00
with
Learn More
each
A0295
AAM-S6091
3
Associated Numbers
0009061102 Mercedes-Benz 00090611020080 0124525054 Bosch show 0124525055 0124525055RB RNL 0124525195 0124525494 0141543702 0399604013 0399604015 0986047150 ruil 0986047157 111791 Cargo 11215 SAS 115905 12047150 EuroTec 1986A00872 2010515 Sando 209341 Messmer 2205464 PIC 2721540002 272154000280 284961 Elstock 32047150 Herth Buss 440453 Valeo 5251271502 DRI 555557150 PSH 57342 EAI 59213032 Artec 6359SP Spidan 6361540102 8EL738211761 Hella 9047150 Friesen 9047150F 9362 CEVAM 944390471500 Magneti Marelli 947150 EDR A0009061102 A00090611020080 A2721540002 A272154000280 A6361540102 AEK2845 Auto Electro AL0818N (USA) AL0818X ALT1484sa Electrolog ALT2409 Unipoint CA1908IR HC DMS8294 DriveTec DRB7150 Remy HCA1908IR L47150 ATL LRA02845 Lucas LRA2845 RNL4715 RNL4715NR RNL4715OER RNL4715OERT SB233 Sovereign SP6359 65-1787 0-124-525-054 0-124-525-055 Newman Reman Service Europe 0-986-047-150 0-986-047-153 0-986-047-154 0-986-047-157 0-986-081-173 Parts CA1908 IAT 170-11215R Lester (Europe) 000-906-11-02 000-906-11-02-80 000-906-11-02-83 014-154-37-02-80 014-154-37-02-83 272-154-00-02 272-154-00-02-80 A-000-906-11-02 A-000-906-11-02-80 A-014-154-37-02-80 A-014-154-37-02-83 A00-090-61-102 A00-090-61-102-83 A27-215-40-002-80 A272-154-00-02 220-5464 12751 SEG Automotive 0124.525.054 ALT-2409 ARROWHEAD ABO0343 BOSCH J N ELECTRICAL PRODUCTS 400-24169 JANNCO 400-24169N LESTER LUCAS ELECTRIC MERCEDESSpecifications
Fitted with OEM Regulator
| Amp | 150 A |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | 9 mm |
| Diameter (D.4) | 9 mm |
| Length (L.1) | 189 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2306 |
| Product Line | +Plus Line Pro |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 34 mm |
| Pulley Type | SOLID |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | C 230 2.5 | (203)[M272.920] | 01.2005- |
| MERCEDES BENZ | C 230 2.5 | (203)[M272.920] | 01.2005-05.2008 |
| MERCEDES BENZ | C 230 2.5 | (204)[M272.921] | 01.2007- |
| MERCEDES BENZ | C 230 2.5 | (S204)[M272.921] | 08.2007- |
| MERCEDES BENZ | C 230 2.5 4-Matic | (W204)[M272.911] | 07.2007- |
| MERCEDES BENZ | C 280 3.0 | (203)[M272.940] | 01.2005- |
| MERCEDES BENZ | C 280 3.0 | (204)[M272.947] | 01.2007- |
| MERCEDES BENZ | C 280 3.0 | (S204)[M272.947] | 08.2007- |
| MERCEDES BENZ | C 280 3.0 4-Matic | (203)[M272.941] | 01.2005- |
| MERCEDES BENZ | C 280 3.0 4-Matic | (W204)[M272.947] | 01.2007- |
| MERCEDES BENZ | C 300 3.0 | (W204)[M272.947] | 07.2009- |
| MERCEDES BENZ | C 300 3.0 4-Matic | (W204)[M272.948] | 07.2007- |
| MERCEDES BENZ | C 350 3.5 | (204)[M272.962] | 01.2007- |
| MERCEDES BENZ | C 350 3.5 | (S204)[M272.961] | 08.2007- |
| MERCEDES BENZ | C 350 3.5 | (W204)[M272.961] | 01.2011- |
| MERCEDES BENZ | C 350 3.5 4-Matic | (W204)[M272.971] | 07.2007- |
| MERCEDES BENZ | C 350 3.5 CGi | (W204)[M272.982] | 09.2008- |
| MERCEDES BENZ | CLC 230 2.5 | [M272.920] | 05.2008-06.2011 |
| MERCEDES BENZ | CLC 350 3.5 | [M272.960] | 05.2008-06.2011 |
| MERCEDES BENZ | CLK 280 3.0 | (209)[M272.940] | 01.2005- |
| MERCEDES BENZ | CLK 350 3.5 | (209)[M272.960] | 01.2005- |
| MERCEDES BENZ | CLS 280 3.0 | (C219)[M272.943] | 04.2009- |
| MERCEDES BENZ | CLS 280 3.0 | (C219)[M272.943] | 07.2008- |
| MERCEDES BENZ | CLS 350 3.5 | (219)[M272.964] | 10.2004- |
| MERCEDES BENZ | CLS 350 3.5 CGi | (C219)[M272.985] | 04.2009- |
| MERCEDES BENZ | E 230 2.5 | (W211)[M272.922] | 09.2007- |
| MERCEDES BENZ | E 230 2.5 Turbo T-Model | (S211)[M272.922] | 05.2007- |
| MERCEDES BENZ | E 350 3.5 | (W212)[M272.980] | 01.2009- |
| MERCEDES BENZ | E 350 3.5 CGi | (C207)[M272.982] | 01.2009- |
| MERCEDES BENZ | E 350 3.5 CGI | (A207)[M272.982] | 01.2010- |
| MERCEDES BENZ | E 350 3.5 CGI | (A207)[M272.984] | 01.2010- |
| MERCEDES BENZ | SLK 280 3.0 | (171)[M272.942] | 01.2005- |
| MERCEDES BENZ | SLK 280 3.0 | (R171)[M272.942] | 04.2009- |
| MERCEDES BENZ | SLK 350 3.5 | (R171)[M272.969] | 01.2008- |
| MERCEDES BENZ | SLK 350 AMG 3.5 | (171)[M272.963] | 06.2004- |
| MERCEDES BENZ | Sprinter 224 3.5 | (906)[M272.979] | 06.2006- |
| MERCEDES BENZ | Sprinter 324 3.5 | (906)[M272.979] | 06.2006- |
| MERCEDES BENZ | Sprinter 424 3.5 | (906)[M272.979] | 06.2006- |
| MERCEDES BENZ | Sprinter 524 3.5 | (906)[M272.979] | 06.2006- |
| MERCEDES BENZ | Viano 3.5 126 | (W639)[M272.978] | 09.2007- |
| MERCEDES BENZ | Vito 3.5 | (W639)[M272.978] | 09.2007- |
Reference Information
8EL738211-761 209341 AEK2845 PRAS231 441823 57342 9362 CA1908IR 440453 ALTS231 9047150 301908RIB ALT10617 SB233 PRAS231B 2721540002 301908RI ALT125150 ALTS231B 89213032 986047150 20101515BN 115905 ALTS231NE ANM49370X LRA02845 124525054 124525055 A12BH1131AS A2721540002 11.1908 CAL10515AS LRA2845 2010515 A12BH1131 DRB7150 555.557.150 A24BH0031A2 28-4961 ALT125150A EAA-221481 11215N
