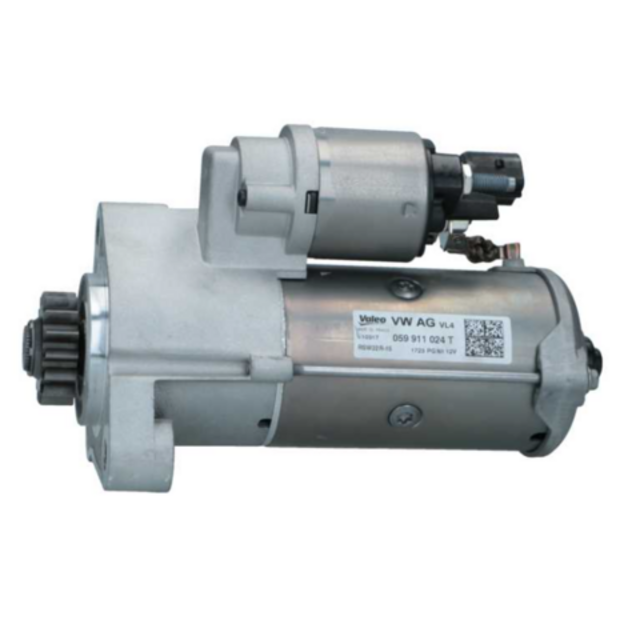

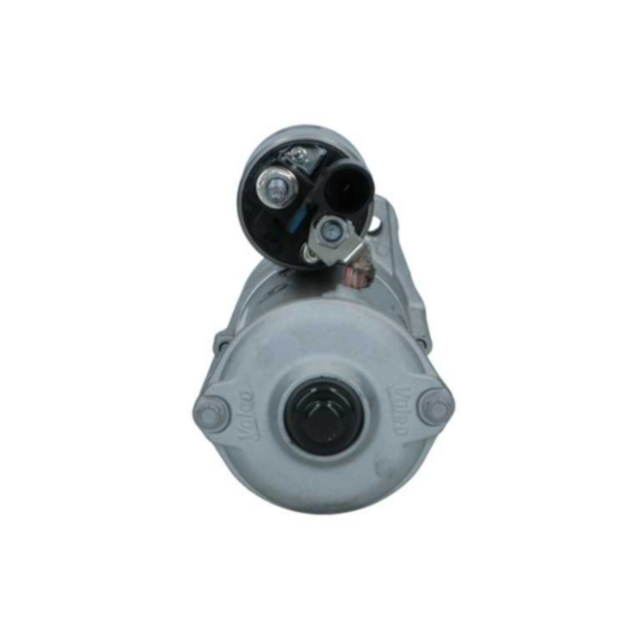

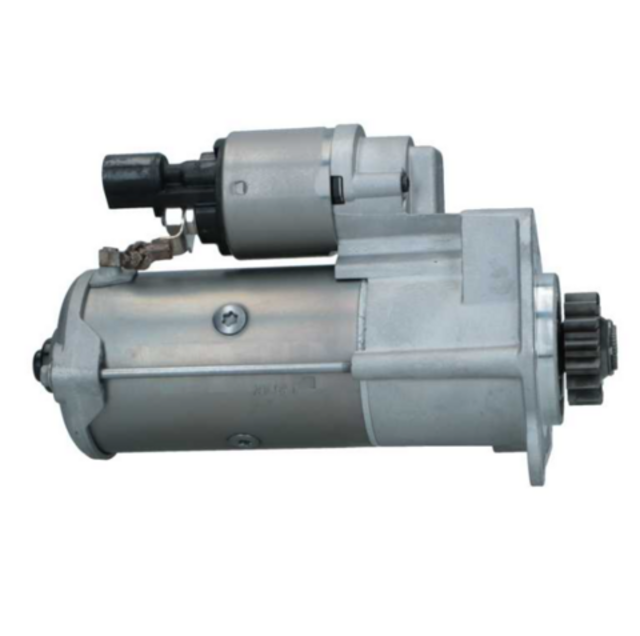

Brand new Valeo Starter motor
STANDARD LINE
Valeo
AS-PL
Price:
NZ$ 657.80 including GST
NZ$ 572.00 excluding GST
or four payments of $164.45
with
Learn More
each
SGV-C15017
1
Associated Numbers
| 059911024S | Volkswagen | |
| 059911024SX | Volkswagen | |
| 059911024T | Volkswagen | |
| 059911024TX | Valeo | |
| 14130232 | AES | |
| 255229 | Elstock | |
| 255266 | Elstock | |
| 300554122 | PSH | |
| 438342 | Valeo | |
| 458797 | Valeo | |
| DRS1176 | Remy | |
| DS2286 | Remy | |
| LRS04065 | Lucas | |
| LRS04103 | Lucas | |
| LRS4065 | Lucas | |
| RSW22R15 | Valeo | |
| RSW22R1512T | RNL | |
| RSW22R1515T | RNL | |
| VAL438342 | Wood Auto | |
| VALRSW22R15 | Wood Auto |
Specifications
| Kilowatt | 2.0 kW |
| Length (L.1) | 244 mm |
| Mount Hole Center - Center (O.1) | 104 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 15 qty |
| Pinion at Rest (B) | 24 mm |
| Rotation | CW |
| Spigot Diameter (A) | 62 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | |||
| VW |
Reference Information
RSW22R15
