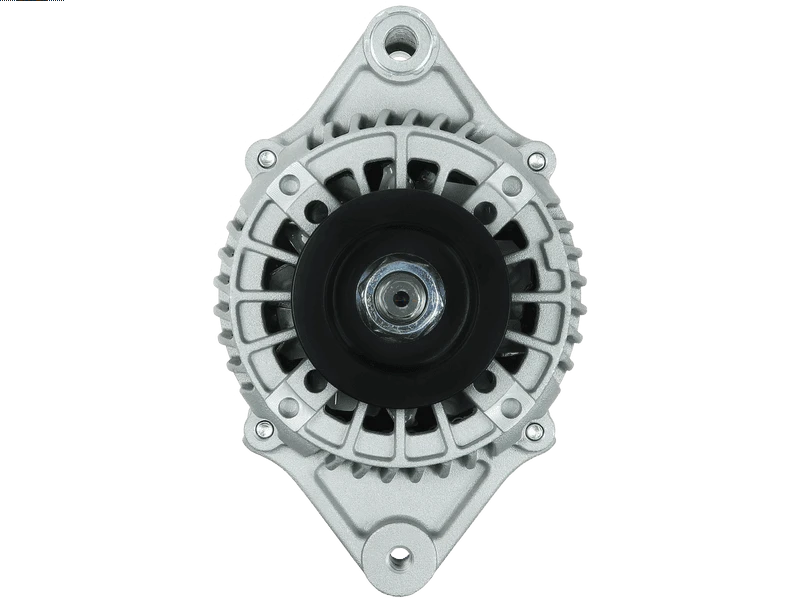

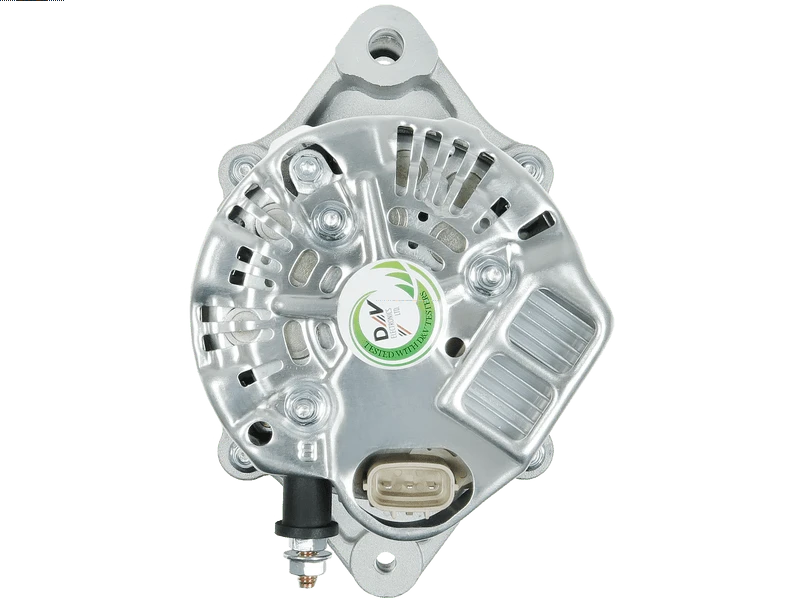

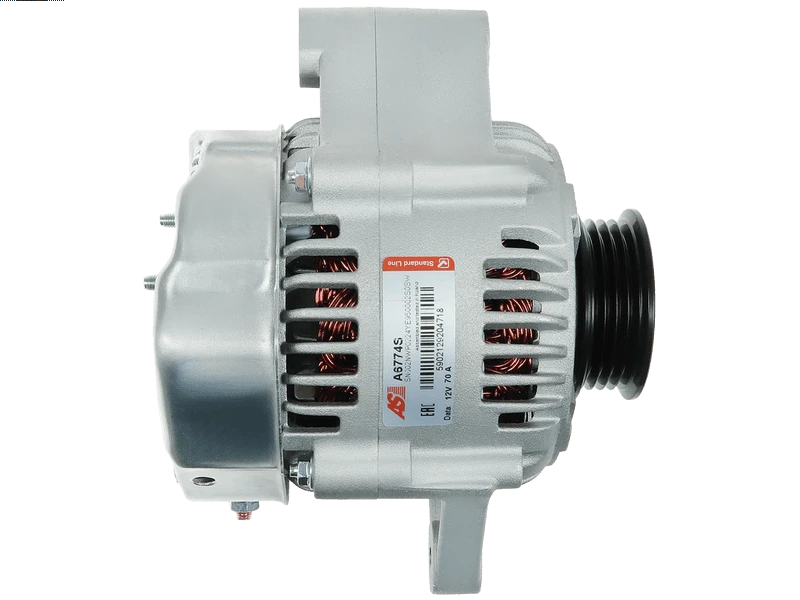

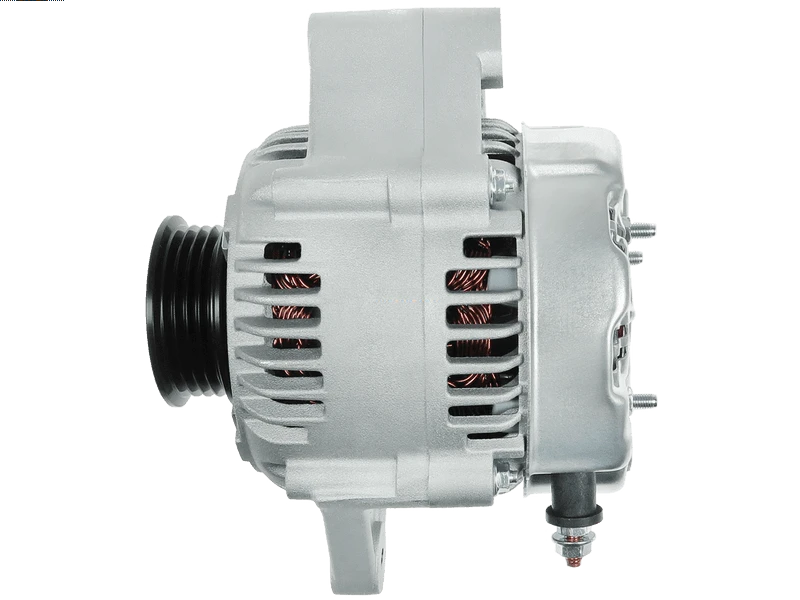

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 420.36 including GST
NZ$ 365.53 excluding GST
or four payments of $105.09
with
Learn More
each
A6774S
No stock in NZ
No stock in NZ
- Information
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
101211-0720Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 58.5 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Length (L.1) | 153 mm |
| OEM Product | No |
| Plug Code | PL_3302 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 90 mm |
| Pulley Type | SOLID |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | Alto 1.1 | [F10D] | 09.2004-12.2008 |
| SUZUKI | Alto 1.1 | [F10DN] | 09.2004-12.2008 |
| SUZUKI | Baleno 1.3 | [G13BA] | 09.1996-05.2002 |
| SUZUKI | Baleno 1.3 16V | [G13BB] | 03.1997-05.2002 |
| SUZUKI | Baleno 1.3 i 16V | [G13BB] | 07.1995-05.2002 |
| SUZUKI | Baleno 1.6 i 16V | [G16B] | 07.1995-05.2002 |
| SUZUKI | Baleno 1.6 i 16V | [G16B] | 08.1996-05.2002 |
| SUZUKI | Baleno 1.6 i 16V 4x4 | [G16B] | 07.1995-05.2002 |
| SUZUKI | Baleno 1.6 i 16V 4x4 | [G16B] | 08.1996-05.2002 |
| SUZUKI | Baleno 1.8 GTX | [J18A] | 03.1996-05.2002 |
| SUZUKI | Baleno 1.8 i 16V | [J18A] | 08.1996-05.2002 |
| SUZUKI | Grand Vitara 1.6 4x4 | [G16B] | 03.1998-07.2003 |
| SUZUKI | Grand Vitara 2.0 4x4 | [J20A] | 03.1998-07.2003 |
| SUZUKI | Grand Vitara 2.5 V6 24V 4x4 | [H25A] | 04.1998-07.2003 |
| SUZUKI | Ignis 1.3 | [M13A] | 09.2003- |
| SUZUKI | Ignis 1.3 | [M13A] | 10.2000-09.2003 |
| SUZUKI | Ignis 1.3 4WD | [M13A] | 10.2000-09.2003 |
| SUZUKI | Jimny 1.3 16V | [G13BB] | 09.1998- |
| SUZUKI | Jimny 1.3 16V 4WD | [G13BB] | 09.1998- |
| SUZUKI | Liana 1.6 | [M16A] | 07.2001-12.2007 |
| SUZUKI | Vitara 2.0 16V | [J20A] | 12.1996-03.1998 |
| SUZUKI | Vitara 2.0 16V | [J20A] | 12.1996-03.1999 |
| SUZUKI | Wagon R+ 1.0 | [K10A] | 02.1998-05.2000 |
| SUZUKI | Wagon R+ 1.2 | [K12A] | 02.1998-05.2000 |
| SUZUKI | Wagon R+ 1.2 4WD | [K12A] | 02.1998-05.2000 |
| SUZUKI | Wagon R+ 1.3 | [G13BB] | 05.2000-12.2004 |
| SUZUKI | Wagon R+ 1.3 4WD | [G13BB] | 10.2001- |
| SUZUKI | Wagon R+ 1.3 4WD | [M13A] | 09.2003- |
Reference Information
A5TA6891 CGB-83525 102211-2190 ALTS312 3140075F50000 F042A0H059 401293RI ALT30123 37400-76A00 A005TB0891 31400-77E24-000 437698 UD101660A STX100520R 31400-75F50 LRA01739 31400-60G10-000 31400-77E24 A5TA6191ZE 185.508.070.058 A5TA6191ZC JFZ171 STX101557 185.508.070.050 A005TA6191 90-29-5660 31400-79G00 31400-M79G0-0000 31400-77E23 3140060G11000 31400-77E22 31400-77E21 31400-77E20 89213224 31400-66D10-000 31400-81A01-000 A5TB0891 31400-80G00 A005TA6191ZE 446341 3140066D10000 A005TA6191ZC 101211-0723 101211-0722 31400-80G11-000 101211-0721 101211-0720 CAL47105AS A5TA6891A ALT249 A5TA6191 111779 31400-60G12-000 A005TA6891A 28-3525 31400-80G10-000 A1TA2591 185.508.070.415 437633 STX100076 13679N 31400-60G11-000 3140060G10000 CGB-13926 31400-75F01 185.508.070.395 31400-79G00-000 31400-75F00 31400-66D10 31400-66D11 2047105.0 20147501BN 31400-77E23-000 31400-83E00 31400-M79G00 ANM36146 31400-75FD5 31400-78F10-000 3140079G00000 ALT491050 31400-60G11 LRA1739 31400-60G12 AEB1293 STX100520 31400-60G10 ALN1293 A005TA6891 31400-60G13 0986045751 STX100076R 31400-75F50-000 31400-60G13-000Video/Publications
