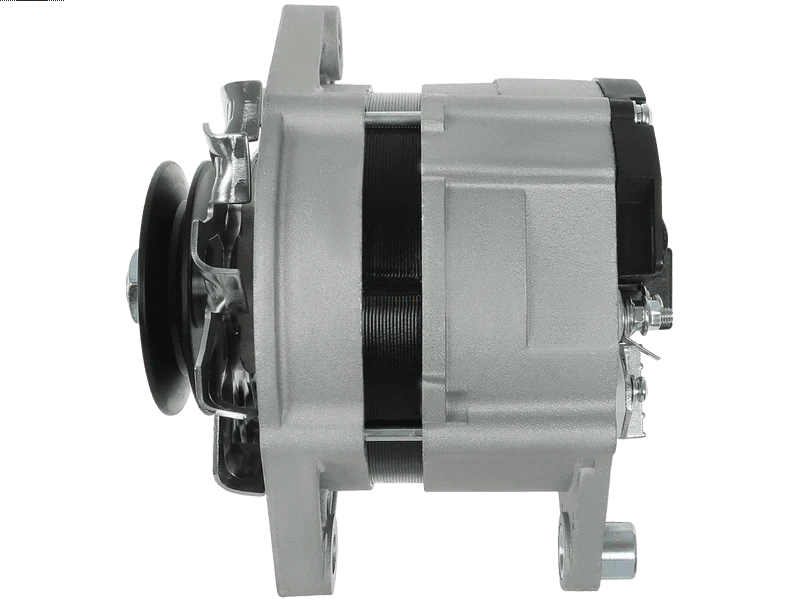

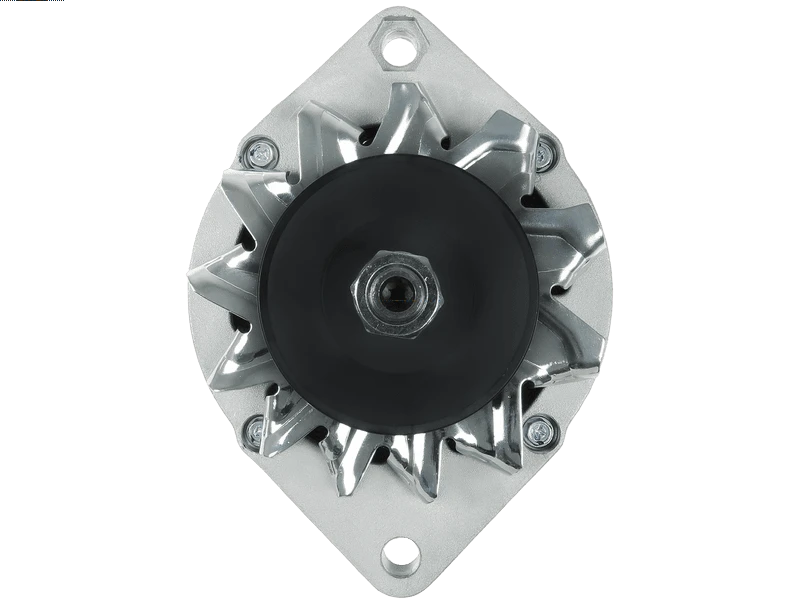

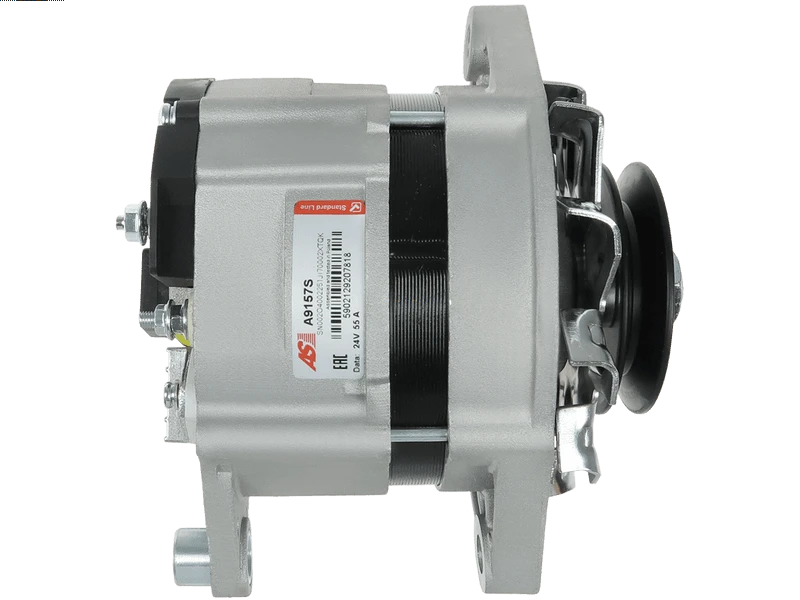

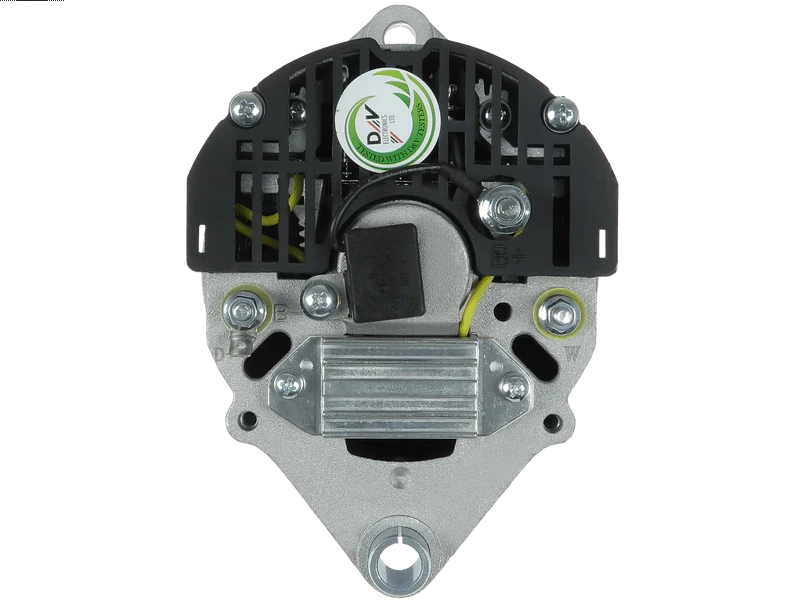

A9157S - Brand new AS-PL Alternator

Specifications

Amp	55 A
Bottom Mounting Foot Width (B)	17 mm
Diameter (D.1)	11 mm
Diameter (D.2)	12 mm
Diameter (D.3)	12 mm
Length (L.1)	175 mm
Mount Inside Length or Pad Mount C-C (C)	72 mm
OEM Product	No
Plug Code	PL_9105
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	1 qty
Pulley Groove Width (W.1)	9.5 mm
Pulley Outside Diameter (O.D.1)	56 mm
Pulley Outside Diameter (O.D.2)	82 mm
Pulley to Mount Distance (A)	49 mm
Pulley Type	SOLID
Unit Type	ISKRA / LETRIKA
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
BENFRA	4.12 5.9	[8061I005]	07.1986-06.1991
BENFRA	5.15 5.9	[8061I005]	07.1985-
BENFRA	7.08 5.9	[8061I005]	12.1987-
BENFRA	9.07 5.9	[8061I005]	01.1986-06.1991
BENFRA	9.08 5.9	[8061I005]	01.1986-
BENFRA	9.11 5.9	[8361SI10.00]	01.1988-06.1991
BENFRA	9.12 5.9	[8361SI10.00]	01.1990-
BENFRA	9.32 5.9	[8361SI10.00]	01.1990-
FIAT	FH 400 13.8	[8215.22.400]	11.1989-
FIAT-ALLIS	65 B 5.5	[8065.04.089]	01.1978-12.1985
FIAT-ALLIS	65 B 5.9	[8061l05A11017]	01.1986-
FIAT-ALLIS	FD 30C 17.0	[8285.22.004]	10.1999-
FIAT-ALLIS	FD 7 5.9	[8065.05.295]	03.1986-10.1992
FIAT-ALLIS	FL 7 5.9	[8065.05.295]	03.1986-10.1988
FIAT-ALLIS	FL 7B 5.9	[8065.05.295]	10.1987-12.1992
FIAT-ALLIS	FR 10B 5.9	[8065.05.290]	12.1985-12.1990
FIAT-ALLIS	FR 10C 5.9	[8065.05.290]	01.1990-
FIAT-ALLIS	FR 130 5.9	[8065.25.094]	04.1990-
FIAT-ALLIS	FR 160 8.1	[8365.25.584]	07.1990-
FIAT-ALLIS	FR 220 9.5	[8465.21.004]	01.1991-
FIAT-ALLIS	FR 35 17.2	[8285.22.000]	01.1985-12.1991
FIAT-ALLIS	FR 9B 3.9	[8045.25.395]	09.1987-12.1990
FIAT-ALLIS	FR 9C 3.9	[8045.25.395]	01.1991-
IVECO	110 13A 6.1	[BF6L913T]	01.1983-12.1991
IVECO	110 16A 6.1	[BF6L913T]	01.1983-12.1991
IVECO	180 26 13.8	[8210.02.371]	06.1982-10.1986
IVECO	190 24 9.5	[8460.21.202]	10.1988-
IVECO	190 26 9.5	[8460.21.102]	09.1986-
IVECO	190 30 13.8	[8210.22.175]	07.1980-06.1987
IVECO	190-30 13.8	[8210.22.175]	04.1987-
IVECO	190 30 N 13.8	[8210.22.175]	04.1987-
IVECO	190 32 9.5	[8460.41.102]	10.1988-
IVECO	190 32GV(CH) 9.5	[8460.41.160]	10.1991-
IVECO	190 33 13.8	[8210.22.105]	07.1984-05.1987
IVECO	190 36 13.8	[8210.42.101]	07.1987-06.1990
IVECO	190 36 13.8	[8210.42.151]	07.1990-
IVECO	190 36 13.8	[8210.42.152]	07.1990-
IVECO	190 36 P 13.8	[8210.42.181]	07.1990-
IVECO	190 38PT 13.8	[8210.42]	07.1991-
IVECO	190 42 17.2	[8280.22.201]	07.1984-
IVECO	190 48 17.2	[8280.42.001]	03.1989-
IVECO	220 32 P 9.5	[8460.41.102]	03.1989-
IVECO	220 36 13.8	[8210.42.152]	07.1990-
IVECO	220 36PT 13.8	[8210.42.115]	07.1987-06.1990
IVECO	240 26 9.5	[8460.21-102]	07.1990-
IVECO	240 32 GPV 9.5	[8460.41.102]	03.1989-
IVECO	240 36 13.8	[8210.42.152]	07.1990-
IVECO	240 36 P 13.8	[8210.42.115]	07.1987-06.1990
IVECO	240 36 P 13.8	[8210.42.155]	07.1990-
IVECO	240 36 P 13.8	[8210.42.185]	07.1990-
IVECO	240 48 17.2	[8280.42.001]	03.1989-
IVECO	240 CS 9.5	[8460.21.708]	01.1988-09.1988
IVECO	260 32 9.5	[8460.41.124]	07.1990-
IVECO	260 36 13.8	[8210.42.115]	07.1988-06.1990
IVECO	260 36 13.8	[8210.42.152]	07.1990-
IVECO	260 36 13.8	[8210.42.155]	07.1990-
IVECO	260 48 17.2	[8210.42.001]	06.1989-
IVECO	330 30H 13.8	[8210.22.235]	06.1984-
IVECO	330 30N 13.8	[8210.22.069]	10.1987-
IVECO	330 36 H 13.8	[8210.42.009]	10.1991-
IVECO	330 36 H 13.8	[8210.42.R.269]	01.1989-
IVECO	330 36 HW 13.8	[8210.42.R.269]	02.1989-
IVECO	370 S.10.24 9.6	[8460.21.708]	01.1987-
IVECO	50 9 4.0	[8040.05.230]	01.1987-06.1991
IVECO	65 9 3.9	[8040.05.230]	01.1987-12.1992
IVECO	79 14 5.9	[8060.05.280]	12.1985-06.1988
IVECO	79 14S 5.9	[8060.05]	12.1988-12.1992
IVECO	80 13A 6.1	[BF6L913T]	01.1983-02.1986
IVECO	80 13A 6.1	[BF6L913T]	01.1983-12.1991
IVECO	80 16A..6.1	[BF6L913]	01.1983-02.1986
IVECO	90 13A 6.1	[BF6L913T]	01.1983-12.1991
IVECO	A 60-9 3.9	[8040.05.200]	09.1988-12.1992
IVECO	Engine	[8061.05.000]	01.1985-12.1989
IVECO	Engine	[8061.05.300]	01.1986-12.1989
IVECO	Engine	[8061l05.00]	01.1990-
IVECO	Engine	[8061l25.00]	01.1990-
IVECO	Engine	[8210.02.582]	09.1986-12.1989
IVECO	Engine	[8210.42.970]	06.1987-12.1989
IVECO	Engine	[8210.42.970]	06.1988-12.1989
IVECO	Engine	[8210M22.10]	01.1990-
IVECO	Engine	[8210M22.50]	01.1990-
IVECO	Engine	[8210SRM36.10]	01.1990-
IVECO	Engine	[8281.02.050]	01.1986-12.1989
IVECO	Engine	[8281.02.050]	09.1986-
IVECO	Engine	[8281.02.050]	09.1986-12.1989
IVECO	Engine	[8281.22.001]	06.1983-02.1990
IVECO	Engine	[8281M32.10]	01.1990-
IVECO	Engine	[8281Sl10.00]	03.1990-
IVECO	Engine	[8282.02.050M]	01.1992-
IVECO	Engine	[8360]	01.1980-
IVECO	Engine	[836105.501]	01.1984-
IVECO	Engine	[8361.25.510]	05.1984-12.1989
IVECO	Engine	[8361.25.511]	04.1986-
IVECO	Engine	[8361Sl10.00]	01.1990-
IVECO	Engine	[8460.41.970]	10.1989-
LAVERDA	3400 5.9	[8061.05.00I]	05.1986-
LAVERDA	3500 5.5	[8061.05.00I]	01.1985-
LORAINE (PLAXTON)	240 9.5	[8460.21.708]	06.1988-
SEATEK	6-4V-10D 10.3
SEATEK	Navy 10.3
SEATEK	Racing 10.3

Reference Information

CAL21601GS ALTS752 UD101777A 3119430 4808519 3119431 ALT10390 77050550 REM19025106 3119434 WG2043681 554202RI 4738563 4474592 506.003.055.090 4738569 88206020 ALT7575 4722724 4738571 38520137A BOM 4738570 UNIT 4757194 4757193 4844266 4757192 47571930 2541423 506.003.055.311 4738775 0120469634 89212906 20119106BN 4738772 72735398 ANM36640 42498213 ALT7946 0120469549 20119106OE AIS601 220-357 4808528 4808526 IA0555 4715786 11.201.555 CAL21601AS PRE860576 UNIALT0107 554202RIM ALT1137 42498164 42498165 42498163 99454110 PTC-3055 4474902 0120469890 4717871 2021601.0 ALT20009 MG399 2021601.1 AAK4507 4757492 0986034420 506.003.055.010 MAHMG399 DRA4420 1516558R LETIA0555 99465867 A-10390 4786913 ALT20642 42498271 4808268 4721890
