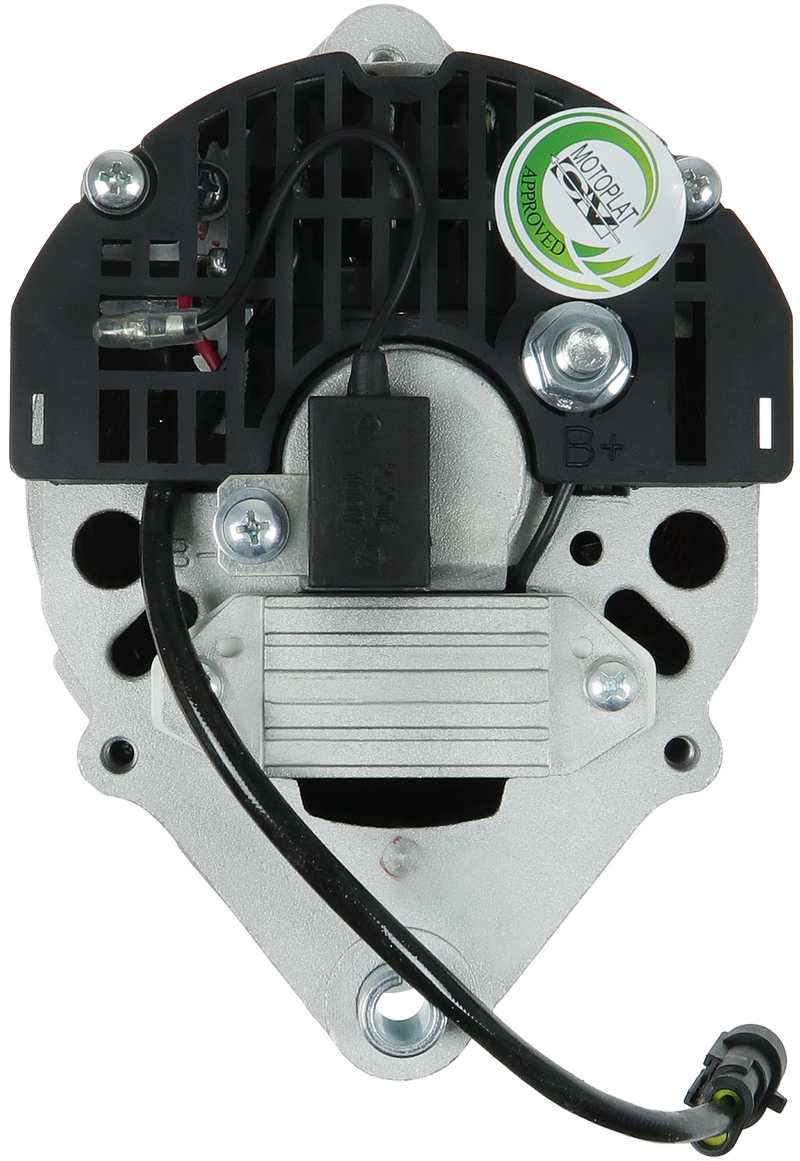

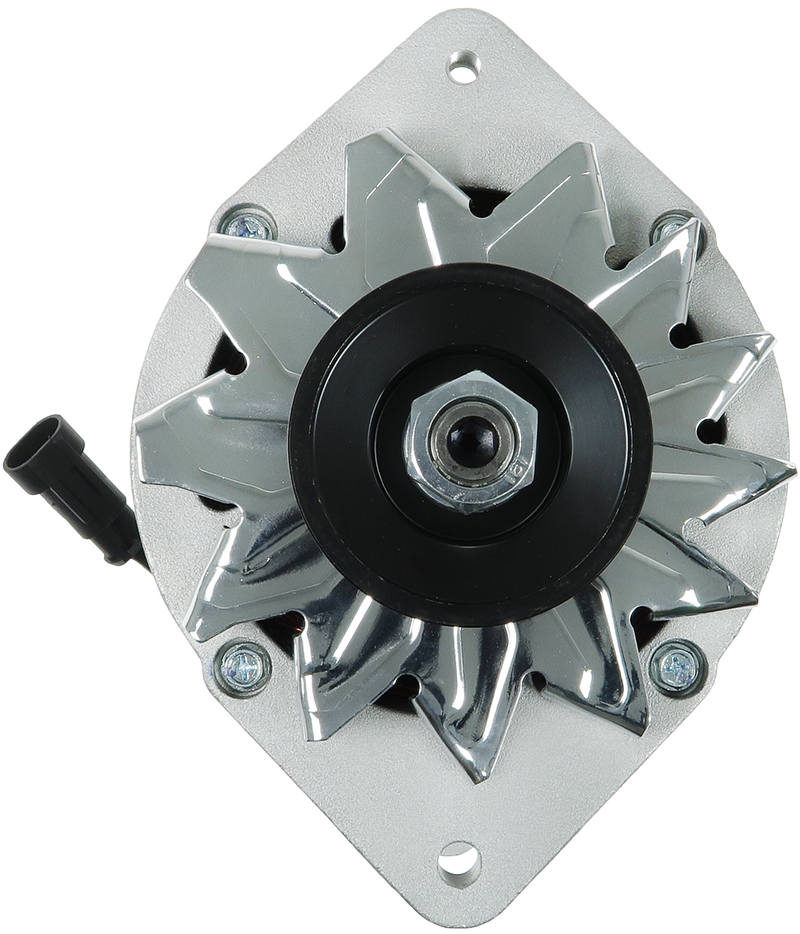

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 348.38 including GST
NZ$ 302.94 excluding GST
or four payments of $87.10
with
Learn More
each
A9428S
2
Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 15.5 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | 8 mm |
| Length (L.1) | 180 mm |
| Mount Inside Length or Pad Mount C-C (C) | 75 mm |
| OEM Product | No |
| Plug Code | PL_9008 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 12 mm |
| Pulley Outside Diameter (O.D.1) | 46.5 mm |
| Pulley Outside Diameter (O.D.2) | 69 mm |
| Pulley to Mount Distance (A) | 48 mm |
| Pulley Type | SOLID |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIORI | DB 260 2.5 | [KDI2504TCR] | |
| JCB | 100 C-1 2.5 | [2504TCR/22] | |
| JCB | 100 C-1 2.5 | [KDI-TCR2504] | |
| JCB | 150 T 1.9 | [KDI1903TCR] | |
| JCB | 155 1.9 | [KDI1903TCR] | |
| JCB | 175 1.9 | [KDI1903TCR] | |
| JCB | 85 Z-2 | [KDI-TCR2504] | |
| JCB | 86 C-1 | [2504TCR/22] | |
| JCB | 87 C-2 | [KDI-TCR2504] | |
| JCB | 90 Z-2 | [KDI-TCR2504] | |
| KOHLER | Engine 1.9 | [1903TCR] | |
| KOHLER | Engine 2.5 | [2504E5] | |
| KOHLER | Engine 2.5 | [2504M] | |
| KOHLER | Engine 2.5 | [2504TCR] | |
| MERLO | P 27.6 TCR 2.5 | [KD2504] |
Reference Information
LRA0004532 IA1200 705.010.080.090 20119941OE CAL21149GS 72735220 MG221 705.010.080.311 MAHMG221 2021149.1 11.203.256 AAK4301 555085RIM 90455973 LRA04532 28-8641 PRAE532 ALTE532 UD101783AVideo/Publications
