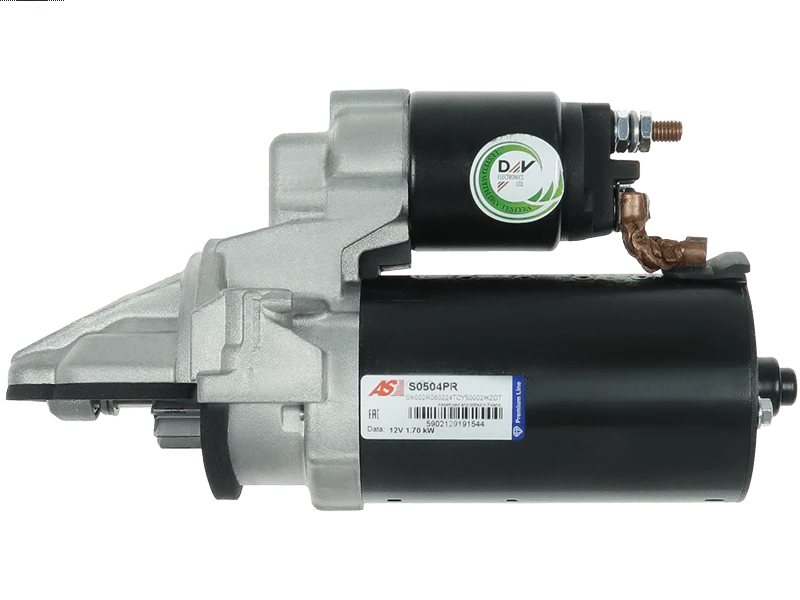

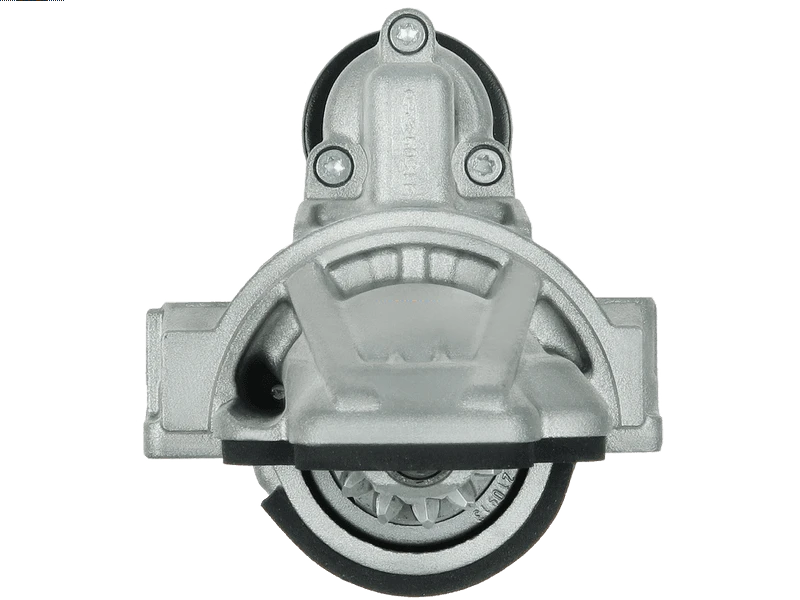

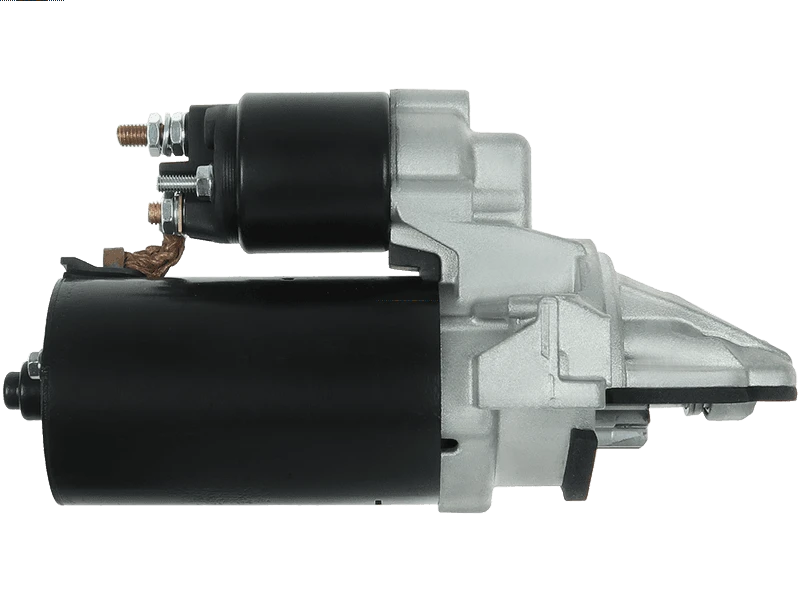

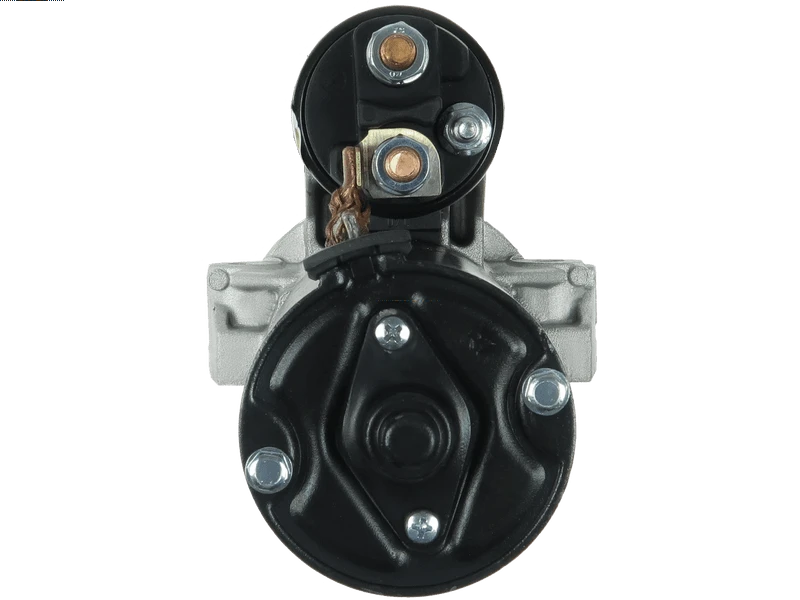

Remanufactured AS-PL Starter motor
PREMIUM LINE
AS-PL
BOSCH
Price:
NZ$ 243.28 including GST
NZ$ 211.55 excluding GST
or four payments of $60.82
with
Learn More
each
S0504PR
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 1.7 kW |
| Length (L.1) | 253 mm |
| Mount Hole Center - Center (O.1) | 89 mm |
| Mount Hole Diameter (C.1) | 10 mm |
| Mount Hole Diameter (C.2) | 10 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| No./Teeth (Replaces) | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 35 mm |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Transit 2.2 TDCi | [CR..] | 01.2011- |
| FORD | Transit 2.2 TDCi | [CV24] | 05.2014- |
| FORD | Transit 2.2 TDCi | [CVR5] | 05.2014- |
| FORD | Transit 2.2 TDCi | [CVRA] | 10.2011- |
| FORD | Transit 2.2 TDCi | [CVRB] | 10.2011- |
| FORD | Transit 2.2 TDCi | [CVRC] | 10.2011- |
| FORD | Transit 2.2 TDCi | [CY..] | 01.2011- |
| FORD | Transit 2.2 TDCi | [CYRA] | 10.2011- |
| FORD | Transit 2.2 TDCi | [CYRB] | 10.2011- |
| FORD | Transit 2.2 TDCi | [DR..] | 01.2011- |
| FORD | Transit 2.2 TDCi | [DRR5] | 05.2014- |
| FORD | Transit 2.2 TDCi | [DRRA] | 10.2011- |
| FORD | Transit 2.2 TDCi | [DRRB] | 10.2011- |
| FORD | Transit 2.2 TDCi | [DRRC] | 10.2011- |
| FORD | Transit 2.2 TDCi | [US..] | 01.2011- |
| FORD | Transit 2.2 TDCi | [USR6] | 05.2014- |
| FORD | Transit 2.2 TDCi | [USRA] | 09.2011- |
| FORD | Transit 2.2 TDCi | [USRB] | 09.2011- |
| FORD | Transit 2.2 TDCi | [UYR6] | 05.2014- |
| FORD | Transit 2.2 TDCi 4x4 | [CV24] | 05.2014- |
| FORD | Transit 2.2 TDCi 4x4 | [CVR5] | 05.2014- |
| FORD | Transit 2.2 TDCi 4x4 | [CY24] | 05.2014- |
| FORD | Transit 2.2 TDCi 4x4 | [CYR5] | 05.2014- |
| FORD | Transit 2.2 TDCi 4x4 | [CYRB] | 01.2011-12.2014 |
| FORD | Transit 2.2 TDCi 4x4 | [CYRB] | 10.2011- |
| FORD | Transit 2.2 TDCi 4x4 | [CYRC] | 01.2011-12.2014 |
| FORD | Transit 2.2 TDCi 4x4 | [CYRC] | 10.2011- |
| FORD | Transit 2.2 TDCi RWD | [CVRA] | 01.2011-12.2014 |
| FORD | Transit 2.2 TDCi RWD | [CVRB] | 01.2011-12.2014 |
| FORD | Transit 2.2 TDCi RWD | [CVRC] | 01.2011-12.2014 |
| FORD | Transit 2.2 TDCi RWD | [CYRA] | 01.2011-12.2014 |
| FORD | Transit 2.2 TDCi RWD | [DRFA] | 01.2011-12.2014 |
| FORD | Transit 2.2 TDCi RWD | [DRFB] | 01.2011-12.2014 |
| FORD | Transit 2.2 TDCi RWD | [DRFC] | 01.2011-12.2014 |
| FORD | Transit 2.2 TDCi RWD | [DRFE] | 01.2011-12.2014 |
| FORD | Transit 2.2 TDCi RWD | [USRA] | 01.2011-12.2014 |
| FORD | Transit 2.2 TDCi RWD | [USRB] | 01.2011-12.2014 |
| FORD | Transit FT 2.2 TDCi 4X4 | [CV..] | 01.2014- |
| FORD | Transit FT 2.2 TDCi 4X4 | [DR5] | 01.2014- |
| FORD | Transit FT 2.2 TDCi 4X4 | [USR6] | 01.2014- |
| FORD | Transit FT 2.2 TDCi 4X4 | [UY26] | 01.2014- |
| FORD | Transit FT 2.2 TDCi RWD | [CV..] | 01.2014- |
| FORD | Transit FT 2.2 TDCi RWD | [DR5] | 01.2014- |
| FORD | Transit FT 2.2 TDCi RWD | [USR6] | 01.2014- |
| FORD | Transit FT 2.2 TDCi RWD | [UY26] | 01.2014- |
Reference Information
106442 8EA011612-391 ST01875 5015108G 9675092580 255340 CST10529AS SG1084 S104662 011-001-000055R IS9539 H5015108G QRS2639 590.574.122.210 830 590.574.122.010 220680 STRF041 590.574.122.215 CC1T-11000-AA LRS02711 S1372B 590.574.122.018 WG2013240 12362 11.139.241 TT16691 S100333 2073363 319085122 PRSF041 S100334 0001115089-R S12BH0805A2 V25-12-15088 6.7029.1 SBO529 12570776 STR50646 RECC1T-11000-BB 10010529AV 33338N BST2656 A CST10529GS LRS2711 RNL115088 25 CGB-54384 220680A 5015108 1740947 AC-CBS5873 115732 3220 10010529OV 10438905 3122946 332125 STR1911 1606413580 3122945 IR8393 SBO529A 20401925OE 20401925BN FO9094 0986025830 H5015108 6010529.0 CMA-622012 06-10092-SX 6010529.1 AZMT-53-010-1346 362ST21 72535224 S12BH0805 STB5088 AEY2711 590.574.122.280 255340B STM710 0001115088 RAS31032 0001115089 1741087 MS1081 CC1T-11000-BA 42003006 CC1T-11000-BB AZD2141 TT16691PRO 1986S00772 25-4384Video/Publications
