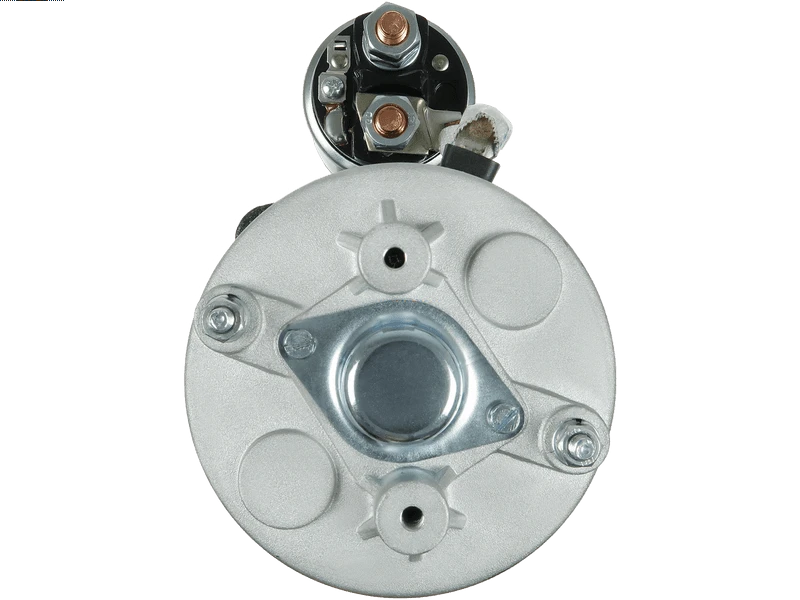

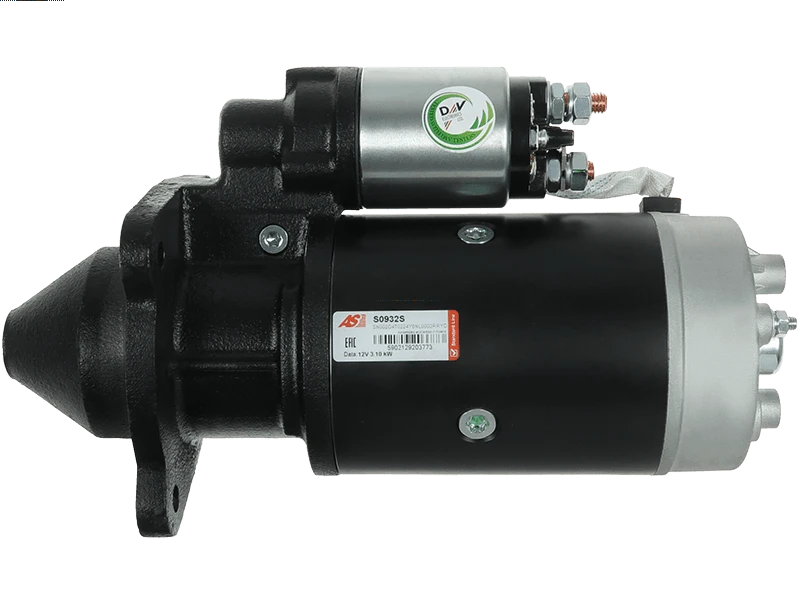

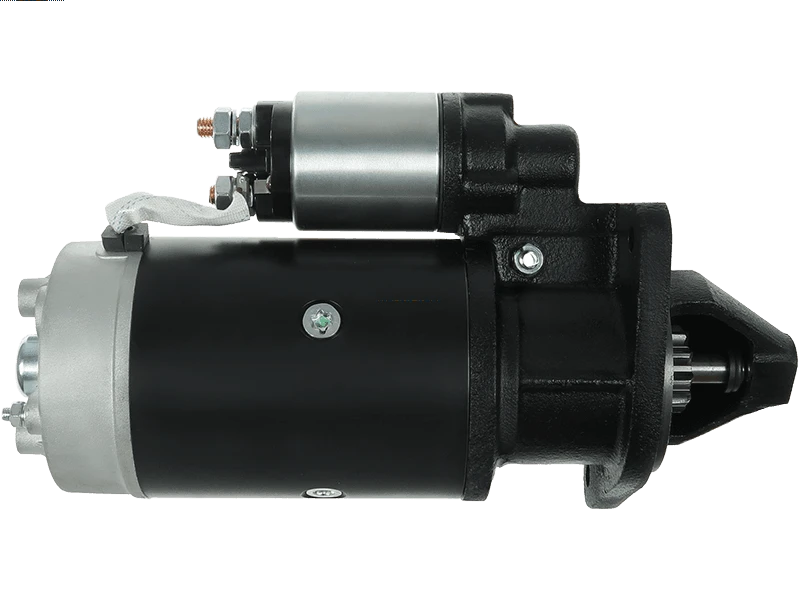

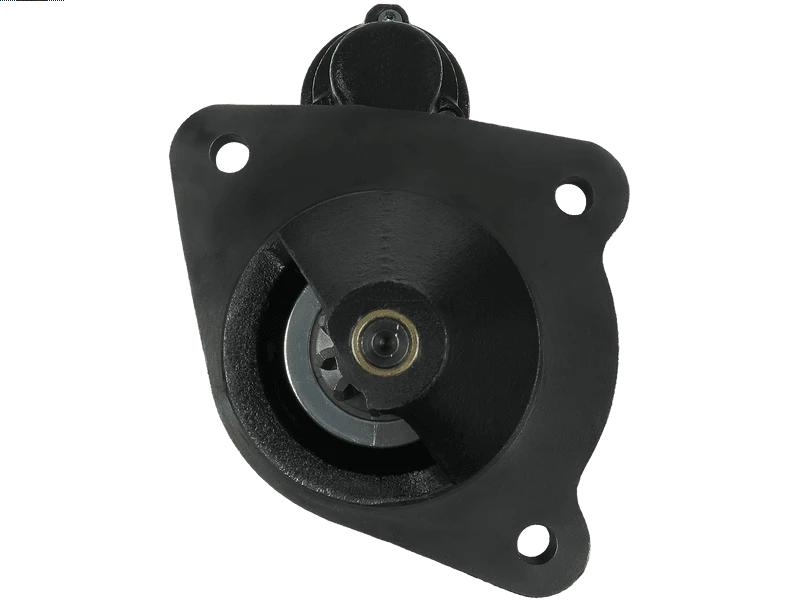

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 447.42 including GST
NZ$ 389.06 excluding GST
or four payments of $111.86
with
Learn More
each
S0932S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0001367006Specifications
| Kilowatt | 3.1 kW |
| Length (L.1) | 340 mm |
| Mount Hole Center - Center (O.1) | 104 mm |
| Mount Hole Center - Center (O.2) | 147 mm |
| Mount Hole Center - Center (O.3) | 104 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BOBCAT | 215 1.8 | 01.1998-12.2006 | |
| BOBCAT | 220 1.8 | 01.1998-12.2006 | |
| CASE | 1690 | [6-329] | 01.1980-12.1983 |
| CASE | WDX1101 | 01.2001-12.2007 | |
| CASE | WDX901 | 01.2001-12.2007 | |
| FORD | 4600 | [3-201] | 01.1976-12.1985 |
| FORD | 5030 | [4-256] | 01.1992-12.1998 |
| FORD | 555C | 01.1992-12.1992 | |
| FORD | 555D | [4-256] | 01.1992-12.1997 |
| FORD | 555E | [4-268] | 01.1996-12.1997 |
| FORD | 5600 | [4-256] | 01.1976-12.1984 |
| FORD | 5610 | [4-268] | 01.1982-12.1993 |
| FORD | 5610S 5.0 | 01.1994-12.2000 | |
| FORD | 5640 | [4-268] | 01.1991-12.1998 |
| FORD | 575D | [4-256] | 01.1992-12.1997 |
| FORD | 575E | [4-304] | 01.1996-12.1997 |
| FORD | 655C | 01.1992-12.1992 | |
| FORD | 655D | [4-268] | 01.1992-12.1997 |
| FORD | 655E | [4-304] | 01.1996-12.1997 |
| FORD | 6600 | [4-268] | 01.1976-12.1985 |
| FORD | 6610S 5.0 | 01.1994-12.2000 | |
| FORD | 6640 | [4-304] | 01.1991-12.1998 |
| FORD | 675D | [4-268] | 01.1992-12.1997 |
| FORD | 675E | [4-304] | 01.1996-12.1997 |
| FORD | 7010S 5.0 | 01.1994-12.2000 | |
| FORD | 7740 | [4-304] | 01.1991-12.1998 |
| FORD | 7740 | 01.1992-01.1997 | |
| FORD | 7810 | 06.1990-06.2005 | |
| FORD | 7840 | [6-401] | 01.1991-12.1996 |
| FORD | 7840 | 01.1992-01.1997 | |
| FORD | 8010S | 01.1994-12.2000 | |
| FORD | 8160 | [6-456] | 01.1996-12.1999 |
| FORD | 8240 | [6-456] | 01.1992-12.1997 |
| FORD | 8240 | 01.1992-01.1996 | |
| FORD | 8260 | [6-456] | 01.1996-12.1999 |
| FORD | 8340 | [6-456] | 01.1992-12.1997 |
| FORD | 8340 | 01.1992-01.1997 | |
| NEW HOLLAND | 2550 | 01.1998-12.2006 | |
| NEW HOLLAND | 7740 | 01.1996-12.2006 | |
| NEW HOLLAND | 8360 | [6-456] | 01.1996-12.1999 |
| NEW HOLLAND | 8560 | [6-456] | 01.1996-12.1999 |
| NEW HOLLAND | BL75.B | [NH445T] | |
| NEW HOLLAND | HW300 5.0 | 01.1998-12.2006 | |
| NEW HOLLAND | HW320 5.0 | 01.1998-12.2006 | |
| NEW HOLLAND | HW340 7.5 | 01.2000-12.2006 | |
| NEW HOLLAND | L781 | [201] | 01.1984-12.1993 |
| NEW HOLLAND | L783 | [201] | 01.1988-12.1995 |
| NEW HOLLAND | L785 | [201] | 01.1984-12.1994 |
| NEW HOLLAND | L865 | [332T] | 01.1994-12.1999 |
| NEW HOLLAND | LS180 | [332-M2] | 01.1999-12.2004 |
| NEW HOLLAND | LS180 | [332T] | 01.1999-12.2006 |
| NEW HOLLAND | LS180 | [332T] | 01.2000-12.2010 |
| NEW HOLLAND | LS190 | [450NC] | 01.1999-12.2004 |
| NEW HOLLAND | LX285 | 01.1987-12.2006 | |
| NEW HOLLAND | LX285 | 01.1997-12.2007 | |
| NEW HOLLAND | LX865 | [332T] | 01.1994-12.1999 |
| NEW HOLLAND | LX885 | [332T] | 01.1994-12.1999 |
| NEW HOLLAND | LX985 5.0 | 01.1998-12.1999 | |
| NEW HOLLAND | M115 7.5 | [TD456] | 01.1996-12.1998 |
| NEW HOLLAND | NH 95 | [M8Y] | 01.1996- |
| NEW HOLLAND | TC54 | [675TA] | 01.1999-12.2006 |
| NEW HOLLAND | TC56 | [675TA] | 01.1999-12.2006 |
| NEW HOLLAND | TM130 7.5 | 01.1998-12.2006 | |
| NEW HOLLAND | TS100 5.0 | 01.1998-12.2006 | |
| NEW HOLLAND | TS110 5.0 | 01.1998-12.2006 | |
| NEW HOLLAND | TS115A 6.7 | 01.2004-12.2006 | |
| NEW HOLLAND | TS90 5.0 | 01.1998-12.2006 | |
| SANDERSON | SB50 | ||
| SANDERSON | SB55 | ||
| SANDERSON | SB554TC | ||
| SANDERSON | SB65 | ||
| SANDERSON | SB75 | ||
| SANDERSON | SB754 |
Reference Information
LRS1322 72735985 6010285.0 590.007.103.310 6010285.3 81866002 F0NN11000BA 18024N 220277 C000900060200 20419961OE 120-30117 20401582BN MAV122850EL 6021169.1 STR22105 FONN11000CA S12BH0282A2 MAV122850A CS1126 MAV231690 82015723 FONN-11000-CA 254179 590.007.103.016 590.007.103.215 F0NN-11000-CA 0001367006 590.007.103.018 0001369023 DRS7510 88213173 8678 590.007.103.010 0001369020 20401582EL TS-6143 82005342 MAV122850 MS357 STRS074 82013922 331278 IS0627 STB1126 LRS01322 260-69104 898821291 89821291 STX200568 CST10285ES 101126 112074 86513093 CST10285AS 25-2095 0001369015 8EA737621-001 AZJ3201 82007917 CGB-52095 3918688 ANM19730 F0NN11000CA 86628964 CST21169GS 254179L 91-15-7083 UD101805S ANM19730X PRSS074 11.130.627 DS8620Video/Publications
