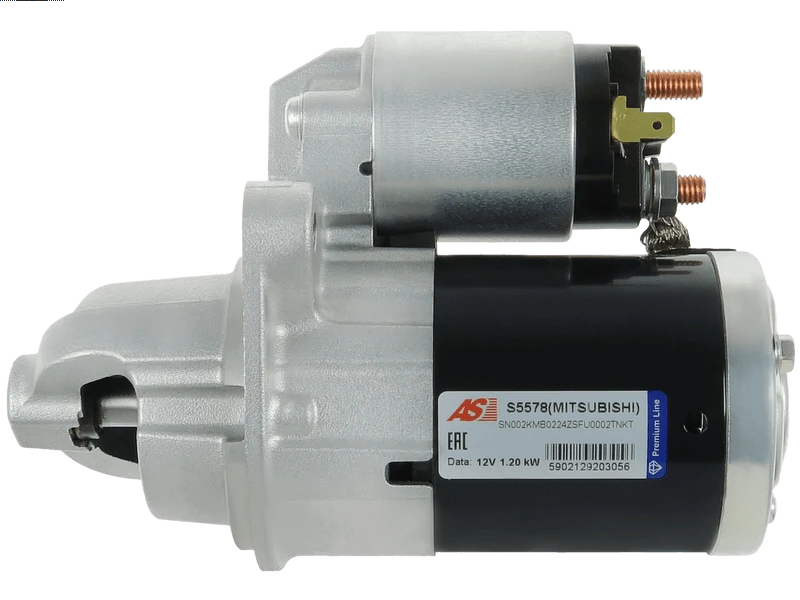

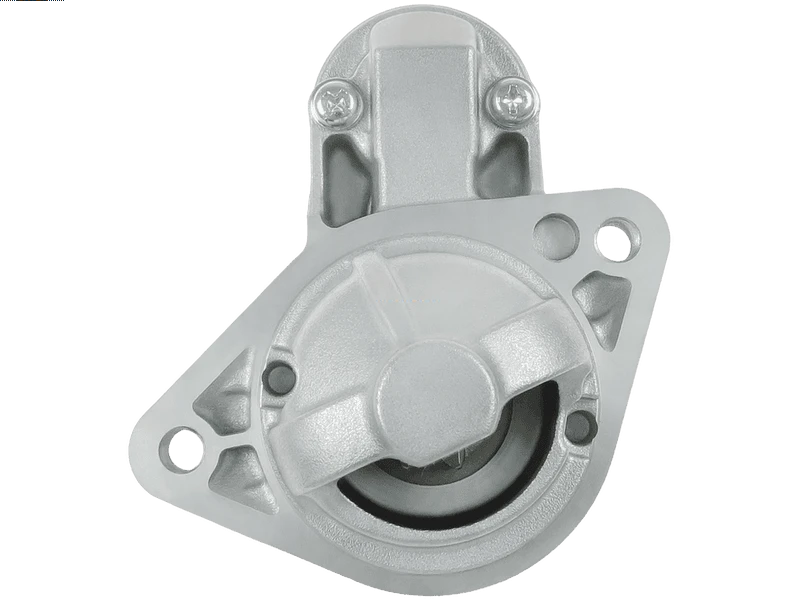

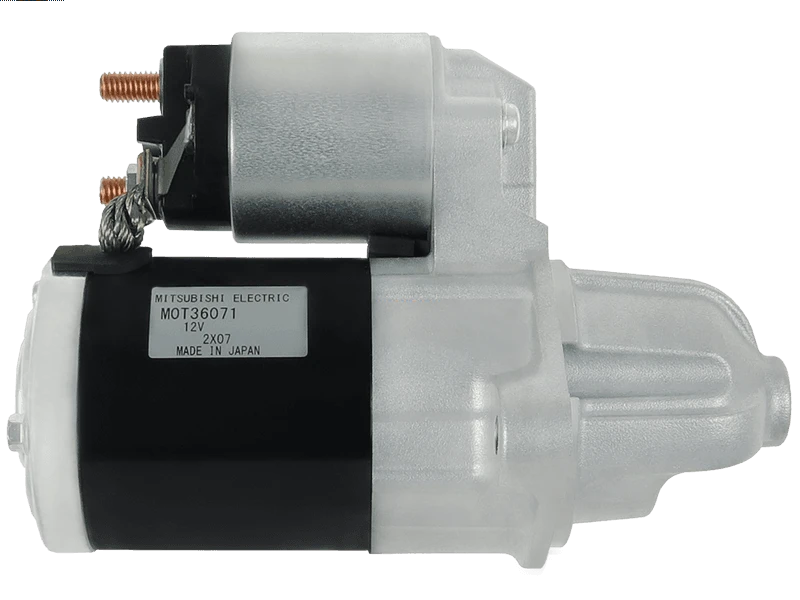

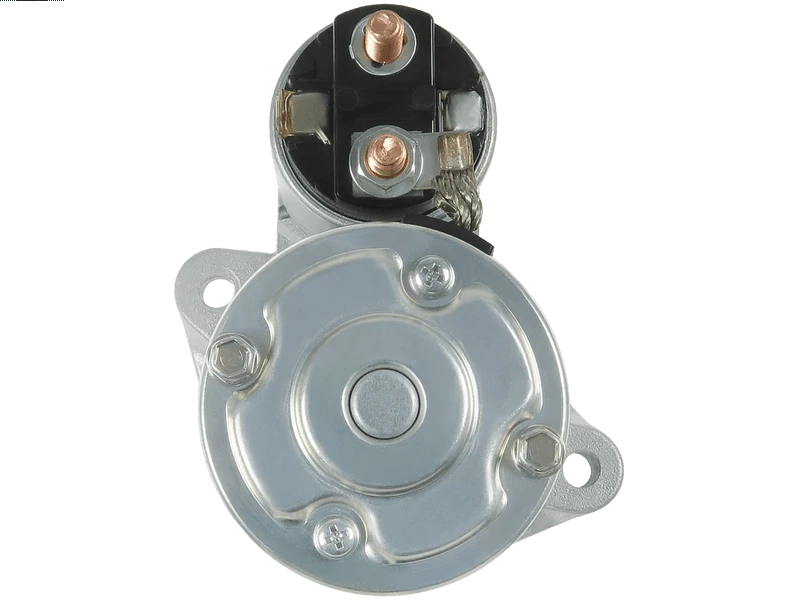

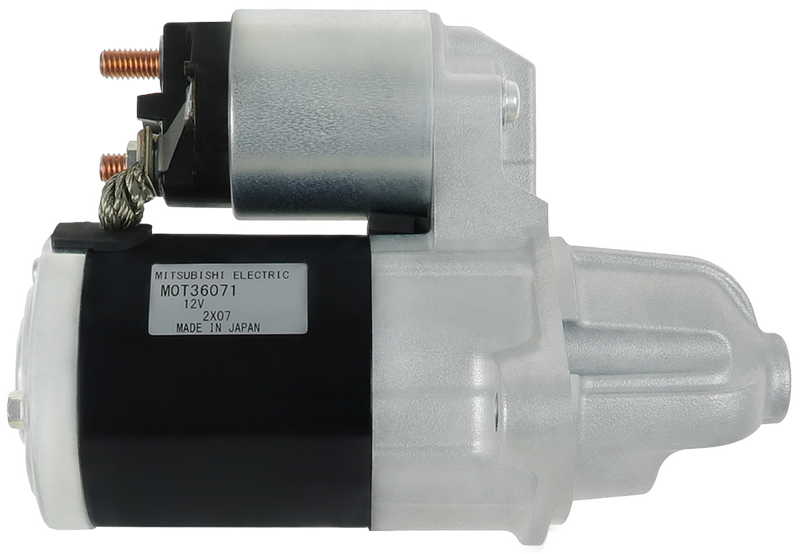

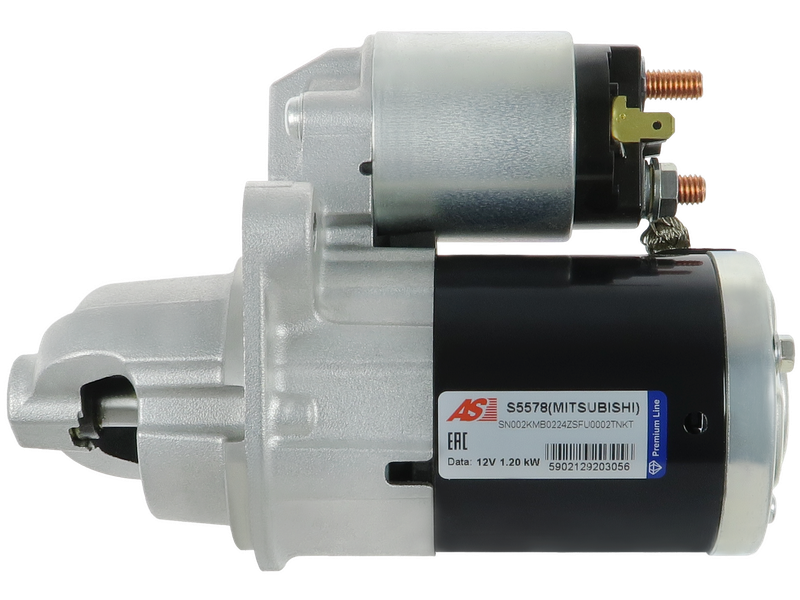

Brand new OEM MITSUBISHI Starter motor
PREMIUM LINE
Mitsubishi
MITSUBISHI
Price:
NZ$ 352.43 including GST
NZ$ 306.46 excluding GST
or four payments of $88.11
with
Learn More
each
S5578(MITSUBISHI)
No stock in NZ
No stock in NZ
Specifications
| Kilowatt | 1.2 kW |
| Length (L.1) | 183 mm |
| Mount Hole Center - Center (O.1) | 101 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 8 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 28 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Sedici 1.6 16V | [M16A] | 06.2006-10.2014 |
| FIAT | Sedici 1.6 16V 4x4 | [M16A] | 06.2006-10.2014 |
| SUBARU | Justy 1.3 AWD | [M13A] | 09.2003- |
| SUZUKI | Grand Vitara 1.6 | [M16A] | 04.2005-02.2015 |
| SUZUKI | Grand Vitara 1.6 | [M16A] | 09.2005-02.2015 |
| SUZUKI | Grand Vitara 1.6 | [M16A] | 10.2005- |
| SUZUKI | Jimny 1.3 | [M13A] | 08.2004- |
| SUZUKI | Jimny 1.3 | [M16A] | 08.2004- |
| SUZUKI | Jimny 1.3 16V | [M13A] | 02.2001- |
| SUZUKI | Jimny 1.3 16V 4WD | [M13A] | 02.2001- |
| SUZUKI | Jimny 1.3 16V 4x4 | [M13A] | 08.2005- |
| SUZUKI | Jimny 1.3 4WD | [M13A] | 03.2013- |
| SUZUKI | Jimny 1.3 4WD | [M13A] | 05.2014- |
| SUZUKI | Liana 1.6 | [M16A] | 01.2005- |
| SUZUKI | Liana 1.6 | [M16A] | 01.2005-08.2007 |
| SUZUKI | Liana 1.6 | [M16A] | 03.2002- |
| SUZUKI | Liana 1.6 | [M16A] | 07.2001-12.2007 |
| SUZUKI | Liana 1.6 4WD | [M16A] | 01.2005-12.2007 |
| SUZUKI | Liana 1.6 4WD | [M16A] | 04.2002- |
| SUZUKI | Liana 1.6 4WD | [M16A] | 04.2002-12.2007 |
| SUZUKI | Liana 1.6 i | [M16A] | 04.2002- |
| SUZUKI | Liana 1.6 i | [M16A] | 04.2002-12.2007 |
| SUZUKI | Swift 1.3 4x4 | [M13A] | 01.2006- |
| SUZUKI | Swift 1.3 4x4 | [M13A] | 02.2005- |
| SUZUKI | Swift 1.3 LPG | [M13A] | 09.2008-12.2010 |
| SUZUKI | Swift 1.5 | [M15A] | 02.2005- |
| SUZUKI | Swift 1.6 | [M16A] | 01.2012- |
| SUZUKI | Swift 1.6 | [M16A] | 05.2006- |
| SUZUKI | SX4 1.5 | [M15A] | 06.2006-07.2010 |
| SUZUKI | SX4 1.5 VVT | [M15A] | 07.2010- |
| SUZUKI | SX4 1.5 VVT 4x4 | [M15A] | 07.2010- |
| SUZUKI | SX4 1.5 VVTi | [M15A] | 07.2007-12.2015 |
| SUZUKI | SX4 1.6 | [M16A] | 10.2007- |
| SUZUKI | SX4 1.6 AWD | [M16A] | 10.2007-12.2011 |
| SUZUKI | SX4 1.6 LPG | [M16A] | 06.2006-12.2012 |
| SUZUKI | SX4 1.6 VVT | [M16A] | 06.2006- |
| SUZUKI | SX4 1.6 VVT | [M16A] | 07.2009- |
| SUZUKI | SX4 1.6 VVT | [M16A] | 11.2010-12.2015 |
| SUZUKI | SX4 1.6 VVT 4x4 | [M16A] | 06.2006- |
| SUZUKI | SX4 1.6 VVT 4x4 | [M16A] | 07.2009- |
| SUZUKI | Wagon R+ 1.3 | [M13A] | 09.2003-08.2006 |
| SUZUKI | Wagon R+ 1.3 4WD | [M13A] | 09.2003- |
Reference Information
31100-80G1 31100-80G00 201319 20437081OE J5218026 31100-80G0 M000T86581 STN1310 LRS02555 LRS01621 M0T36071 STR71116 M002T47681 446518 180.523.082.130 WOOSTR71116 M0T36073 31100-80G10 J5218019 M002T46781ZE 71750026 CST35180AS MITM0T36071 003-Z266 114060 31100-80G20 9764 UD101310(MITSUBISHI)S 9.44281E+11 CGB-54227 25-3146 DRS0873 33216R 8EA738154-001 32620N M001T86681 31100-81A30 33216N 31100-86G00 M2T46781 31100-63J10 JS1310 M2T46781ZE CST35180GS M002T46782ZE 31100-75F60 STRS668 M0T36071ZE M0T36071AM 20104081BN 3Z266 25-4227 8EA012528-631 JS1319 201310M 31100-63J00 88214365 180.507.082.395 M0T84981 S12DE0829A2 6035180.1 71793347 STX200348 SG0873 AET1310 CGB-20101 220826 M2T46782ZE 3110086G00000 115349 6035180 M000T36071ZE 31100-86G00E M002T46781 0986023720 STX200348R TT16642 M2T47681 180.507.082.138 180.507.082.370 180.507.082.130 336327 PRSS668 STR5194 MTZ266 M00T86582 LRS1621 5040118 8EA738258-121 MRS80243 180.507.082.265 M1T86681 12108 M000T84981 201310 M0T86581 MAV371800A M000T36073 M000T36071 STX200578Video/Publications
