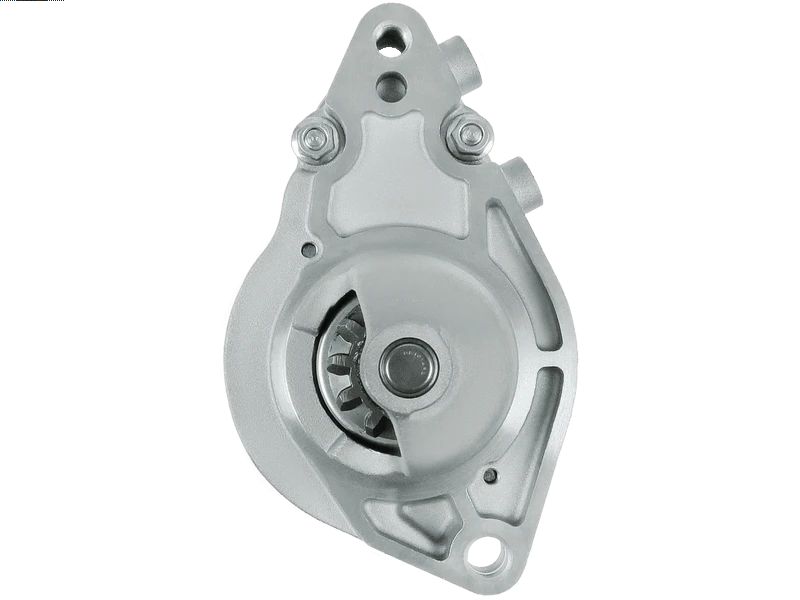

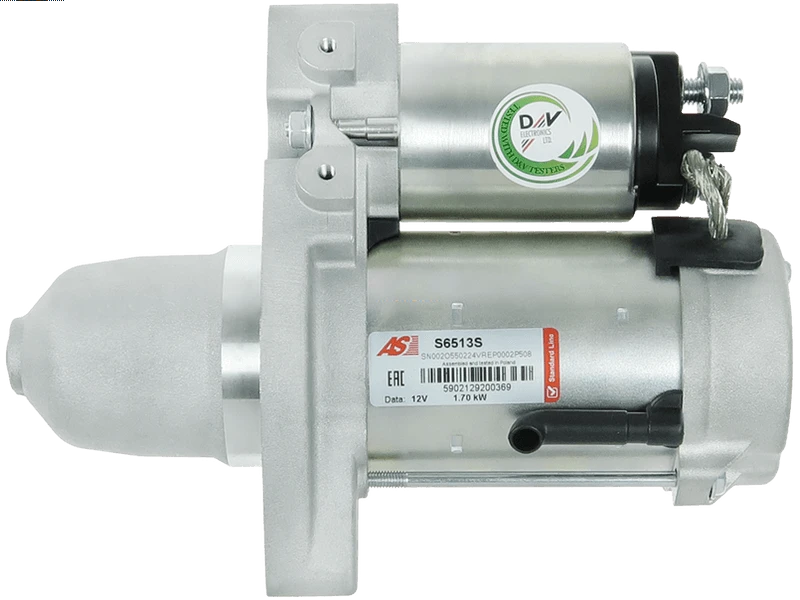

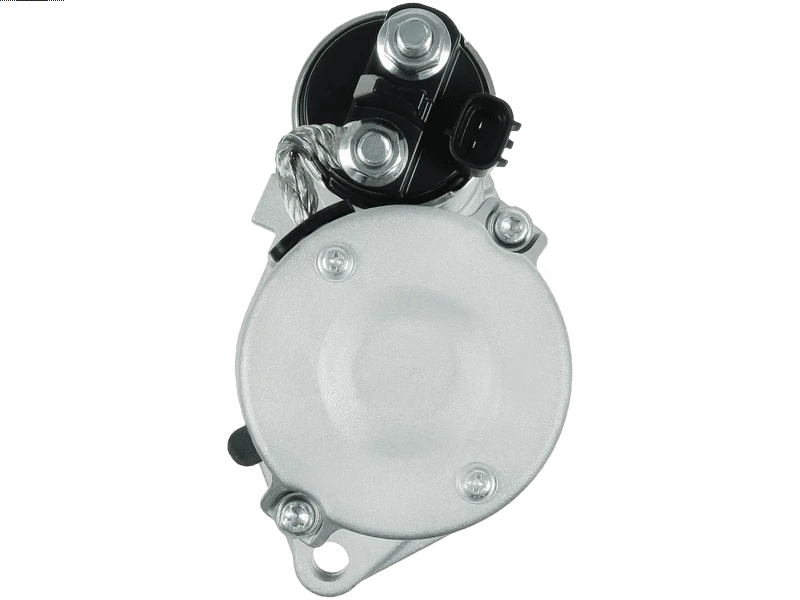

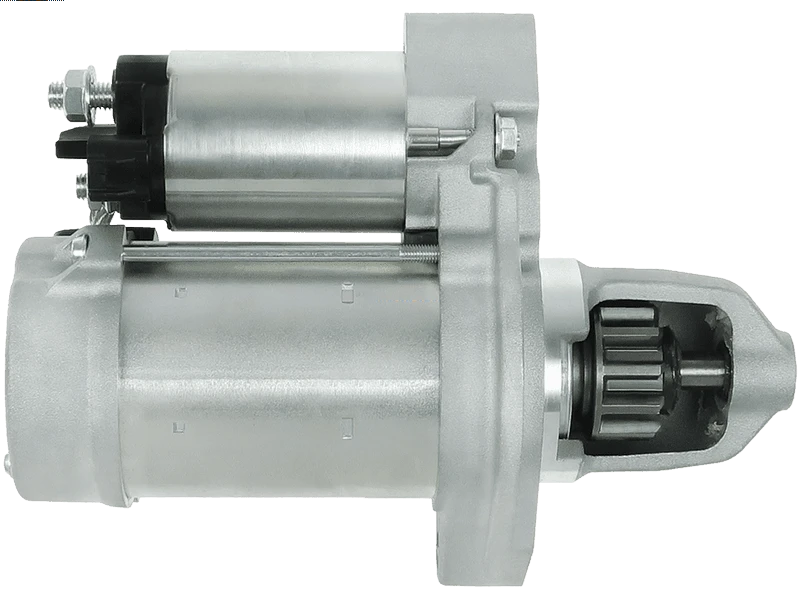

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 377.65 including GST
NZ$ 328.39 excluding GST
or four payments of $94.41
with
Learn More
each
S6513S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
428000-9610Specifications
| Kilowatt | 1.7 kW |
| Length (L.1) | 215 mm |
| Mount Hole Center - Center (O.1) | 143 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 34 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 62 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JAGUAR | F-Type 3.0 SCV6 | [306PS(AJ126)] | 10.2012- |
| JAGUAR | F-Type 3.0 SCV6 | [306PS(AJ126)] | 10.2013- |
| JAGUAR | F-Type 3.0 SCV6 S | [306PS(AJ126)] | 10.2012- |
| JAGUAR | F-Type 3.0 SCV6 S | [306PS(AJ126)] | 10.2013- |
| JAGUAR | F-Type 3.0 SCV6 S AWD | [306PS(AJ126)] | 12.2014- |
| JAGUAR | F-Type 5.0 SCV8 P575 R | [508PS(AJ133)] | 12.2015- |
| JAGUAR | F-Type 5.0 SCV8 P575 R AWD | [508PS(AJ133)] | 12.2015- |
| JAGUAR | F-Type 5.0 SCV8 R | [508PS(AJ133)] | 10.2013- |
| JAGUAR | F-Type 5.0 SCV8 R AWD | [508PS(AJ133)] | 12.2014- |
| JAGUAR | F-Type 5.0 SCV8 S | [508PS(AJ133)] | 10.2012- |
| JAGUAR | F-Type 5.0 SCV8 SVR | [508PS(AJ133)] | 12.2015- |
| JAGUAR | XF 3.0 | [306PS(AJ126)] | 03.2012-04.2015 |
| JAGUAR | XF 3.0 AWD | [306PS(AJ126)] | 10.2012-04.2015 |
| JAGUAR | XF 5.0 Kompressor | [508PS(AJ133)] | 01.2009-04.2015 |
| JAGUAR | XF 5.0 Kompressor | [508PS(AJ133)] | 03.2009-04.2015 |
| JAGUAR | XF 5.0 XFR-S | [508PS(AJ133)] | 10.2012-04.2015 |
| JAGUAR | XF 5.0 XFR-S Sportbrake | [508PS(AJ133)] | 02.2013-04.2014 |
| JAGUAR | XJ 3.0 SCV6 | [306PS(AJ126)] | 03.2012- |
| JAGUAR | XJ 3.0 SCV6 AWD | [306PS(AJ126)] | 10.2012- |
| JAGUAR | XJ 5.0 SCV8 | [508PS(AJ133)] | 06.2013- |
| JAGUAR | XJ 5.0 SCV8 | [508PS(AJ133)] | 10.2009- |
| JAGUAR | XJ 5.0 V8 | [508PN(AJ133)] | 10.2009- |
Reference Information
STM1456 20432464OE 255264D CGB-55219 DSN1412 10978N CST40464GS MAV424640 428000-9610 LRS04056 20432464BN LRS4056 88213889 840.508.112.050 3690 C2D19968 CST40464AS STN9610 MAV424640A SG2140 DENDSN1412 STR70399 25-5219 DX23-11001-BC 6040464.0 6040464.1 UD101817S DX23-11001-BD 840.508.112.261 840.508.112.260Video/Publications
