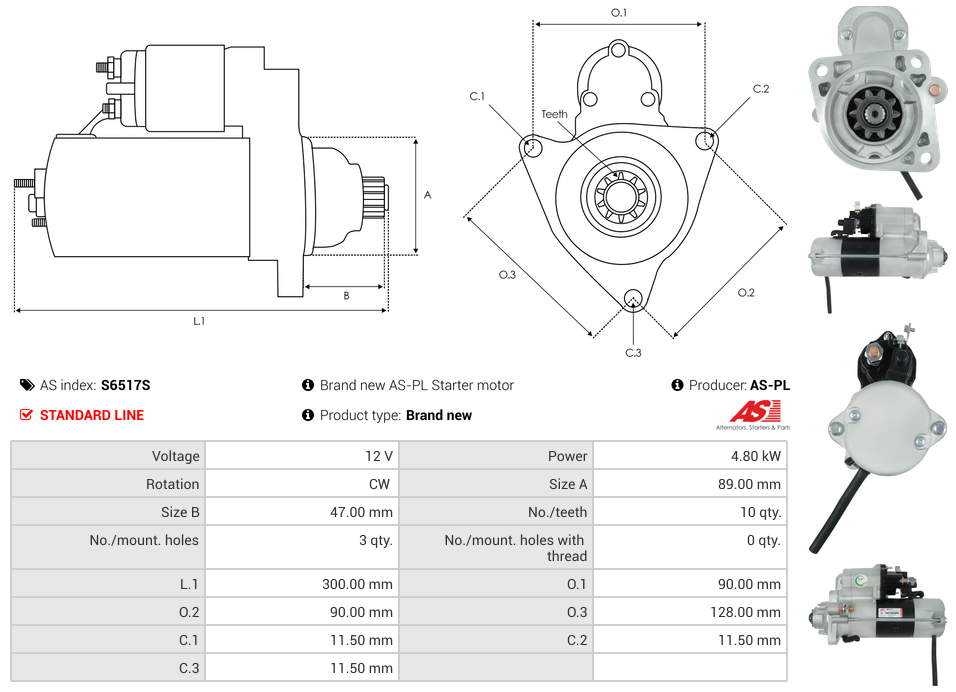

Specifications
| Kilowatt | 4.8 kW |
| Length (L.1) | 300 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 128 mm |
| Mount Hole Diameter (C.1) | 11.5 mm |
| Mount Hole Diameter (C.2) | 11.5 mm |
| Mount Hole Diameter (C.3) | 11.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 344K | ||
| JOHN DEERE | W155 |
Reference Information
20432025OE UD100891S CST40520GS 630.545.103.260 630.545.103.050 428080-7961 S6517S 428000-7961 MAV425200 RE537516 STN1133 6040520.1 DENDSN2093 428000-7960 256304D RE548695 DSN2093Video/Publications
