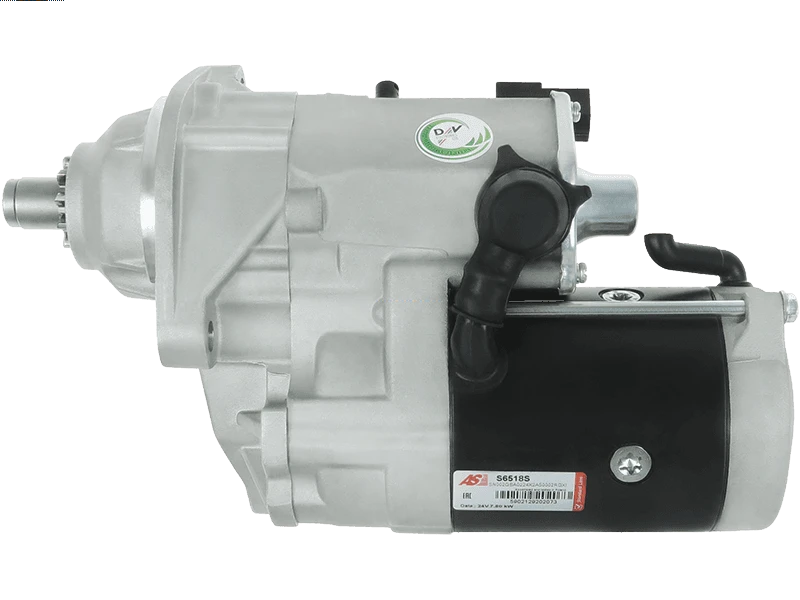

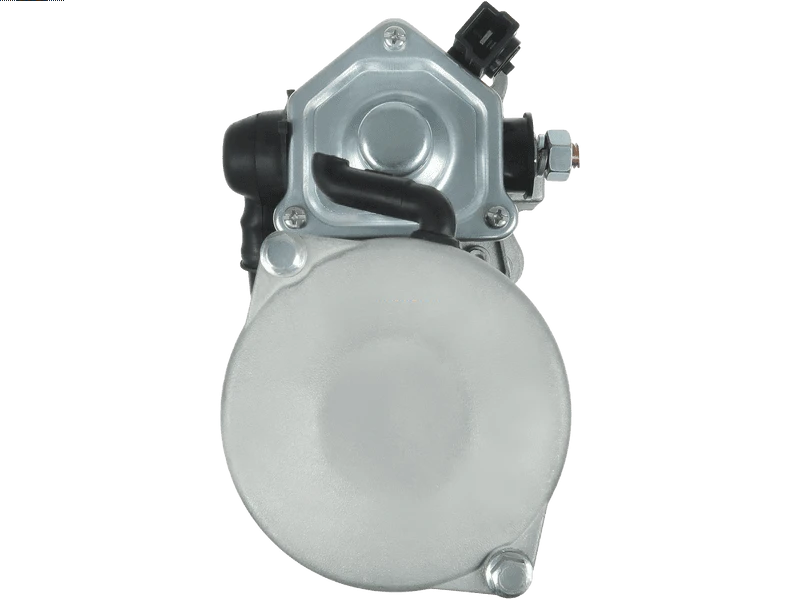

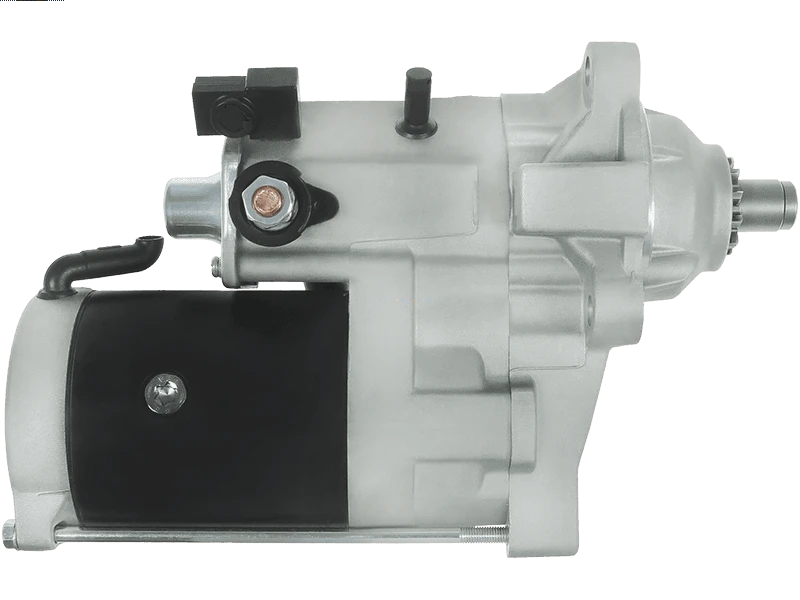

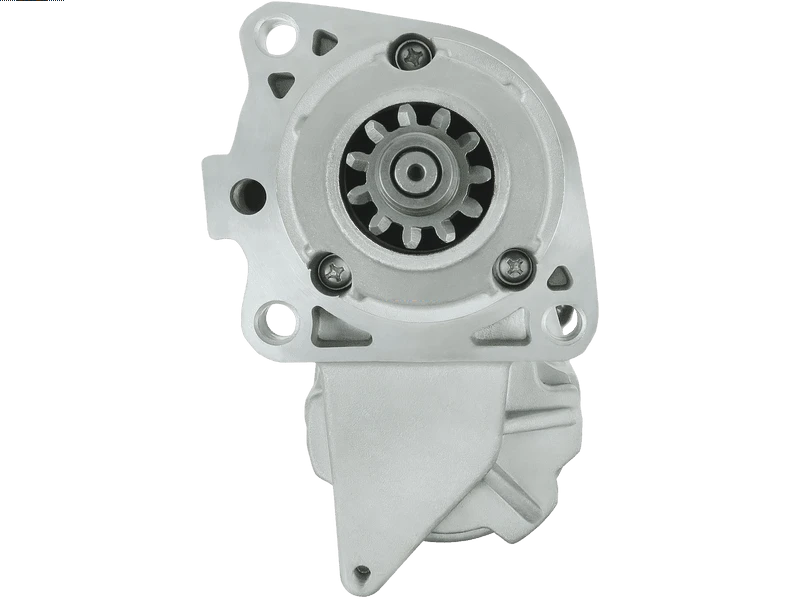

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 766.80 including GST
NZ$ 666.78 excluding GST
or four payments of $191.70
with
Learn More
each
S6518S
No stock in NZ
No stock in NZ
Information
428080-2370Specifications
| Kilowatt | 7.8 kW |
| Length (L.1) | 310 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11.5 mm |
| Mount Hole Diameter (C.2) | 11.5 mm |
| Mount Hole Diameter (C.3) | 11.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DENSO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BARBER GREENE | BG600D | [C6.6] | |
| BARBER GREENE | BG655D | [C6.6] | |
| CATERPILLAR | 924H | [C6.6] | |
| CATERPILLAR | 924HZ | [C6.6] | |
| CATERPILLAR | 928H | [C6.6] | |
| CATERPILLAR | 928HZ | [C6.6] | |
| CATERPILLAR | 930H | [C6.6] | |
| CATERPILLAR | AP500E | [C4.4] | |
| CATERPILLAR | AP555E | [C4.4] | |
| CATERPILLAR | AP600D | [C6.6] | |
| CATERPILLAR | AP655C | [C6.6] | |
| CATERPILLAR | AP655D | [C6.6] | |
| CATERPILLAR | BG500E | [C4.4] | |
| CATERPILLAR | BG555E | [C4.4] | |
| CATERPILLAR | BG600D | [C6.6] | |
| CATERPILLAR | BG655D | [C6.6] | |
| CATERPILLAR | C6.6 | [C6.6] | |
| CATERPILLAR | CP56 | [C6.6] | |
| CATERPILLAR | CP563E | [3056E] | |
| CATERPILLAR | CP56B | [C6.6] | |
| CATERPILLAR | CP573E | [3056E] | |
| CATERPILLAR | CP583E | [3056E] | |
| CATERPILLAR | CP64 | [C6.6] | |
| CATERPILLAR | CP64B | [C6.6] | |
| CATERPILLAR | CP663E | [3056E] | |
| CATERPILLAR | CP68B | [C6.6] | |
| CATERPILLAR | CP74 | [C6.6] | |
| CATERPILLAR | CP74B | [C6.6] | |
| CATERPILLAR | CP76 | [C6.6] | |
| CATERPILLAR | CS56 | [3116] | |
| CATERPILLAR | CS56 | [C6.6] | |
| CATERPILLAR | CS563E | [3056E] | |
| CATERPILLAR | CS56B | [C6.6] | |
| CATERPILLAR | CS573E | [3056E] | |
| CATERPILLAR | CS583E | [3056E] | |
| CATERPILLAR | CS64 | [C6.6] | |
| CATERPILLAR | CS64B | [C6.6] | |
| CATERPILLAR | CS663E | [3056E] | |
| CATERPILLAR | CS683E | [3056E] | |
| CATERPILLAR | CS68B | [C6.6] | |
| CATERPILLAR | CS74 | [C6.6] | |
| CATERPILLAR | CS74B | [C6.6] | |
| CATERPILLAR | CS76 | [C6.6] | |
| CATERPILLAR | CS78B | [C6.6] | |
| CATERPILLAR | IT28G | [3056E] |
Reference Information
CST40645AS 234-2637 20432546OE CST40645GS DSN2025 MAV426450A 428080-2370 641.530.113.262 20432546BN 641.530.113.261 UD100739S 336590 S24DE0148A2 S-80442 6040645.1 190-30147 190-30147NOE 6040645.0 2873K415 91-29-5829 10913N DENDSN2025 STR70431 428000-2371 255603 428000-2370 641.530.113.050 246-30229Video/Publications
