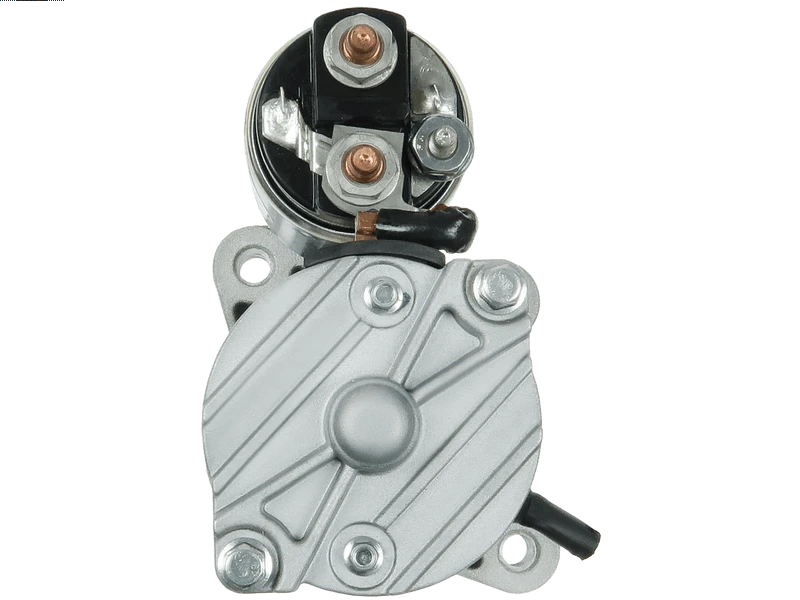

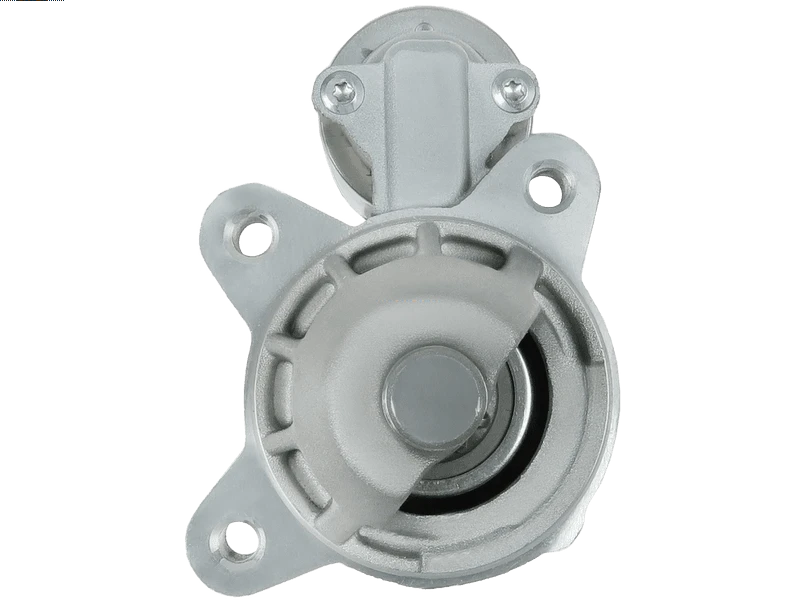

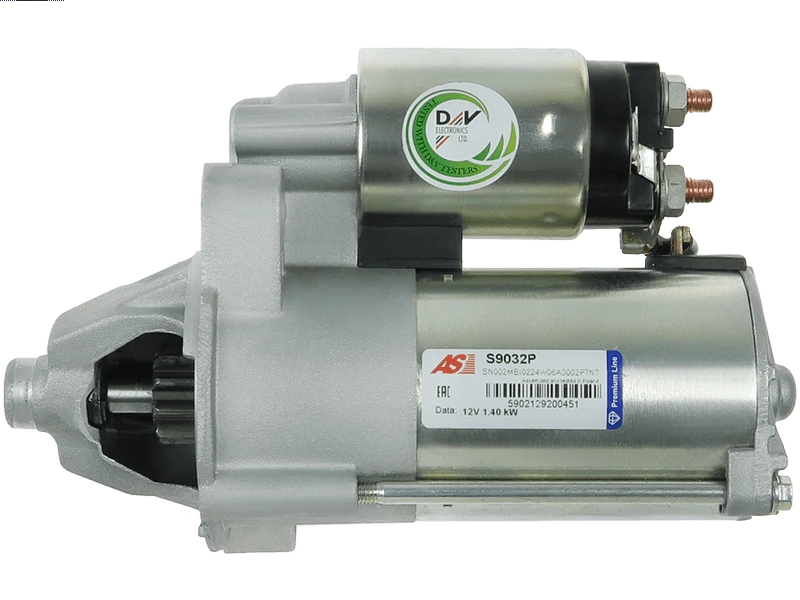

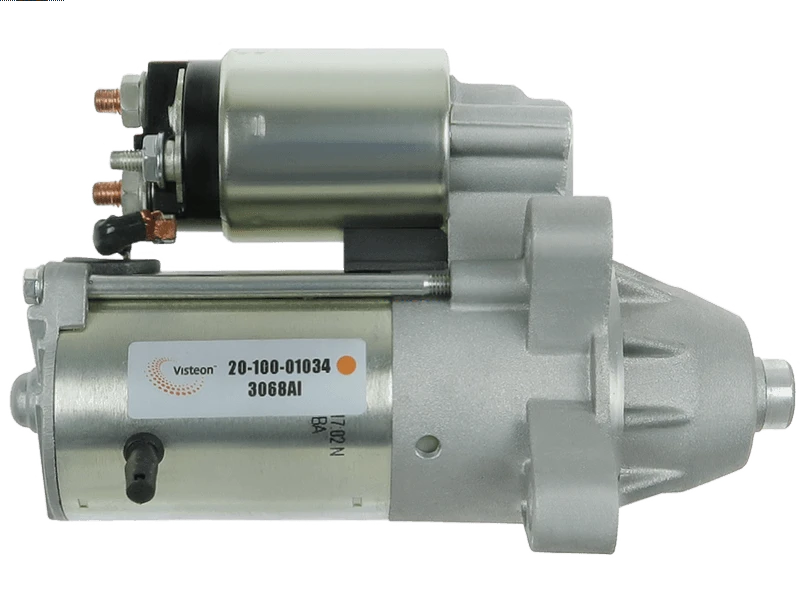

Brand new AS-PL Starter motor
PREMIUM LINE
AS-PL
FORD
Price:
NZ$ 374.04 including GST
NZ$ 325.25 excluding GST
or four payments of $93.51
with
Learn More
each
S9032P
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 1.4 kW |
| Length (L.1) | 210 mm |
| Mount Hole Center - Center (O.1) | 103 mm |
| Mount Hole Center - Center (O.2) | 66 mm |
| Mount Hole Center - Center (O.3) | 66 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 15 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | FORD |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Tourneo Connect 1.8 Di | [BHPA] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 Di | [P7PA] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 Di | [P7PB] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 Di | [R2PA] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDCi | [BHPA] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDCi | [HCPA] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDCi | [HCPB] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDCi | [HCPC] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDCi | [HCPD] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDCi | [P7PA] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDCi | [P7PB] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDCi | [P9PA] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDCi | [P9PB] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDCi | [P9PC] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDCi | [P9PD] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDCi | [R2PA] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDCi | [R3PA] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDCi | [RWPE] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDCi | [RWPF] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDDi | [BHPA] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDDi | [P7PA] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDDi | [P7PB] | 06.2002-12.2013 |
| FORD | Tourneo Connect 1.8 TDDi | [R2PA] | 06.2002-12.2013 |
| FORD | Transit Connect 1.8 Di | [BHPA] | 06.2002-12.2013 |
| FORD | Transit Connect 1.8 Di | [P7PA] | 06.2002-12.2013 |
| FORD | Transit Connect 1.8 Di | [P7PB] | 06.2002-12.2013 |
| FORD | Transit Connect 1.8 Di | [R2PA] | 06.2002-12.2013 |
| FORD | Transit Connect 1.8 TDCi | [HCPA] | 06.2002-12.2013 |
| FORD | Transit Connect 1.8 TDCi | [HCPB] | 06.2002-12.2013 |
| FORD | Transit Connect 1.8 TDCi | [HCPC] | 06.2002-12.2013 |
| FORD | Transit Connect 1.8 TDCi | [HCPD] | 06.2002-12.2013 |
| FORD | Transit Connect 1.8 TDCi | [P9PA] | 06.2002-12.2013 |
| FORD | Transit Connect 1.8 TDCi | [P9PB] | 06.2002-12.2013 |
| FORD | Transit Connect 1.8 TDCi | [P9PC] | 06.2002-12.2013 |
| FORD | Transit Connect 1.8 TDCi | [P9PD] | 06.2002-12.2013 |
| FORD | Transit Connect 1.8 TDCi | [R3PA] | 06.2002-12.2013 |
| FORD | Transit Connect 1.8 TDCi | [RWPE] | 06.2002-12.2013 |
| FORD | Transit Connect 1.8 TDCi | [RWPF] | 06.2002-12.2013 |
Reference Information
4033064 ANM16176X 3122885 20450701BN 11090053 3122887 UD101586S 2T14BA 201039 SG0393 8080134 319059102 DS5066 1756793 107129 LRS01627 MO0001MA 590.548.103.235 ST01229 RE83525N DRS0160N S12VS0054A2 GS001034-A SFO107A DS5066N G201336-N 11998 GS001034VI-R 331372 DRS3956 25-3155 06-10138-SX 3126 QRS2304 6014107 S12VS0054 4722880 011-001-000327R 20-100-01034 DRS0160 6014107.1 458448 9.43213E+11 RE2T1411000BC SKSTR-0330051 9.44281E+11 ANM16176 220374 NEY1627 113910 3.59001E+11 63280034010 DRS3956N MAV161070 H5014065 1477973 63721336010 TT16326 1477974 0986022840 1986S00222 1904988 35259860 CST14107AS 590.548.103.230 STF1336 88212274 SS001034-A 8EA738258-201 2T14-11000-CA 534376 2T14-11000-CB 5014065 2T14-11000-CC 333003 AEY1627 IR9670 SS001034VI-R RAS34067 STRL110 2-0076 STX200139 32510N DS1270 RNL2T14BA 32510R AI-80036 63280034 CGB-53155 460469 AC-CBS1336 101591 2S0052 8EA011610-261 MSN8034 FO9067 20450701OE EAA-121016 2T1411000AB CS1336 MRS80134 13.44003 2T14-11000-BA 2T14-11000-BB 2T14-11000-BC 2T1411000AA MQS1336 998ST11 1345314 STX200345 MAV161070A 4443760 2T14-11000-AA 1638121180 10439776 BST2334 590.548.103.608 1590301100 STR8974 STR61804 SFO107 PRSL110 590.548.103.020 A78060 1265011 2T1411000CA 2T1411000CB 63720022010 2T1411000CC STX200139R SX2177 LRS1627 STR61818 13663 CST14107GS 106619 4424968 590.548.103.395 STM750 42001034 220374A EZ0517 220374R 458380 101336V 590.548.103.028 101336Video/Publications
