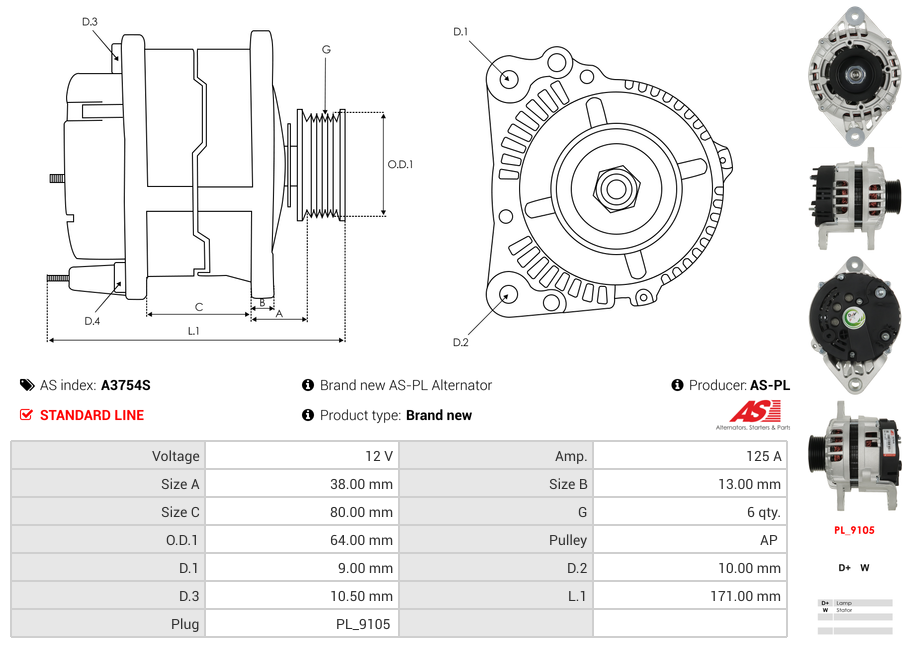

Specifications
| Amp | 125 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10.5 mm |
| Length (L.1) | 171 mm |
| Mount Inside Length or Pad Mount C-C (C) | 80 mm |
| OEM Product | No |
| Plug Code | PL_9114 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 64 mm |
| Pulley to Mount Distance (A) | 38 mm |
| Pulley Type | SOLID |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YANMAR | Engine | [3YM30] |
Reference Information
UD90999A 20015A20OV 2015A20.1 230-20255NOE CAL15A20GS ALT17A200 AL04306 115426 128990-77250 3124866 ALT01215 LRA04433 SG10S078 28-8542 985.514.125.000 CS39773A 2017902AOE 5821261252Video/Publications
