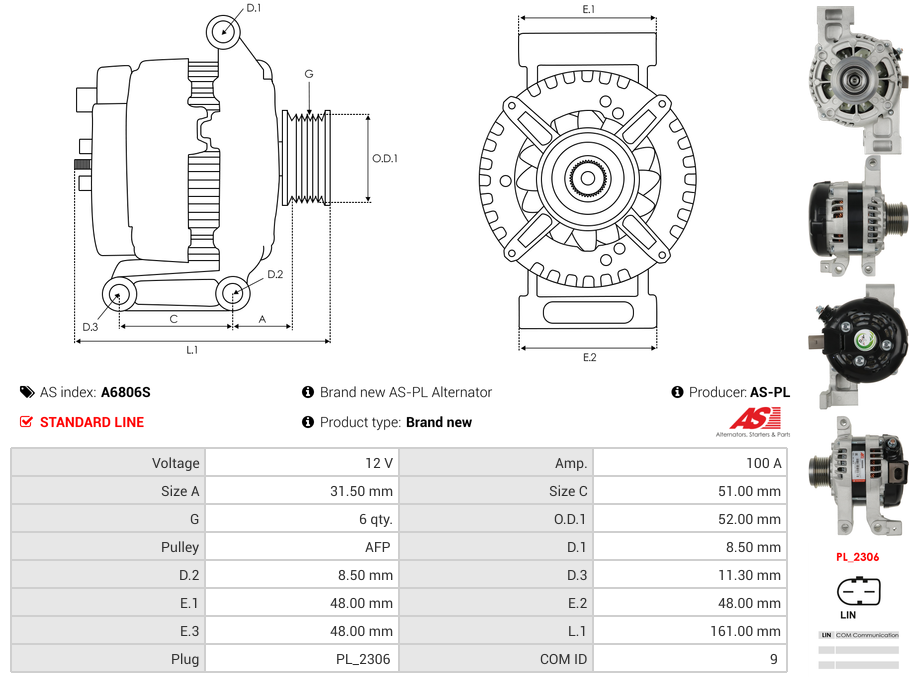

Specifications
| Amp | 100 A |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | 11.3 mm |
| Length (L.1) | 161 mm |
| Mount Inside Length or Pad Mount C-C (C) | 51 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 48 mm |
| Pad mount thickness (E.2) | 48 mm |
| Pad mount thickness (E.3) | 48 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52 mm |
| Pulley to Mount Distance (A) | 31.5 mm |
| Pulley Type | CLUTCH |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Auris 1.2 | [8NR-FTS] | 01.2018- |
| TOYOTA | C-HR 1.2 | [8NR-FTS] | 01.2016- |
| TOYOTA | Corolla 1.2 | [8NR-FTS] | 01.2018- |
Reference Information
104211-4330 ALN4254 27060-47191 104211-3930 UD102087A 27060-47190Video/Publications
