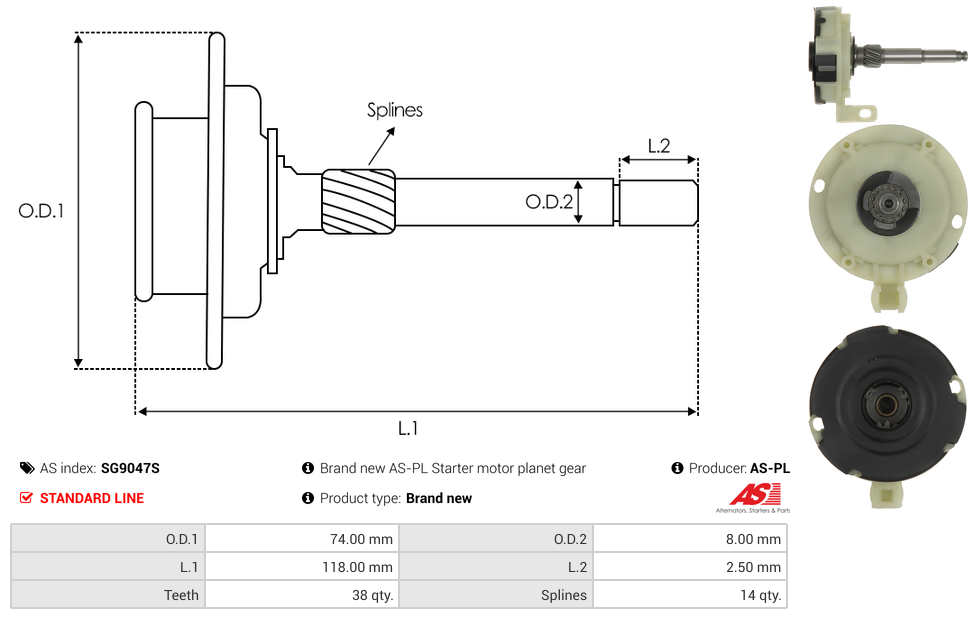

Specifications
| Length (L.1) | 118 mm |
| Length (L.2) | 2.5 mm |
| No./Splines | 14 qty |
| No./Teeth | 38 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 74 mm |
| Outside Diameter (O.D.2) | 8 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Unit Type | ISKRA / LETRIKA |
Reference Information
WG2203507 MSX1280KIT 16.908.354 064.000.138.310 72740006 MSX1280 UD49931SG MAHMSX1280KITVideo/Publications
AZE2641 AZE2663 11130923 AZE2662 SG9047S 11131528 AZE2687 AZE2642 11131922 11132318 11131527 AZE2672 AZE2683 11131199 11131233 11131255 11132364 S9200S AZE2645 S9204SView your shopping basket or Browse other items in Planetry Gears and Parts.
