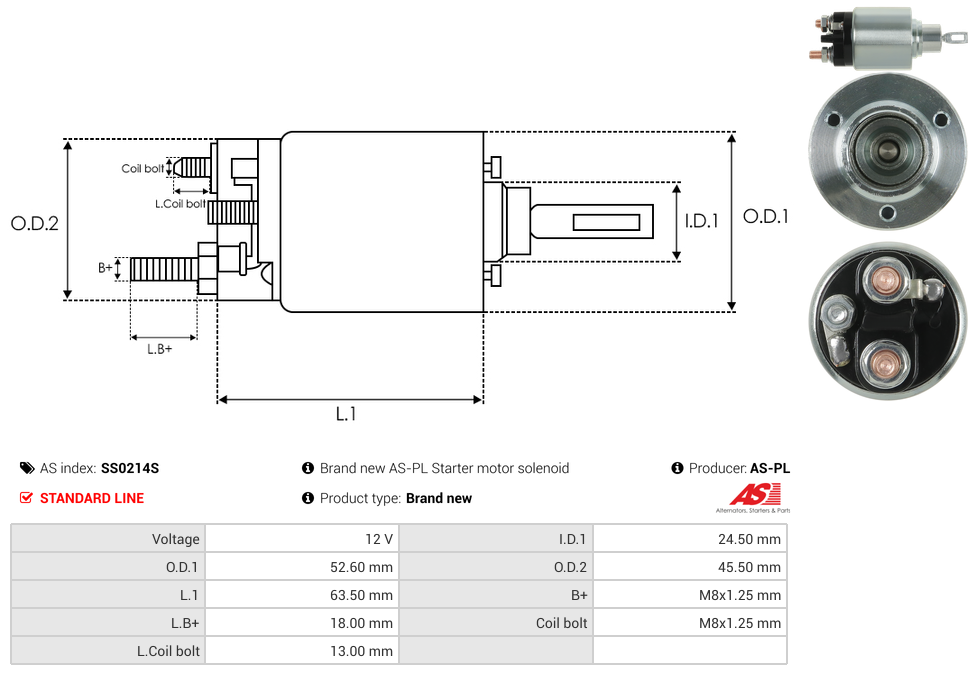

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 13 mm |
| Inside Diameter (I.D.1) | 24.5 mm |
| L.B+ | 18 mm |
| Length (L.1) | 63.5 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 52.6 mm |
| Outside Diameter (O.D.2) | 45.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Unit Type | BOSCH |
| Voltage | 12 V |
Reference Information
2339304032 46400 11110211AV ZM3371 SOL1410 SSO10211.0 SSO10211.1 81015067 BOS2339304057 93171947 2339304029 11110211OV 1986SE1679 E8141 36018211 227939 AZMT-49-036-1793 20301112OE 3371 054.000.780.016 CSO10211AS 20301112BN CSO10211GS SND11039 054.000.780.590 F032233577 233577 054.000.780.210 UD19957SS 28730304 2339304057Video/Publications
0001107402 0001107435 0001107401 SS0214S 0001109290 0001109250 0001109264 S0912S 0001107409 0001107429 S0088 S0100 0001107405 0001107404 0001107437 0001108218 0001107436 0001108217View your shopping basket or Browse other items in Starter Solenoid.
