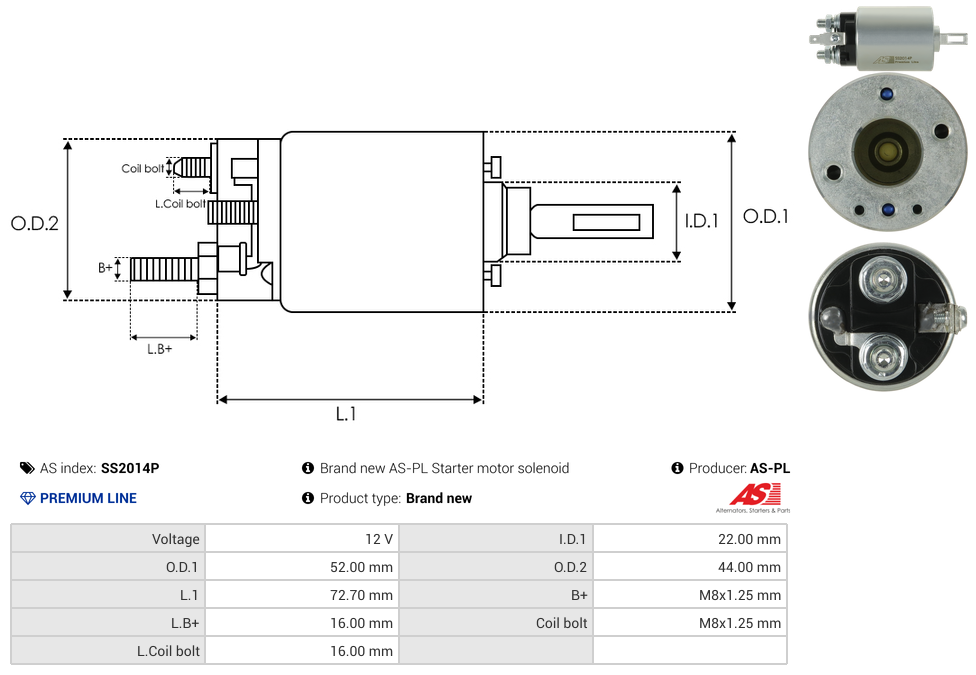

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 16 mm |
| Inside Diameter (I.D.1) | 22 mm |
| L.B+ | 16 mm |
| Length (L.1) | 72.7 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 52 mm |
| Outside Diameter (O.D.2) | 44 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Unit Type | HITACHI |
| Voltage | 12 V |
Reference Information
2130-27003 2130-77001 ZM781 133047 CQ2030576 81014209 054.000.401.590 SSO20107.0 F032133047 36028107 227769 1811510540 66-8128-1 9.40113E+11 11120107AV 20345701BN SOL3055 2130-97006 2130-57001 E8020 SSH3047 2114-77001 66-8105 CSO20107AS 2114-97509 054.000.401.086 66-8128 UD15978SS 781 5811510540 10610358 WOOSND1764 23343-W1700 46055 4.6409.9 WG2018186 SND1764 1014209Video/Publications
S13120B S1366A 8944299780 213097006 S114293 S114303A S114339D S114339A S114339C 8941492490 S1384 S114338 3610035010 S114453 S1384B S1382A S114454 S1382B S114429A S1371 213027003 213077001 S1349A S114338A SS2014P 213057001 S13207A S114429 S13207C S114303 8944532120 S1375 S2085S S114367 8941333381 211497509 5811001992View your shopping basket or Browse other items in Starter Solenoid.
