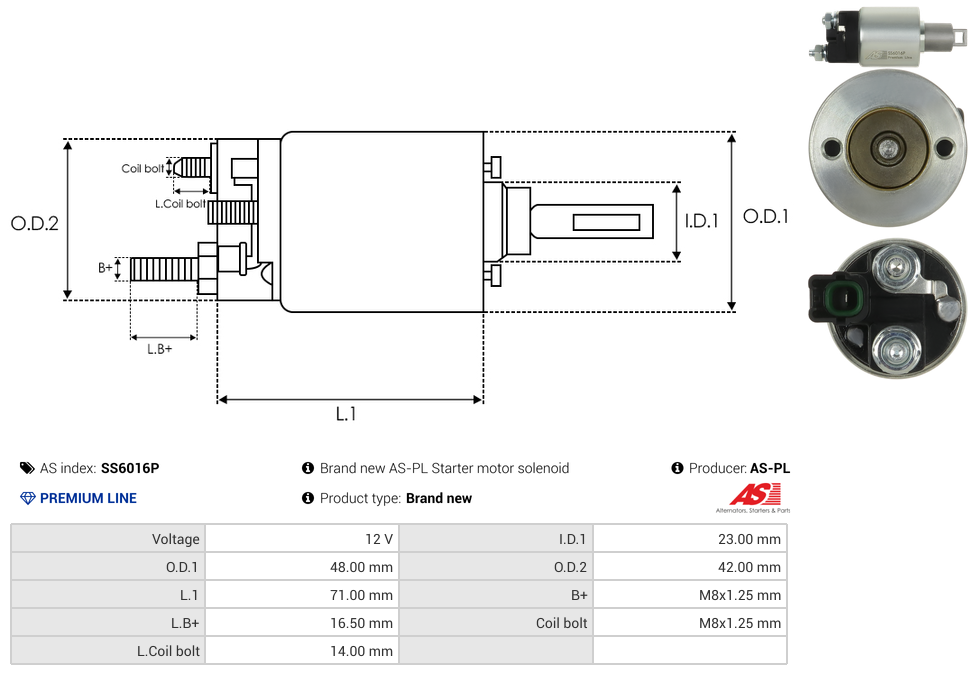

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 14 mm |
| Inside Diameter (I.D.1) | 23 mm |
| L.B+ | 16.5 mm |
| Length (L.1) | 71 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 48 mm |
| Outside Diameter (O.D.2) | 42 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Unit Type | DENSO |
| Voltage | 12 V |
Reference Information
054.001.117.590 66-8225 F032332477 153400-8413 SSN8225 054.001.117.056 28226-22061 28226-22060 332477 028099-9791 UD814475SS 6646-16102 SOL6086 153400-0000 425 28226-37120 28226-38030 ZM425Video/Publications
9642809002 4280000024 4280001311 DSN936 S6177 SS6016P 4280002340 S6037 4280000340 4280000023 4280002330 4280000341View your shopping basket or Browse other items in Starter Solenoid.
