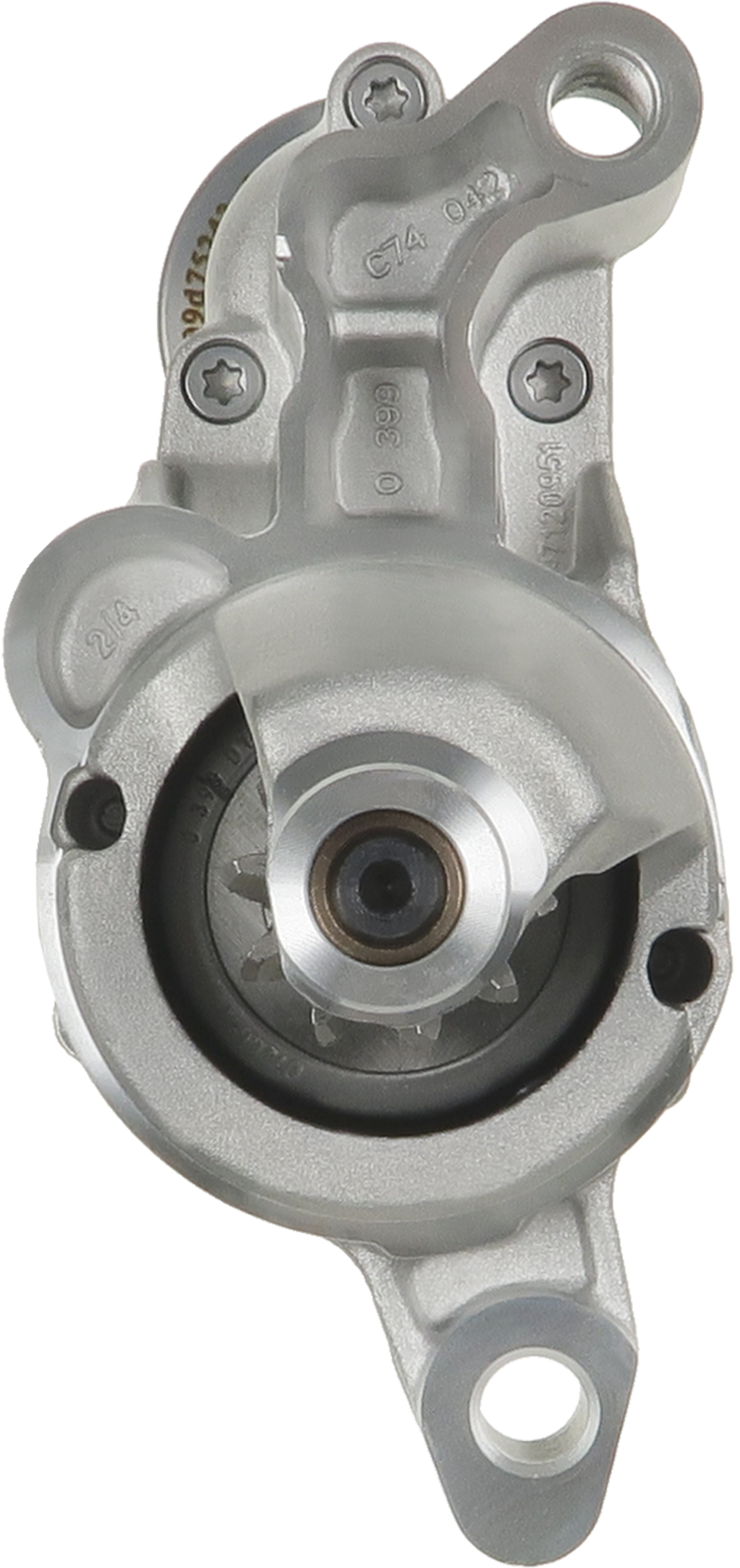

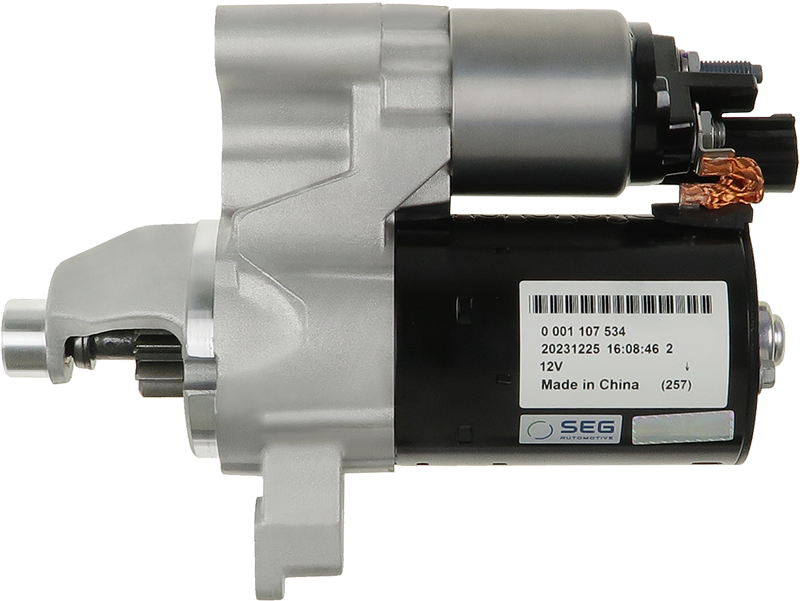

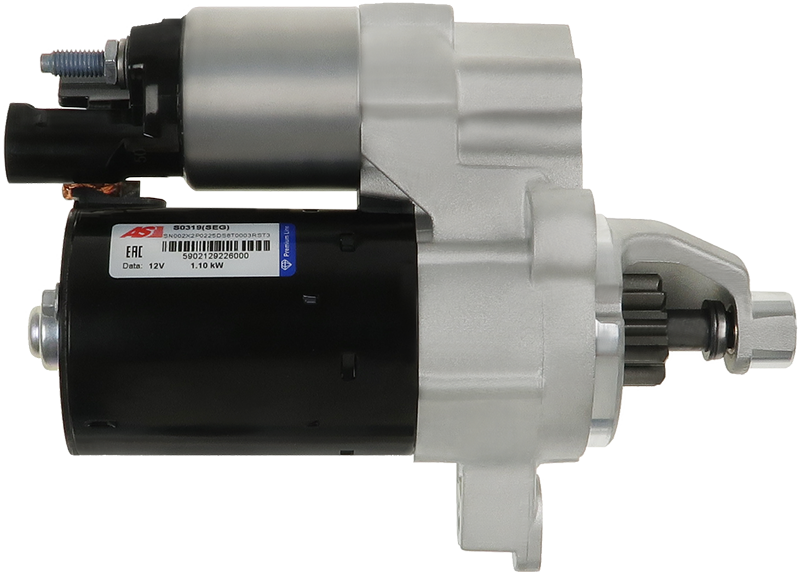

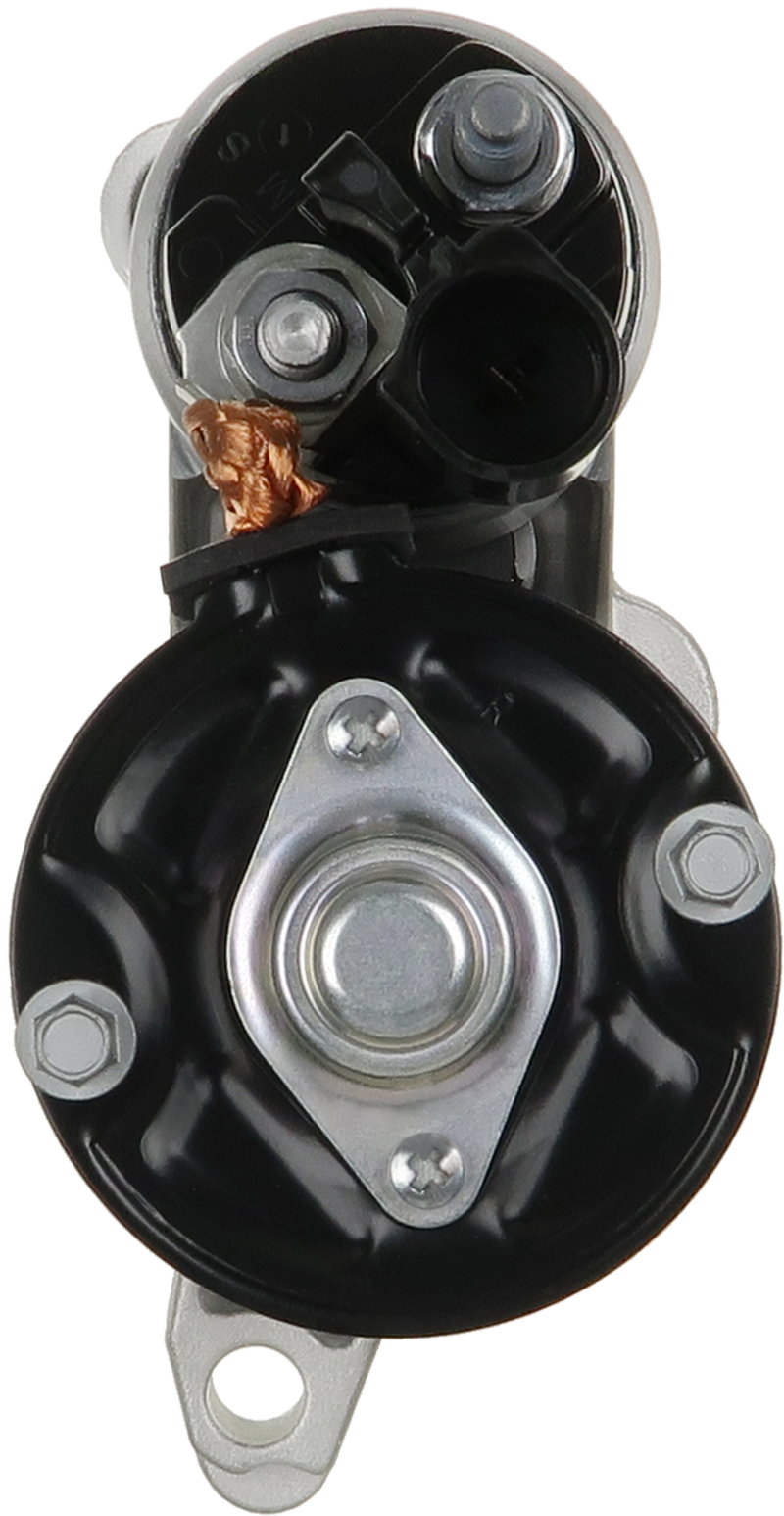

S0319(SEG) - Brand new OEM SEG Starter motor

Name: Brand new OEM SEG Starter motor
Brand: AS GROUP NZ
SKU: S0319(SEG)
Price: 324.77 NZD
Availability: BackOrder

Brand new OEM SEG Starter motor

PREMIUM LINE

Manufacturer:

SEG

Replacement For:

BOSCH

Price:

NZ$ 324.77 including GST

NZ$ 282.41 excluding GST

or four payments of $81.19 with
Learn More

UOM:

each

Alternative Item:

S0319

Product Code:

S0319(SEG)

Quantity In Stock Nationally:

No stock in NZ

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Information
Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

0001107534

0001107450 0001107451 0001107508 0001107509 0001107534 06D911021B 06D911021BX 06D911021D 06D911023B 06H911021A 06H911021AX 06H911021E 06H911021EX 0986024010 101437 101437B 115394 12147 16189 17677R 200.534.102 20401834OE 220604 25-4115 3054 33292N 6010438 8080307 AEY2443 BOS0001107534 CS1437 CST10438 CST10438AS CST10438ES CST10438GS CST10438OS CST10438RS DRS0178 LRS02443 RAS31289 S-6307 S1001B S1002B SS710 STR50543 UD12028S 200534102280 200534102 7013131 7013131G AS-PL AUTOELECTRO BOSCHList BOSCH CARGO CASCO CEVAM DELCO DIXIE EAI ELSTOCK ERA FRIESEN HC PARTS LUCAS PRESTOLITE PSH REAL SANDO SOVEREIGN VW WAI / TRANSPO WOODAUTO bxs0158 snb166 Bosch 0001107535 ruil 11090181 EuroTec 120600 PIC 17677 Lester 254115 Elstock 33292R 4891SP Spidan 8080307F Friesen 910178 EDR A24010 ATL Remy DRS0188 HCS1437 Lucas MS684 Mahle OSM11968 Optimum STM1238 Rolling Components STR1541sa Electrolog References: Volkswagen 41024302 Arrowhead SBO0298 33292 Picture ID 1205110 1205151 06H911021D Wilson 91157300 J N Beck Arnley 1871058 Fiat 9949609 CST10438 S1001B 20401834OE S-6307 RAS31289 SS710 06D911021BX S0319 CST10438GS DRS0178 17677R 0001107534 06D911021B CST10438OS 0001107451 0001107450 3054 33292N 0986024010 115394 BOS0001107534 06H911021A 06D911021D 101437 LRS2443 06H911021E 200.534.102 06H911021AX 06H911021EX AEY2443 CS1437 CST10438RS 25-4115 CST10438AS STRS354 101437B CST10438ES 06D911023B 6010438 220604 S1002B 16189 UD12028S LRS02443 STR50543 0001107509 0001107508 12147 8080307

Kilowatt	1.1 kW
Length (L.1)	222 mm
Mount Hole Center - Center (O.1)	133 mm
Mount Hole Diameter (C.1)	M12x1.75 mm
Mount Hole Diameter (C.2)	11 mm
No./Mount holes	2 qty
No./Mount holes with thread	1 qty
No./Teeth	10 qty
OEM Product	Yes
Pinion at Rest (B)	24 mm
Product Line	Premium Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	66 mm
Unit Type	BOSCH
Voltage	12 V

Make	Model	Type	Year
AUDI	A4 1.8 TFSi	[CABA]	01.2008-05.2008
AUDI	A4 1.8 TFSi	[CABB]	04.2008-
AUDI	A4 1.8 TFSi	[CABB]	11.2007-05.2008
AUDI	A4 1.8 TFSi	[CDHA]	06.2008-
AUDI	A4 1.8 TFSi	[CDHB]	04.2008-
AUDI	A4 1.8 TFSi	[CDHB]	05.2008-
AUDI	A4 1.8 TFSi	[CJEB]	11.2011-
AUDI	A4 1.8 TFSi Quattro	[CDHB]	09.2008-
AUDI	A4 1.8 TFSi Quattro	[CJEB]	11.2011-
AUDI	A4 2.0 TFSi	[CAEA]	06.2008-
AUDI	A4 2.0 TFSi	[CAEB]	06.2008-
AUDI	A4 2.0 TFSi	[CDNB]	06.2008-
AUDI	A4 2.0 TFSi	[CDNC]	06.2008-
AUDI	A4 2.0 TFSi	[CDZA]	06.2008-
AUDI	A4 2.0 TFSi Flexible fuel	[CFKA]	11.2009-
AUDI	A4 2.0 TFSi Flexible fuel Quattro	[CFKA]	11.2009-
AUDI	A4 2.0 TFSi Quattro	[CDNC]	06.2008-
AUDI	A4 2.0 TFSi Quattro	[CPMA]	04.2009-
AUDI	A4 2.0 TFSi Quattro	[CPMA]	06.2008-
AUDI	A5 1.8 TFSi	[CABD]	10.2007-
AUDI	A5 1.8 TFSi	[CABD]	10.2011-
AUDI	A5 1.8 TFSi	[CDHB]	05.2009-
AUDI	A5 1.8 TFSi	[CDHB]	09.2009-
AUDI	A5 1.8 TFSi	[CJEB]	10.2011-
AUDI	A5 1.8 TFSi Sportback	[CDHB]	11.2009-
AUDI	A5 1.8 TFSi Sportback	[CJEB]	10.2011-
AUDI	A5 2.0 TFSi	[CAEA]	03.2009-
AUDI	A5 2.0 TFSi	[CDNB]	03.2009-
AUDI	A5 2.0 TFSi	[CDNB]	09.2009-
AUDI	A5 2.0 TFSi	[CDNB]	11.2008-
AUDI	A5 2.0 TFSi	[CDNC]	03.2009-
AUDI	A5 2.0 TFSi	[CDNC]	06.2008-
AUDI	A5 2.0 TFSi Quattro	[CAEB]	03.2009-
AUDI	A5 2.0 TFSi Quattro	[CDNC]	06.2008-
AUDI	A5 2.0 TFSi Sportback	[CDNC]	09.2009-
AUDI	A5 2.0 TFSi Sportback Quattro	[CDNC]	09.2009-
AUDI	A6 2.0 TFSi	[CDNB]	05.2011-
AUDI	A6 2.0 TFSi	[CDNB]	06.2011-
AUDI	Q5 2.0 TFSi	[CDNB]	08.2009-
AUDI	Q5 2.0 TFSi	[CPMA]	11.2008-
AUDI	Q5 2.0 TFSi Quattro	[CNCD]	06.2012-

ST01633 S1001B 20401834OE S-6307 RAS31289 332189 SS710 06D911021BX 1986S00689 200.534.102.212 20401834BN 200.534.102.010 CST10438GS DRS0178 1986S00684 17677R 0001107534 06D911021B 06H911021H STR1541 0001107451 0001107450 STX201057R 460275 3054 33292N 147ST21 0986024010 115394 S12BH0233 06H911021B BOS0001107534 06H911021A 06B911021B TT16538 06D911021D LRS2443 101437 06H911021E 06H911021AX AU9038 5010376 06H911021EX AEY2443 CS1437 S12BH0233A2 200.534.102.280 25-4115 CST10438AS STX201057 STRS354 ANM12398X 101437B LES0495 AC-CBS1437 STB0118 06D911023B 220604 S1002B 16189 PRSS354 LRS02443 STR50543 6010438.0 6010438.1 UD03893(SEG)S IR9622 0001107509 0001107508 12147 8080307

S0319(SEG)
