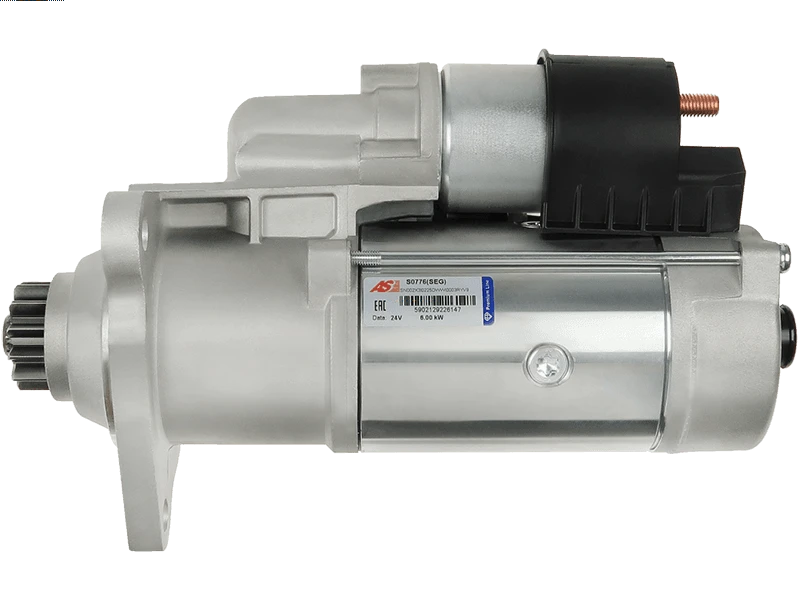

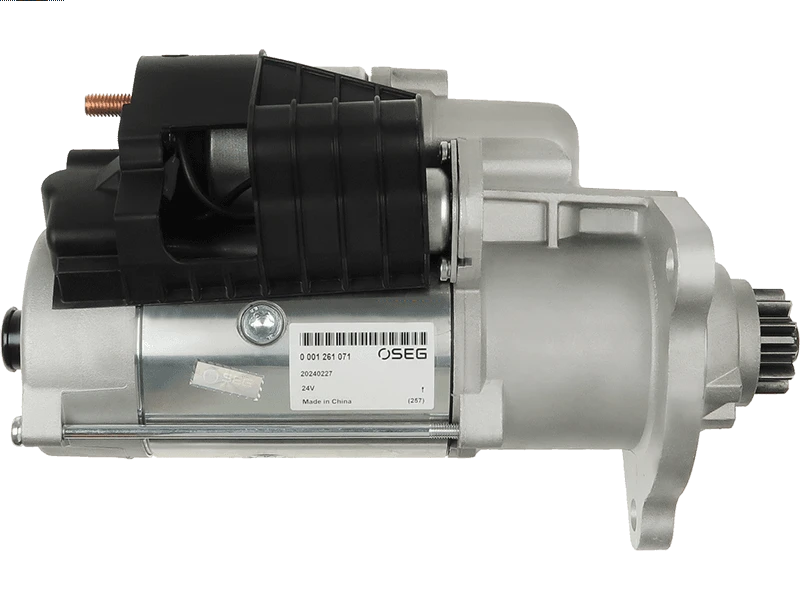

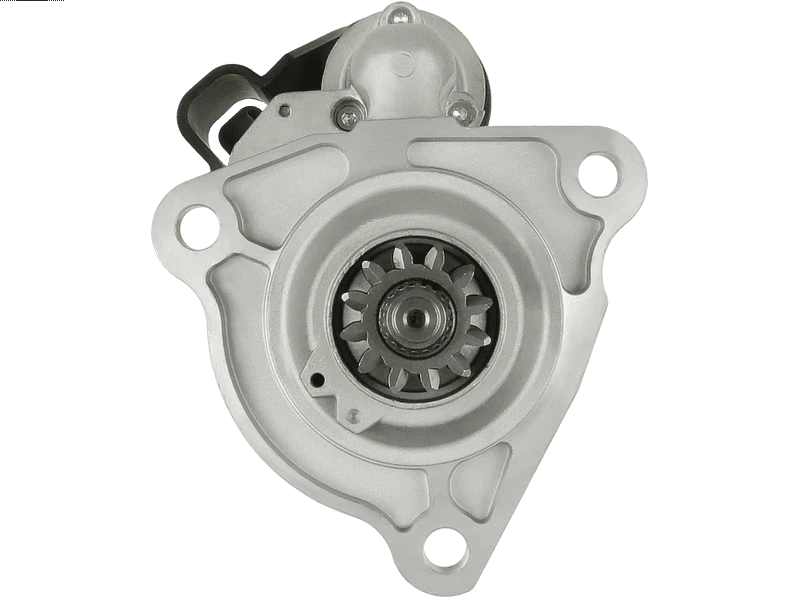

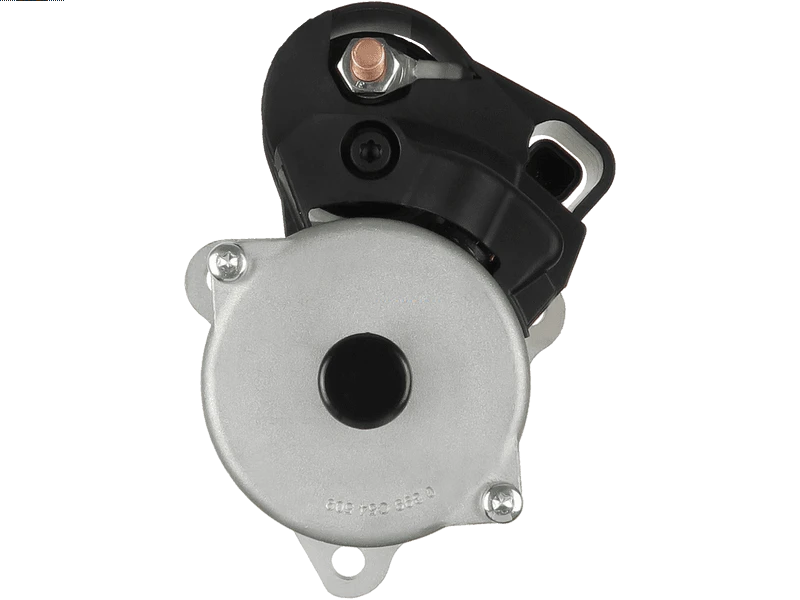

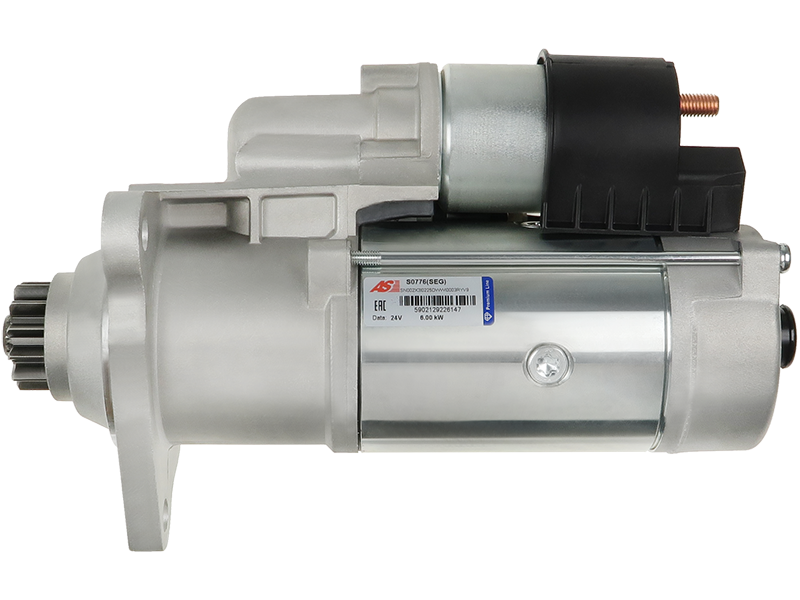

Brand new OEM SEG Starter motor
PREMIUM LINE
SEG
BOSCH
Price:
NZ$ 897.89 including GST
NZ$ 780.77 excluding GST
or four payments of $224.47
with
Learn More
each
S0776(SEG)
No stock in NZ
No stock in NZ
Information
0001261071Specifications
| Kilowatt | 6 kW |
| Length (L.1) | 324 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| Mount Hole Diameter (C.3) | 13.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 48 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAF | CF FA 290 18.0 | [MX-11210] | 05.2013- |
| DAF | CF FA 330 18.0 | [MX-11240] | 05.2013- |
| DAF | CF FA 370 18.0 | [MX-11271] | 05.2013- |
| DAF | CF FA 400 19.0 | [MX-11291] | 05.2013- |
| DAF | CF FA 400 20.5 | [MX-11291] | 05.2013- |
| DAF | CF FA 410 19.0 | [MX-13303] | 05.2013- |
| DAF | CF FA 410 20.5 | [MX-13303] | 05.2013- |
| DAF | CF FA 440 19.0 | [MX-11320] | 05.2013- |
| DAF | CF FA 440 20.5 | [MX-11320] | 05.2013- |
| DAF | CF FA 460 19.0 | [MX-13340] | 05.2013- |
| DAF | CF FA 460 20.5 | [MX-13340] | 05.2013- |
| DAF | CF FA 510 19.0 | [MX-13375] | 05.2013- |
| DAF | CF FA 510 20.5 | [MX-13375] | 05.2013- |
| DAF | CF FAD 400 32.0 | [MX-11291] | 05.2013- |
| DAF | CF FAD 410 32.0 | [MX-13303] | 05.2013- |
| DAF | CF FAD 440 32.0 | [MX-11320] | 05.2013- |
| DAF | CF FAD 460 32.0 | [MX-13340] | 05.2013- |
| DAF | CF FAD 510 32.0 | [MX-13375] | 05.2013- |
| DAF | CF FAG 290 26.0 | [MX-11210] | 05.2013- |
| DAF | CF FAG 330 26.0 | [MX-11240] | 05.2013- |
| DAF | CF FAG 370 26.0 | [MX-11271] | 05.2013- |
| DAF | CF FAG 400 26.0 | [MX-11291] | 05.2013- |
| DAF | CF FAG 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FAG 440 26.0 | [MX-11320] | 05.2013- |
| DAF | CF FAG 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FAG 510 26.0 | [MX-13375] | 05.2013- |
| DAF | CF FAN 290 26.0 | [MX-11210] | 05.2013- |
| DAF | CF FAN 330 26.0 | [MX-11240] | 05.2013- |
| DAF | CF FAN 370 26.0 | [MX-11271] | 05.2013- |
| DAF | CF FAN 400 26.0 | [MX-11291] | 05.2013- |
| DAF | CF FAN 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FAN 440 26.0 | [MX-11320] | 05.2013- |
| DAF | CF FAN 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FAN 510 26.0 | [MX-13375] | 05.2013- |
| DAF | CF FAR 290 26.0 | [MX-11210] | 05.2013- |
| DAF | CF FAR 330 26.0 | [MX-11240] | 05.2013- |
| DAF | CF FAR 370 26.0 | [MX-11271] | 05.2013- |
| DAF | CF FAR 400 26.0 | [MX-11291] | 05.2013- |
| DAF | CF FAR 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FAR 440 26.0 | [MX-11320] | 05.2013- |
| DAF | CF FAR 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FAR 510 26.0 | [MX-13375] | 05.2013- |
| DAF | CF FAS 290 26.0 | [MX-11210] | 05.2013- |
| DAF | CF FAS 330 26.0 | [MX-11240] | 05.2013- |
| DAF | CF FAS 370 26.0 | [MX-11271] | 05.2013- |
| DAF | CF FAS 400 26.0 | [MX-11291] | 05.2013- |
| DAF | CF FAS 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FAS 440 26.0 | [MX-11320] | 05.2013- |
| DAF | CF FAS 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FAS 510 26.0 | [MX-13375] | 05.2013- |
| DAF | CF FAT 290 26.0 | [MX-11240] | 05.2013- |
| DAF | CF FAT 330 26.0 | [MX-11240] | 05.2013- |
| DAF | CF FAT 370 26.0 | [MX-11271] | 05.2013- |
| DAF | CF FAT 400 26.0 | [MX-11291] | 05.2013- |
| DAF | CF FAT 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FAT 440 26.0 | [MX-11320] | 05.2013- |
| DAF | CF FAT 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FAT 510 26.0 | [MX-13375] | 05.2013- |
| DAF | CF FT 290 19.5 | [MX-11210] | 05.2013- |
| DAF | CF FT 330 19.5 | [MX-11240] | 05.2013- |
| DAF | CF FT 370 19.5 | [MX-11271] | 05.2013- |
| DAF | CF FT 400 18.6 | [MX-11291] | 05.2013- |
| DAF | CF FT 400 19.5 | [MX-11291] | 05.2013- |
| DAF | CF FT 410 18.6 | [MX-13303] | 05.2013- |
| DAF | CF FT 410 19.5 | [MX-13303] | 05.2013- |
| DAF | CF FT 440 18.6 | [MX-11320] | 05.2013- |
| DAF | CF FT 440 19.5 | [MX-11320] | 05.2013- |
| DAF | CF FT 460 18.6 | [MX-13340] | 05.2013- |
| DAF | CF FT 460 19.5 | [MX-13340] | 05.2013- |
| DAF | CF FT 510 18.6 | [MX-13375] | 05.2013- |
| DAF | CF FT 510 19.5 | [MX-13375] | 05.2013- |
| DAF | CF FTG 400 26.0 | [MX-11291] | 05.2013- |
| DAF | CF FTG 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FTG 440 26.0 | [MX-11320] | 05.2013- |
| DAF | CF FTG 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FTG 510 26.0 | [MX-13375] | 05.2013- |
| DAF | CF FTP 400 26.0 | [MX-11291] | 05.2013- |
| DAF | CF FTP 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FTP 440 26.0 | [MX-11320] | 05.2013- |
| DAF | CF FTP 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FTP 510 26.0 | [MX-13375] | 05.2013- |
| DAF | CF FTR 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FTR 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FTR 510 26.0 | [MX-13375] | 05.2013- |
| DAF | CF FTS 410 18.0 | [MX-13303] | 05.2013- |
| DAF | CF FTS 460 18.0 | [MX-13340] | 05.2013- |
| DAF | CF FTS 510 18.0 | [MX-13375] | 05.2013- |
| DAF | CF FTT 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FTT 440 26.0 | [MX-11320] | 05.2013- |
| DAF | CF FTT 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FTT 510 26.0 | [MX-13375] | 05.2013- |
| DAF | XF FA 410 18.0 | [MX-13303] | 10.2012- |
| DAF | XF FA 410 19.0 | [MX-13303] | 10.2012- |
| DAF | XF FA 410 20.5 | [MX-13303] | 10.2012- |
| DAF | XF FA 440 18.0 | [MX-11320] | 10.2012- |
| DAF | XF FA 440 19.0 | [MX-11320] | 10.2012- |
| DAF | XF FA 440 20.5 | [MX-11320] | 10.2012- |
| DAF | XF FA 460 18.0 | [MX-13340] | 10.2012- |
| DAF | XF FA 460 19.0 | [MX-13340] | 10.2012- |
| DAF | XF FA 460 20.5 | [MX-13340] | 10.2012- |
| DAF | XF FA 510 18.0 | [MX-13375] | 10.2012- |
| DAF | XF FA 510 19.0 | [MX-13375] | 10.2012- |
| DAF | XF FA 510 20.5 | [MX-13375] | 10.2012- |
| DAF | XF FAD 460 32.0 | [MX-13340] | 10.2012- |
| DAF | XF FAD 510 32.0 | [MX-13375] | 10.2012- |
| DAF | XF FAN 410 26.0 | [MX-13303] | 10.2012- |
| DAF | XF FAN 440 26.0 | [MX-11320] | 10.2012- |
| DAF | XF FAN 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FAN 510 26.0 | [MX-13375] | 10.2012- |
| DAF | XF FAR 410 25.3 | [MX-13303] | 10.2012- |
| DAF | XF FAR 410 26.0 | [MX-13303] | 10.2012- |
| DAF | XF FAR 440 25.3 | [MX-11320] | 10.2012- |
| DAF | XF FAR 440 26.0 | [MX-11320] | 10.2012- |
| DAF | XF FAR 460 25.3 | [MX-13340] | 10.2012- |
| DAF | XF FAR 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FAR 510 25.3 | [MX-13375] | 10.2012- |
| DAF | XF FAR 510 26.0 | [MX-13375] | 10.2012- |
| DAF | XF FAS 410 26.0 | [MX-13303] | 10.2012- |
| DAF | XF FAS 440 26.0 | [MX-11320] | 10.2012- |
| DAF | XF FAS 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FAS 510 26.0 | [MX-13375] | 10.2012- |
| DAF | XF FT 410 18.0 | [MX-13303] | 10.2012- |
| DAF | XF FT 440 18.0 | [MX-11320] | 10.2012- |
| DAF | XF FT 460 18.0 | [MX-13340] | 10.2012- |
| DAF | XF FT 510 18.0 | [MX-13375] | 10.2012- |
| DAF | XF FTG 410 26.0 | [MX-13303] | 10.2012- |
| DAF | XF FTG 440 26.0 | [MX-11320] | 10.2012- |
| DAF | XF FTG 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FTG 510 26.0 | [MX-13375] | 10.2012- |
| DAF | XF FTN 410 26.0 | [MX-13303] | 10.2012- |
| DAF | XF FTN 440 26.0 | [MX-11320] | 10.2012- |
| DAF | XF FTN 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FTN 510 26.0 | [MX-13375] | 10.2012- |
| DAF | XF FTP 410 23.4 | [MX-13303] | 10.2012- |
| DAF | XF FTP 410 26.0 | [MX-13303] | 10.2012- |
| DAF | XF FTP 440 23.4 | [MX-11320] | 10.2012- |
| DAF | XF FTP 440 26.0 | [MX-11320] | 10.2012- |
| DAF | XF FTP 460 23.4 | [MX-13340] | 10.2012- |
| DAF | XF FTP 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FTP 510 23.4 | [MX-13375] | 10.2012- |
| DAF | XF FTP 510 26.0 | [MX-13375] | 10.2012- |
| DAF | XF FTR 410 26.0 | [MX-13303] | 10.2012- |
| DAF | XF FTR 440 26.0 | [MX-11320] | 10.2012- |
| DAF | XF FTR 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FTR 510 26.0 | [MX-13375] | 10.2012- |
| DAF | XF FTS 410 26.0 | [MX-13303] | 10.2012- |
| DAF | XF FTS 440 26.0 | [MX-11320] | 10.2012- |
| DAF | XF FTS 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FTS 510 26.0 | [MX-13375] | 10.2012- |
| DAF | XF FTT 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FTT 510 26.0 | [MX-13375] | 10.2012- |
Reference Information
1886891 72514359 0986XL6291 BOS0001261087 21130035 SBO811 2134699R CST10811AS 116378 11.139.215 0001261046 0001261047 CGB-21095 BREF0320986025900 11025900 M90R3564SEVPP 10010811OV PREM90R3564SE 12130377 DRS1095 8034 255834P H5110078 116902 67011004 901.508.123.281 901.508.123.282 CST10811GS 255834 IS9513 ST02980 WG2203454 0001261088-R 0001261024 2015154R 646019124 AC-CBS5988 0001261023 5110078 45-5523 203009 20401118OE S24BH0118A2 438592 RNL261087 901.508.123.210 255834B M90R3564SE LRS4361 1956091 2134699 1956091R 901.508.123.380 2165367 BREF0321986S10046 UD03829(SEG)S LES0552 H5110078G 3127106 0001261088 0001261087 STB4255 5.47077 M90R3564AM 6010811.0 6010811.1 STR50722 0986025900 19084255 WOOSTR50722 8EA012586-741 STR10264 S103959 2015154 SEG0001261087 F032116902 LRS04361 1854008 MS998 S24BH0118 BREF032116902 184923 DS2205 2165367R S101368 901.508.123.010 AZF4916 1986S10046 30951N 20401118BN 901.508.123.018 10438302 STR79627 0001261071 0001261072 1886891R 10010811AV S100709Video/Publications
