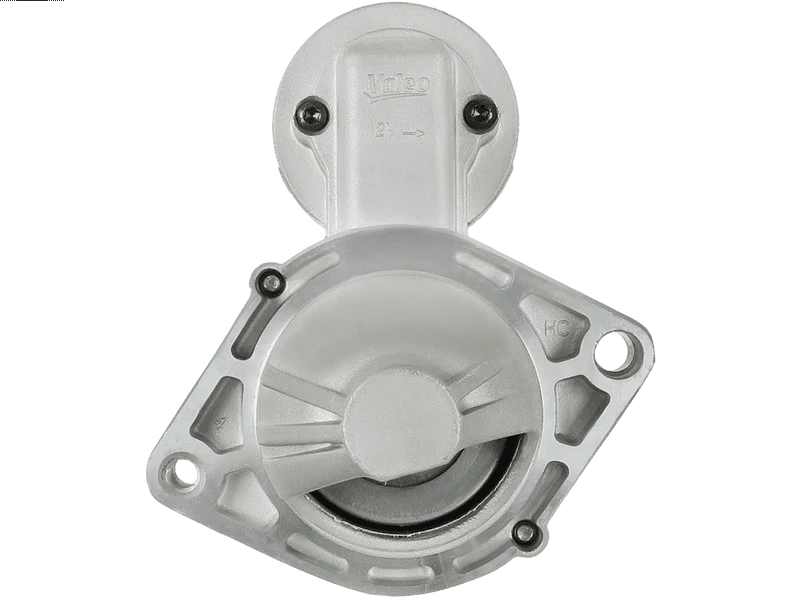

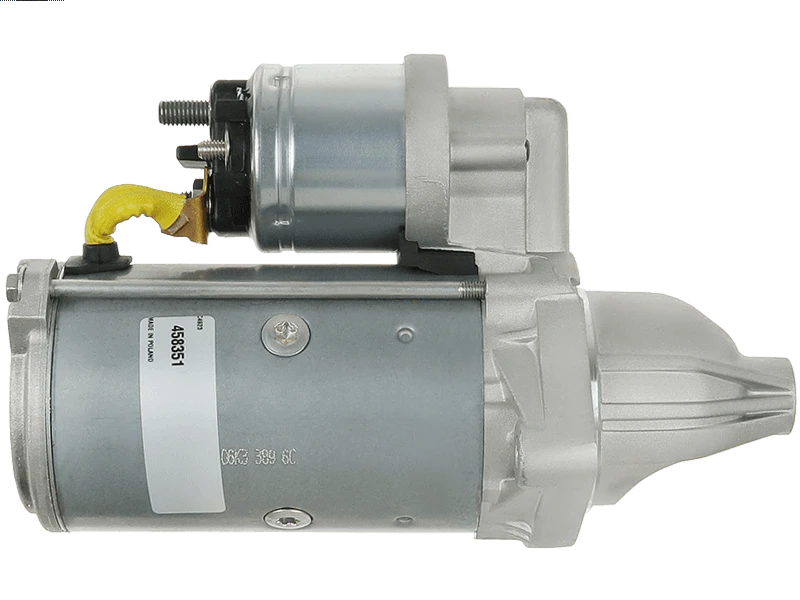

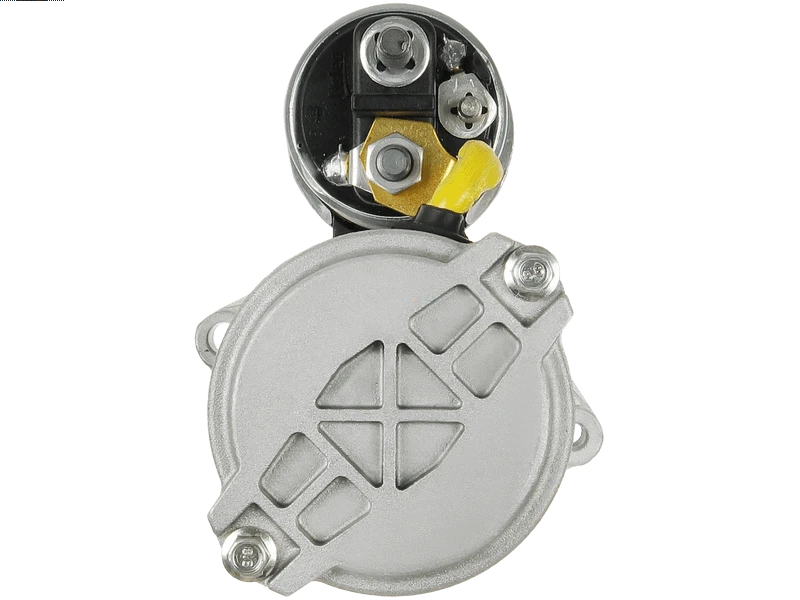

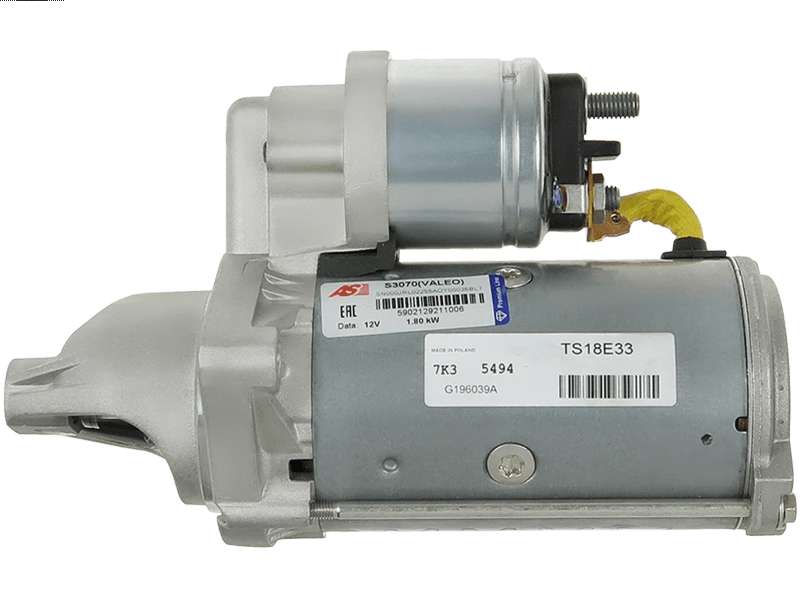

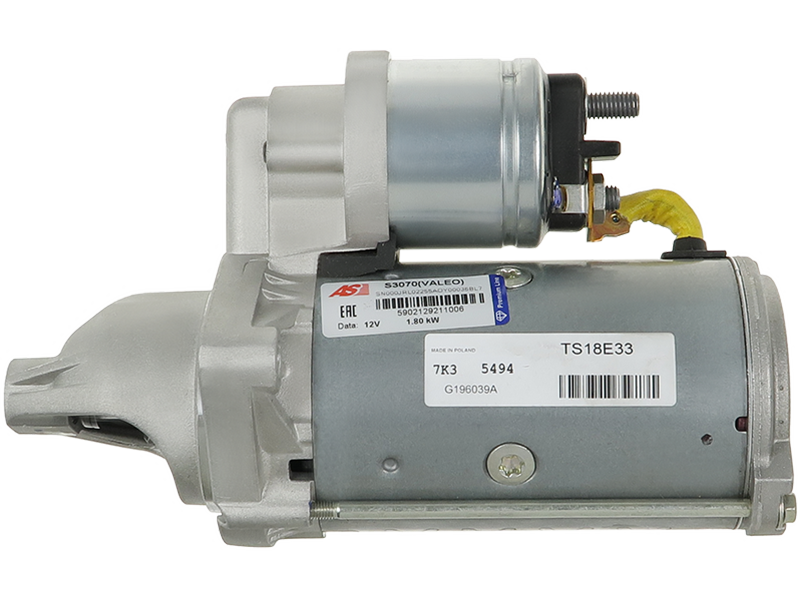

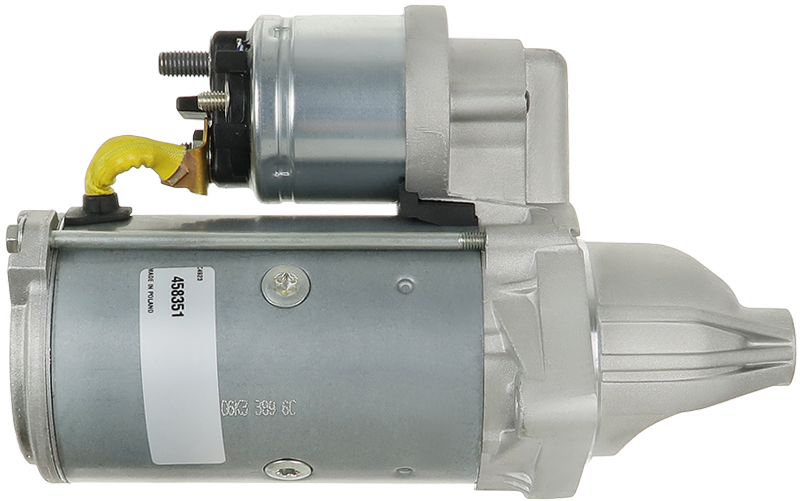

S3070(VALEO) - Brand new OEM VALEO Starter motor

Specifications

Kilowatt	1.8 kW
Length (L.1)	216 mm
Mount Hole Center - Center (O.1)	101 mm
Mount Hole Diameter (C.1)	9.5 mm
Mount Hole Diameter (C.2)	M8x1.25 mm
No./Mount holes	2 qty
No./Mount holes with thread	1 qty
No./Teeth	10 qty
OEM Product	Yes
Pinion at Rest (B)	24 mm
Product Line	Premium Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	64 mm
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CHEVROLET	Aveo 1.3 D	[LDV]	07.2011-12.2015
CHEVROLET	Aveo 1.3 D	[LSF]	07.2011-12.2015
OPEL	Agila 1.3 CDTi	[Z13DT]	08.2003-12.2007
OPEL	Astra 1.3 CDTi	[A13DTE]	05.2013-10.2015
OPEL	Astra 1.3 CDTi	[A13DTE]	06.2012-10.2015
OPEL	Astra 1.3 CDTi	[A13DTE]	10.2012-10.2015
OPEL	Astra 1.3 CDTi	[A13DTE]	12.2009-10.2015
OPEL	Astra 1.3 CDTi	[Z13DTH]	02.2007-10.2010
OPEL	Astra 1.3 CDTi	[Z13DTH]	08.2005-10.2010
OPEL	Astra 1.3 CDTi Sports Tourer	[A13DTE]	10.2010-10.2014
OPEL	Astra GTC 1.3 CDTi	[Z13DTH]	04.2005-10.2010
OPEL	Combo 1.3 CDTi 16V	[Z13DT]	08.2005-
OPEL	Combo 1.3 CDTi 16V	[Z13DTJ]	10.2005-12.2012
OPEL	Combo Tour 1.3 CDTi 16V	[Y13DT]	06.2004-01.2011
OPEL	Combo Tour 1.3 CDTi 16V	[Z13DT]	06.2004-01.2011
OPEL	Combo Tour 1.3 CDTi 16V	[Z13DTJ]	10.2005-12.2011
OPEL	Corsa 1.3 CDTi	[A13DTC]	07.2006-08.2014
OPEL	Corsa 1.3 CDTi	[A13DTE]	06.2009-08.2014
OPEL	Corsa 1.3 CDTi	[A13DTE]	11.2009-08.2014
OPEL	Corsa 1.3 CDTi	[A13DTR]	06.2009-08.2014
OPEL	Corsa 1.3 CDTi	[A13DTR]	11.2009-08.2014
OPEL	Corsa 1.3 CDTi	[Y13DT]	06.2003-12.2009
OPEL	Corsa 1.3 CDTi	[Z13DT]	06.2003-12.2009
OPEL	Corsa 1.3 CDTi	[Z13DTE]	06.2009-08.2014
OPEL	Corsa 1.3 CDTi	[Z13DTE]	11.2009-08.2014
OPEL	Corsa 1.3 CDTi	[Z13DTH]	07.2006-06.2010
OPEL	Corsa 1.3 CDTi	[Z13DTH]	07.2006-06.2011
OPEL	Corsa 1.3 CDTi	[Z13DTJ]	07.2006-08.2014
OPEL	Corsa 1.3 CDTi 16V	[Z13DT]	07.2005-06.2006
OPEL	Meriva 1.3 CDTi	[A13DTC]	06.2010-10.2013
OPEL	Meriva 1.3 CDTi	[A13DTE]	06.2010-11.2014
OPEL	Meriva 1.3 CDTi	[Y13DT]	04.2005-05.2010
OPEL	Meriva 1.3 CDTi	[Z13DT]	04.2005-05.2010
OPEL	Meriva 1.3 CDTi	[Z13DTJ]	09.2003-05.2010

Reference Information

8214249 TS18E331 196039 6202071 458351 RNLTS18E33 1638119980 WG2196670 S12VA0084A 10439606 063721511010 SS740 2131377 A22730 CST15221GS H5015081 6202083 STR0096 438212 55217672 PRSL154 S-54088 944280802340 TS18E33 10015221AV CS1511 2176 3142 20479122BN TT15192 130.547.102.006 6202099 6202095 ASM1088 8080234 93169309 3110764 3110765 LRS2348 12140 OP9041 SX 22.1511M 328065102 201102 11022730 STX200253 SG0560 130.547.102.000 S12VA0084 STM1186 0986022730 CST15221AS S12VA0084A2 130.547.102.505 QRS2075 EZ0092 220432 AEY2348 114029 93169458 130.547.102.500 SVA221 DSN3047 55564491 5015081 10015221OV 1265030 93190320 ST01548 55221292 8550504857 460477 254307V 93186246 ANM12343X 93189232 DRS0123 WG2012983 WG2012982 STR54088 LRS02348 SVA221A 011-001-000622R AC-CBS1511 R1530109 20479122OE R1530103 4736003 TT15192PRO UD809353(VALEO)S 60105011 R1540025 6015221.1 140ST21 6015221.0 33345N 22.1511 93191079 254307 8EA011612-601 106473 NPANSM1088 6202105 1202209 V40-12-50001 ANM12343 130.547.102.280 STRL154 BST2354 220432A 88214249 STX200253R 25-4020
