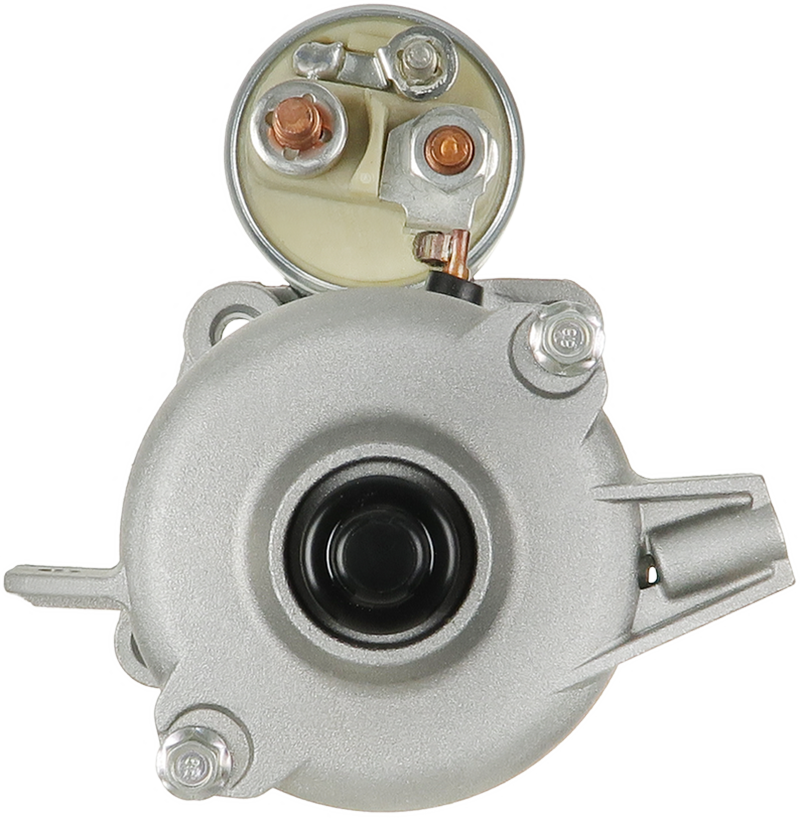

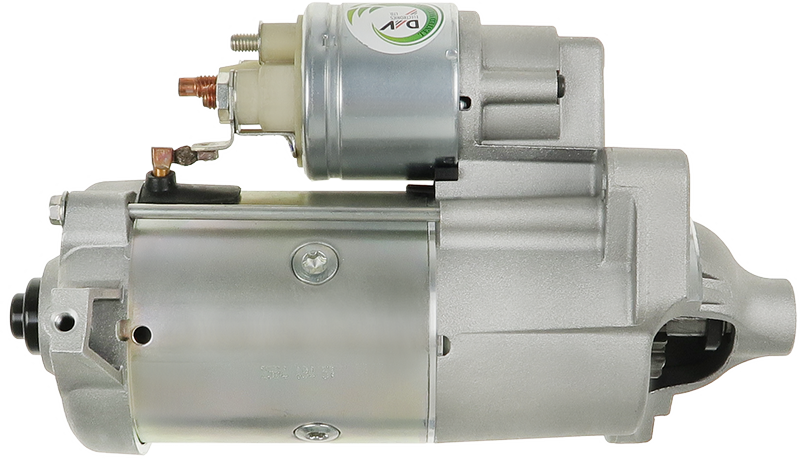

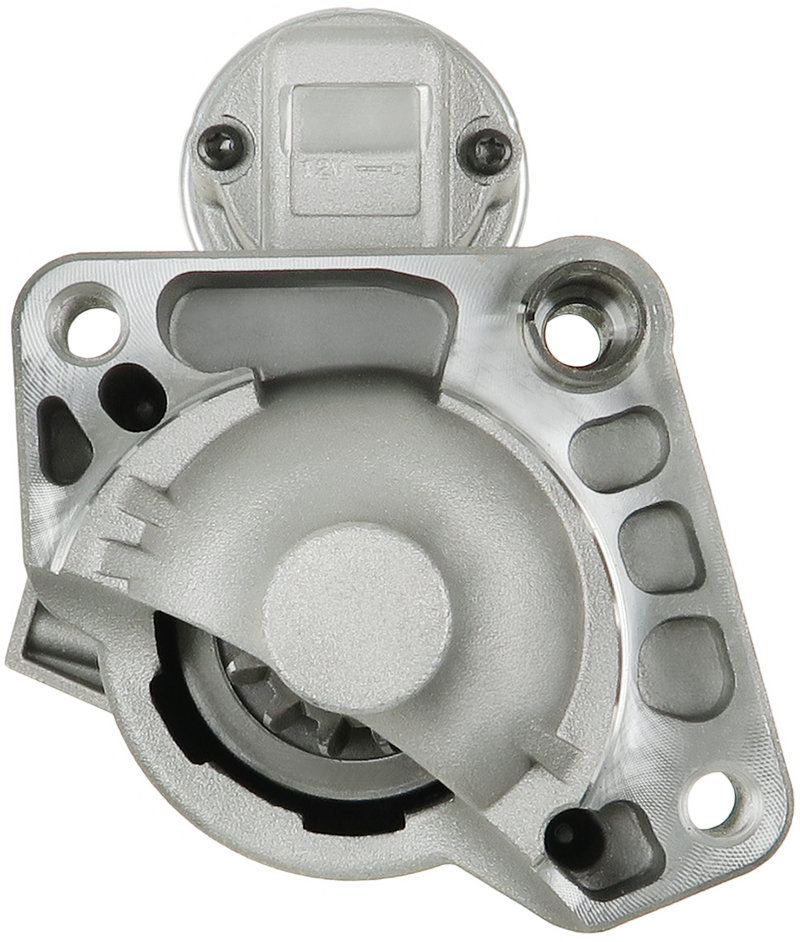

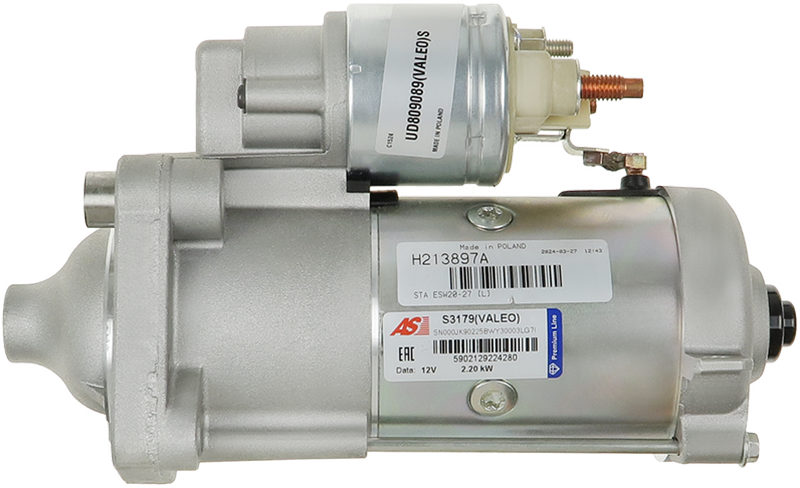

Brand new OEM VALEO Starter motor
PREMIUM LINE
Valeo
VALEO
Price:
NZ$ 916.49 including GST
NZ$ 796.95 excluding GST
or four payments of $229.12
with
Learn More
each
S3179(VALEO)
No stock in NZ
No stock in NZ
Information
438306Specifications
| Kilowatt | 2.2 kW |
| Length (L.1) | 235 mm |
| Mount Hole Center - Center (O.1) | 65 mm |
| Mount Hole Center - Center (O.2) | 65 mm |
| Mount Hole Center - Center (O.3) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 13 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | -2 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | S60 2.0 D2 | [D4204T20] | 03.2015- |
| VOLVO | S60 2.0 D2 | [D4204T8] | 03.2015- |
| VOLVO | S60 2.0 D3 | [D4204T4] | 03.2015- |
| VOLVO | S60 2.0 D3 | [D4204T9] | 03.2015- |
| VOLVO | S60 2.0 D4 | [D4204T14] | 03.2015- |
| VOLVO | S60 2.0 D4 | [D4204T5] | 09.2013-12.2015 |
| VOLVO | S60 2.0 D5 | [D4204T11] | 03.2015- |
| VOLVO | S60 2.0 T3 | [B4204T37] | 03.2015- |
| VOLVO | S60 2.0 T4 | [B4204T19] | 03.2015- |
| VOLVO | S60 2.0 T5 | [B4204T11] | 09.2013- |
| VOLVO | S60 2.0 T6 | [B4204T9] | 09.2013- |
| VOLVO | S80 2.0 D4 | [D4204T5] | 09.2013- |
| VOLVO | S80 2.0 Drive-E | [B4204T11] | 12.2014- |
| VOLVO | S80 2.0 T5 | [B4204T11] | 09.2013- |
| VOLVO | S90 2.0 D3 | [D4204T16] | 03.2016- |
| VOLVO | S90 2.0 D3 | [D4204T9] | 03.2016- |
| VOLVO | S90 2.0 D4 AWD | [D4204T14] | 03.2016- |
| VOLVO | V40 2.0 D2 | [D4204T13] | 02.2015- |
| VOLVO | V40 2.0 D2 | [D4204T8] | 02.2015- |
| VOLVO | V40 2.0 D3 | [D4204T16] | 04.2015- |
| VOLVO | V40 2.0 D3 | [D4204T9] | 04.2015- |
| VOLVO | V40 2.0 D4 | [D4204T14] | 05.2014- |
| VOLVO | V40 2.0 T2 | [B4204T17] | 02.2015- |
| VOLVO | V40 2.0 T2 | [B4204T38] | 02.2015- |
| VOLVO | V40 2.0 T3 | [B4204T33] | 02.2015- |
| VOLVO | V40 2.0 T3 | [B4204T37] | 02.2015- |
| VOLVO | V40 2.0 T4 AWD | [B4204T21] | 05.2014- |
| VOLVO | V40 2.0 T5 | [B4204T11] | 05.2014- |
| VOLVO | V40 2.0 T5 AWD | [B4204T11] | 05.2014- |
| VOLVO | V60 2.0 D2 | [D4204T20] | 03.2015- |
| VOLVO | V60 2.0 D2 | [D4204T8] | 03.2015- |
| VOLVO | V60 2.0 D3 | [D4204T4] | 03.2015- |
| VOLVO | V60 2.0 D3 | [D4204T9] | 03.2015- |
| VOLVO | V60 2.0 D4 | [D4204T14] | 03.2015- |
| VOLVO | V60 2.0 D4 | [D4204T5] | 10.2013-12.2015 |
| VOLVO | V60 2.0 D5 | [D4204T11] | 03.2015- |
| VOLVO | V60 2.0 T3 | [B4204T37] | 03.2015- |
| VOLVO | V60 2.0 T4 | [B4204T19] | 03.2015- |
| VOLVO | V60 2.0 T5 | [B4204T11] | 10.2013- |
| VOLVO | V60 2.0 T6 | [B4204T9] | 10.2013- |
| VOLVO | V60 2.0 T6 AWD | [B4204T9] | 10.2013- |
| VOLVO | V70 2.0 D2 | [D4204T20] | 03.2015- |
| VOLVO | V70 2.0 D4 | [D4204T5] | 10.2013- |
| VOLVO | V70 2.0 T4 | [B4204T19] | 03.2015- |
| VOLVO | V70 2.0 T5 | [B4204T11] | 10.2013- |
| VOLVO | V90 2.0 D3 | [D4204T16] | 03.2016- |
| VOLVO | V90 2.0 D3 | [D4204T9] | 03.2016- |
| VOLVO | V90 2.0 D3 AWD | [D4204T4] | 03.2016- |
| VOLVO | V90 2.0 D4 | [D4204T14] | 03.2016- |
| VOLVO | V90 2.0 D4 AWD | [D4204T14] | 03.2016- |
| VOLVO | V90 2.0 D5 AWD | [D4204T23] | 03.2016- |
| VOLVO | XC40 2.0 D4 AWD | [D4204T12] | 10.2017- |
| VOLVO | XC60 2.0 D3 | [D4204T4] | 03.2015-02.2017 |
| VOLVO | XC60 2.0 D4 | [D4204T14] | 03.2015-02.2017 |
| VOLVO | XC60 2.0 D4 | [D4204T5] | 10.2013-12.2015 |
| VOLVO | XC60 2.0 D4 AWD | [D4204T14] | 03.2017- |
| VOLVO | XC60 2.0 T5 | [B4204T11] | 10.2013- |
| VOLVO | XC60 2.0 T6 | [B4204T9] | 10.2013- |
| VOLVO | XC60 2.0 T6 AWD | [B4204T9] | 10.2013- |
| VOLVO | XC70 2.0 D4 | [D4204T5] | 10.2013- |
| VOLVO | XC70 2.0 T5 | [B4204T11] | 10.2013- |
| VOLVO | XC90 2.0 D4 | [D4204T14] | 06.2015- |
| VOLVO | XC90 2.0 D4 AWD | [D4204T6] | 06.2015- |
| VOLVO | XC90 2.0 D5 AWD | [D4204T11] | 09.2014- |
| VOLVO | XC90 2.0 D5 AWD | [D4204T23] | 03.2016- |
Reference Information
108584 IR1093 810.543.133.500 255657 10437963 CST15295GS 213897 31419530 LRS3813 UD809089(VALEO)S 88214670 ESW22E3 VAL438306 25-4486 332221 36002980 3248 416ST21 STRE428 255657V STV1482 F032116265 458724 ESW20-27 810.543.133.000 CST15295AS 12416 STR00177 ESW2027HE 36012434 338053132 3125588 11090369 8550504871 438306 30659576 STM1428 ST01961 20479592OE VO9024 20479592BN 8EA011611-851 16036N 221016A 201231 116265 6015295.1 6015295.0 10015295OV LRS03813 QRS2685 WG2013575Video/Publications
