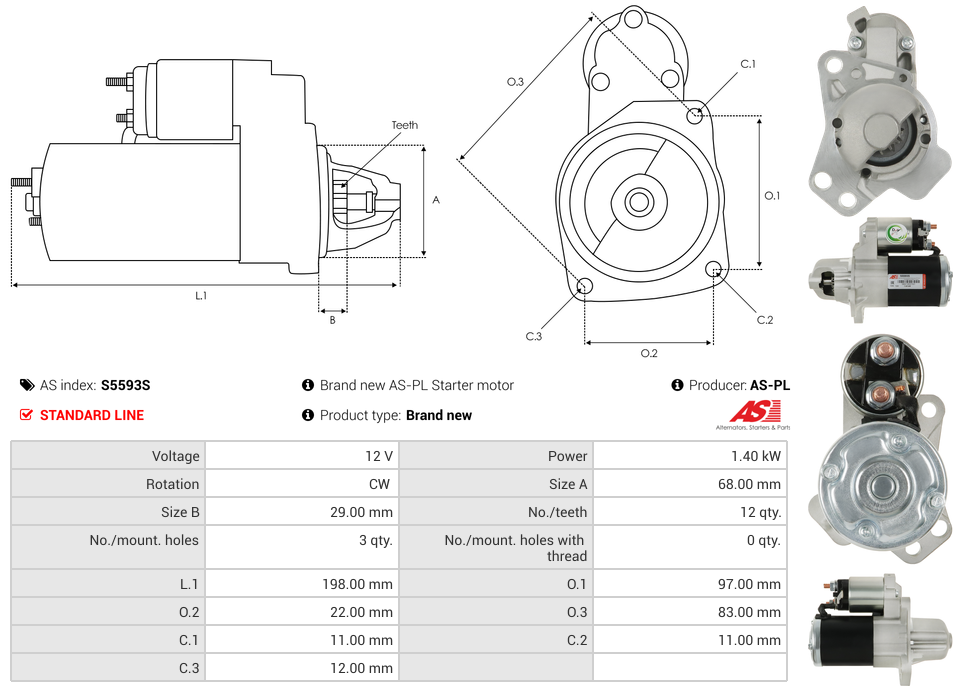

Specifications
| Kilowatt | 1.4 kW |
| Length (L.1) | 198 mm |
| Mount Hole Center - Center (O.1) | 97 mm |
| Mount Hole Center - Center (O.2) | 22 mm |
| Mount Hole Center - Center (O.3) | 83 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 12 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 29 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 68 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | Grand Vitara 3.2 4x4 | [N32A] | 01.2009-02.2015 |
Reference Information
UD102394S 345044122 180.542.123.130 25-5404 M000T23071 LRS04242 31100-79K00 ST02861 LRS4242 256917 M0T23071Video/Publications
