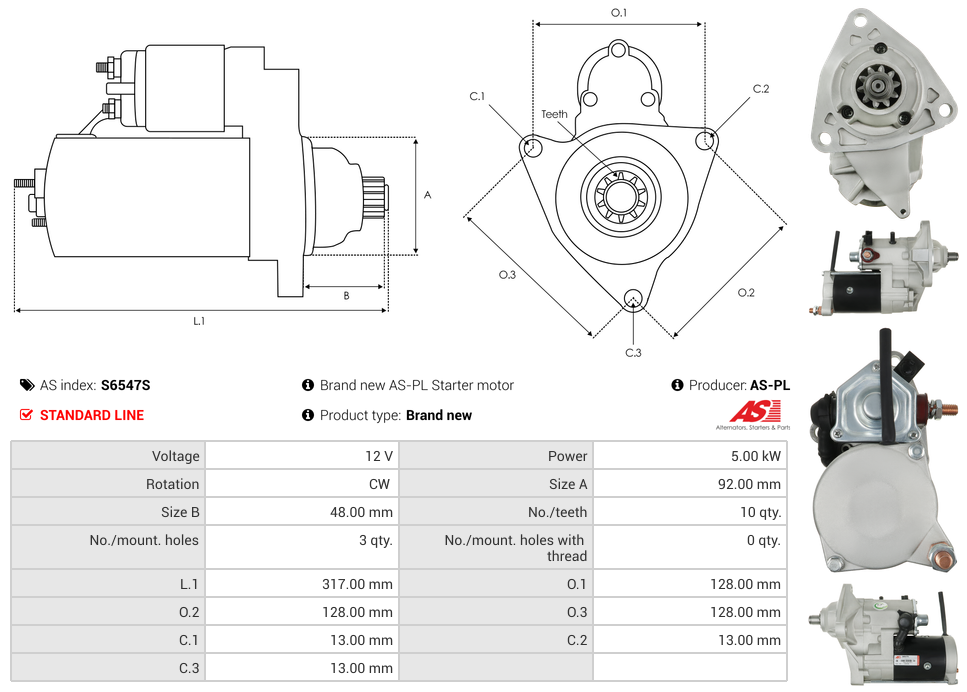

Specifications
| Kilowatt | 5 kW |
| Length (L.1) | 317 mm |
| Mount Hole Center - Center (O.1) | 128 mm |
| Mount Hole Center - Center (O.2) | 128 mm |
| Mount Hole Center - Center (O.3) | 128 mm |
| Mount Hole Diameter (C.1) | 13 mm |
| Mount Hole Diameter (C.2) | 13 mm |
| Mount Hole Diameter (C.3) | 13 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | Various Models | ||
| CUMMINS | Various Models | ||
| NEW HOLLAND | MX240 |
Reference Information
UD100742S 87593436 108866 540.517.103.260 20432515OE 256317D 540.517.103.050 428080-5850 6040515.1 DENDSN2031 DSN2031 WG1920154 CST40515GSVideo/Publications
