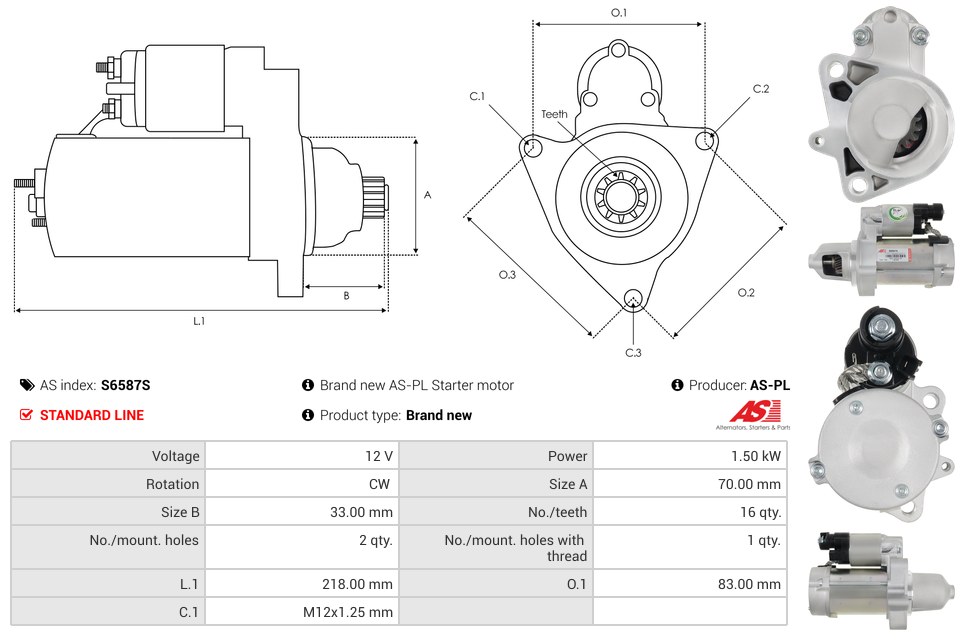

Specifications
| Kilowatt | 1.5 kW |
| Length (L.1) | 218 mm |
| Mount Hole Center - Center (O.1) | 83 mm |
| Mount Hole Diameter (C.1) | M12x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 16 qty |
| OEM Product | No |
| Pinion at Rest (B) | 33 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | Civic 1.0 iVTEC | [P10A4] | 07.2018-12.2022 |
| HONDA | Civic 1.0 VTEC | [P10A2] | 07.2018-12.2022 |
Reference Information
UD102294S 438000-2810 STN3159 3412 LRS04211 322087162 ST02830 PYPUX LRS4211 120.901.162.050 31200-5AY-H51 25-5373Video/Publications
