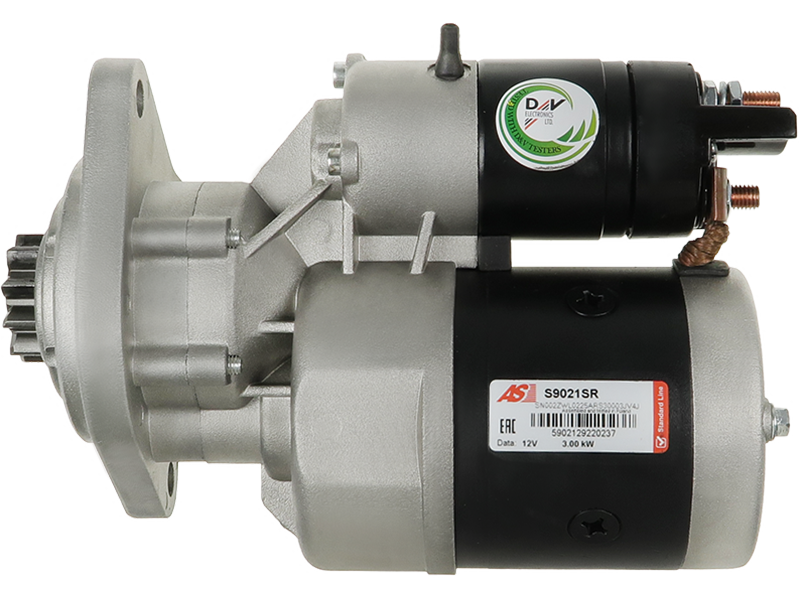

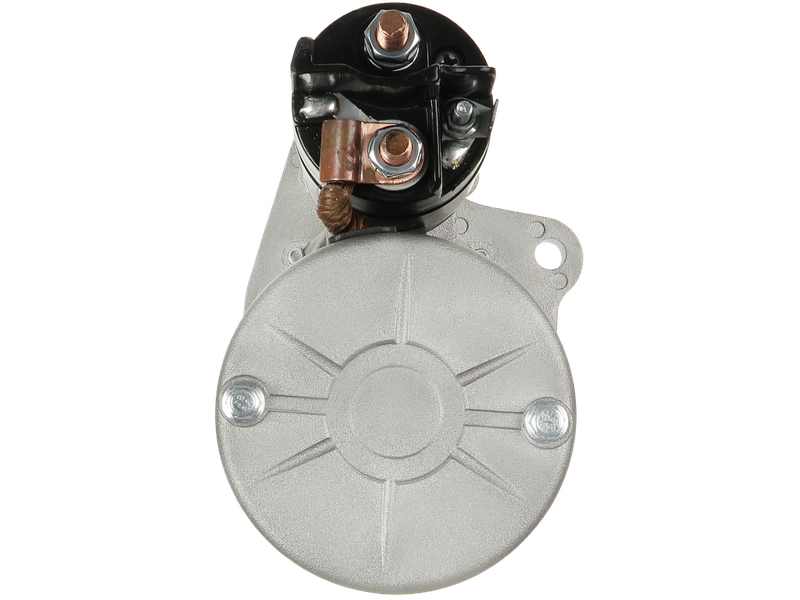

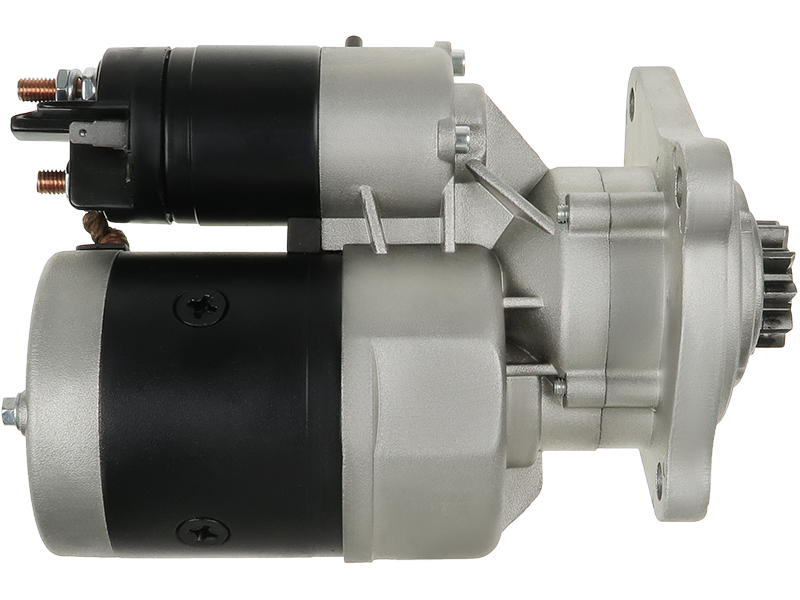

Remanufactured AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 352.33 including GST
NZ$ 306.37 excluding GST
or four payments of $88.08
with
Learn More
each
S9021SR
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 3 kW |
| Length (L.1) | 230 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11.5 mm |
| Mount Hole Diameter (C.2) | 11.5 mm |
| Mount Hole Diameter (C.3) | 11.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 30 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | MAGNETON |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MASSEY FERGUSON | MF 274 3.9 | 01.1983-12.1988 | |
| MASSEY FERGUSON | MF 4270 | 01.1997- |
Reference Information
538502 10994P 714-40005 10994L 25-1022 3597372M2 D11E154 650.001.103.320 650.001.103.200 20419831OE 111346 433316 2873A029 26323 25-2228 27539 PRSL027 3763362M94 863.000.5 863.000.4 D11E15H 9144703 STX200678 AZJ3144 714/40005 3763362M91 25-0041 27626A 27572A 27572B 3546391M91 PRSL030 27572E 8EA726027-001 6005021272 27572F 26414 27572D 2873A031 LRS00232 LRS969 26410 714-14300 714/40159 1860093M2 3516094M1 88212679 27519 27515E 27583A 27583B 3519400M1 27583D 27583J 27515 27583H MS548 26414E 9142743 27510 LRS173 650.001.103.310 806.004.000.0 650.001.103.311 27515B 27539D 26414R 27539B 27515A CGB-50041 27608 27602 27606 26320D 3542185M93 CS201 3542185M92 11.130.411 2873006T STRL027 3542185M91 6005700081 2378A029 6005003154 CGB-23287LU 3597372R2 7017954M1 MT68S 443115142743 MAV3630 D11E137 220739 AZJ3536 111013 26366B STX200560 11.130.076 26366A AES2132 1868285R3 11.130.872 CST21138GS 11.130.509 STRL825 1447731 70179544M1 2873B057 MS345 2873B055 2873006 STRL030 2873003 2873004 388187A1 CGB-23287 388187A2 11.130.629 27510B 650.501.103.090 27510F 234987A1 R11-04 26274 7701031686 DRS3287 AZJ3305 MS282 MAV271220 2873D001 M100R2015SE 2873D002 2873D003 26323A 2873B073 11.130.200 20500969 2873B072 25-1410 LRS232 ALTS698 3181A032 26358A 706022A1 27583 F042S0H007 650.001.103.380 S5005L 3519400M92 AZJ3203 8212679 MS385 27599 714-29500 26345B 27594 26345A CS994 17072N 27598 26345E 26345D 323319A1 3930506R1 27590 123708007 906.011.000.0 AZJ3598 27594A AZJ3117 27568 AZJ0405 26358 1873A055 3539390M91 1873A054 11.130.373 27565 LRS00173 S13-73 AZJ3590 S13-74 1868287T 1691806R1 54265233 27578 27572 714/29500-R 26274B 26366 3930509R1 26274E MS615OF 1868285M3 LRS00969 1868285M2 909971R2 650.501.103.312 26274H 1868285M1 26410R STX210084 10201L 110565 8EA737250-001 STX210083 0001367040 STX200715 10201P 6021138.1 S12LU0292A2 1447834M91 CS1033 AES9169 27541 650.001.103.100 CGB-23287BO 3116683R91 S13-73B 26345 STR25013 26410B 26410A 7700011850 S12-73 STX210091 66925051 11.130.904 25-1030Video/Publications
