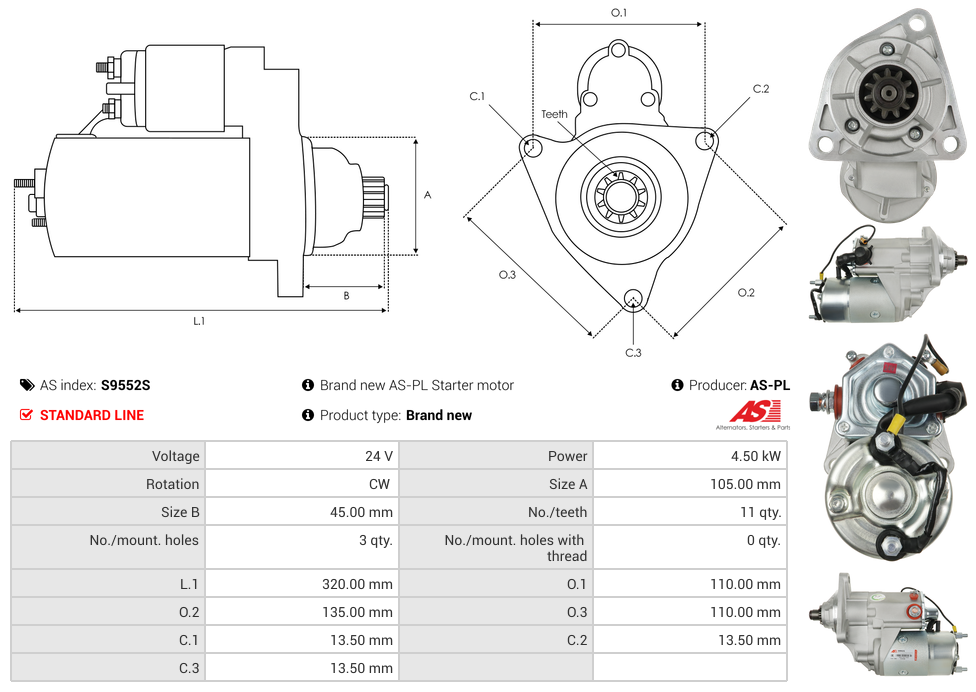

Specifications
| Kilowatt | 4.5 kW |
| Length (L.1) | 320 mm |
| Mount Hole Center - Center (O.1) | 110 mm |
| Mount Hole Center - Center (O.2) | 141 mm |
| Mount Hole Center - Center (O.3) | 110 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| Mount Hole Diameter (C.3) | 13.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 45 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 105 mm |
| Unit Type | DOOSAN |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAEWOO | Various Models | ||
| DOOSAN | Various Models |
Reference Information
6046606.1 109101 STR85208 10046606OV CST46606GS 20460606BN WOOSTR85208 10046606AV CST46606AS SDA606A 335984 6046606 30051600011 20460606OE SDA606 30051600012 231.503.113.120 UD102531S 65262017092 65262017091 10438351 UD102189SVideo/Publications
